Product Summary
G1200 7-Inch Digital Microscope 1200x Continuous Zoom HD 12MP Industry Microscope Adjustable is a digital microscope selected for inspecting circuit boards, solder joints, small parts and fine details. It is suitable for PCB repair users, inspection teams and electronics makers who need practical electronics hardware for reliable project work.
Best For
- inspecting circuit boards, solder joints, small parts and fine details
- PCB repair, soldering review, component inspection and bench workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for PCB repair users, inspection teams and electronics makers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Advantage1:

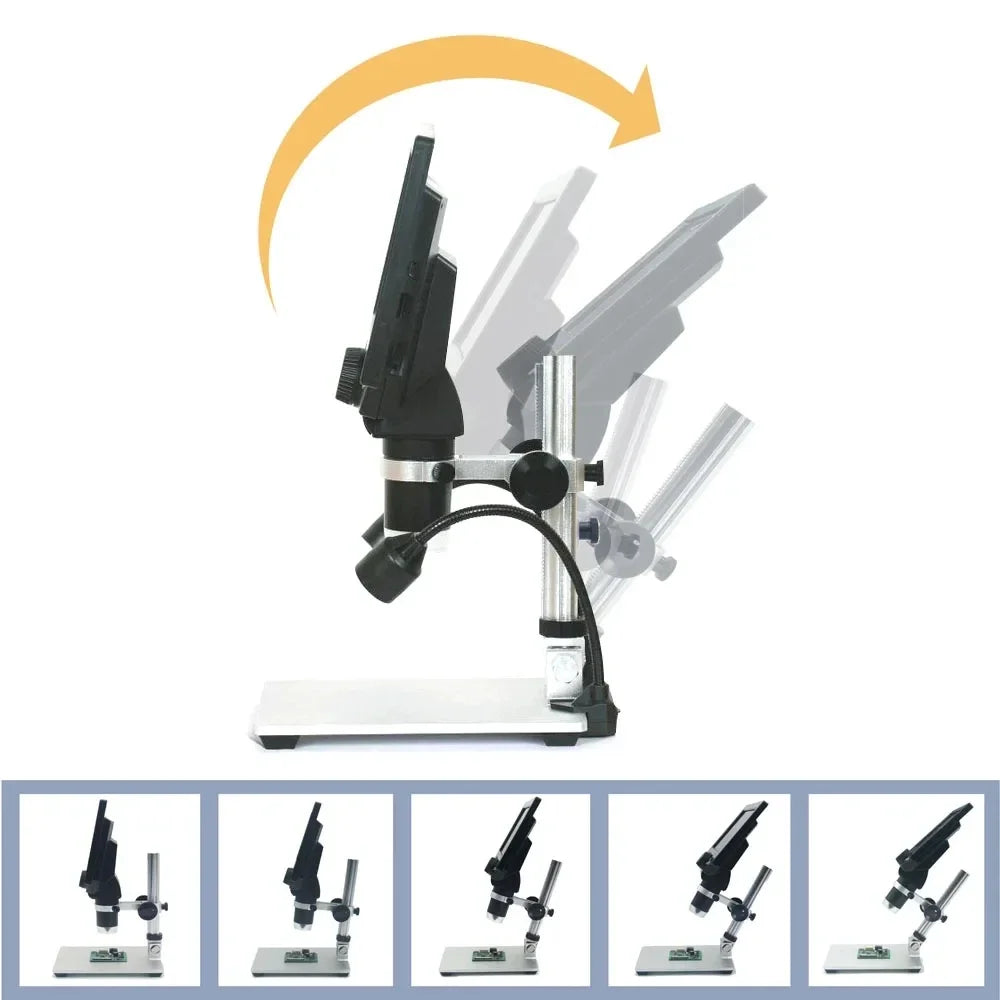

The G1200 solves the problem of detail loss caused by reflection that is prone to occur in vertical microscopes, and is especially suitable for applications that require clear observation of object details. It also has an adjustable-angle stand and a larger operating space.
Advantage2:
It has a continuous zoom function and provides a wide range of magnification options from 1 to 1200 times, providing richer observation options compared to traditional microscopes.
Features:
1: Pixel: HD 12 megapixel
2: Display screen: 7-inch HD LCD display.
3: Magnification: 1-1200X continuous amplification system.
4: Distance between object: 10MM to unlimited(different distances correspond to different multiples)
5: Built-in ultra-lithium battery,the battery can work continuously for 4-5 hours (when not on video recording working condition)
6: Sixteen language systems: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portugal, German, French, Italy, Turkey, Czech, Poland, Traditional Chinese, Simplified Chinese.
7. Optional fill light and line controller
Specifications:
In video mode:
Resolution: 1080FHD, 720P, VGA
Circulating camera: Off/3 minutes/5 minutes/10 minutes. When the flash memory card is full, the foremost video data will be deleted and the video will be saved.
HDR high dynamic range: On/Off (When power on, the video recording function will be turned on automatically if any object moves under the lens without manual operation.)
Exposure compensation: 7 grades for option
Date Label: Display/Close-Date and Time can be selected on the screen
In Photo mode:
Photograph delay: Single. 2 seconds. 5 seconds. 10 seconds.
Photo pixels: 1.3 M · 2 M · 5 M · 8 M · 10 M · 12 M
Continuous shooting: 3 consecutive shots
Photo quality: Quality · Standard · Compression
Sharpness: Strong · Standard · Soft
Color: Nothingness · Black and White · Nostalgia
ISO: Automatic · 100 · 200 · 400
Exposure compensation: 7 grades for option
Photo assist: Anti-hand shock on/off
Date label: On/Off
Storage space:
Watch: Up · Down Delete Protection
Function setting (M key)
Screen saver: Off · 30 sec · 1 min · 2 min (optional)
Automatic shutdown: Off. 3 minutes. 5 minutes. 10 minutes
Hz light source: 50 Hz · 60 Hz
Language options: 16 Languages
Date adjustment: year, month, day|hour, minute, second
Format: YES/NO
Default: YES/NO

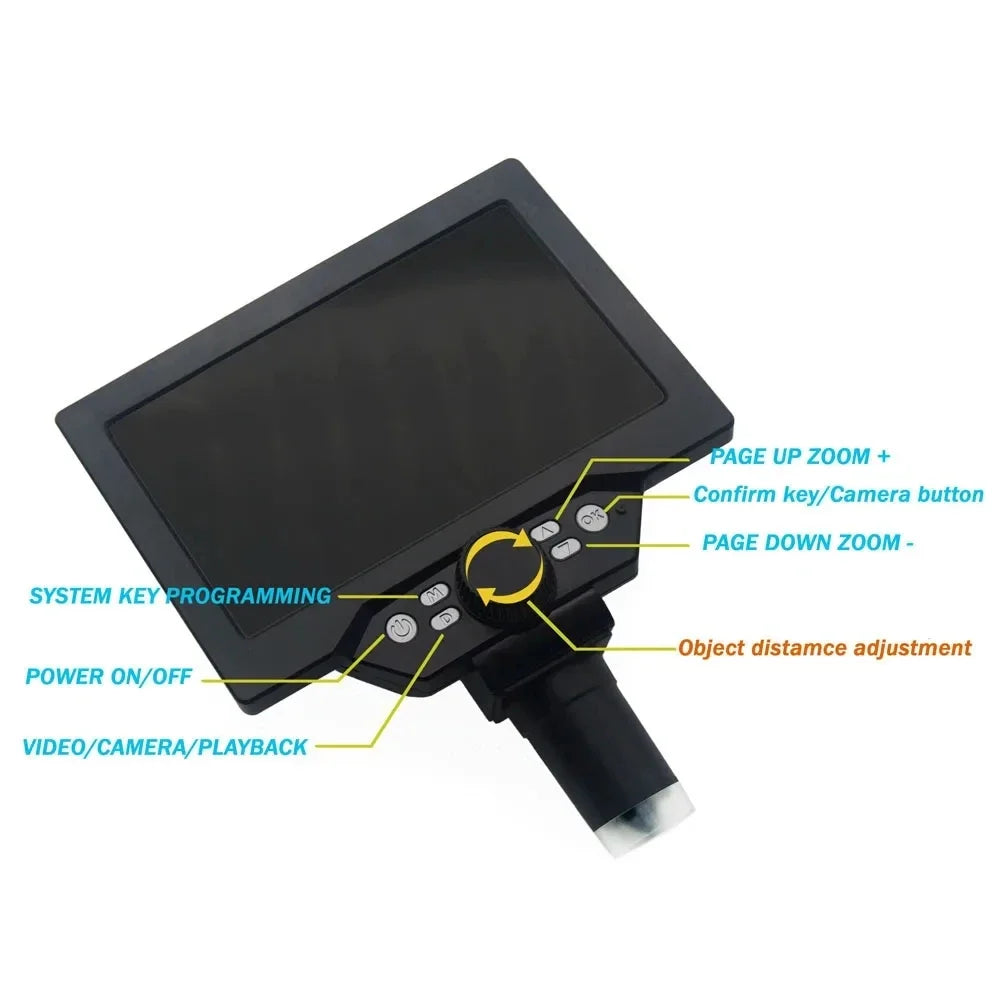

Mode Setting(D key)
Switch: Camera mode, camera mode, playback mode:
Up, Down, OK (Photo/Video, Open)
1: Power supply DC interface (Micro USB).
2: Flash card socket (MicroSD), support 1-128GB. Class10 + speed
3: Light brightness regulator.
4: REST key, system restore. (If the machine is inoperable, press the key in this hole with a needle-like sharp object to restart the machine)
5: Highlight 8 LED lamps with a continuous service life of up to 100,000 hours.

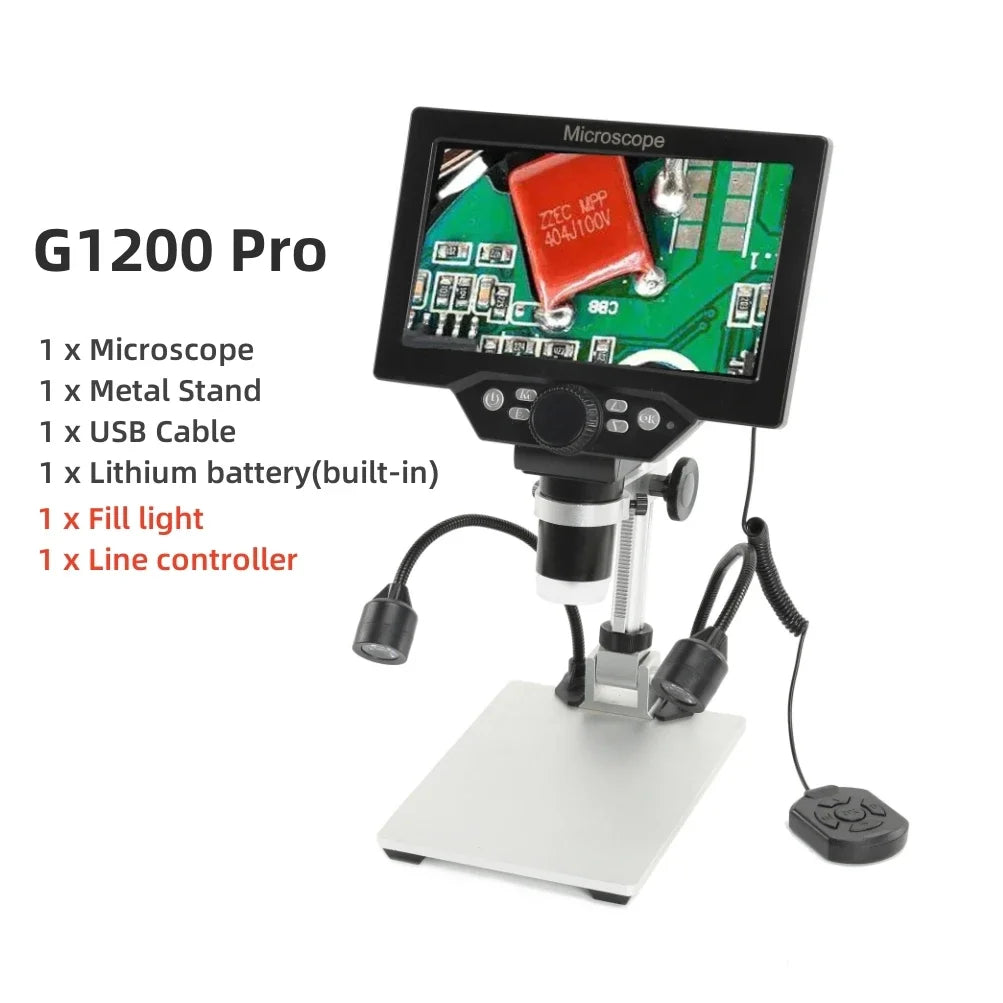

Package of G1200 Pro
1 x Microscope
1 x Metal Stand
1 x USB Cable
1 x Lithium battery(built-in)
1 x Fill light
1 x Line controller
