FNIRSI DST-210/201 Oscilloscope Multimeter Signal Generator

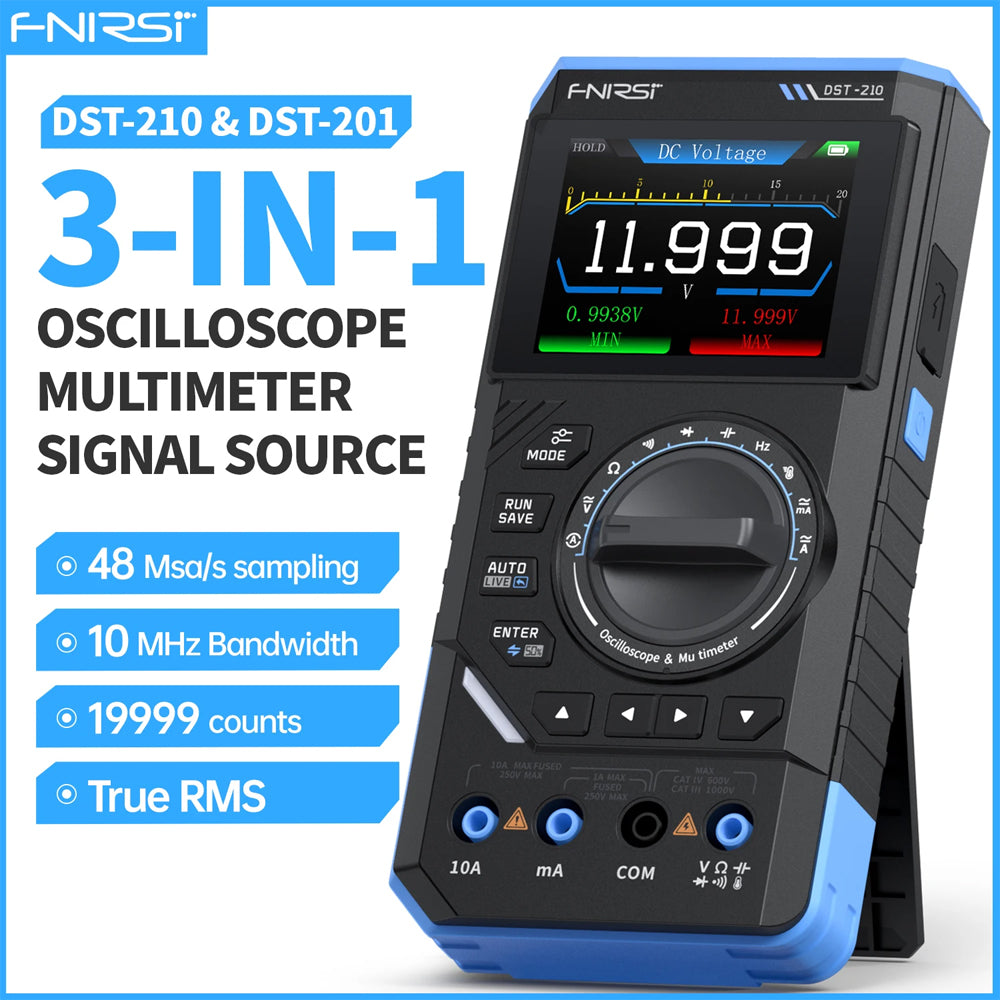

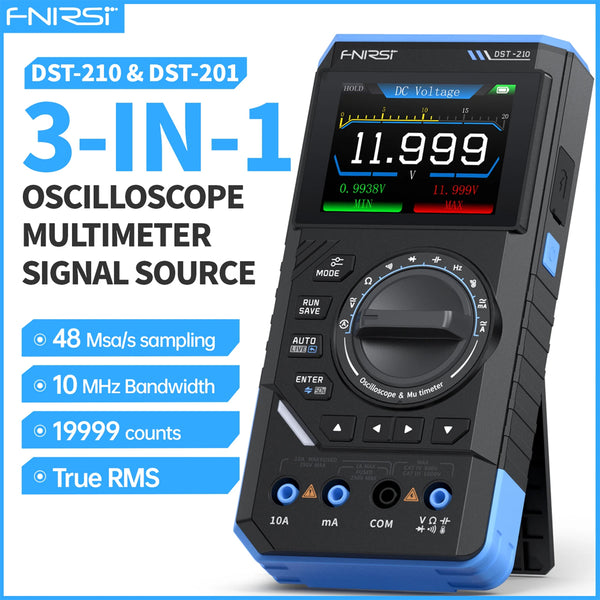

The FNIRSI DST series combines a handheld digital oscilloscope, 19,999-count multimeter and signal generator. Choose the DST-201 for general low-frequency measurements or the higher-bandwidth DST-210 when faster waveform work is required.

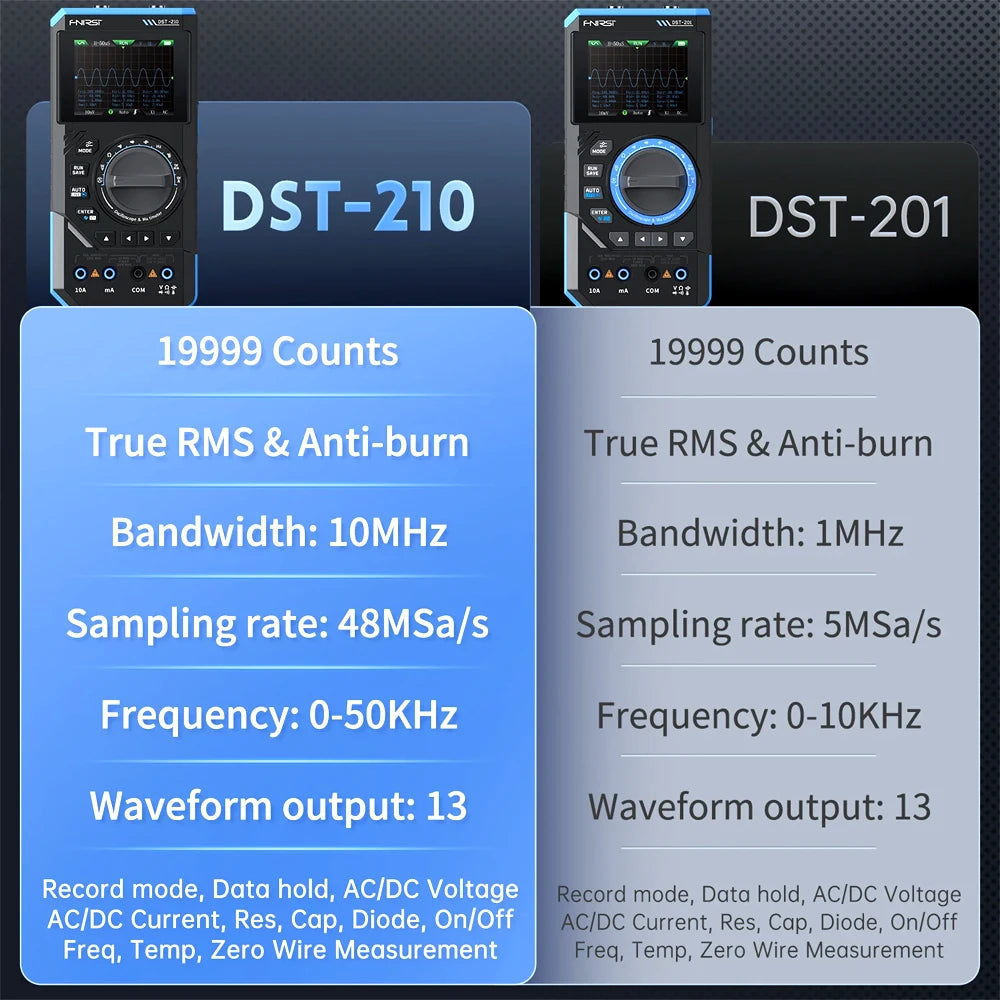

Model comparison

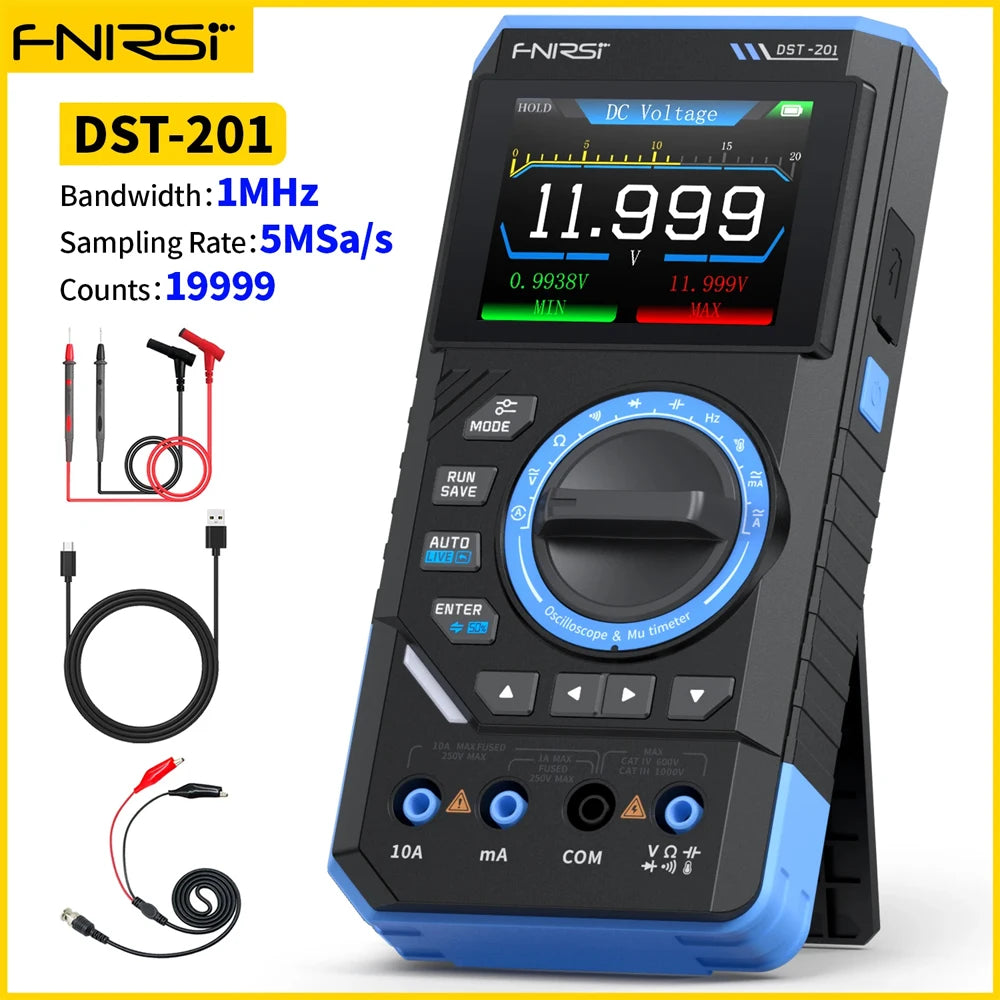

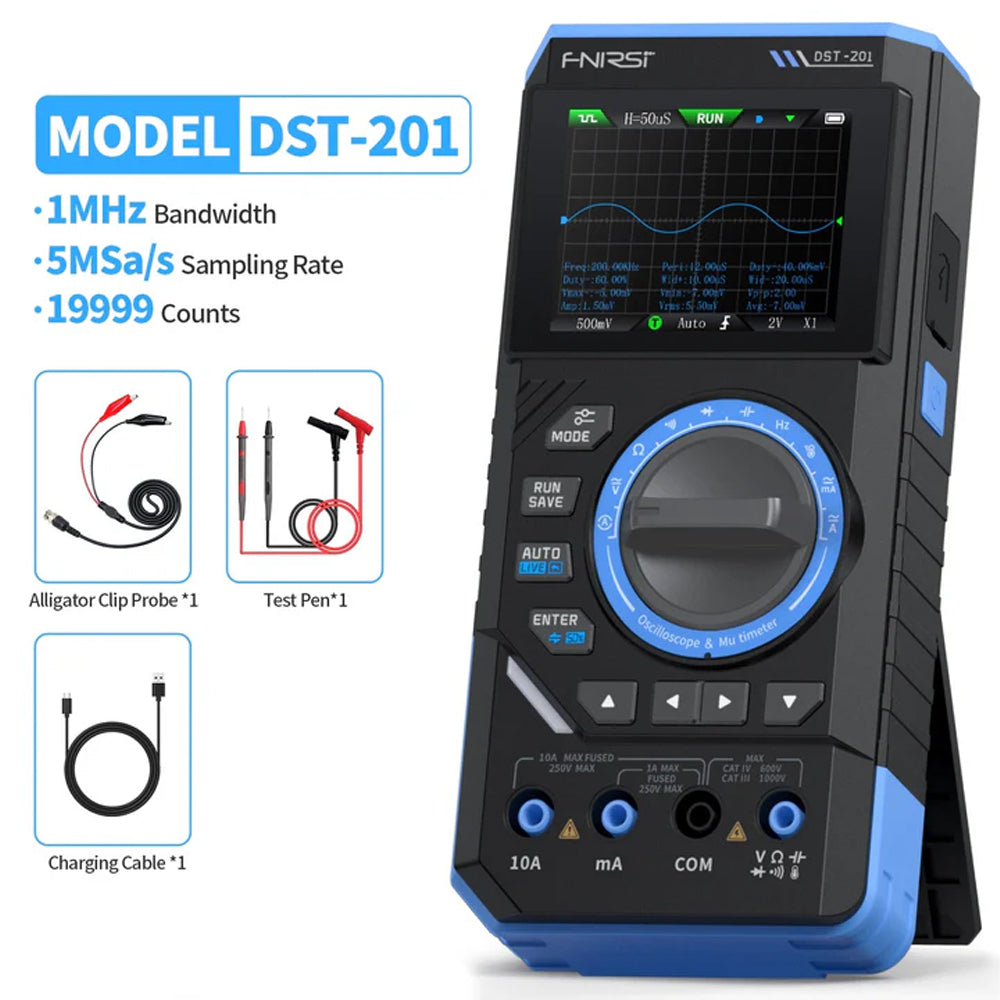

- DST-201: 5 MSa/s maximum sampling rate and 1 MHz analog bandwidth.

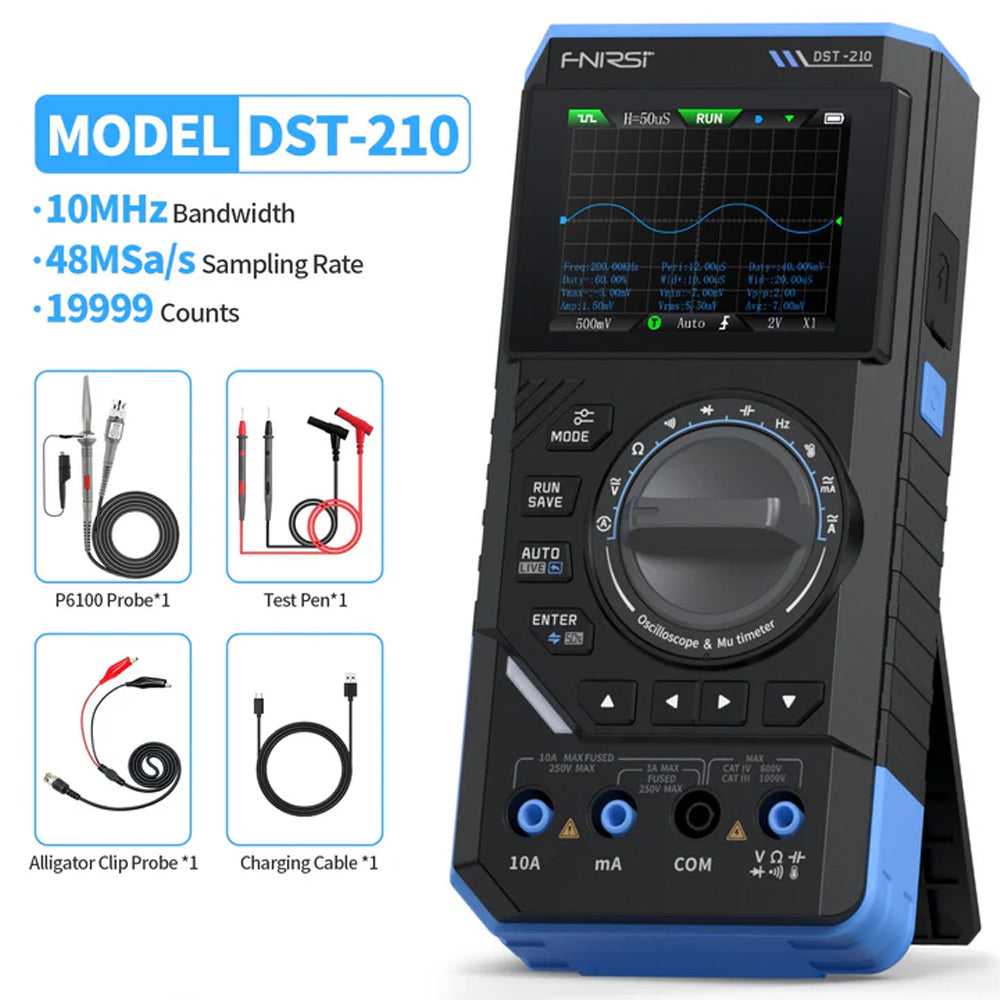

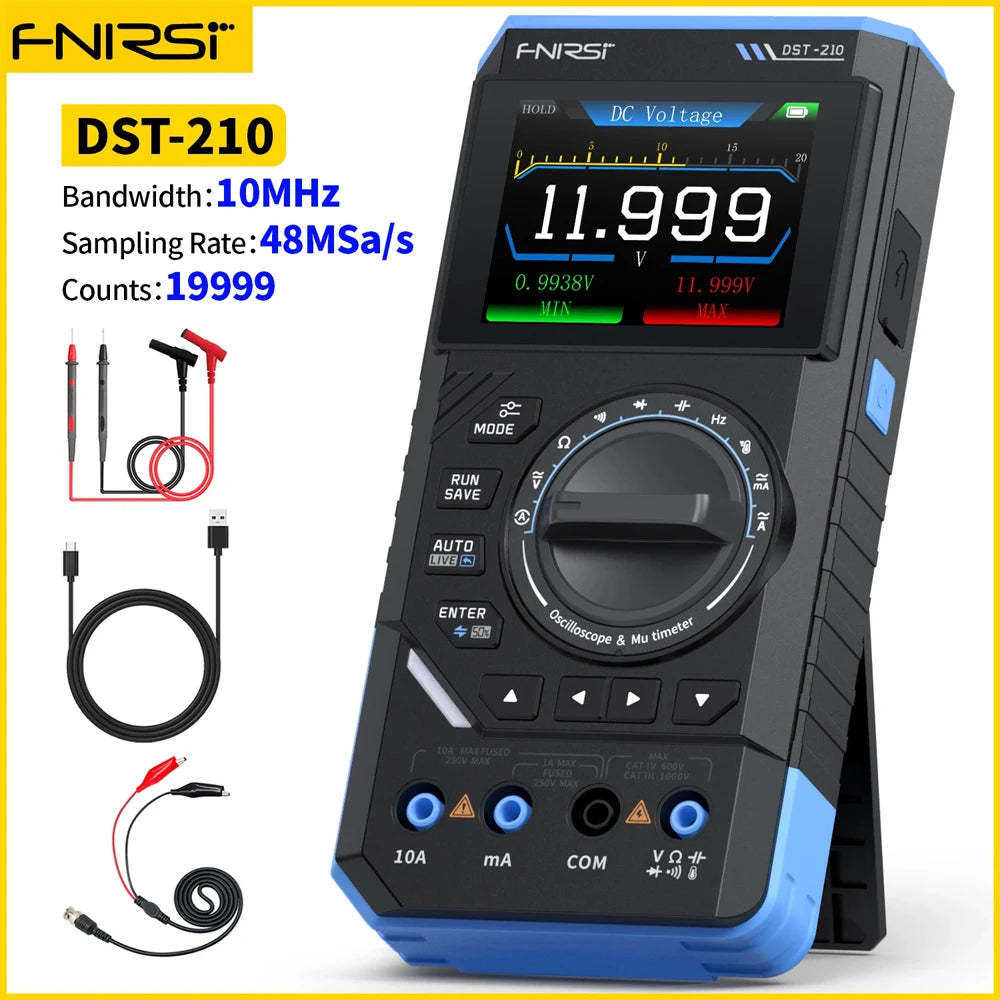

- DST-210: 48 MSa/s maximum sampling rate and 10 MHz analog bandwidth.
- Both models use a 2.8-inch color TFT display and support automatic oscilloscope setup.

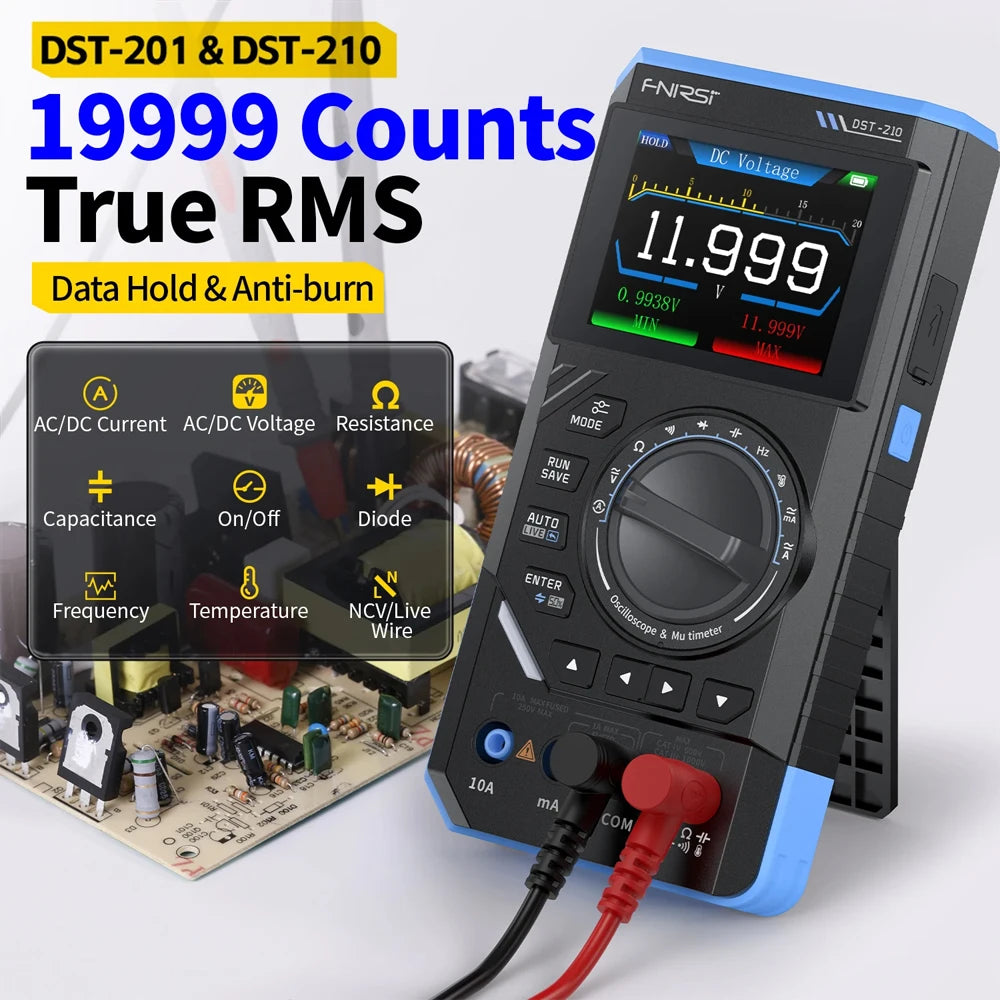

Multimeter functions
- DC voltage up to 1000 V and AC voltage up to 750 V within the specified measurement category and supplied-lead ratings.
- AC/DC current, resistance, capacitance, frequency, diode and continuity testing.
- Temperature measurement with a compatible temperature probe.
- 19,999-count display for detailed bench and field readings.
Signal and power functions

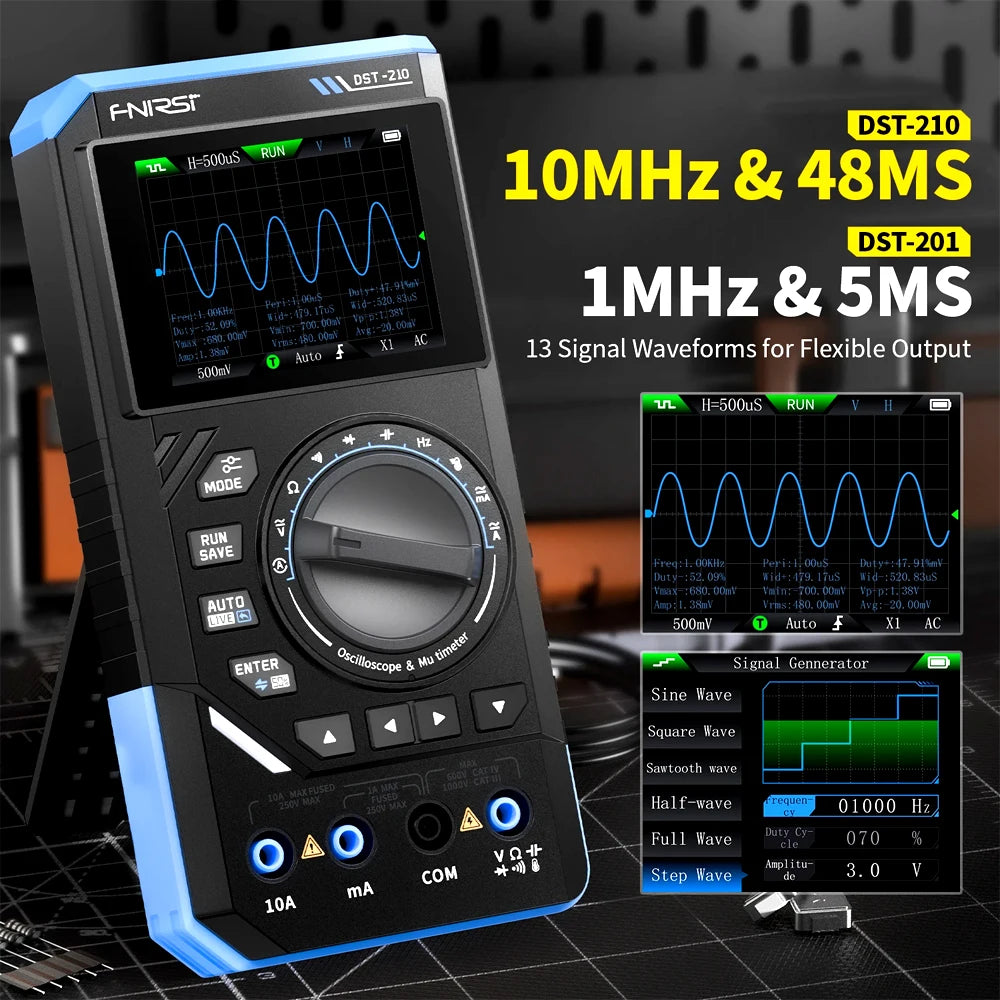

- Integrated waveform generator for basic signal injection and circuit checks.
- Built-in 3000 mAh rechargeable battery.
- USB Type-C 5 V / 1 A charging input.
- Auto, Normal and Single oscilloscope trigger modes.
Selection notes
Select DST-201 (1 MHz) or DST-210 (10 MHz) according to the bandwidth required. Probe attenuation and maximum allowable input vary with the connection method; verify the probe switch, input rating and measurement category before connecting to a live circuit.
