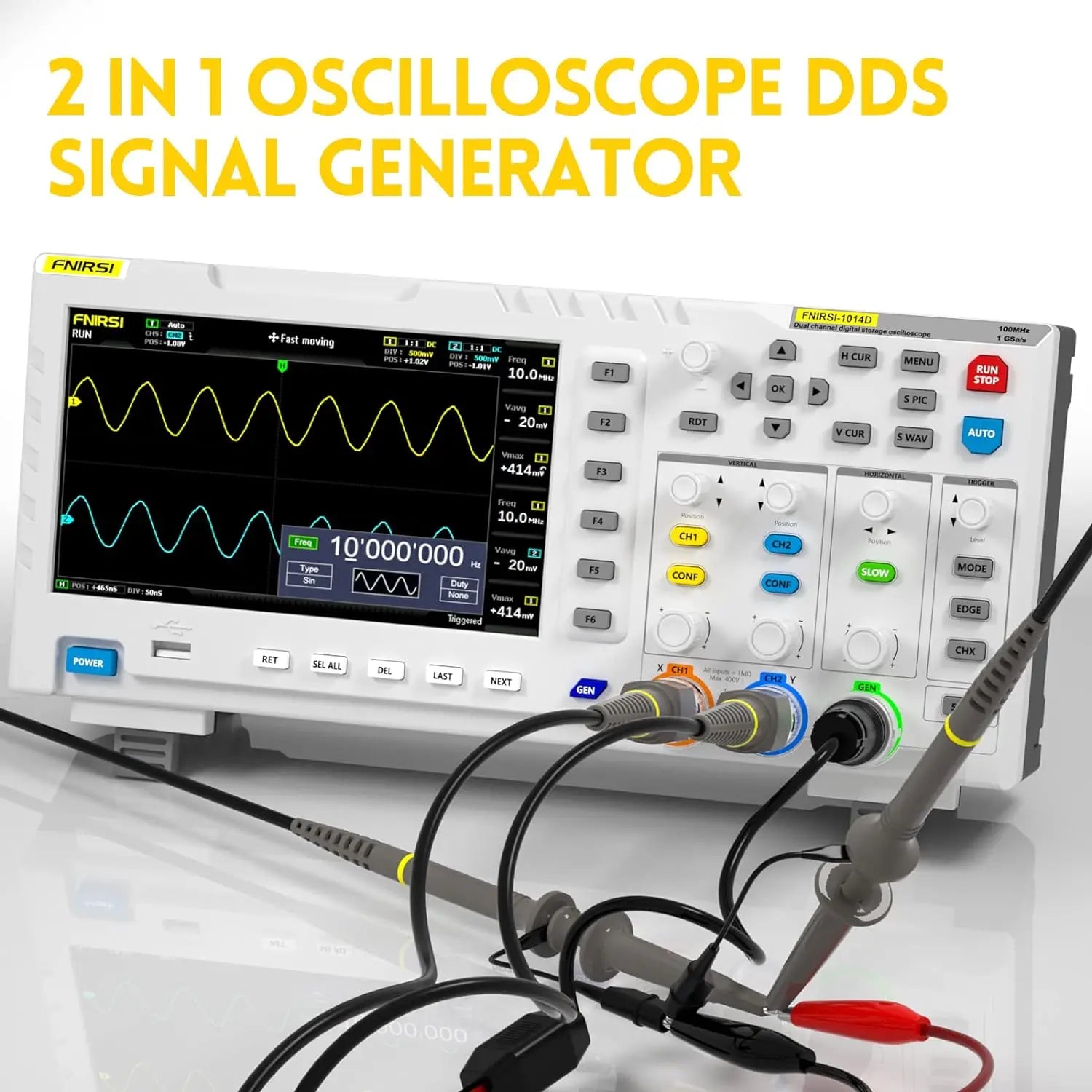

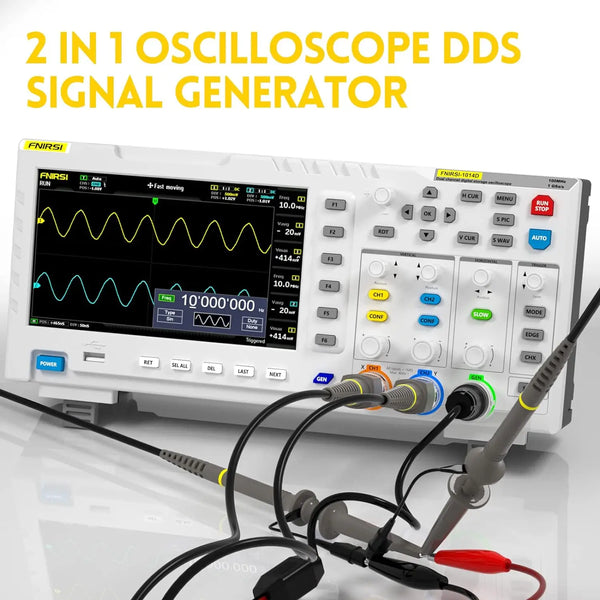

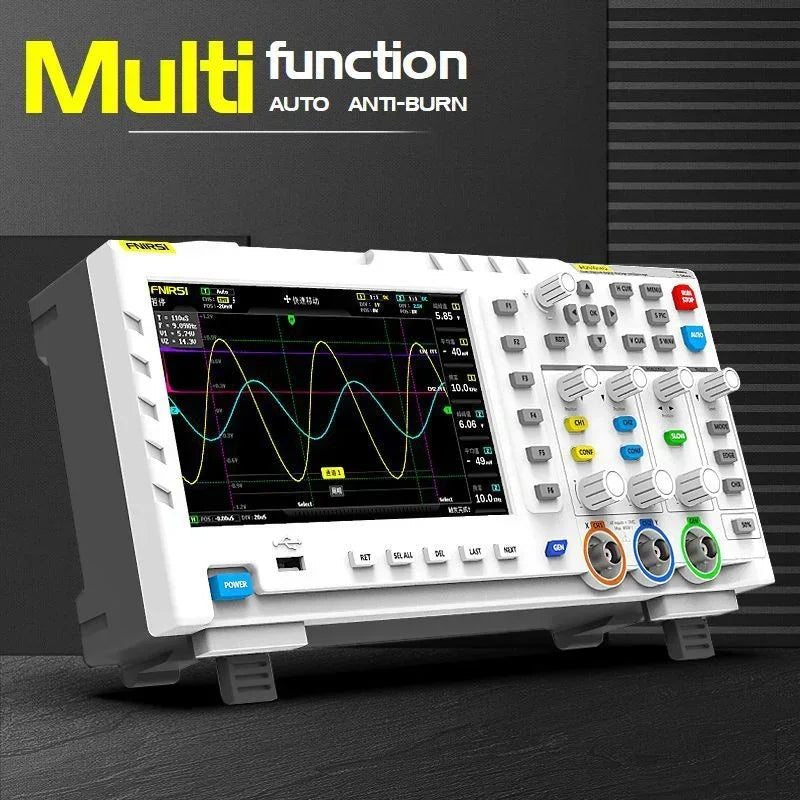

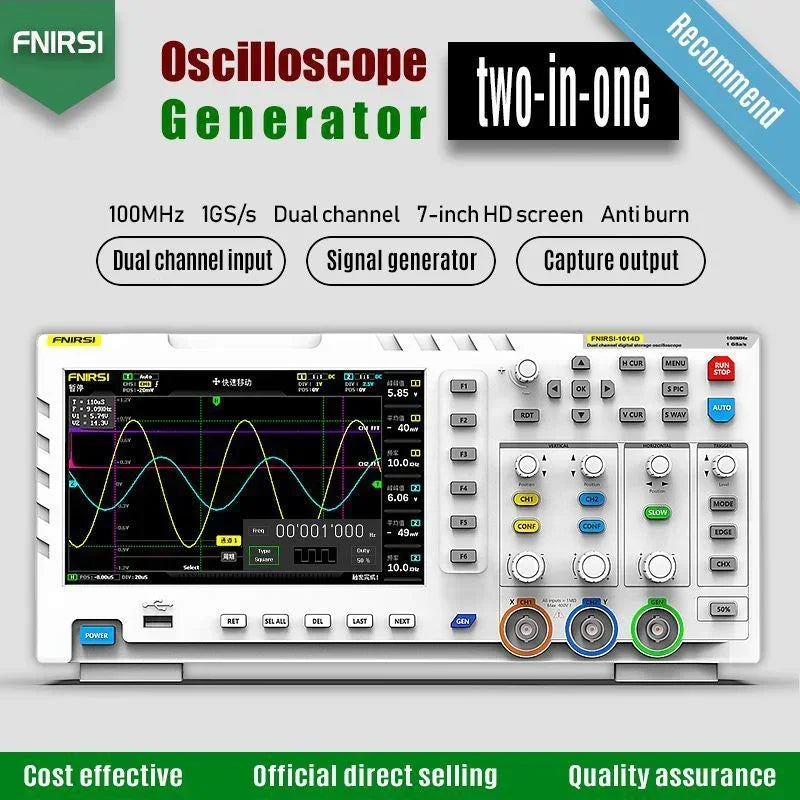

FNIRSI 1014D Dual-Channel Oscilloscope with Built-In DDS Generator

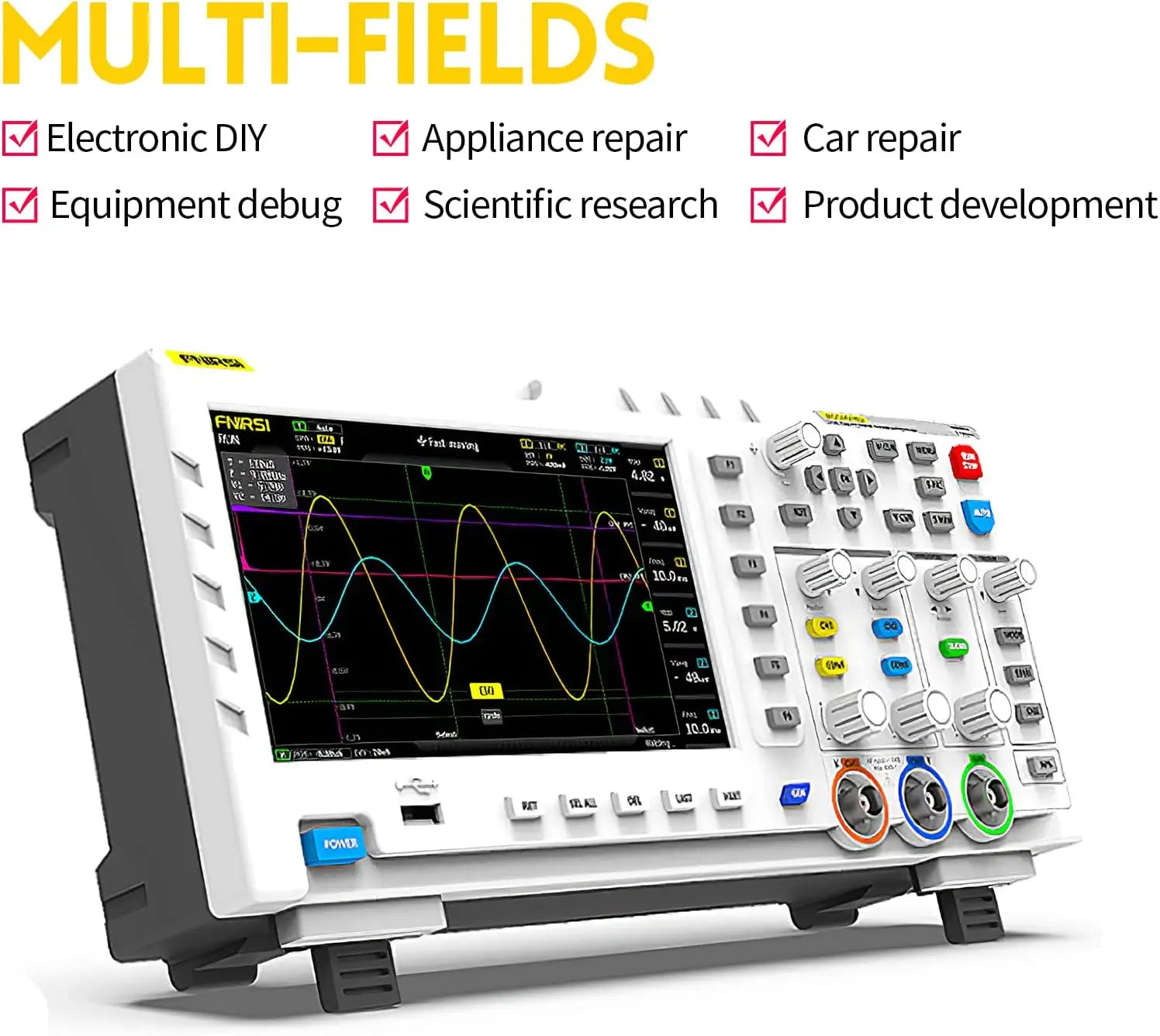

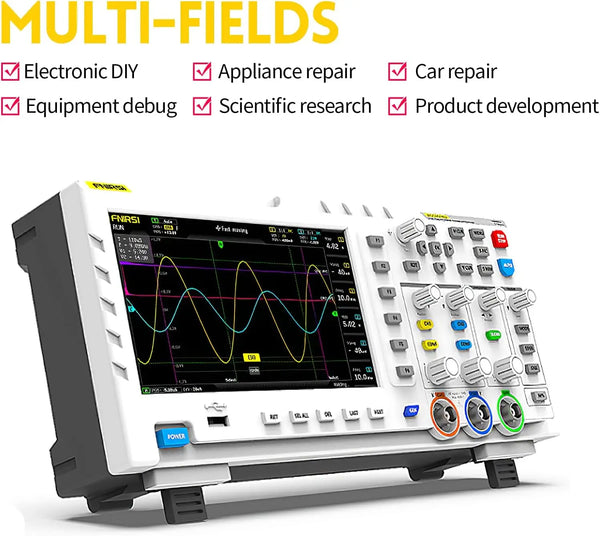

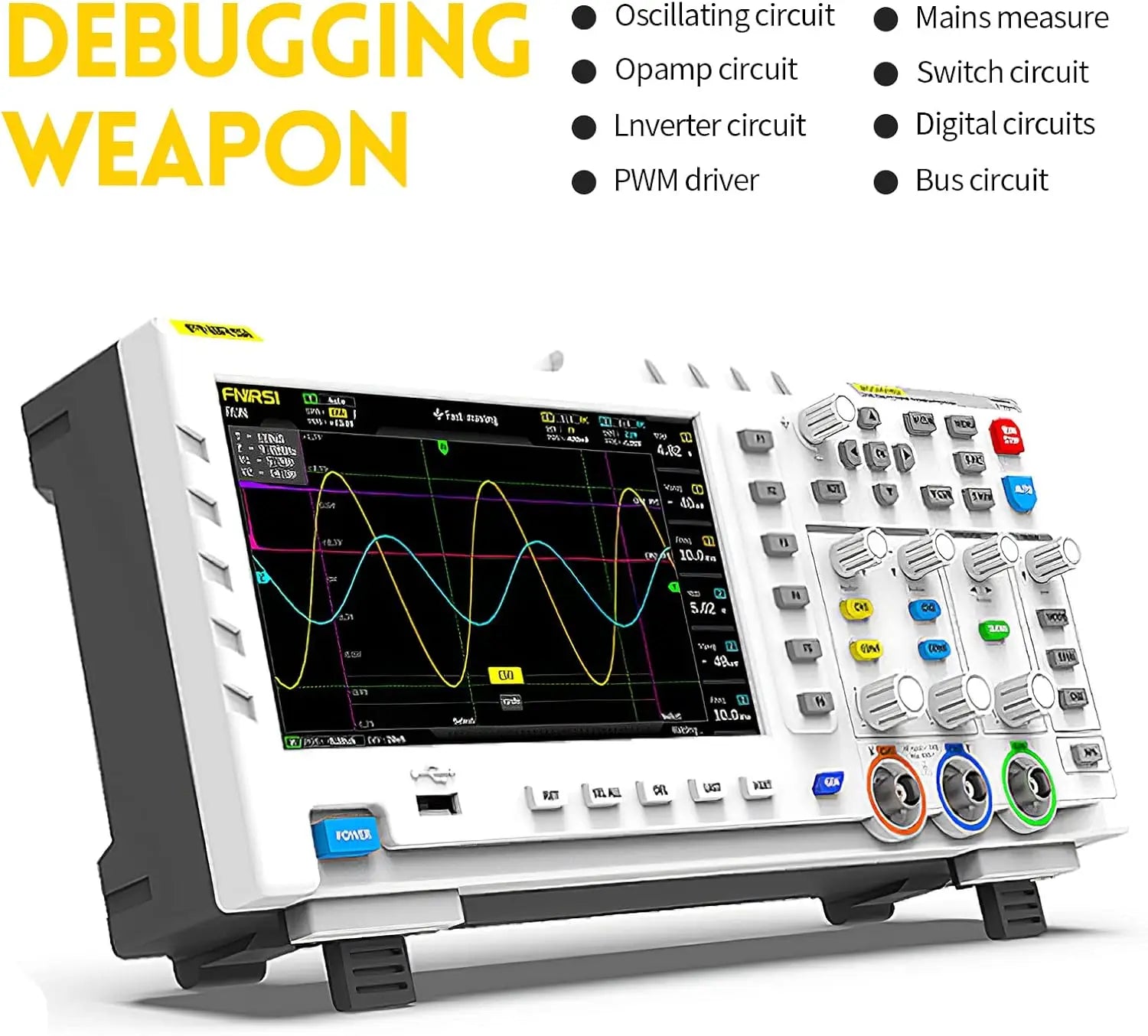

The FNIRSI 1014D combines a two-channel desktop oscilloscope and a DDS signal generator in one bench instrument. It is intended for waveform observation, circuit troubleshooting, repair work and electronics development where two analog channels and a built-in test-signal source are useful.

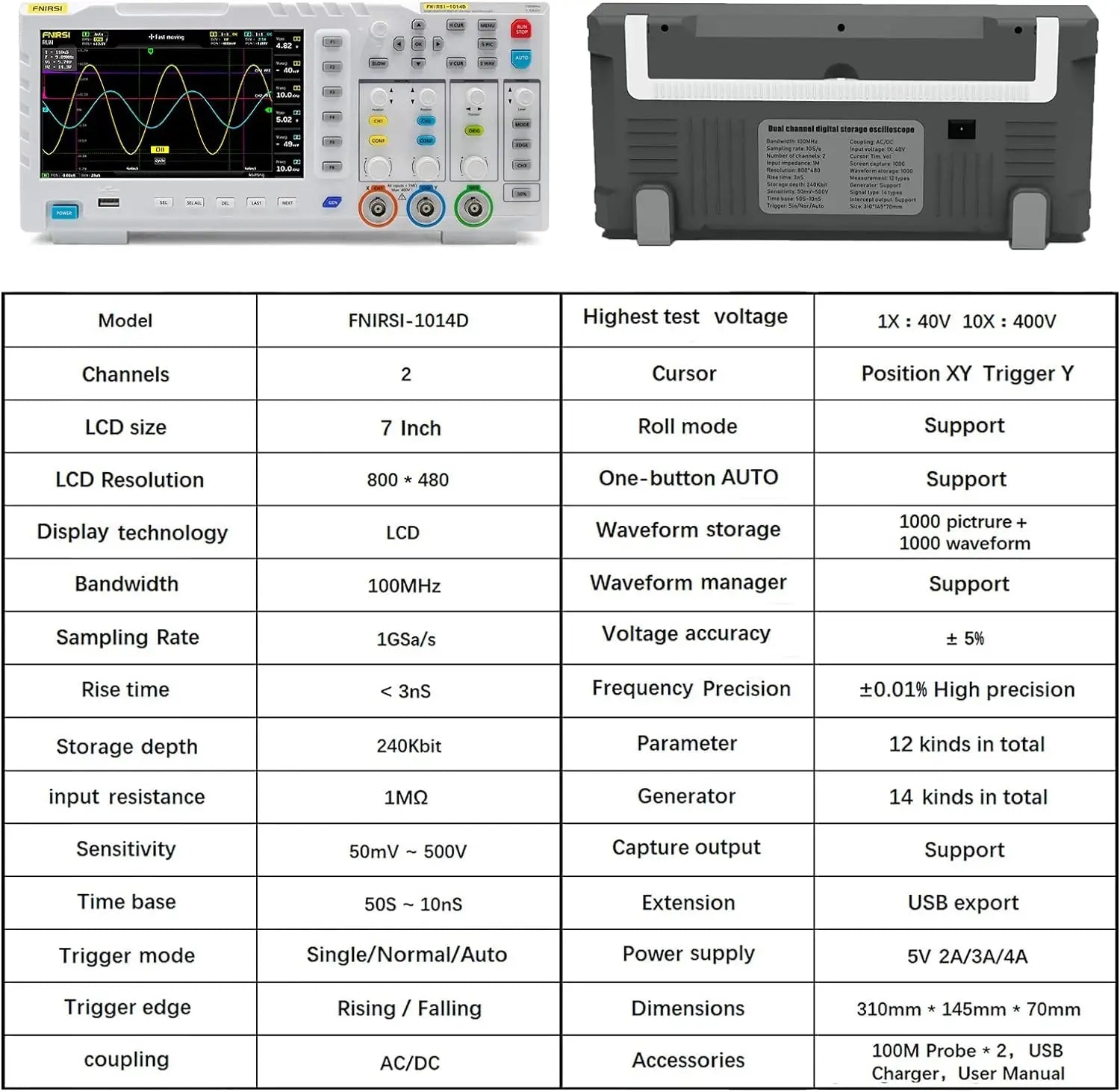

Oscilloscope Performance
- Two analog input channels with 100 MHz bandwidth per channel.
- Maximum real-time sampling rate: 1 GSa/s.
- Vertical sensitivity: 50 mV/div to 500 V/div.
- Horizontal time base: 50 s/div to 10 ns/div.
- AC/DC coupling, 1 Mohm input impedance, 8-bit ADC and 240 kbit memory depth.
- Trigger modes: Single, Normal and Auto; rising- and falling-edge trigger selection.
- Automatic measurements include voltage, frequency, duty cycle, timing and period readings; cursor measurements are also available.
Built-In Signal Generator and Analysis Tools
- DDS function generator with standard waveform output and 1 Hz frequency-step adjustment.
- Captured waveform output function; the instrument can store up to 1,000 captured signals for later output.
- FFT spectrum display and Lissajous figure display for signal comparison.
- Large time-base scrolling mode and one-key auto setup for observing slow changes or quickly stabilising a display.
Display, Storage and Connectivity
- 7-inch colour LCD with 800 x 480 resolution.
- Built-in 1 GB storage for up to 1,000 screenshots and 1,000 waveform data sets.
- USB connection for image export and PC-side review.
- Waveform manager supports thumbnail browsing, preview, detailed viewing, deletion, zoom and movement.
Input and Probe Notes
- Listed maximum input voltage: up to 40 V with a 1X probe and up to 400 V with a 10X probe.
- Confirm the selected probe attenuation, grounding arrangement and circuit reference before measurement.

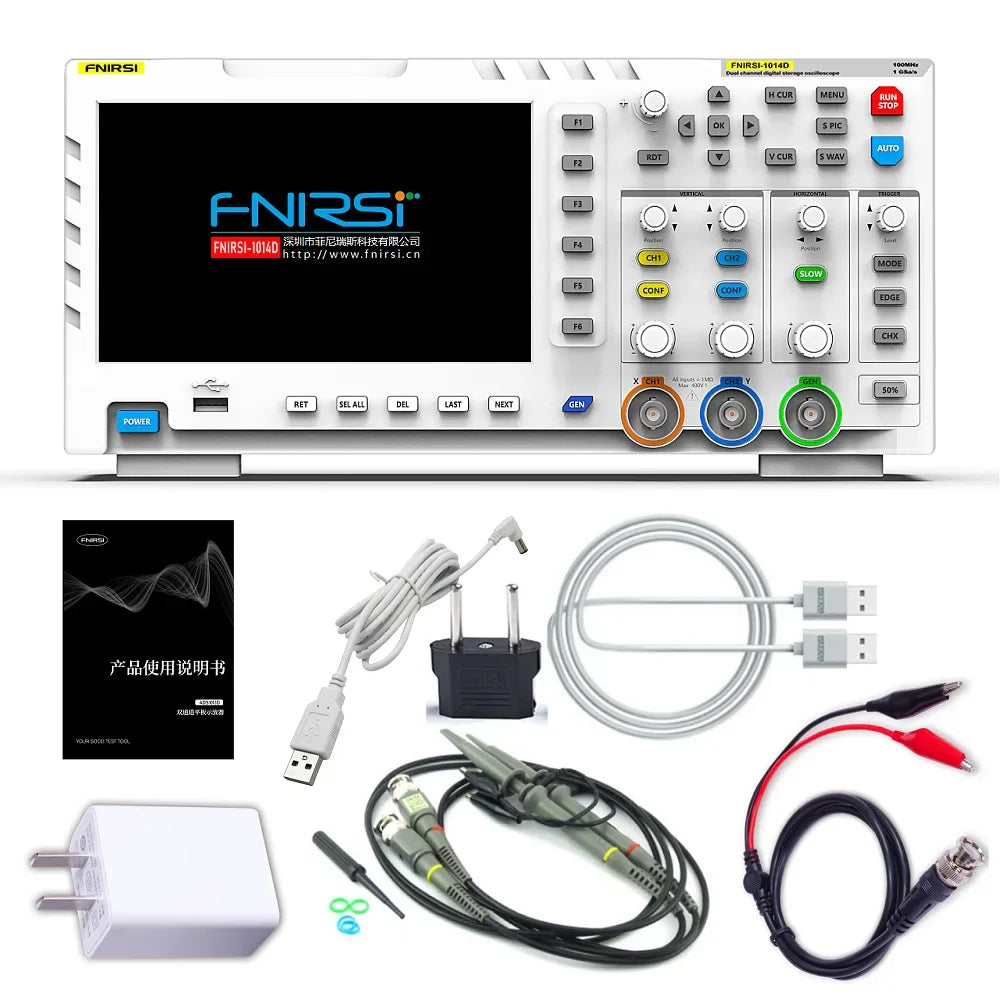

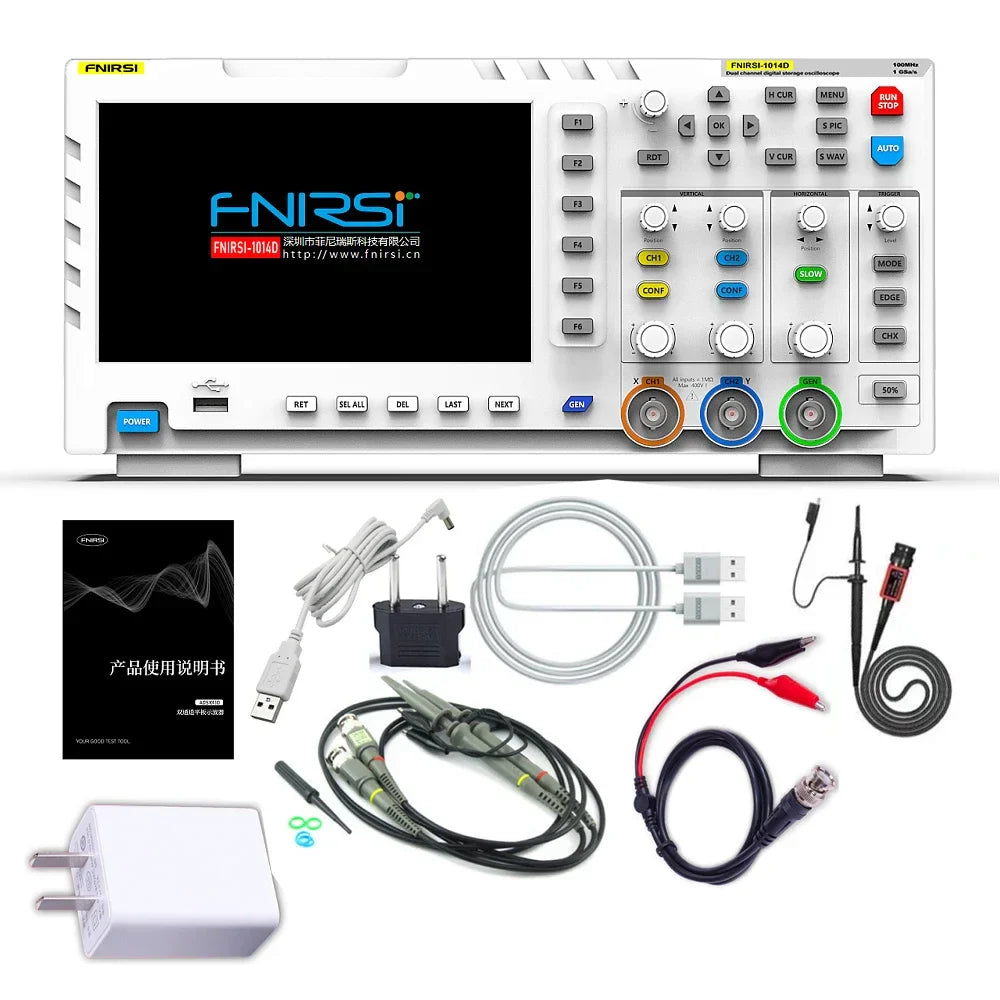

- The Add P4100 Probe option adds the listed P4100 probe; choose it only when an additional probe is required.
