Expansion Board Module For Raspberry Pi 5 PCIE M.2 Dual SSD Expansion Board NVME Protocol Portable Module

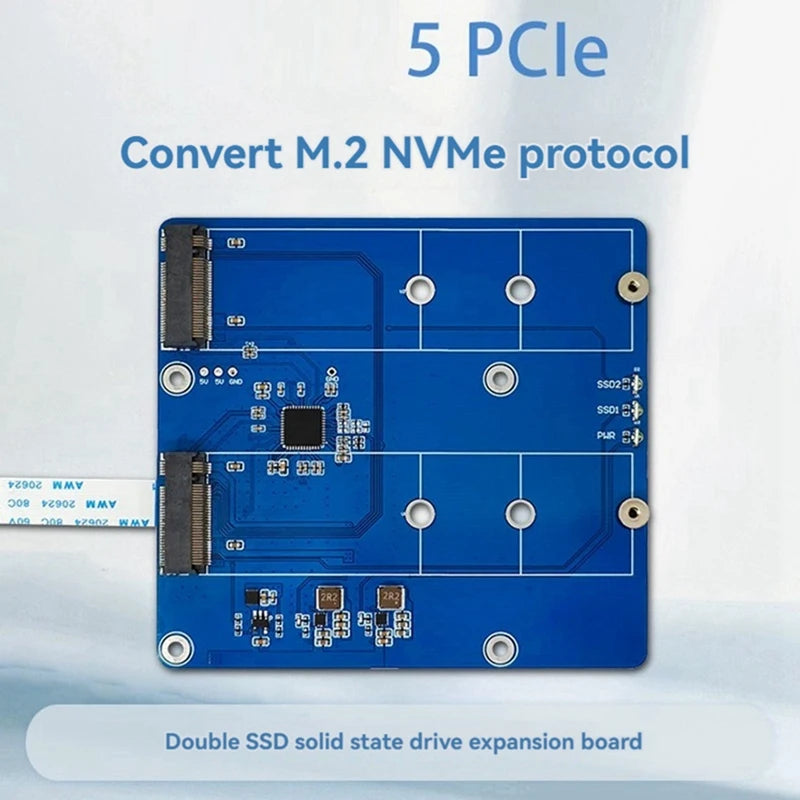

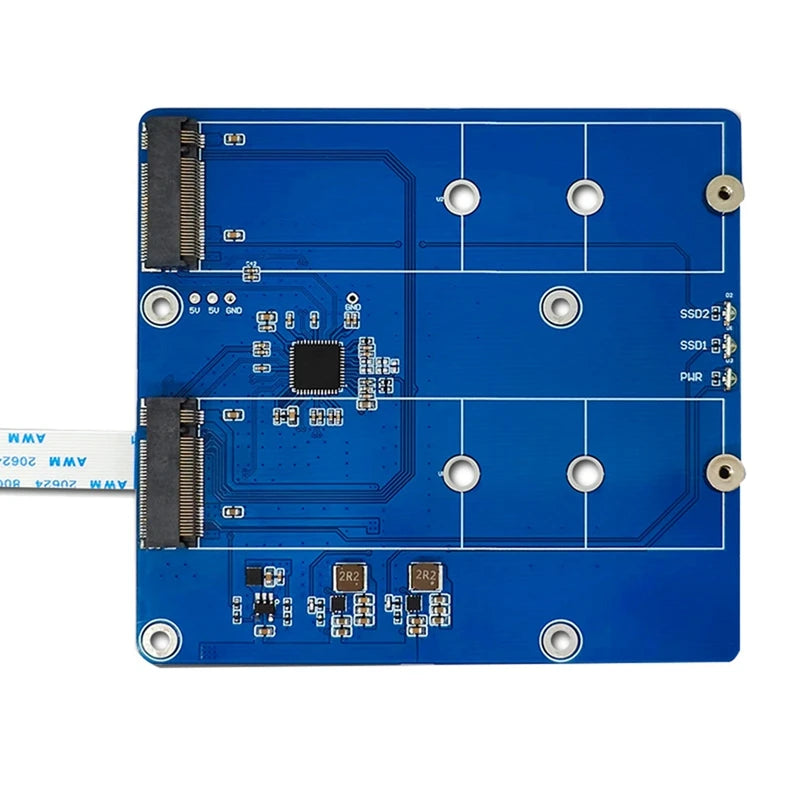

Dual M.2 NVMe SSD Expansion Board for Raspberry Pi 5

This expansion board connects to the Raspberry Pi 5 PCIe interface and provides two M.2 M-Key sockets for NVMe storage. It is intended for compact dual-drive storage and development setups using compatible 2280 NVMe SSDs.

Key Features

• Connects through the Raspberry Pi 5 PCIe interface.
• Expands one PCIe connection to two M.2 NVMe interfaces.
• Supports M.2 M-Key 2280 NVMe SSDs.
• Onboard power, SSD1 and SSD2 status indicators.

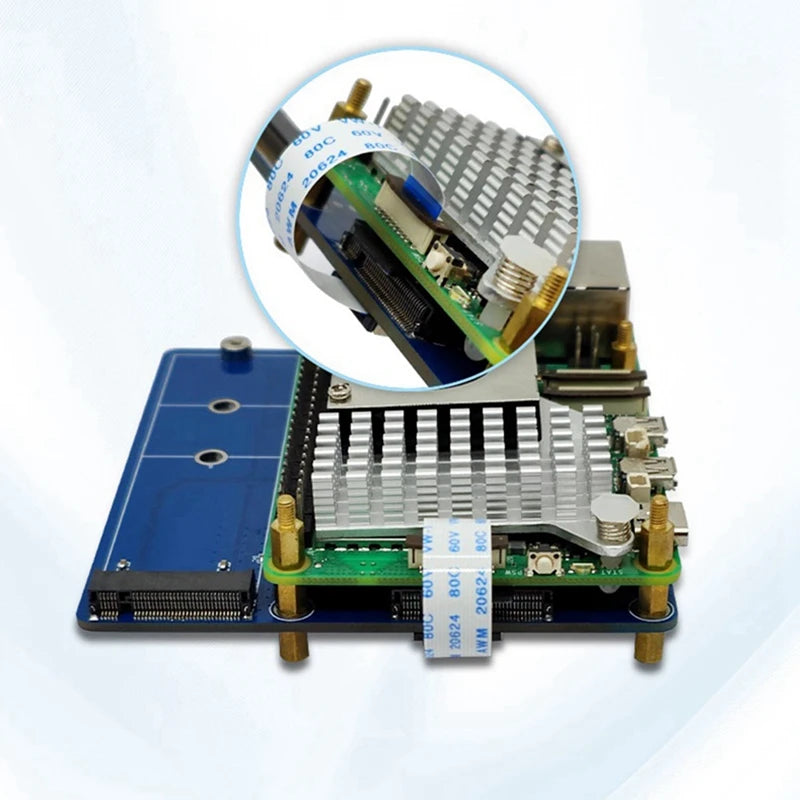

• Uses a 16-pin, 0.5 mm-pitch PCIe FPC connection.

Compatibility Notes

• Designed for Raspberry Pi 5; it is not a SATA M.2 adapter.
• Use NVMe M-Key drives in the supported 2280 form factor.
• The exact-source listing states that the attached drives are not supported as boot disks; plan to use them as additional storage unless the installed firmware and operating-system configuration are independently confirmed.
• SSD performance depends on the Raspberry Pi PCIe configuration, drive and software setup.

Package Contents

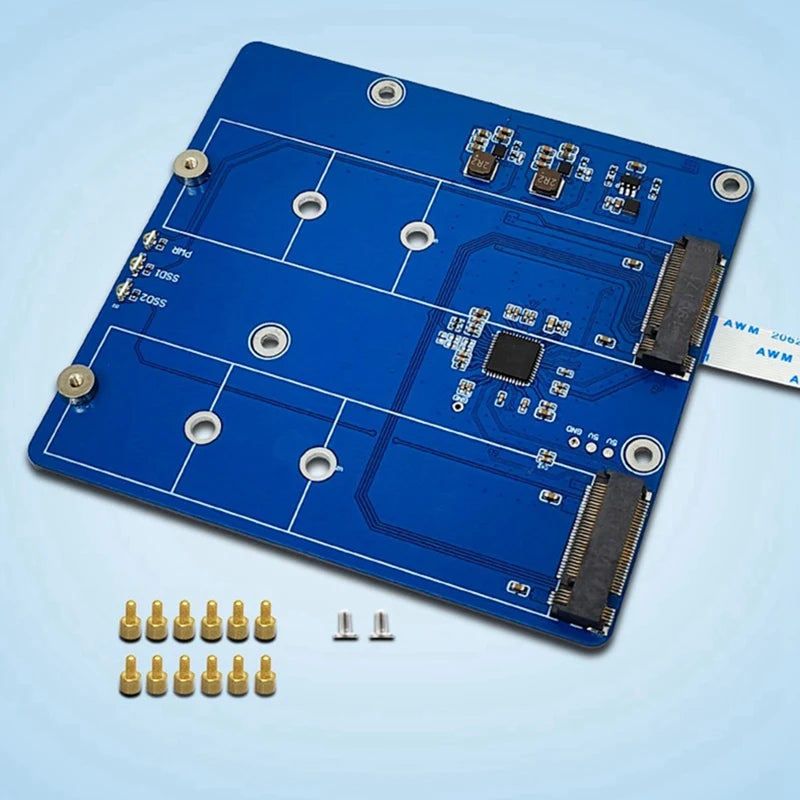

• 1 x dual-SSD expansion module.
• Mounting standoffs and screws shown for the selected package.

NVMe SSDs and Raspberry Pi 5 are not included unless explicitly stated in the selected package.
