Product Summary
ET4401 ET4410 LCR Benchtop Digital Bridge Tester Desktop LCR Meter Capacitance Resistance is a digital measurement tool selected for measuring voltage, current, resistance and common electrical parameters. It is suitable for electricians, repair users and electronics hobbyists who need practical electronics hardware for reliable project work.
Best For
- measuring voltage, current, resistance and common electrical parameters
- electronics repair, home electrical checks and bench testing
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electricians, repair users and electronics hobbyists.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

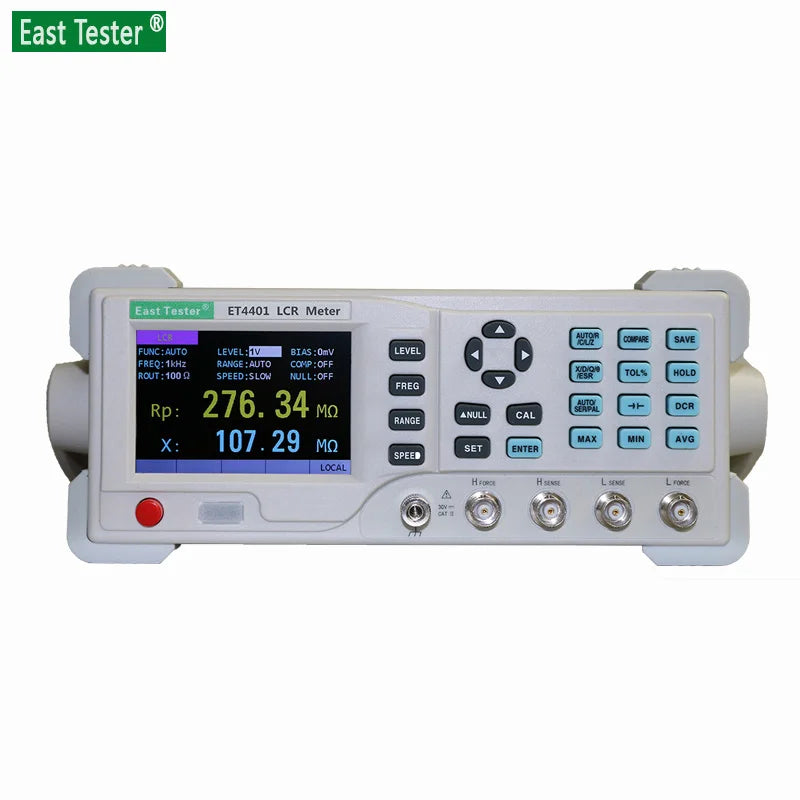

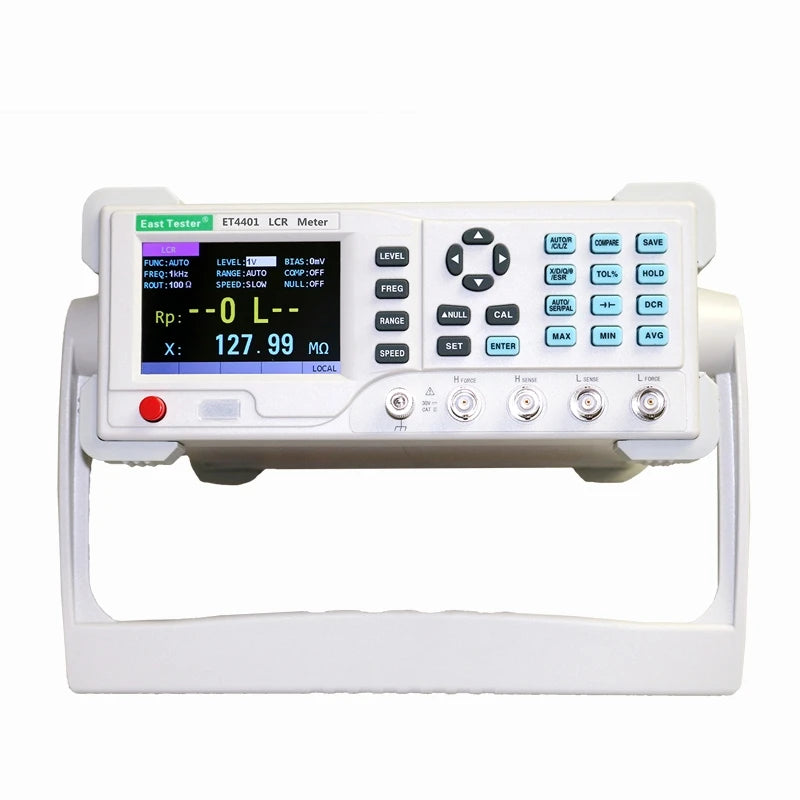

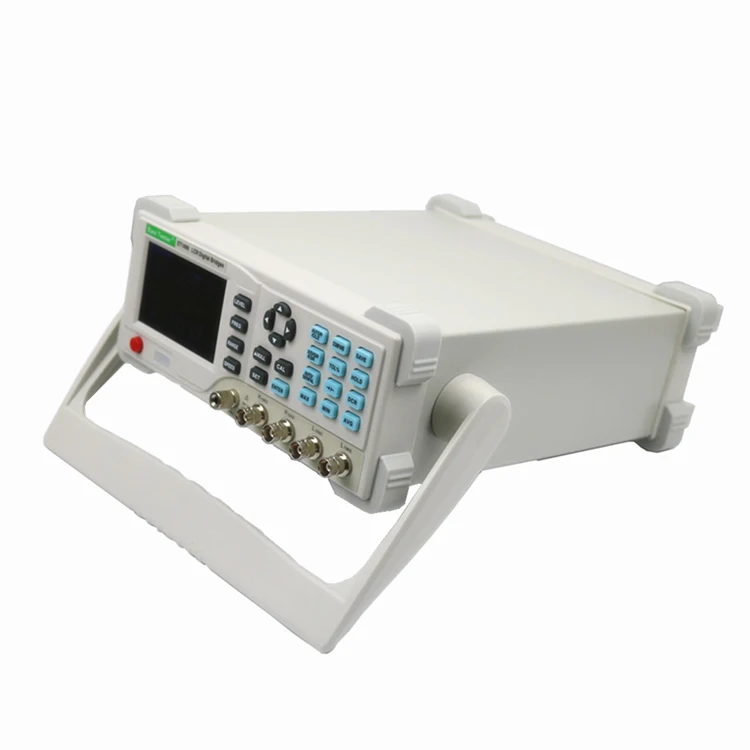

ET4401 ET4410 Desktop LCR Digital Bridge Capacitance Resistance Impedance Capacitance Inductance Measure Instrument

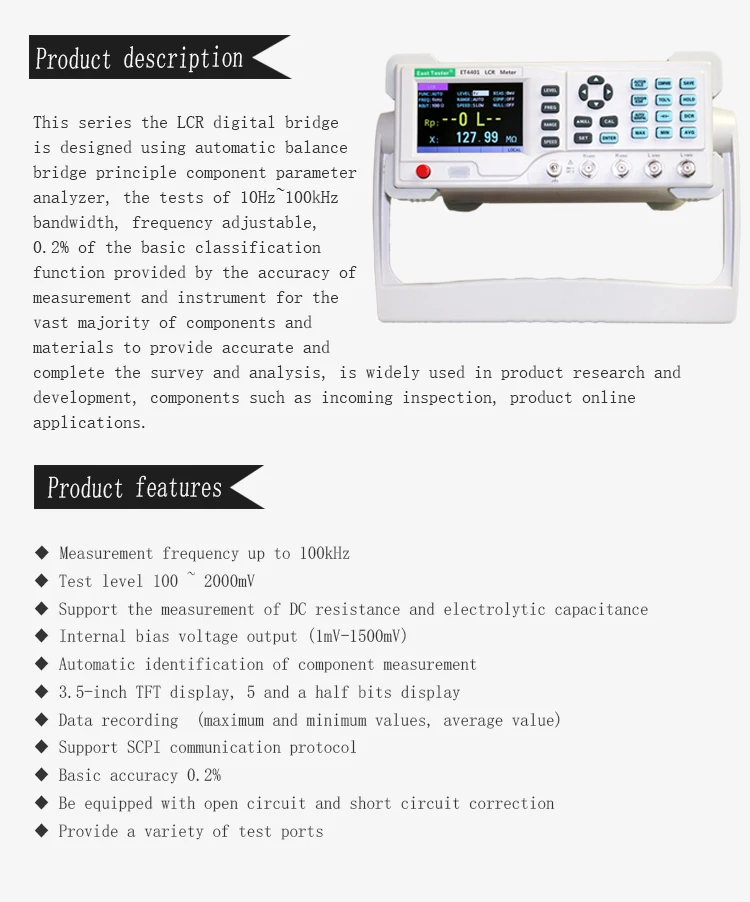

Product description:

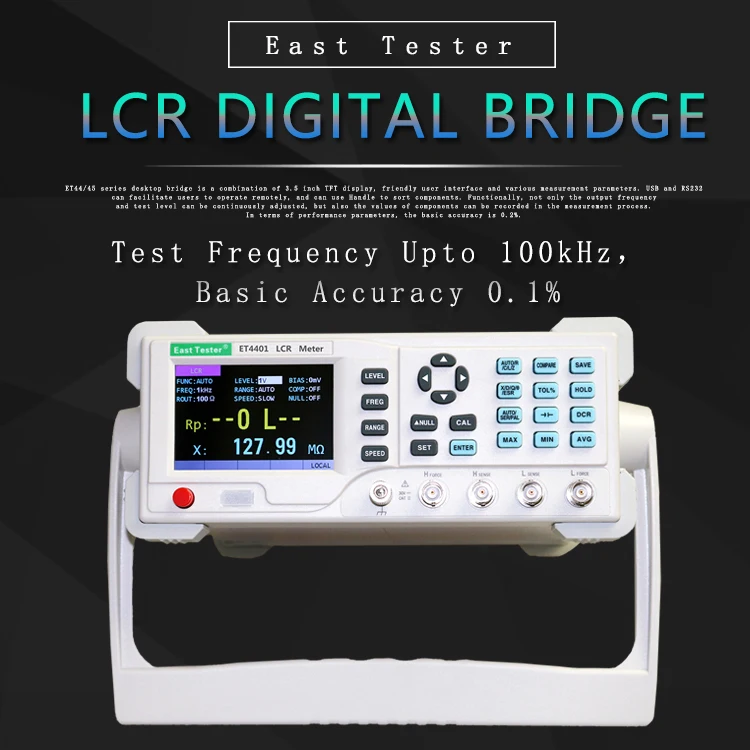

ET44series LCR digital bridge is designed using automatic balance bridge principle component parameter analyzer, the tests of 10 hz - 100 KHZ bandwidth, 0.1% of the basic classification function provided by the accuracy of measurement and instrument for the vast majority of components and materials to provide accurate and complete the survey and analysis, is widely used in product research and development, components such as incoming inspection, product online applications.
Product features:
Measuring frequency up to 100 KHZ,
Test level 10 - 2000 mv,
Support dc resistance (DCR), electrolytic capacitor measurement
The internal bias voltage output 0 mv - 1500 mv

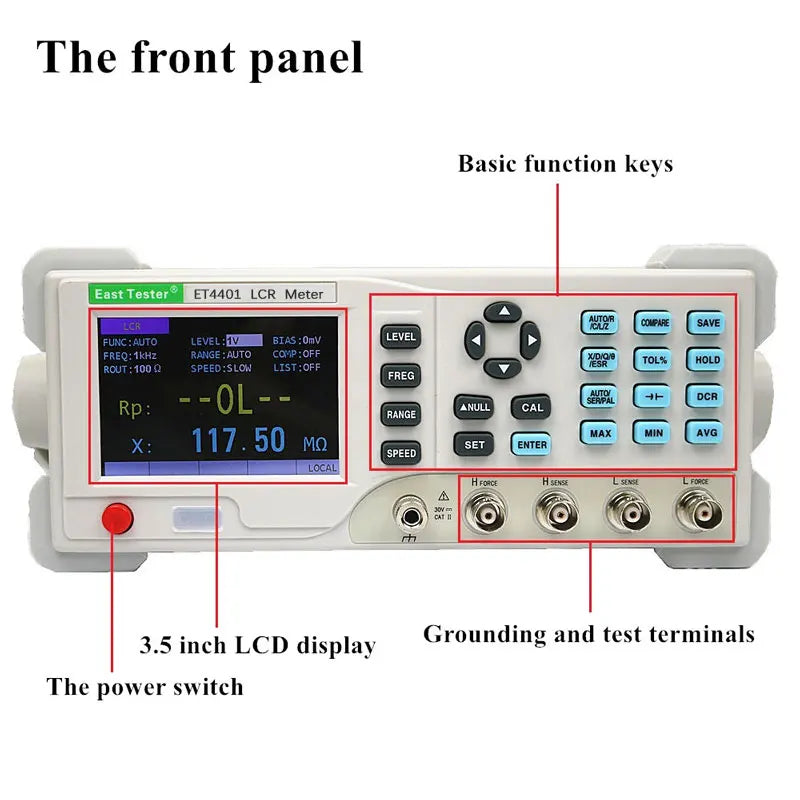

3.5 inch TFT display, five shows

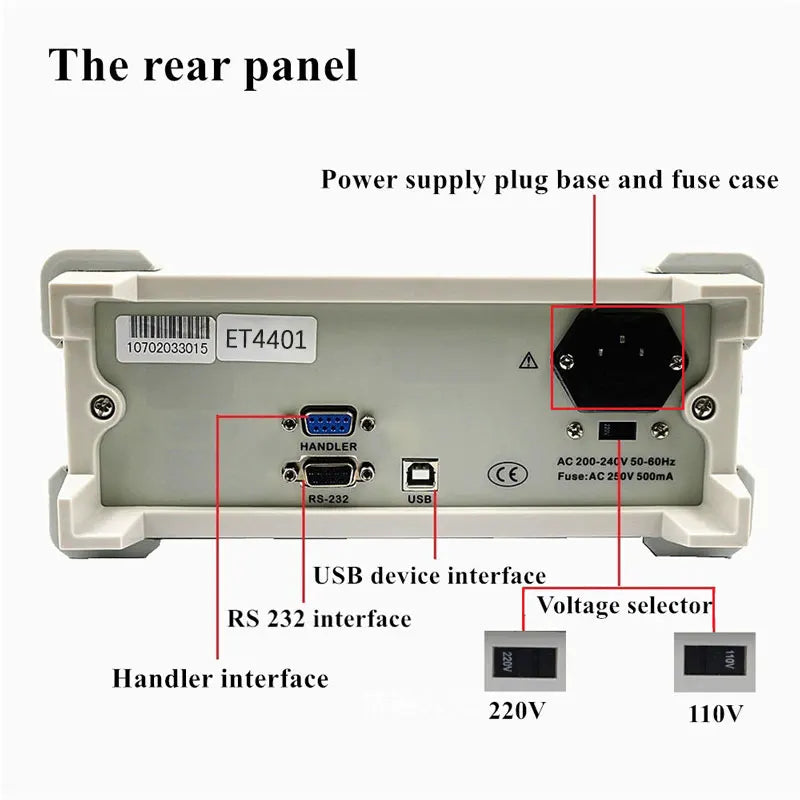

Communications: USB Device, RS232 , Handle,
Data record function (maximum, minimum, average)
Support SCPI communication protocol
Provide the system Settings, can according to need to configure the Chinese or English, buzzer, screen brightness, etc
Basic measurement accuracy of 0.1%
Manual and automatic range
With open circuit and short circuit calibration function
Comparator separation (5), alarm function

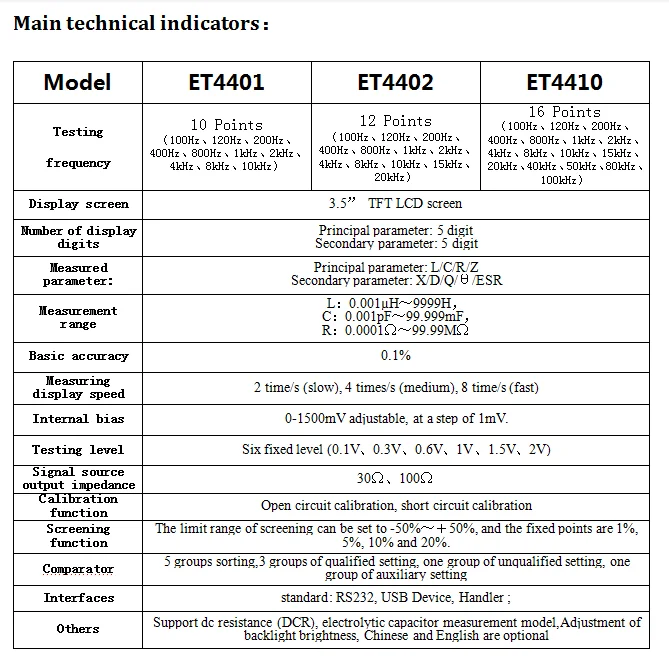

Main technical indicators:
Model |
ET4401 |
ET4402 |
ET4410 |
Testing frequency |

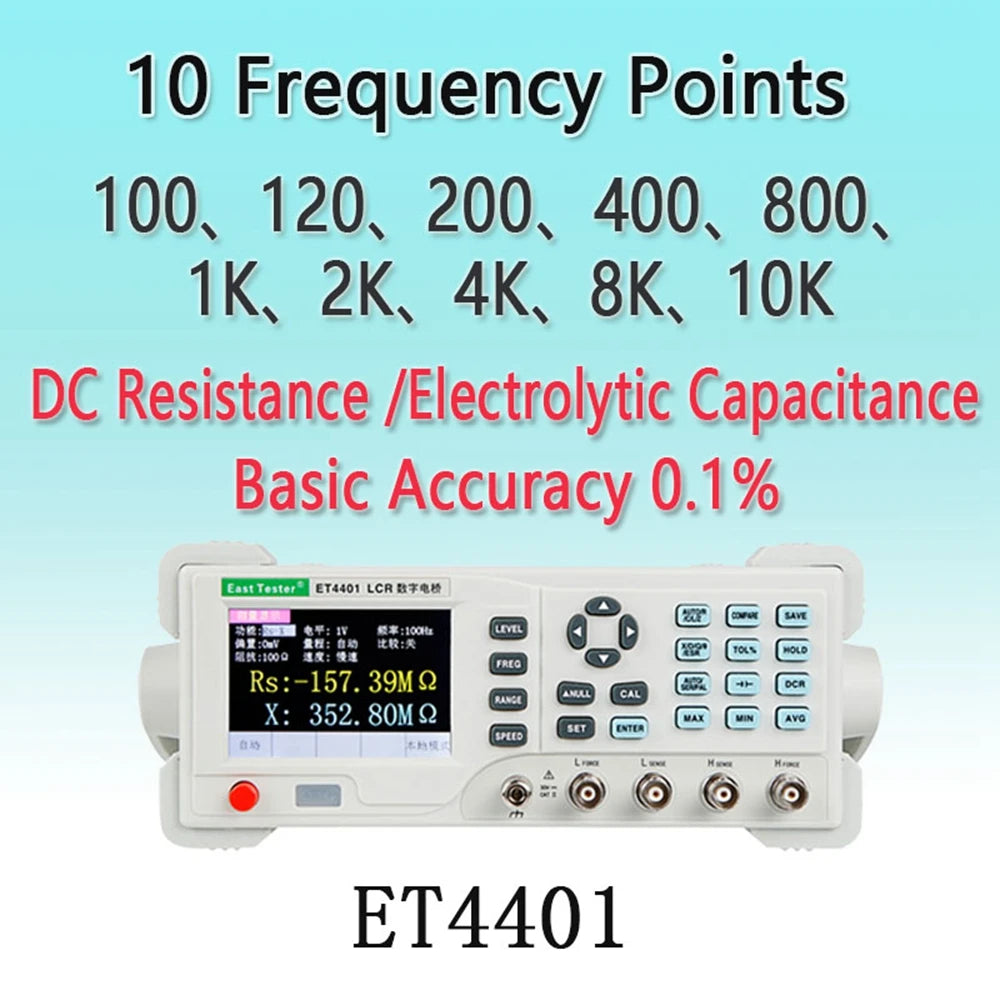

10 Points(100、120、200、400、800、1K、2K、4K、8K、10K) |
12 Points(100、120、200、400、800、1K、2K、4K、8K、10K、15K、20K) |

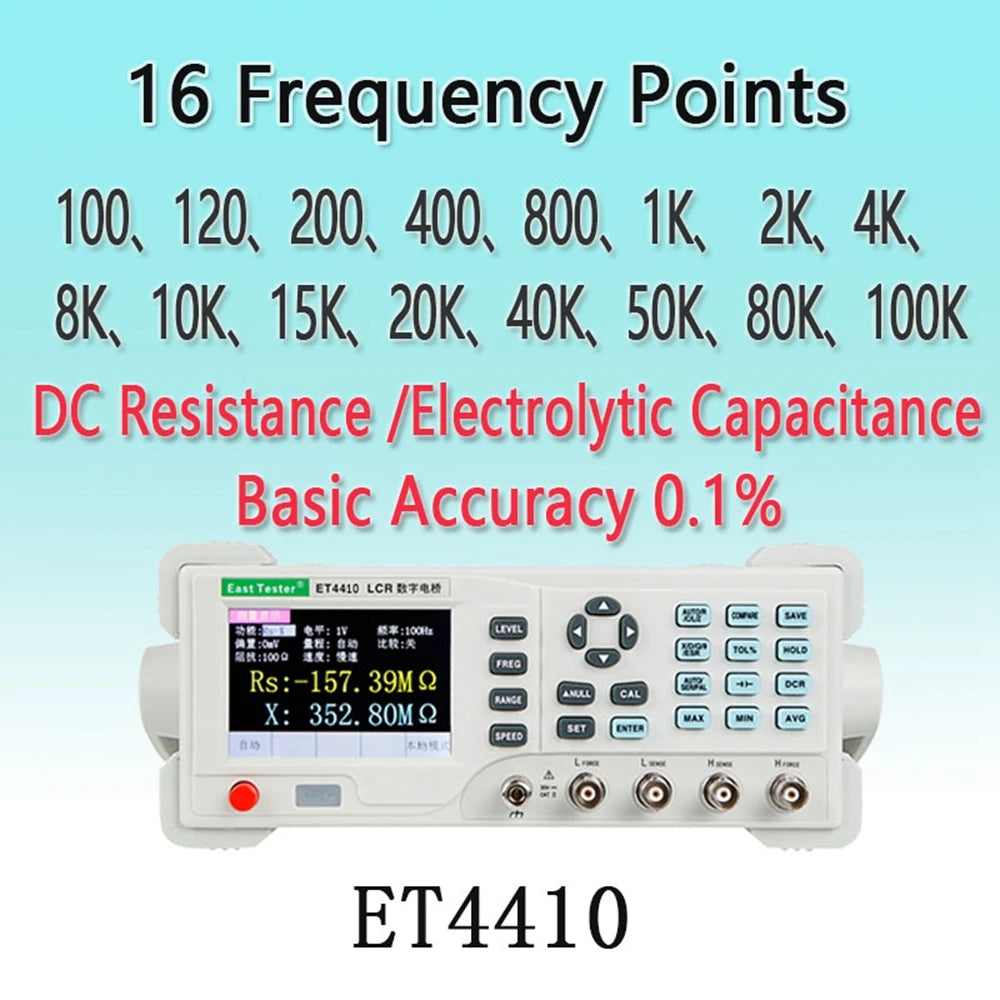

16 Points(100、120、200、400、800、1K、2K、4K、8K、10K、15K、20K、40K、50K、80K、100K) |
Display screen |
3.5" TFT LCD screen |
||
Number of display digits |
Principal parameter: 5 digit Secondary parameter: 5 digit |
||
Measured parameter: |
Principal parameter: L/C/R/Z Secondary parameter: X/D/Q/θ/ESR |
||
Measurement range |
L:0.001uH-9999H, C:0.001pF-99.999mF, R:0.0001 ohm-99.99M ohm |
||
Basic accuracy |
0.1% |
||
Measuring display speed |
2 time/s (slow), 4 times/s (medium), 8 time/s (fast) |
||
Internal bias |
0-1500mV adjustable, at a step of 1mV. |
||
Testing level |
Six fixed level(0.1V、0.3V、0.6V、1V、1.5V、2V) |
||
Signal source output impedance |
30 ohm、100 ohm |
||
Calibration function |
Open circuit calibration, short circuit calibration |
||
Screening function |
The limit range of screening can be set to -50%-+50%, and the fixed points are 1%, 5%, 10% and 20%. |
||
Comparator |
5 groups sorting,3 groups of qualified setting, one group of unqualified setting, one group of auxiliary setting |
||
Interfaces |
standard: RS232, USB Device, Handler ; |
||
Others |
Support dc resistance (DCR), electrolytic capacitor measurement model,Adjustment of backlight brightness, Chinese and English are optional |
||
