ESP32-S3 1.5 Inch UART OLED Touch Display Module for Arduino LVGL Projects

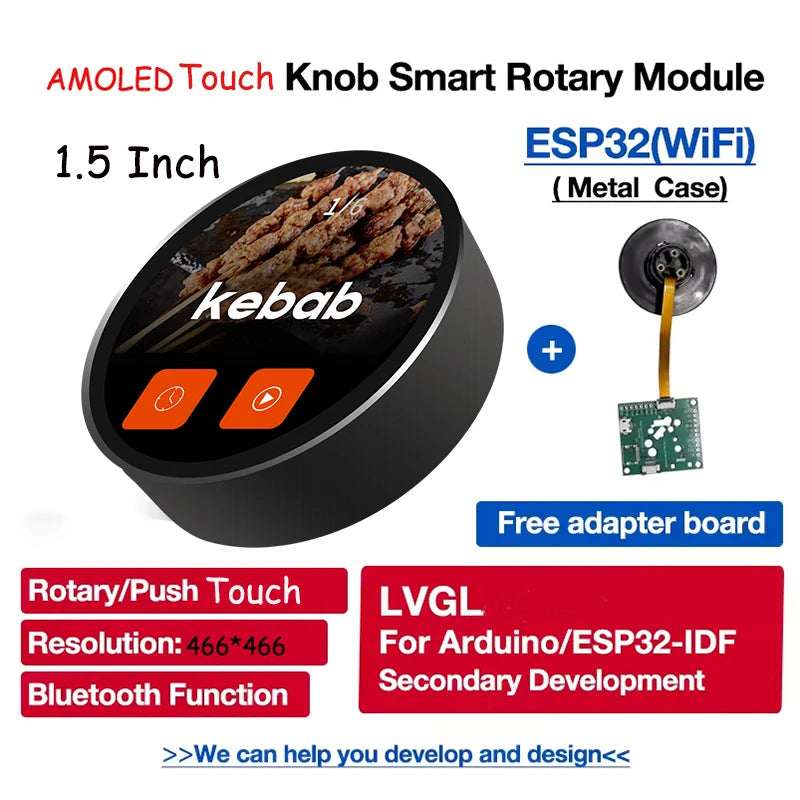

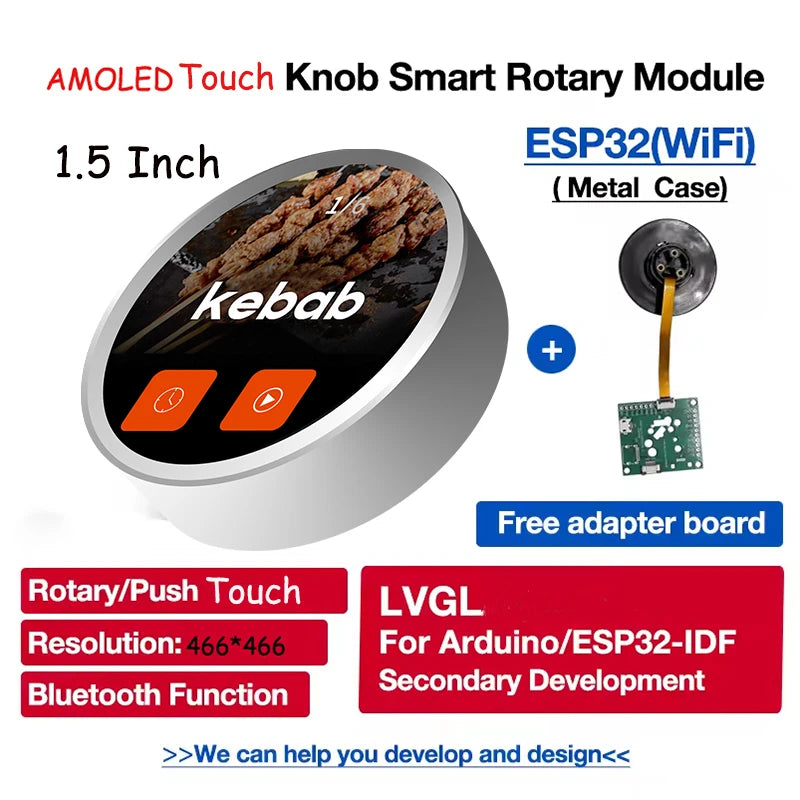

ESP32-S3 1.5-Inch Touch Knob Smart Display

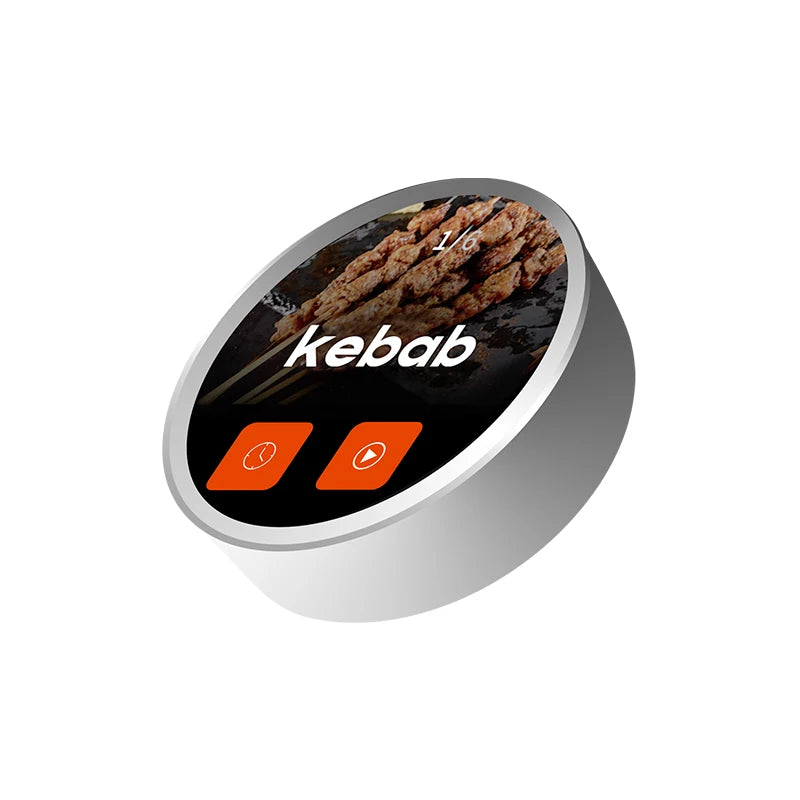

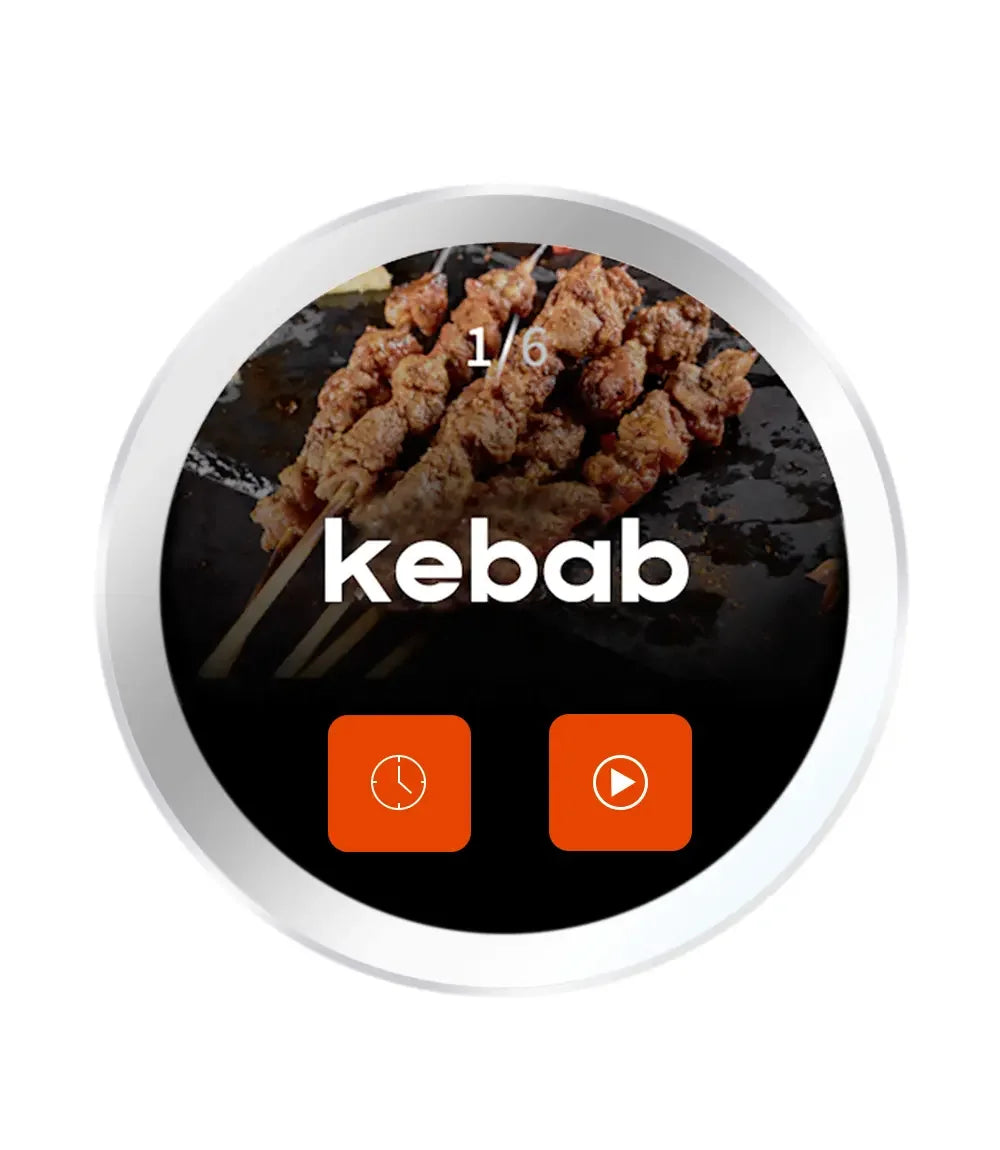

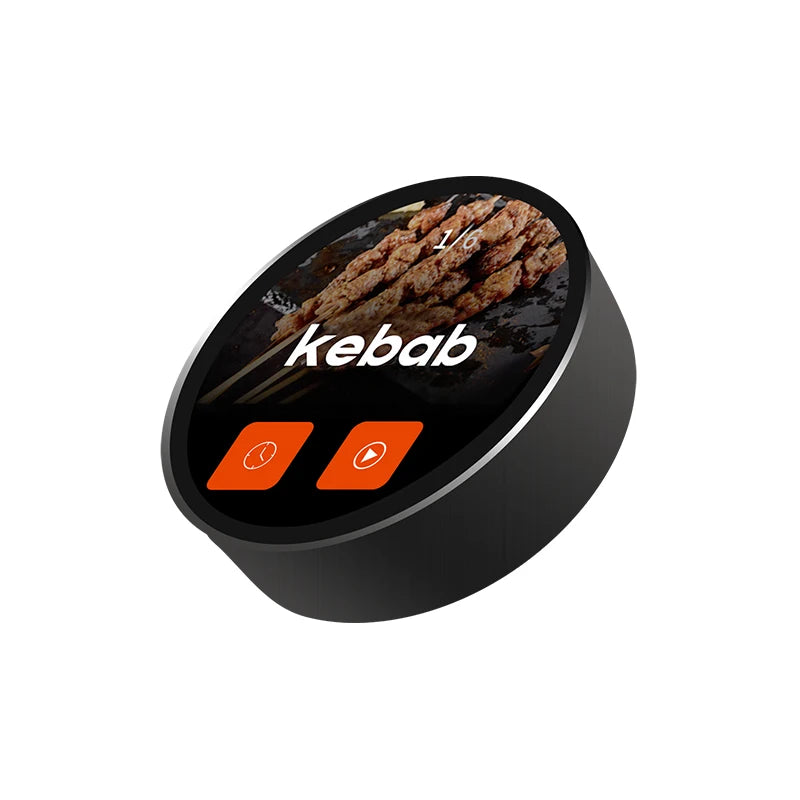

This round ESP32-S3 display module combines a touch display with rotary and press input in a metal enclosure. Choose the black or silver finish shown in the product options. It is suited to compact control panels, connected-device interfaces and LVGL-based embedded prototypes.

Core Hardware

• ESP32-S3 processor listed at up to 240 MHz, with 8 MB RAM and 16 MB flash in the matched original product material.

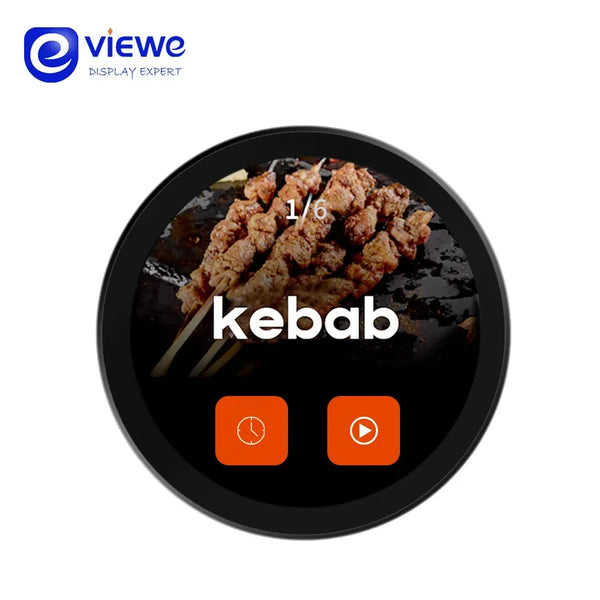

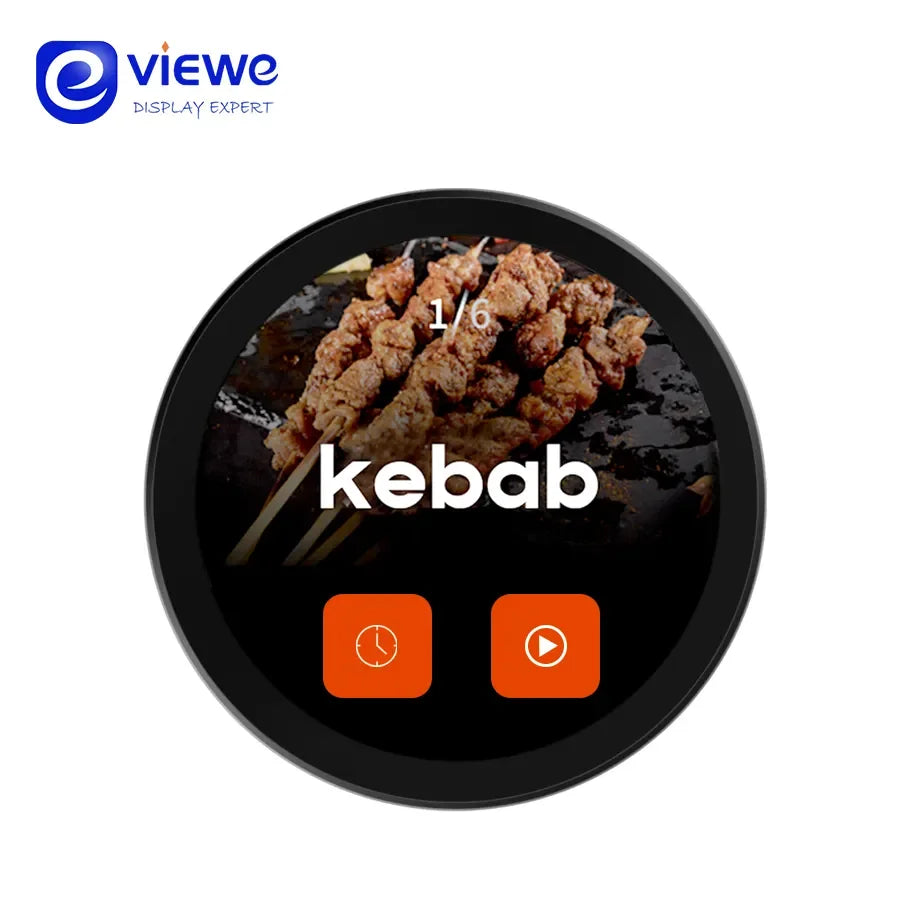

• 1.5-inch round touch display with a listed 466 x 466 resolution and 1000 cd/m2 brightness.
• 2.4 GHz Wi-Fi, Bluetooth LE 5 and BLE Mesh are listed for connected projects.
• UART and USB interfaces are listed; power requirement is listed as 5 V, 100 mA.

Control and Development

• Input methods shown for this module: rotary control, push/press control and touch control.
• The original product material identifies LVGL, Arduino and ESP-IDF development workflows.
• Operating temperature is listed as -20 to 60 C; storage temperature is listed as -30 to 70 C.

Documentation and Selection Notes

• Example code published with the original product material: VIEWESMART 1.5-inch touch-knob display repository.
• Confirm the selected color, mounting arrangement, power supply and required firmware support before ordering.
• This is an embedded development module. Integrators are responsible for their enclosure, wiring, firmware and application-level testing.
