Product Features:
1. Single-board design: A compact, integrated structure that is easy to install, highly stable and suitable for a wide range of experimental environments
2. Built-in signal generator: Integrates multiple waveform output functions, including sine and triangle waves, to meet diverse testing requirements
3. Waveform storage and recall: Supports waveform saving and quick recall, facilitating comparative analysis and reuse
4. 500 kHz high bandwidth: Offers high-frequency response capability to accurately capture the details of complex signals
5. The ideal tool for electronics enthusiasts: Simple to operate and packed with powerful features, it is a valuable aid for learning electronics and exploring the world of circuits
Product Specifications:
Bandwidth: 500 kHz
ADC resolution: 12-bit
Real-time sampling rate: 1.5 Msps
Waveform buffer length: 1024 points
Vertical sensitivity range: 10 mV/division – 5 V/division
Input impedance: 1 MΩ
Maximum input voltage: 50 Vpk
Coupling modes: DC, AC, GND
Horizontal time base range: 1 µs/division – 500 s/division
Trigger modes: Auto, Normal, Single
Trigger edge: 1 µs/division – 500 s/division
Power supply: 5 V DC (powered via USB [Type-C port])
Current consumption: <100 mA
Product dimensions: 118 × 76 × 12 mm

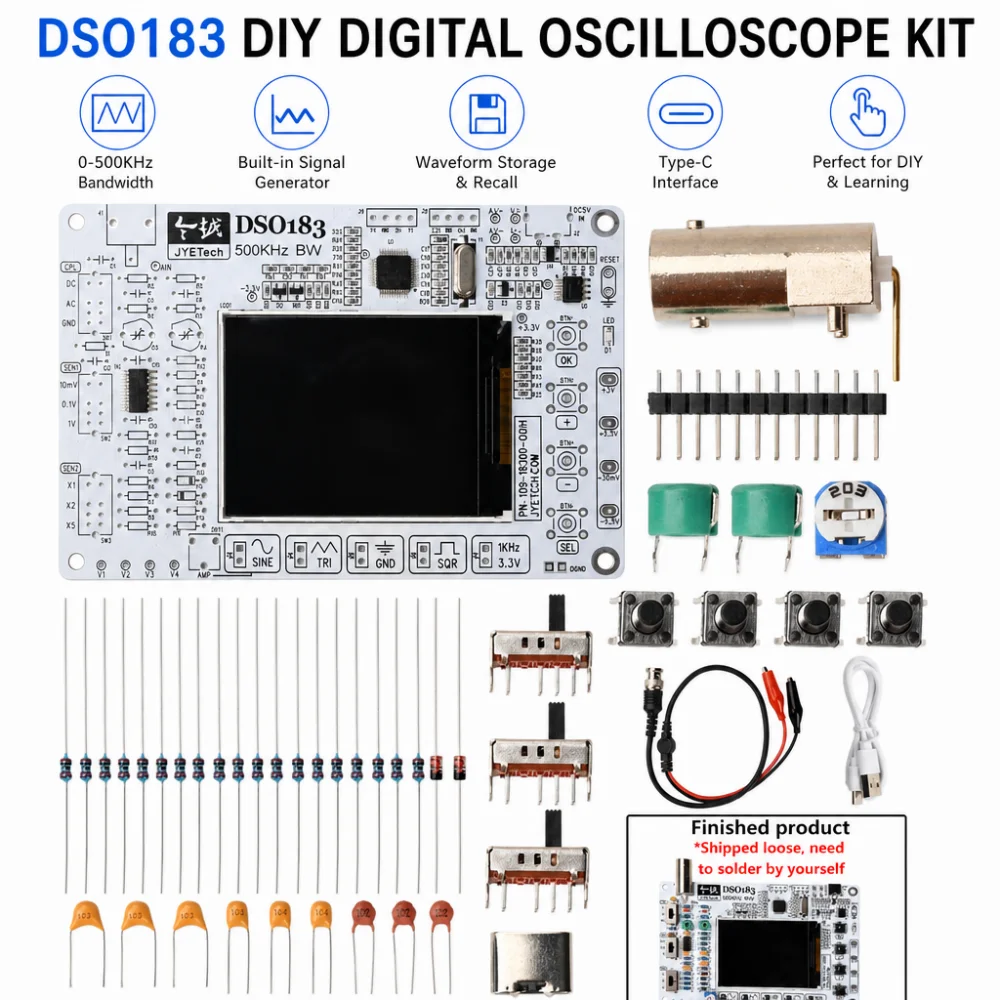

Package contents:
List 1: DIY kit components × 1
List 2: Single shell × 1
