NE555 170V Type C Geiger Counter Dosimeter for Electronics Testing

NE555 170V Type C Geiger Counter Dosimeter for Electronics Testing

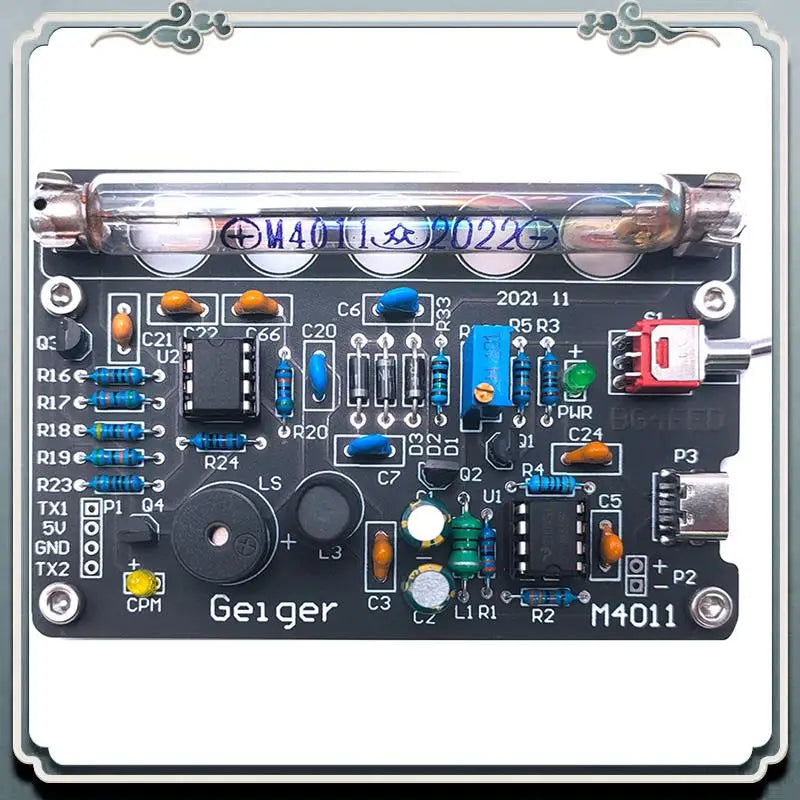

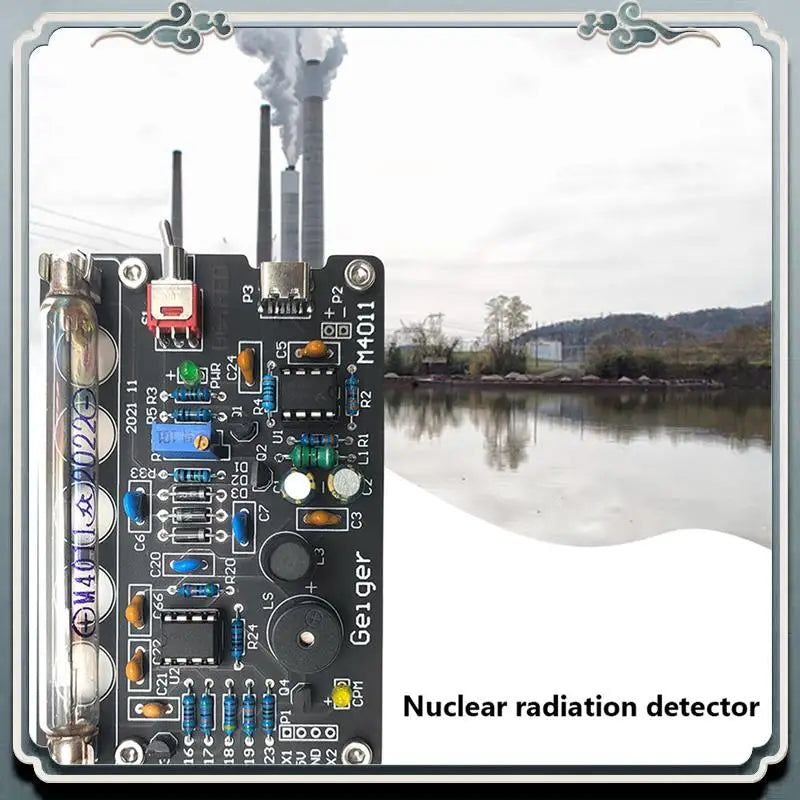

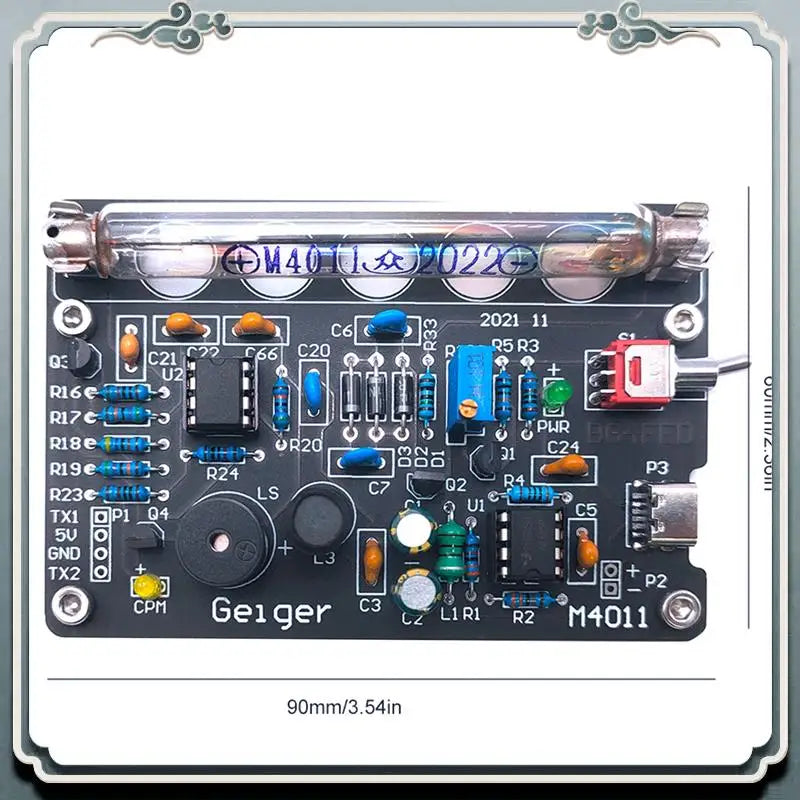

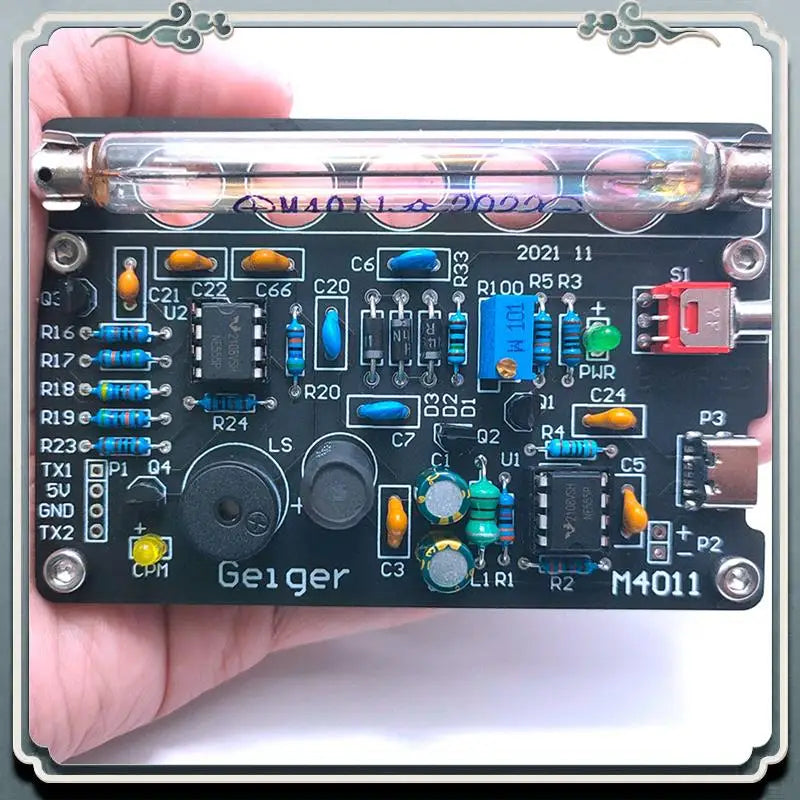

DIY particle counter Kit With Audible Alarm Miller Tube ionizing particle Detector Board Easy To Use

Wide Range of Applications: This assembled diy particle counter kit can detect X-rays, gamma rays, and beta rays. It is also suitable for measuring particle levels in marble, antiques, iodine-131, and various unknown minerals.

External Monitor Support: Allows monitoring through an external screen or pointer-type instrument. The output signal of particle counter circuit board kit is an interrupt output with a waveform waveform on the falling edge, effective at low voltage.

Features and Specifications

• particle Tube Model: M4011
• Type C interface power supply: 5V1A
• Power consumption current: 20mA
• Tube M4011 Specifications:
• Diameter: 10±0.5mm
• Total length: 90±2mm
• Starting voltage: Less than 350V
• Recommended working voltage: 380V
• Minimum ping length: 80V
• Maximum ping slope: 10%/80V
• Extreme working voltage: 550V
• Maximum background countrate: 25 counts/minute
• Lifespan: Greater than 1x109 waveform
• Detection:X-ray Beta Gamma rays
• Colour:Photo Color
• Material:plastic
• Package Contents:
• 1 x ionizing particle Detector Board Set (DIY Version)
