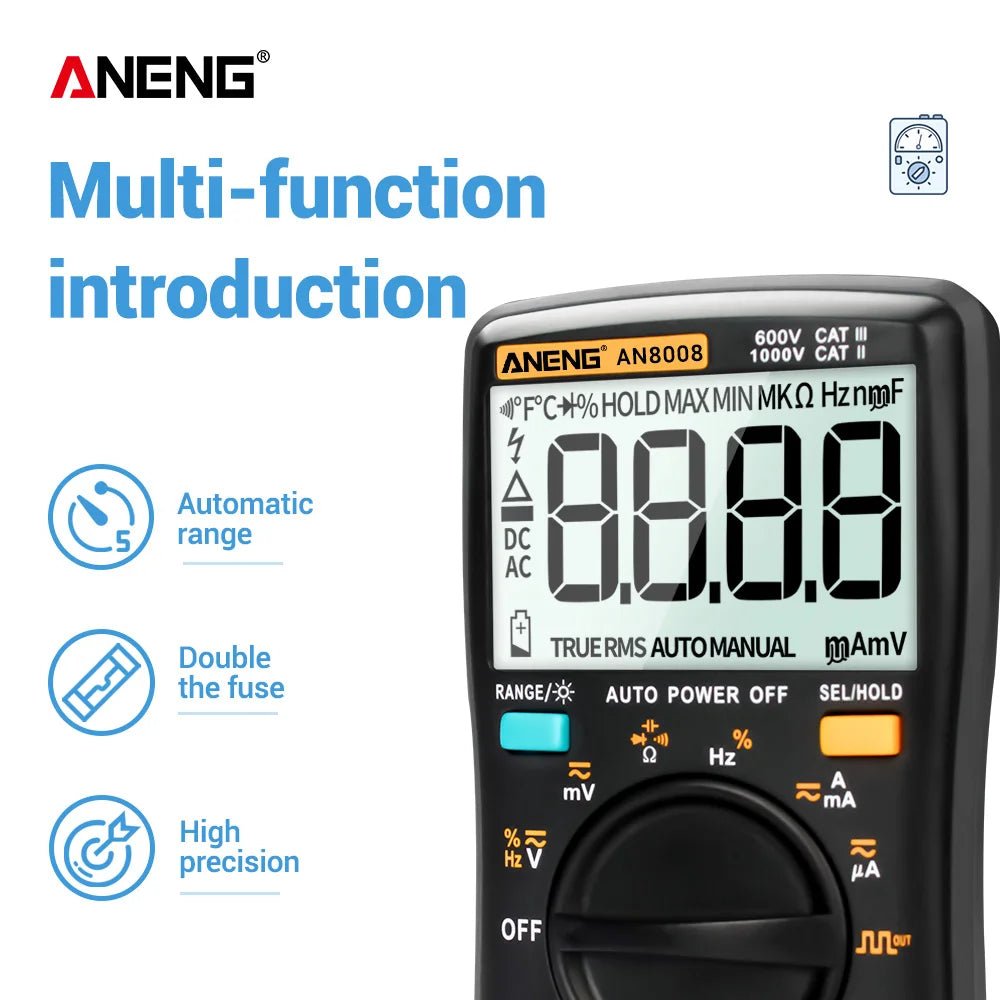

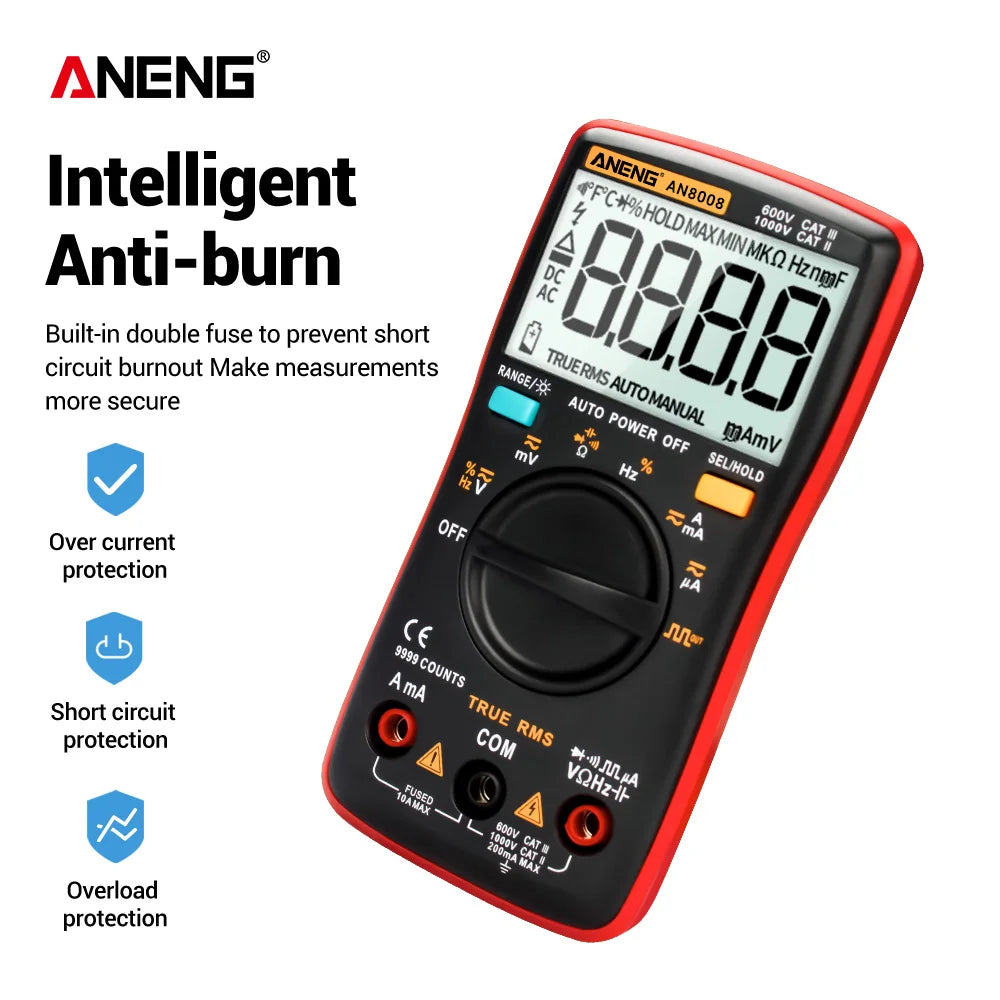

The product is battery-powered with true-rms, LCD display and backlight.
Features:

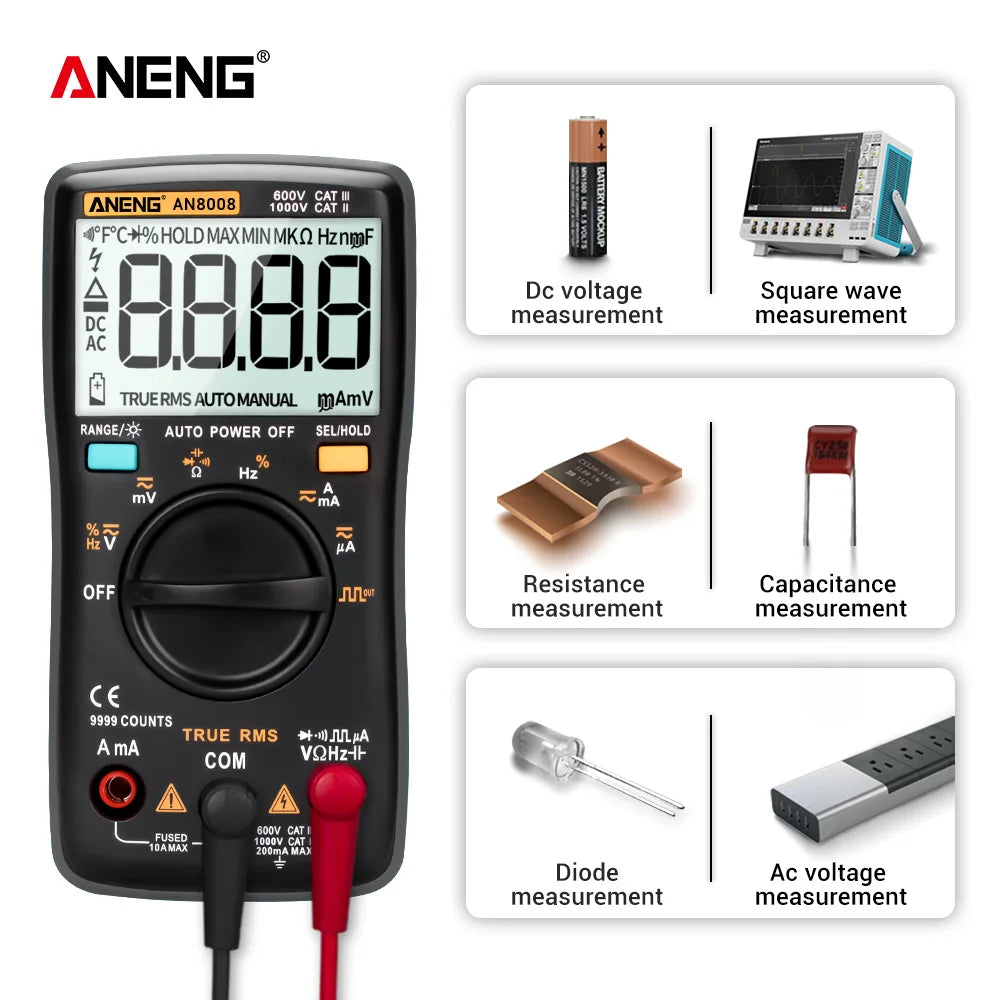

1.AN8008 Multifunction:Can measure AC/DC voltage,AC/DC current,resistance,capacitance,
frequency,duty cycle,square wave output,diode and continuity.

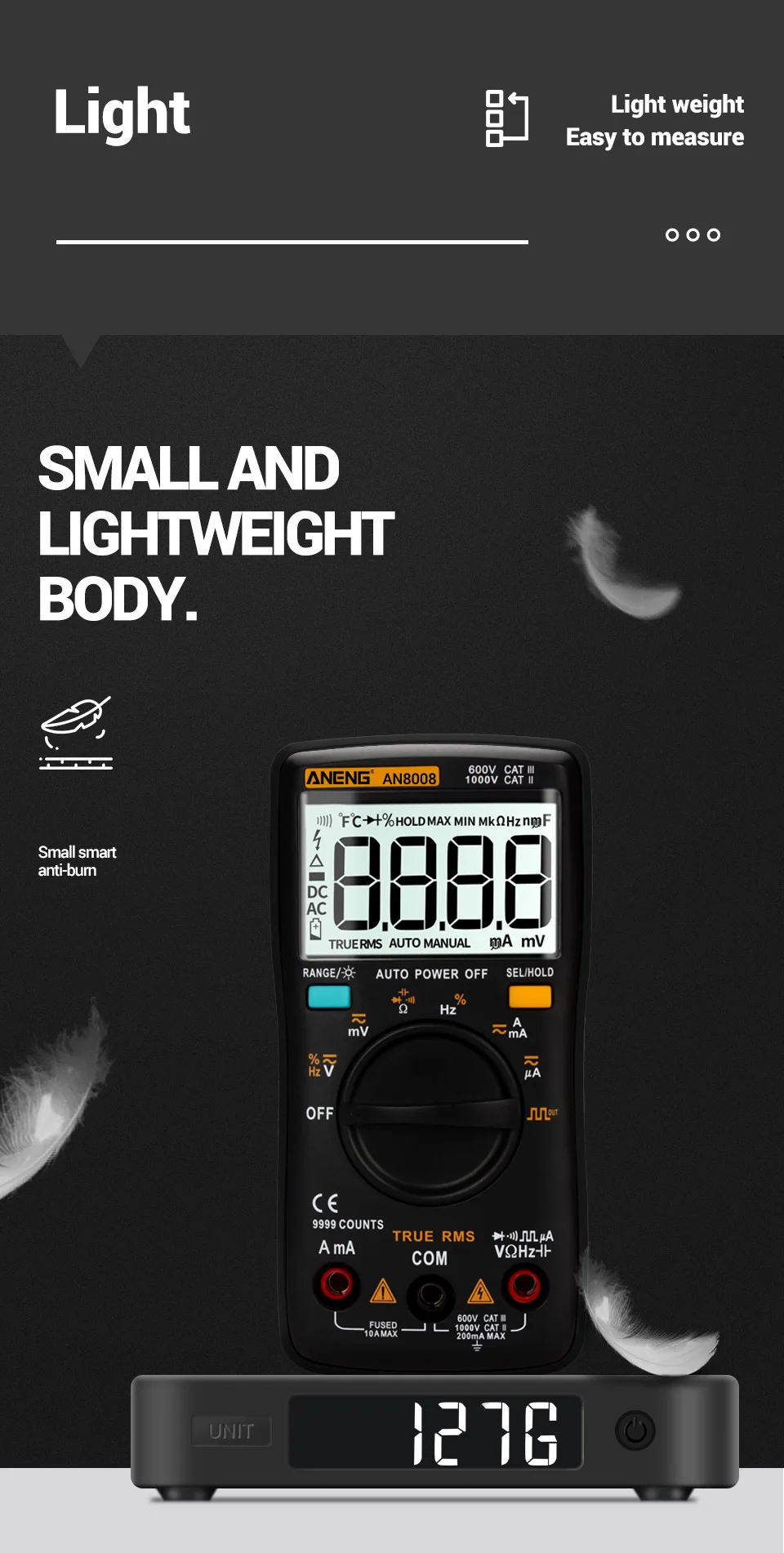

2.Portable design:There is a back bracket for supporting multimeter,convenient to operate.
3.Wide range of applications:It's a perfect tool for the laboratory,factory and home.
4.Clear to read:With large LCD backlight display and data hold,easy to read data.
5.More advantages:Auto/manual range,true RMS,auto power off and over range indication.

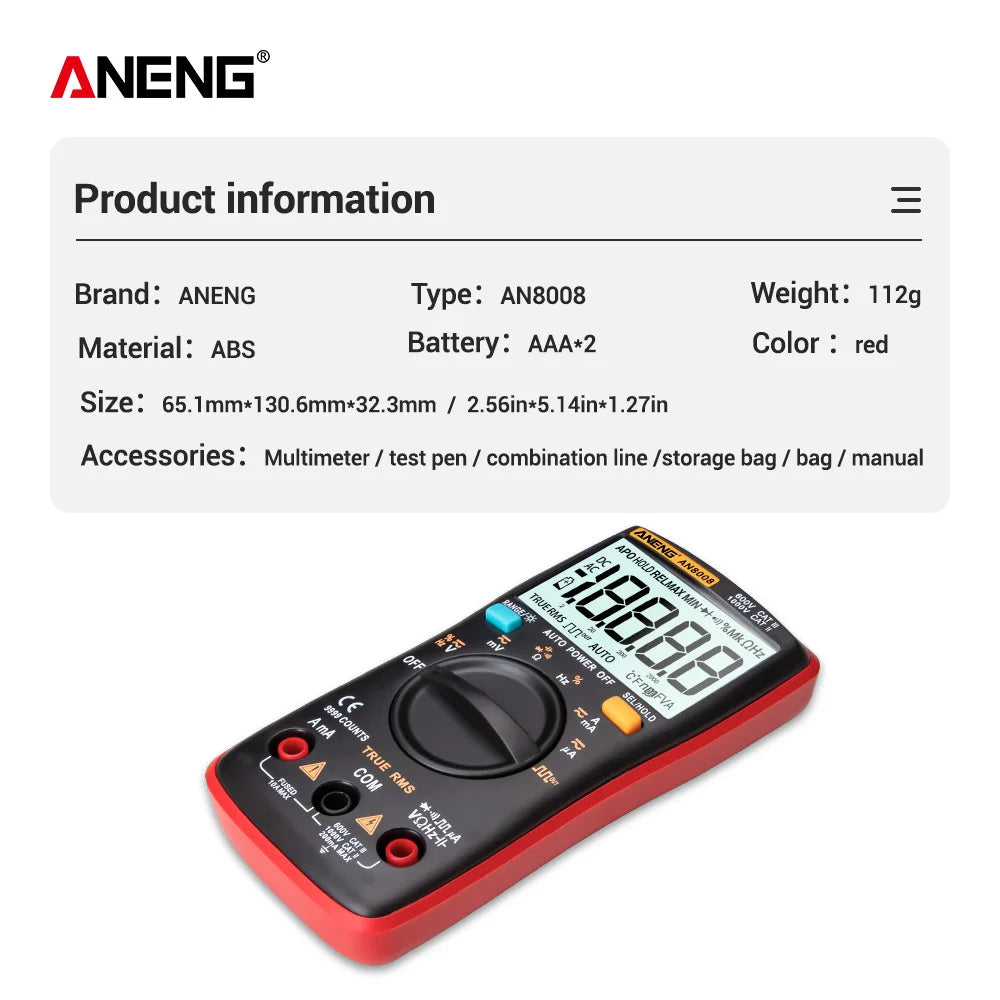

Specifications:
Brand Name |
ANENG |
Model |
AN8008 |
Counts |
9999 |
Diode Test |
Yes |
Continuity |
Yes |
Square wave output |
Yes |
Backlight |
Yes |
Data hold |
Yes |
Auto/manual range |
Yes |
Auto power off |
Yes |
Over range Indication |
Yes |
Duty Cycle |
1%-99% ±( 0.1%+2) |
DC voltage |
999.9mV/9.999V/99.99V/999.9V±(0.5%+3),9.999mV/99.99mV±(0.5%+3) |

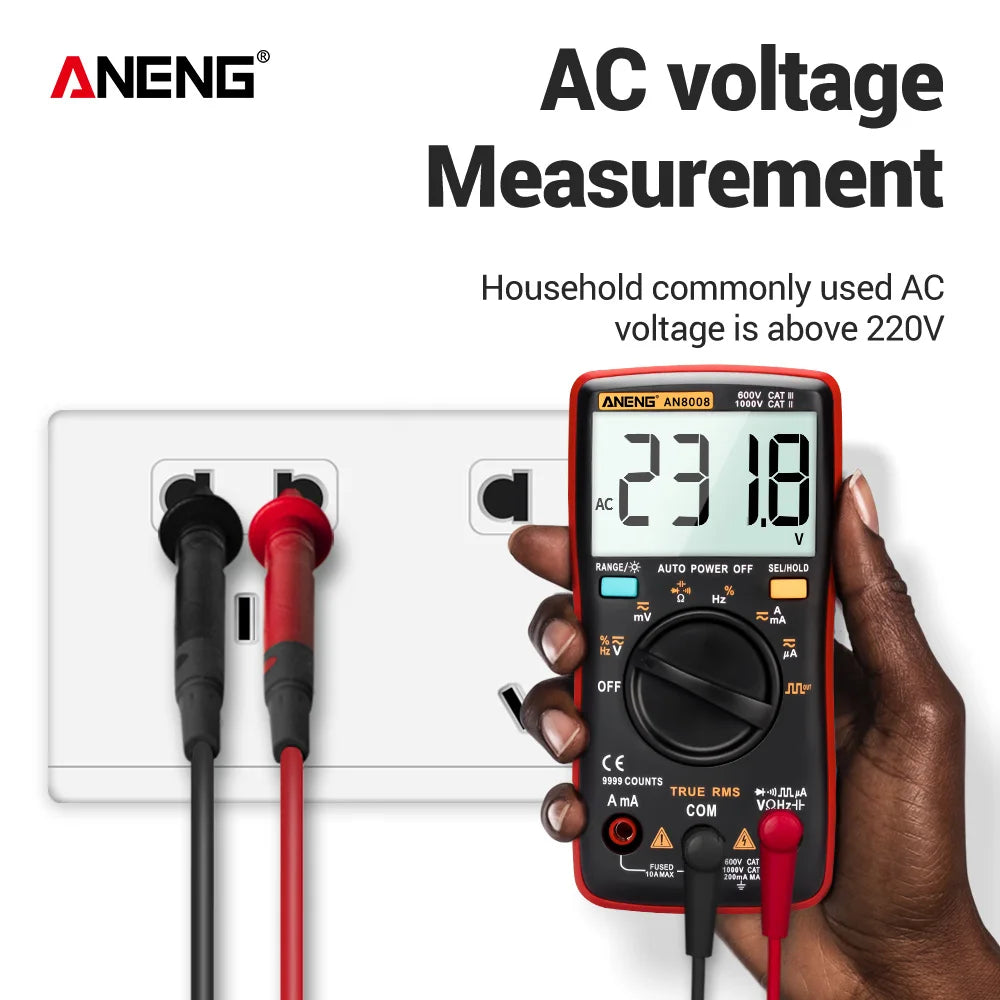

AC voltage |
999.9mV/9.999V/99.99V/750V±(1.0%+3),9.999mV/99.99mV±(1.0%+3） |
DC current |
999.9mA/9.999A±(1.0%+3),99.99μA/999.9μA±(0.8%+3) |
AC current |
999.9mA/9.999A±(1.2%+3),99.99μA/9999μA±(1.0%+3) |
Resistance |
99.99Ω±(1.0%+3),999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ±(0.5%+3), 9.999MΩ±(1.5%+3) |
Capacitance |
9.999nF±(5.0%+20), 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF±(2.0%+5),9.999mF±(5.0%+5) |
Frequency |
99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(0.1% + 2) |
Power |
2 x 1.5V AAA (Not included) |

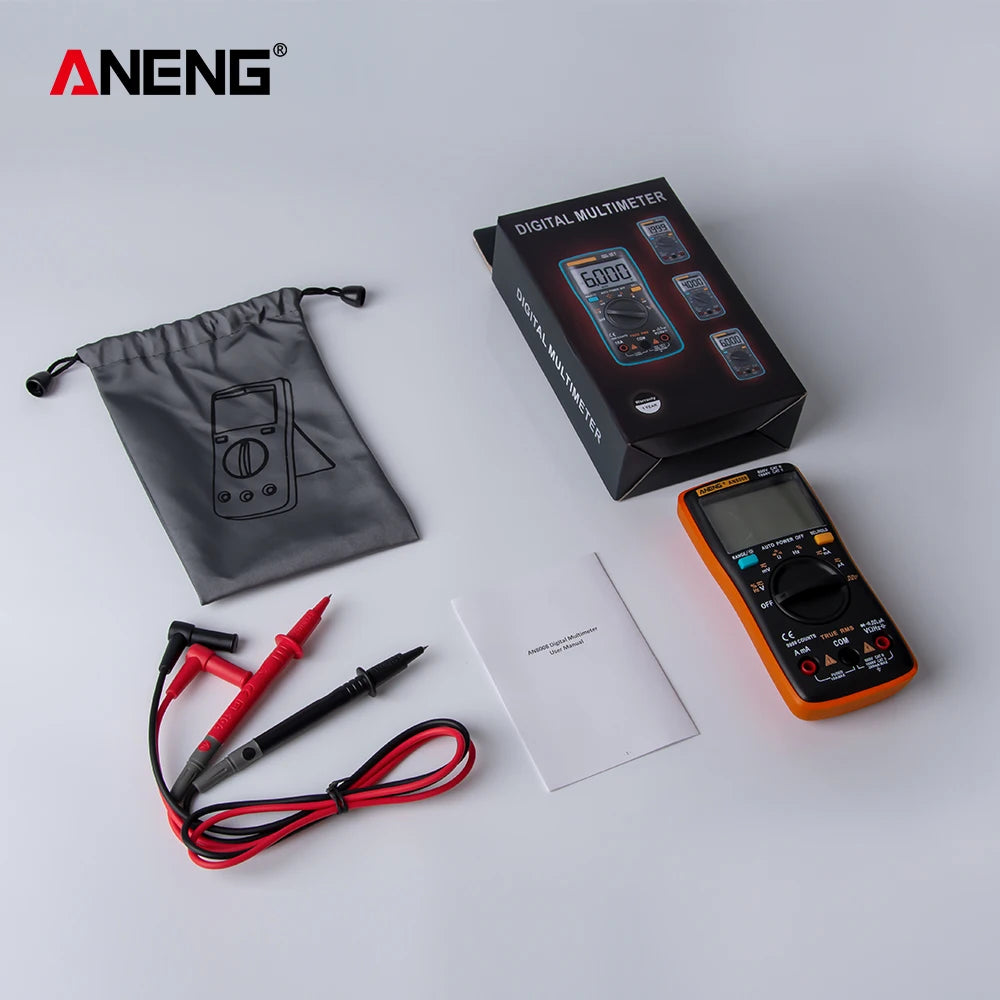

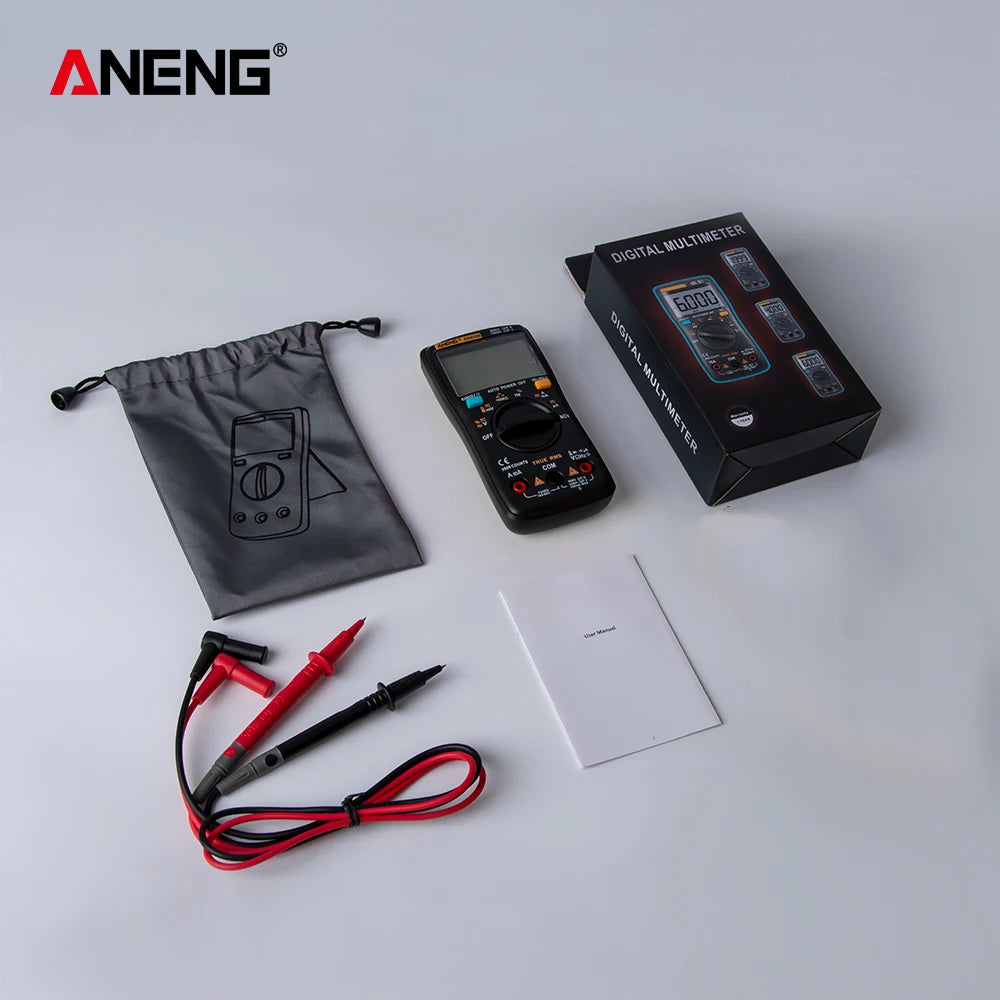

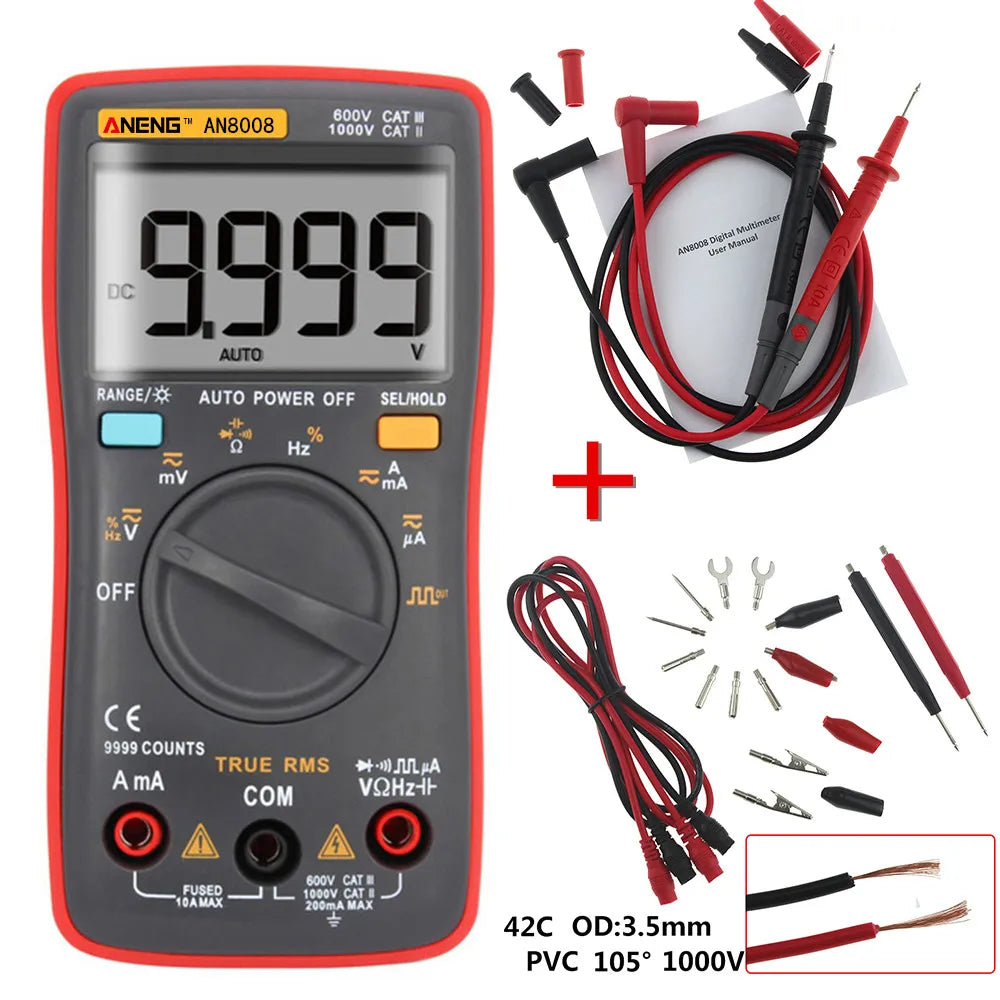

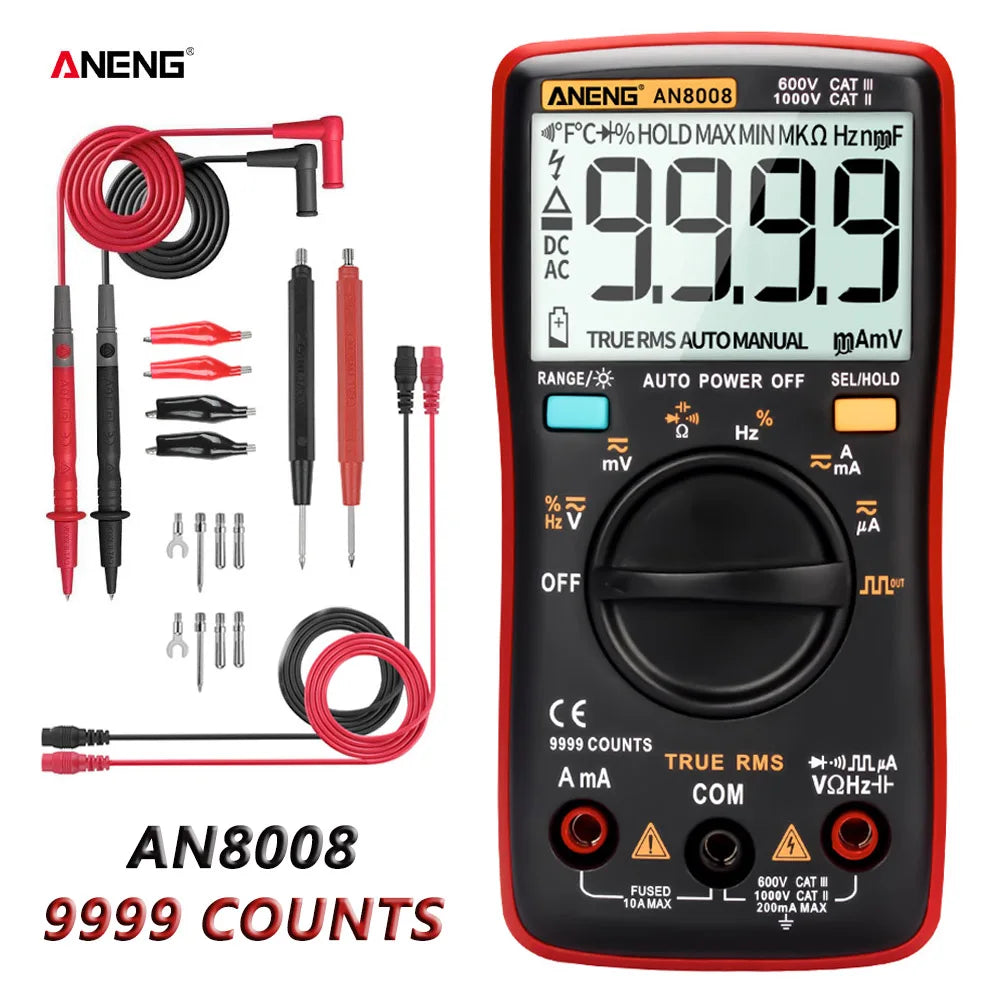

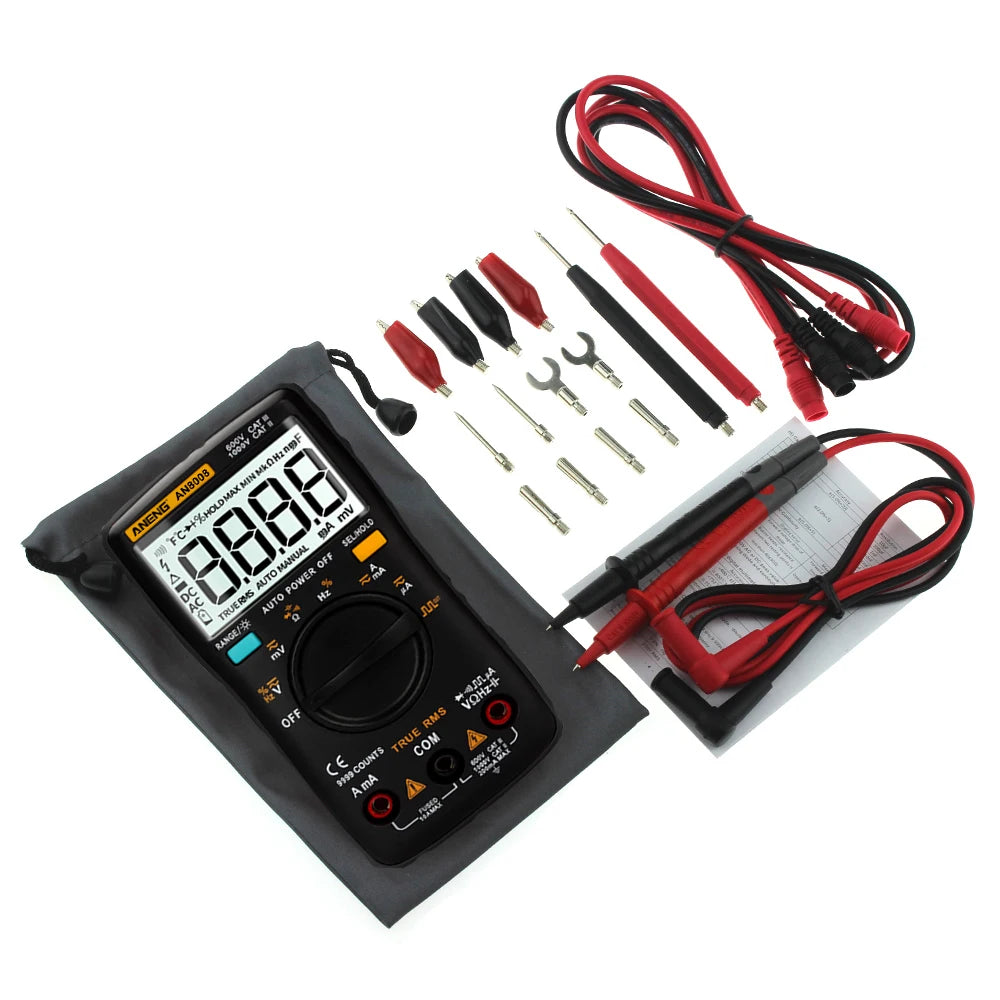

Package List:

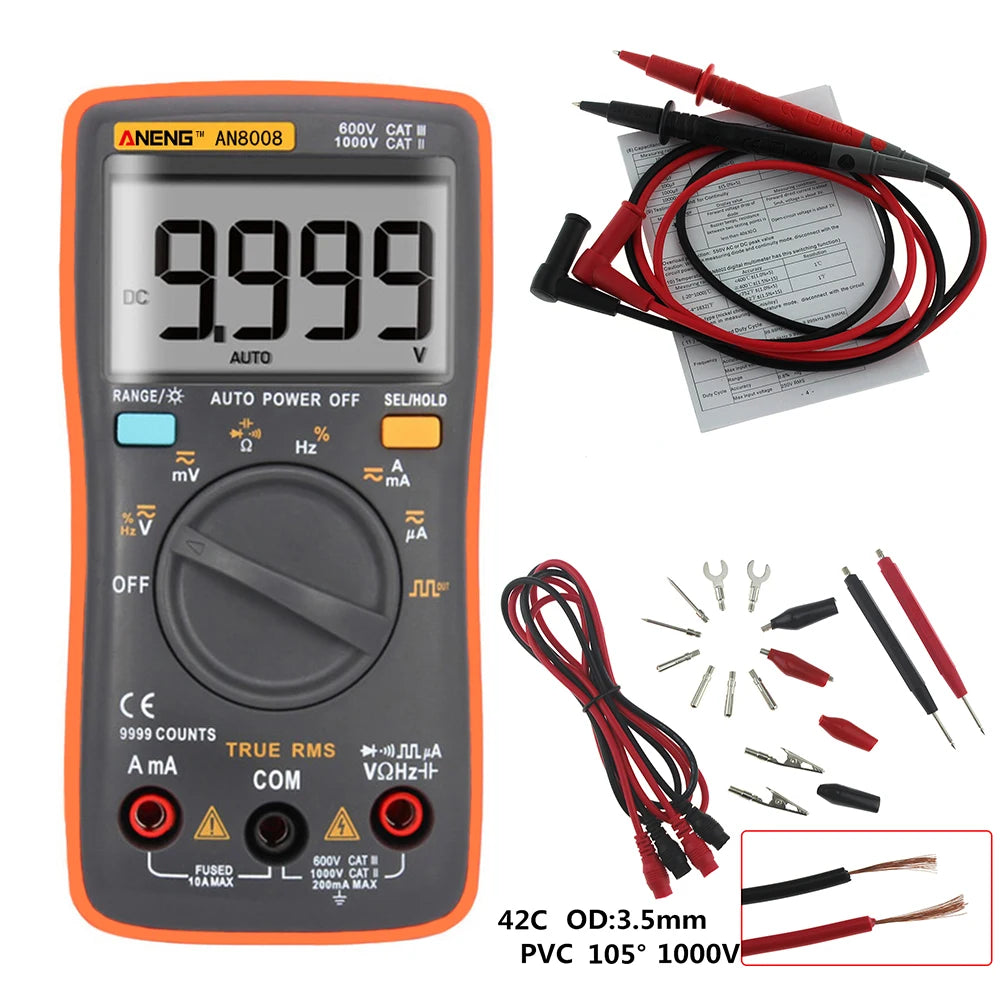

1 x Digital Multimeter
2 x Test Leads Pens
1 x 16 in 1 multifunctional test line （Choose by package）
1 x Storage bag
1 x User Manual
