Product Summary
Digital Load Cell Weight Sensor 5KG Portable Electronic Kitchen Scale + HX711 Weighing is a sensor module selected for detecting environmental data, presence, motion or system status. It is suitable for smart home users, automation builders and embedded developers who need practical electronics hardware for reliable project work.
Best For
- detecting environmental data, presence, motion or system status
- IoT projects, automation hubs, microcontrollers and monitoring systems
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for smart home users, automation builders and embedded developers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Features
Two selectable differential input channels
On-chip active low noise PGA with selectable gain of 3264 and 128
On-chip power supply regulator for load-cell and ADC analog power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-reset
Simple digital control and serial interface: pin-driven controlsno programming needed
Selectable 10SPS or 80SPS output data rate
Simultaneous 50 and 60Hz supply rejection
Current consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA
Operation supply voltage range: 2.6 - 5.5V
Operating Temperature Range:-20 degree - +85 degree
Connection:
Red to E+
Black to E-
Green to A+
White to A-

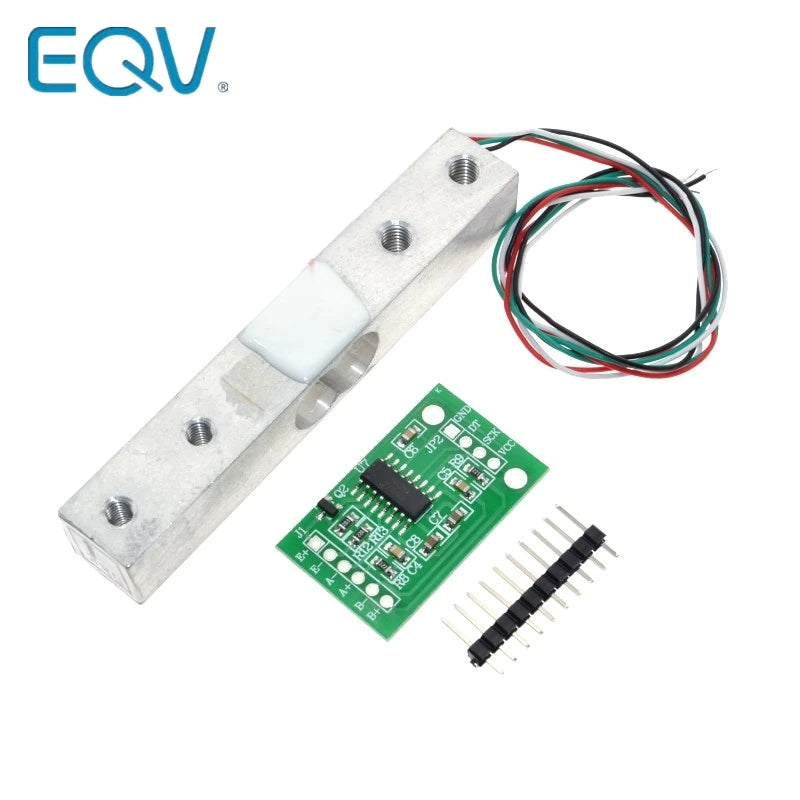

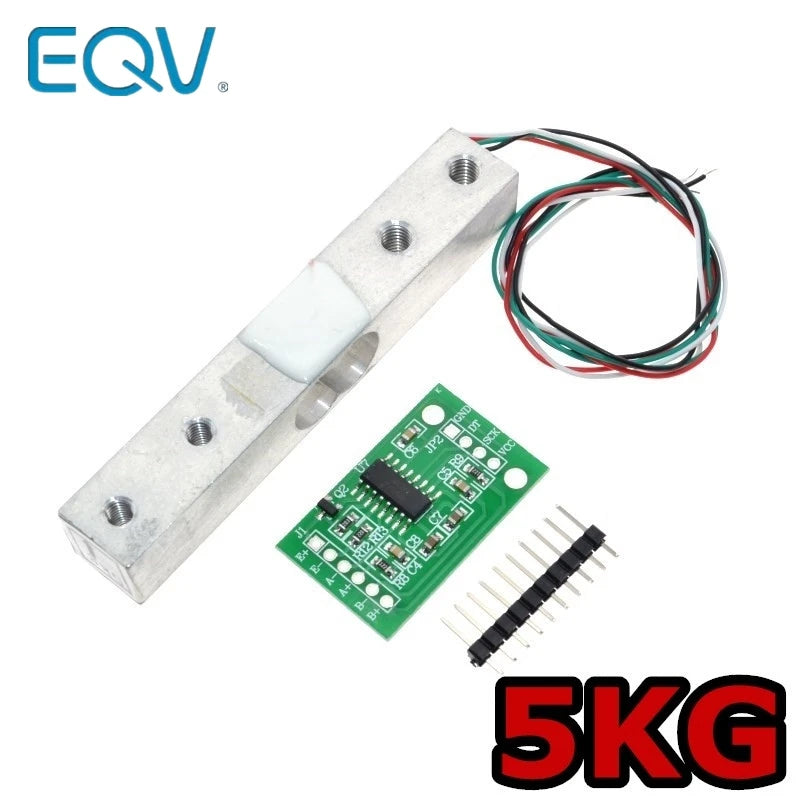

Package Included:

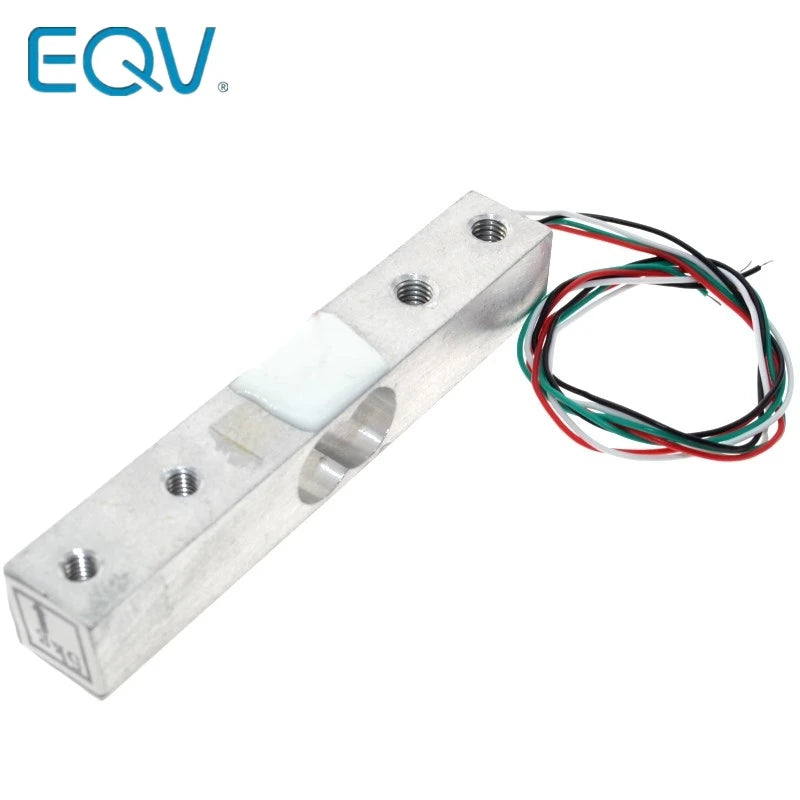

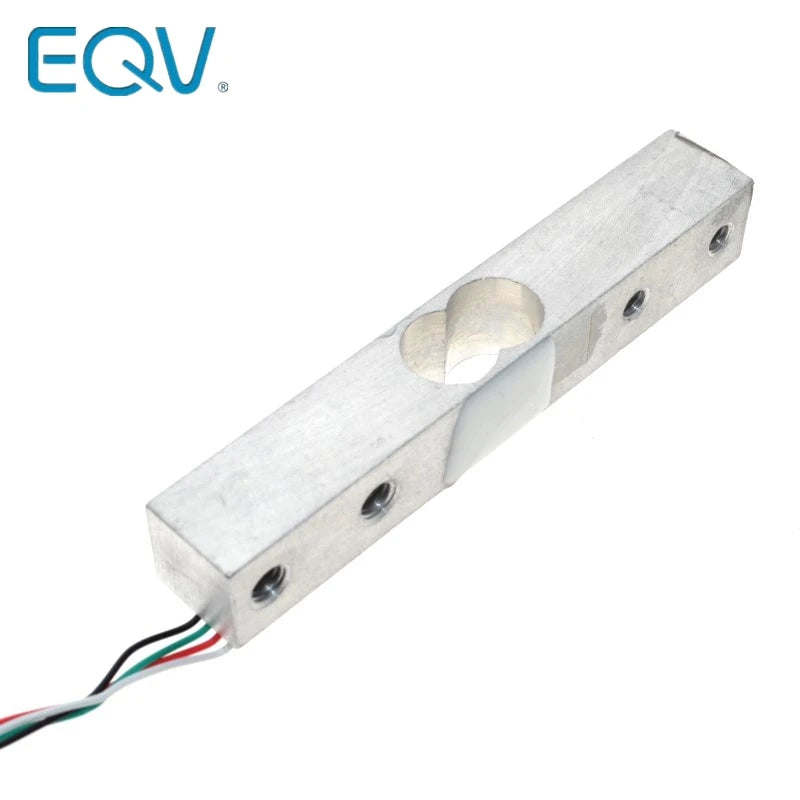

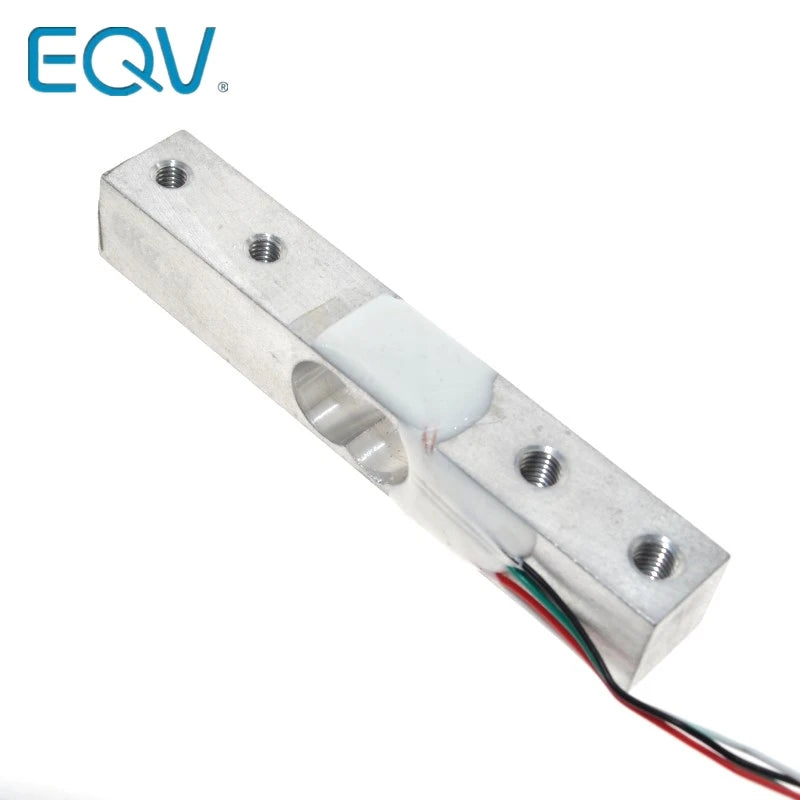

1X Weight Sensor
1 X HX711 24BIT Precision ADC Module
