This compact pulse transformer module converts a low-voltage DC input into a high-voltage output for controlled ignition and discharge experiments. It is intended for experienced users working with properly insulated test fixtures.
Listed Input

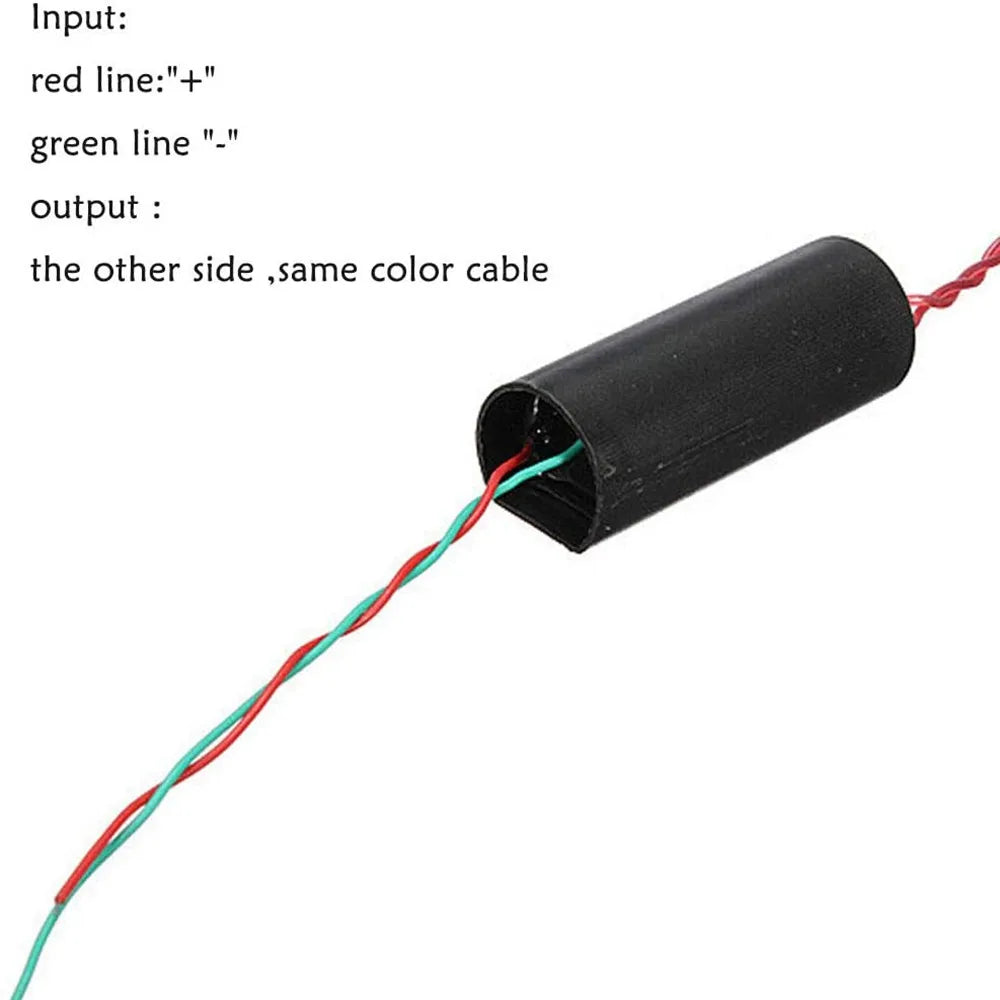

- DC input range: 3-6V.
- Red input lead: positive.
- Green input lead: negative.
- The two same-color wires at the opposite end form the high-voltage output.
Important Rating Note
The “400kV” wording is the supplier's nominal marketing designation and should not be treated as a calibrated output-voltage specification. Actual arc length and output depend on the input supply, spacing, insulation, environment, and load.
High-Voltage Safety
The output can cause shock, burns, ignition, and damage to nearby electronics. Do not touch the output or operate near flammable materials, liquids, medical implants, or sensitive equipment. Enclose and insulate the high-voltage section, use short operating cycles, and disconnect power before adjusting the electrodes.
