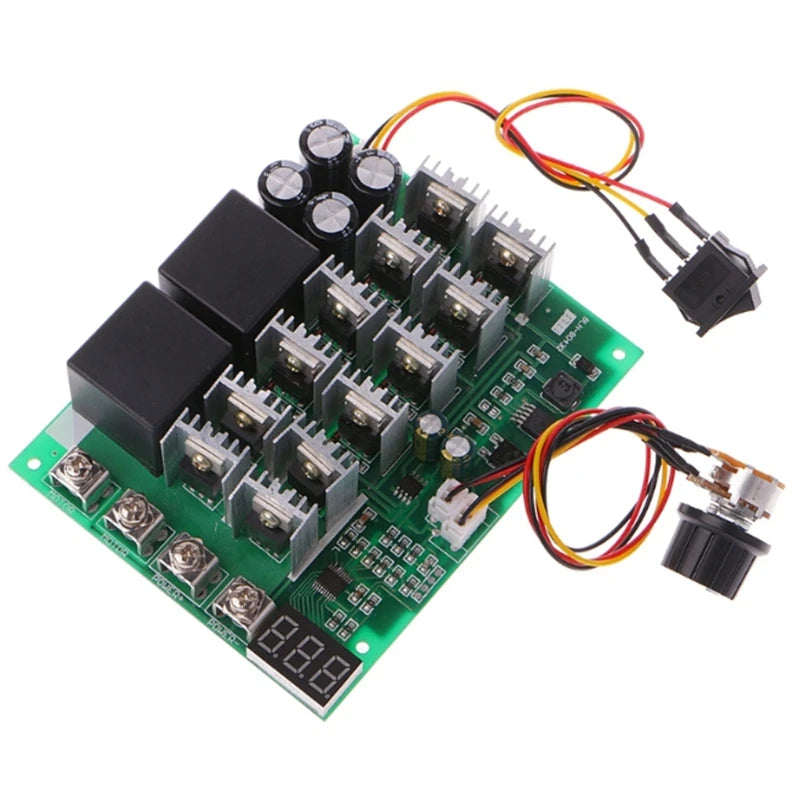

DC 10-55V 12V 24V 36V 48V 55V 100A Motor Speed Controller PWM HHO RC Reverse Control Switch with LED Display

Sale price
$18.36
List price
$26.22
You save
$7.86 (30%)

Prices include VAT and any applicable duties.
Delivery estimate Estimated arrival is calculated for your delivery market.
Ships in 1-3 business days. Remote areas or special items may take longer.

This PWM controller provides forward/reverse direction control and adjustable speed for compatible brushed DC motors. It is supplied as an open PCB for integration into a suitable enclosure and cooling arrangement.

Listed Specifications

  • Operating voltage: DC 10-55V.
  • Control method: PWM.
  • Listed PWM frequency: approximately 15kHz.
  • Supplier-listed current designation: 100A.

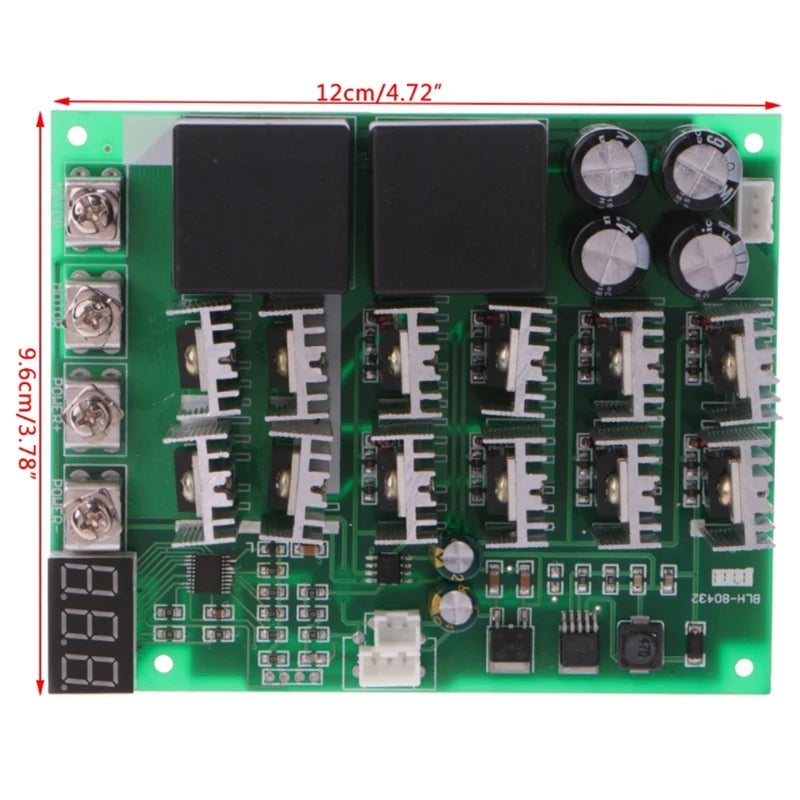

  • Board dimensions: approximately 120 x 96mm.

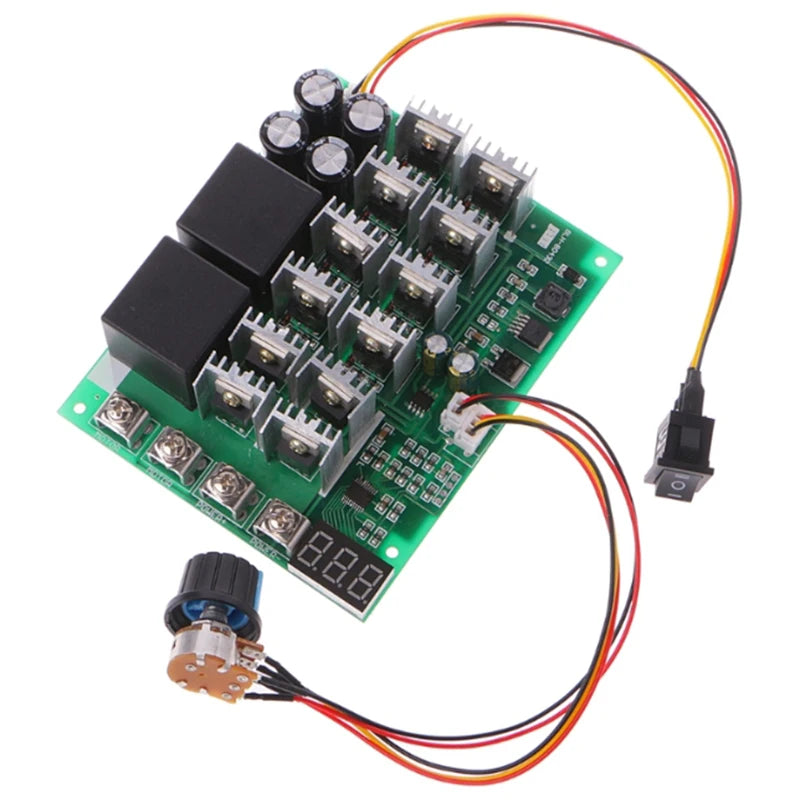

  • LED voltage display and external speed-control potentiometer.

Load and Installation Notes

The 100A value is a supplier peak designation, not a guaranteed continuous rating. Continuous current depends on cooling, wiring, terminals, airflow, switching duty, motor startup/stall current, and enclosure temperature. Add suitable fusing, wire gauge, heat management, and reverse-polarity protection for the intended load.

Compatibility

Use with compatible brushed DC motors only. Confirm motor type, supply voltage, normal current, startup current, and stall current before connection. Disconnect power before changing direction wiring or servicing the controller.

Product Detail Images

DC 10-55V 12V 24V 36V 48V 55V 100A Motor Speed Controller PWM HHO RC Reverse Control Switch with LED Display product photo

DC 10-55V 12V 24V 36V 48V 55V 100A Motor Speed Controller PWM HHO RC Reverse Control Switch with LED Display detail photo 2

DC 10-55V 12V 24V 36V 48V 55V 100A Motor Speed Controller PWM HHO RC Reverse Control Switch with LED Display detail photo 3

DC 10-55V 12V 24V 36V 48V 55V 100A Motor Speed Controller PWM HHO RC Reverse Control Switch with LED Display detail photo 4
