Product Summary
BSIDE ZT702S Handheld Oscilloscope Multimeter Professional Digital Multiteter Electrician is a digital oscilloscope selected for checking waveforms, debugging signals and validating circuit behavior. It is suitable for electronics repair technicians, lab users and embedded developers who need practical electronics hardware for reliable project work.
Best For
- checking waveforms, debugging signals and validating circuit behavior
- test leads, probes and bench electronics workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electronics repair technicians, lab users and embedded developers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

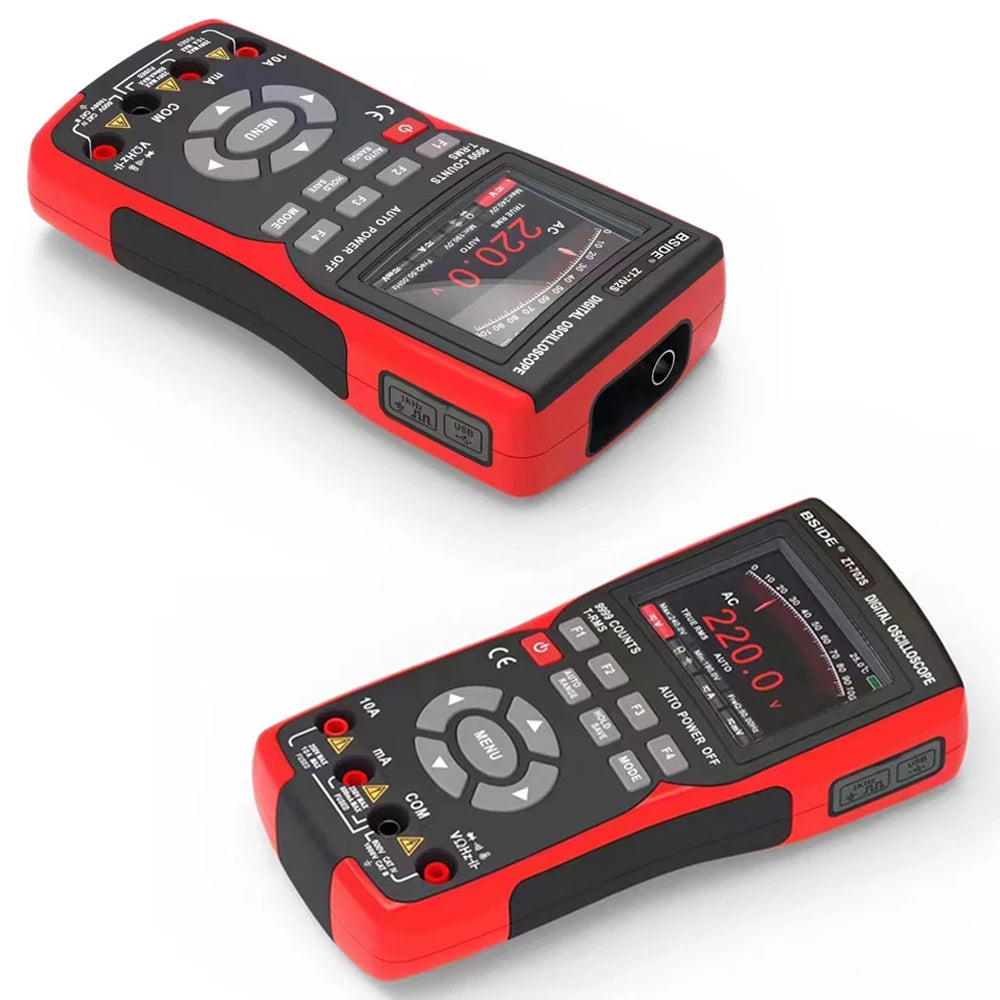

BSIDE ZT702S Handheld Oscilloscope Multimeter Professional Digital Multiteter Electrician Current Capacitance Resistance Tester
Specifications:
Display: 9999 counts

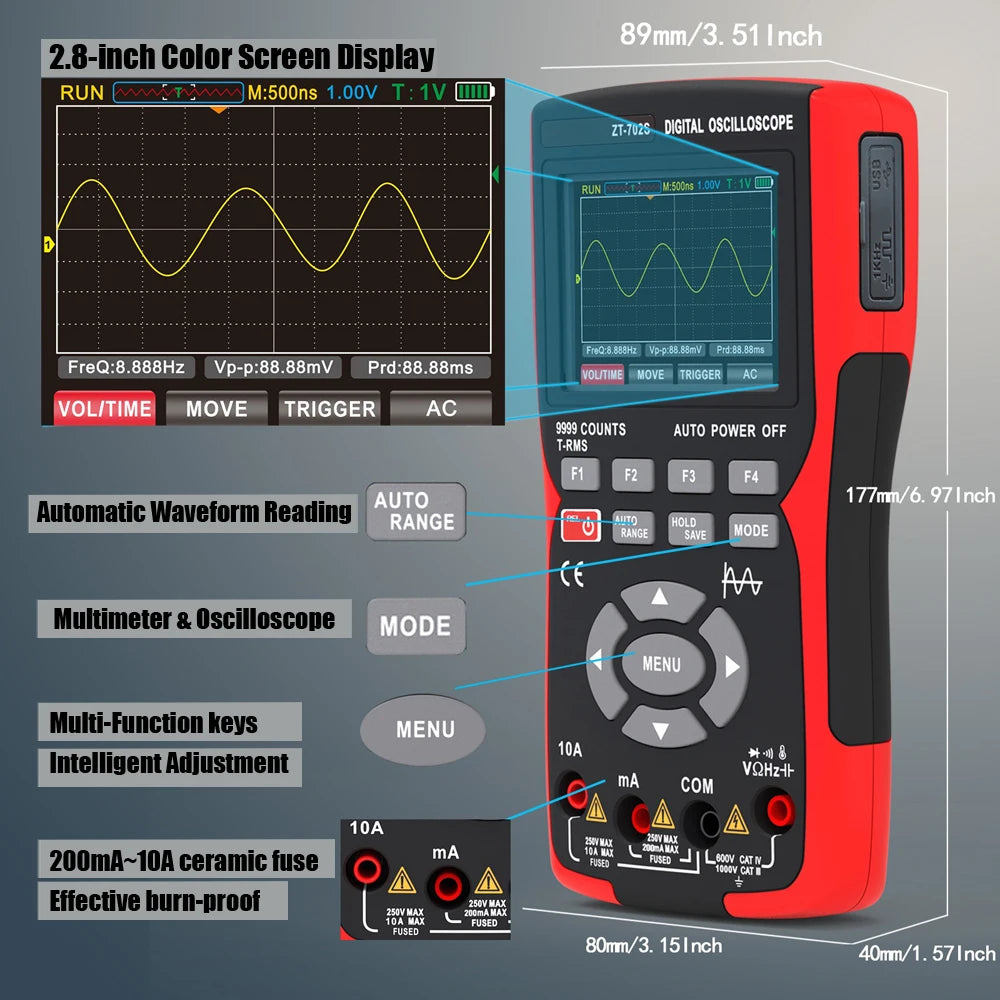

Screen Size: 2.8 inch
Bandwith: 10MHz
Real-time smaple rate: 48MSa/s
Input Impedance: 1M ohm,@16pf
Maximum input voltage: 400V (DC+AC peak)
Horizontal SEC range: 50ns/div -20s/div
Vertical sensitivity: 20mV/div -10V/div
DC voltage:
9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V ±(0.5%+3)
AC voltage:
9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V ±(1.0%+3)
DC current:
9999uA/99.99mA 1uA/0.01mA ±(0.8%+3); 999.9mA/9.999A 0.1mA/0.001A ±(1.0%+3)
AC current:
9999uA/99.99mA 1uA/0.01mA ±(1.0%+3); 999.9mA/9.999A 0.1mA/0.001A ±(1.2%+3)
Resistance:
99.99 ohm0.01 ohm ±(1.0%+3); 999.9 ohm/9.999k ohm/99.99K ohm/999.9K ohm 0.1 ohm/0.001K ohm/0.01K ohm/0.1K ohm ±(0.5%+3);
9.999M ohm 0.001M ohm±(1.5%+3); 99.99M ohm 0.01M ohm ±(3.0%+5)
Capacitance: 9.999nF 0.001nF ±(5.0%+20);
99.99nF/999.9nF/9.999uF/99.99uF/999.9uF 0.01nF/0.1nF/0.001uF/0.01uF/0.1uF ±(2.0%+5);
9.999mF 0.001mF ±(5.0%+5)
Frequency:
99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz 0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz/0.001MHz ±(0.1%+2) Temperature: -20 deg C-1000 deg C/-4 deg F-1832 deg F ±(2.5%+5)
Diode: Yes
Continuity: Yes
Power: 18650 battery

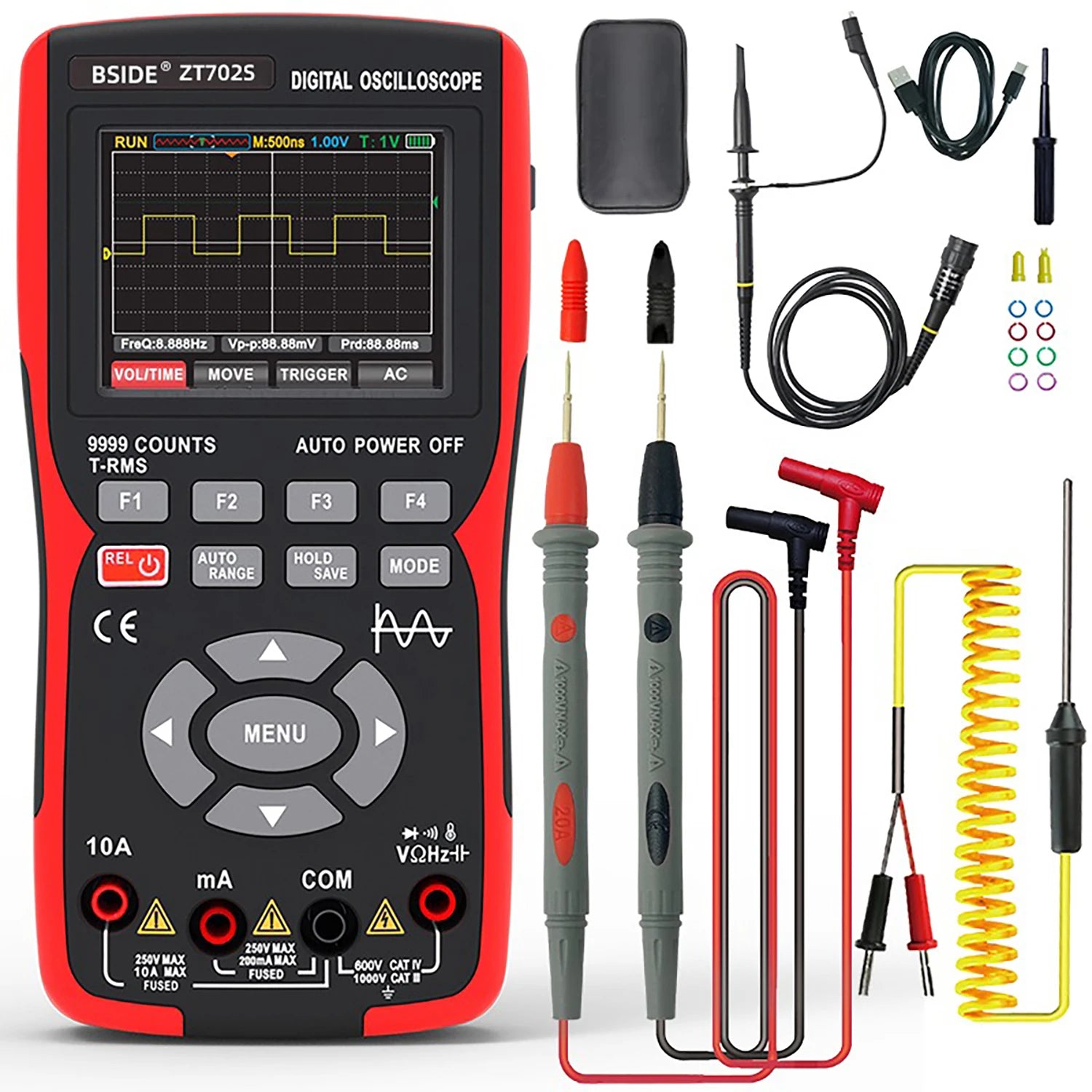

Package Includes:
1 x Oscilloscope
1 x Test Leads
1 x Oscilloscope probe
1 x Thermocouple
1 x Carrying Case
1 x Screwdriver
1 x User Manual
Product Introduction:

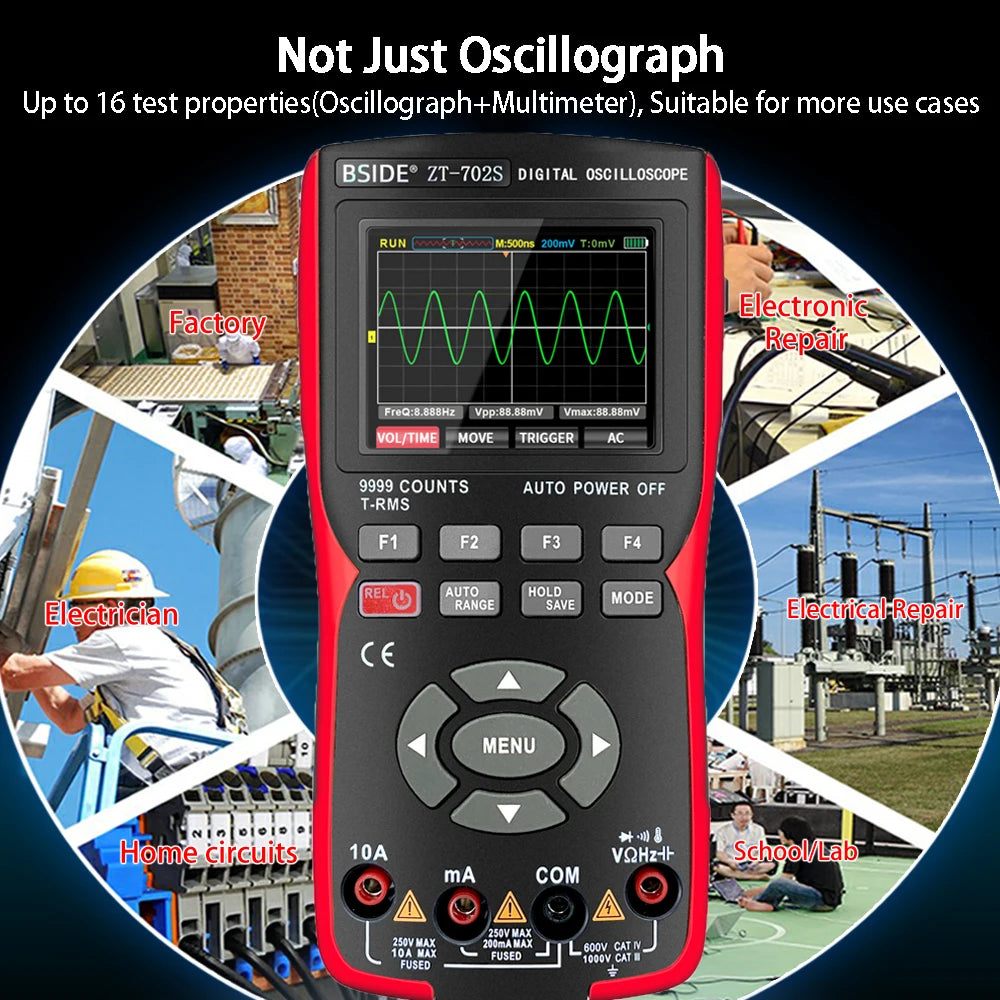

ZT702S is a fully functional, practical and cost-effective handheld Multimeter Oscilloscope newly launched by BSIDE.

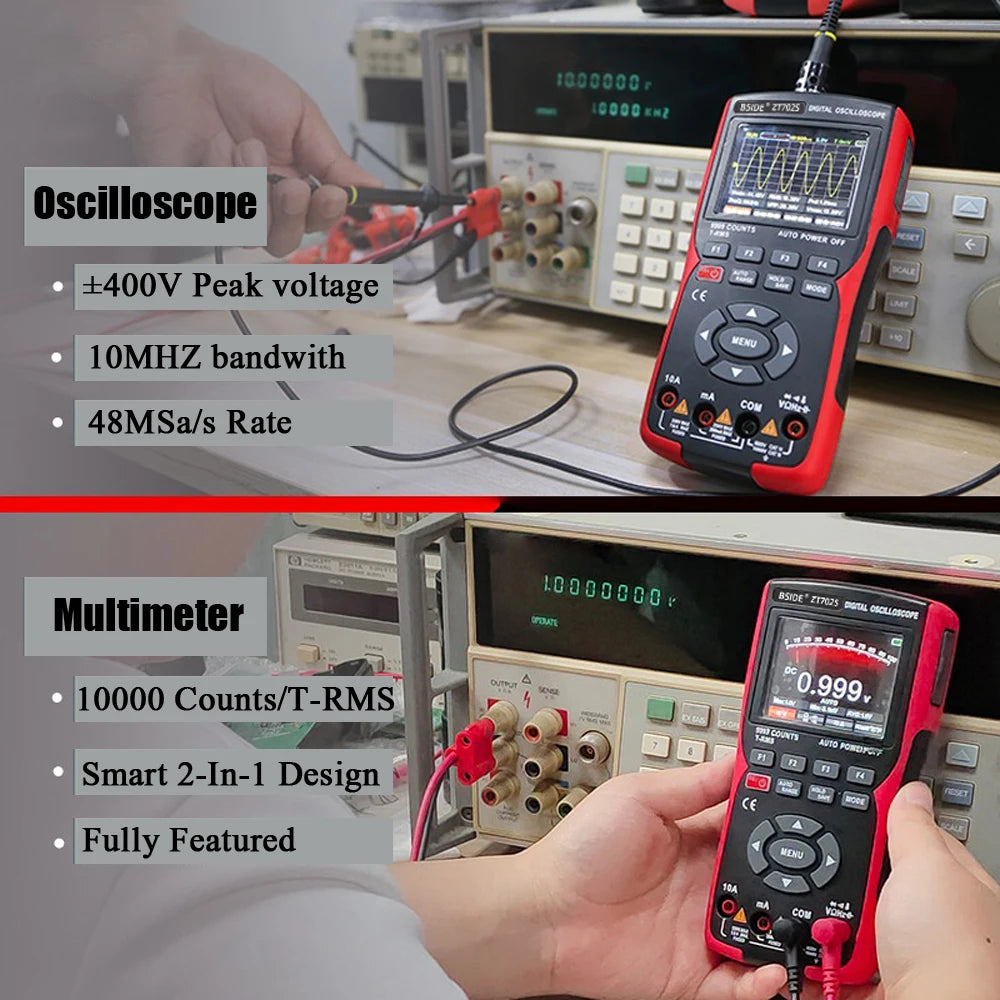

[Scope Mode]: 2.8" IPS color LCD oscilloscope, 10MHZ bandwith, 48MSa/s real-time sampling rate, auto-calibration function, memory function, etc.
[Multimeter Mode]: 9999 counts, MAX/Min value, capacitance, current, temperature, diode, voltage, resistance, frequency, continuity test.
[Data Saved and Transfer]: The tested data can be saved and transfered.
[Color LCD Display]: Color LCD display greatly enhance the reading experience, very easy to read, even in bright sunlight or poor light.
[Rechargeable]: Come with a rechargeable 18650 battery & charging cable, you will never worry about power problem.
