BSIDE 4-IN-1 Handheld Oscilloscope Digital Multimeter+Function Signal Generator Dual Channel is a digital oscilloscope selected for checking waveforms, debugging signals and validating circuit behavior. It is suitable for electronics repair technicians, lab users and embedded developers who need practical electronics hardware for reliable project work.
Best For
- checking waveforms, debugging signals and validating circuit behavior
- test leads, probes and bench electronics workflows
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for electronics repair technicians, lab users and embedded developers.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
BSIDE 3-in-1 Professional Digital Oscilloscope Multimeter Dual Channel 25MHz Bandwidth AC DC Voltage Current OHM Multifunction Teste

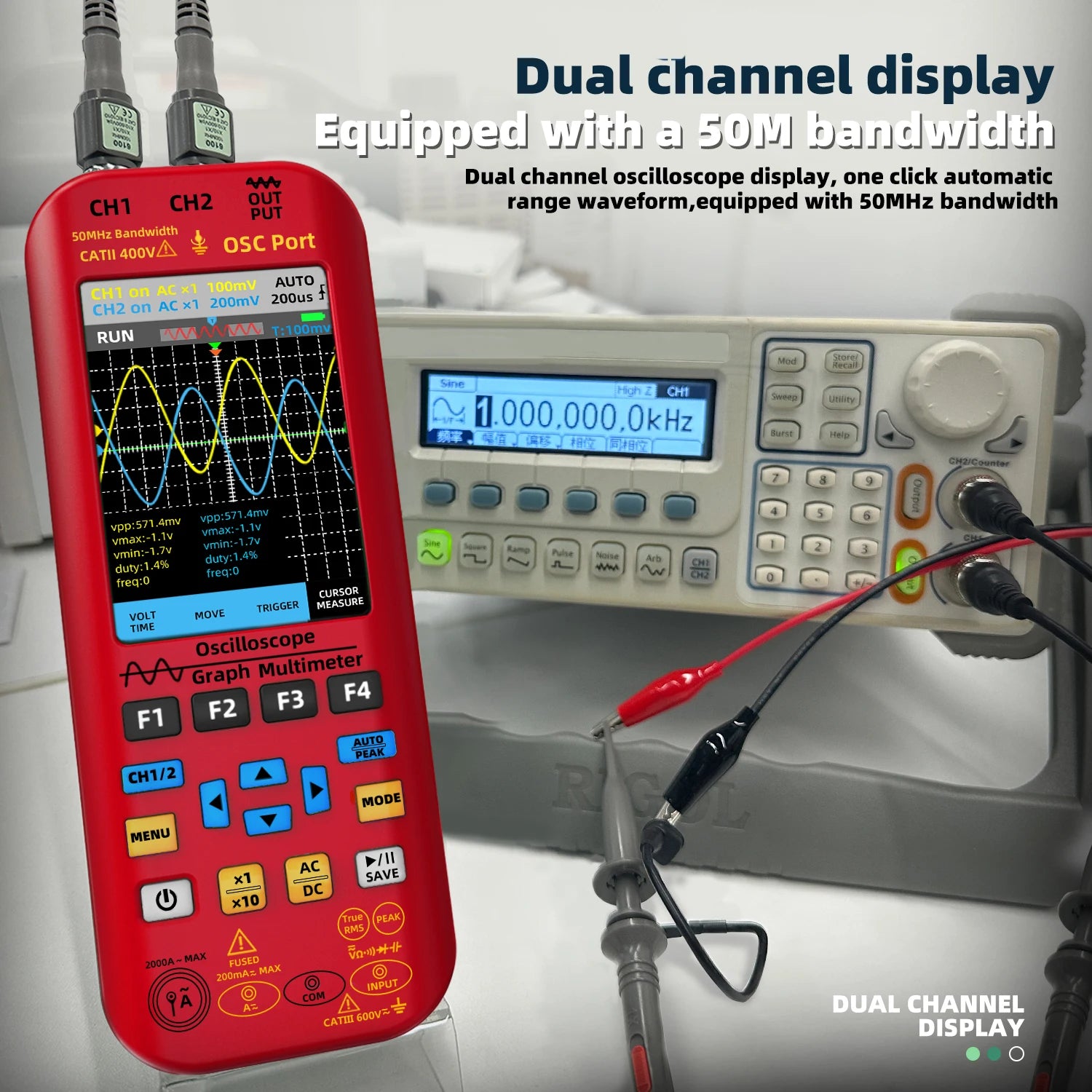

BSIDE O7/O9 NEW Portable Oscilloscope adopts FPGA+MCU+ADC hardware architecture, Dual-channel with a sampling rate of 208MS/s, 25Mhz analog bandwidth, built-in high-voltage protection module, maximum support measurement of peak voltage of ± 400V.

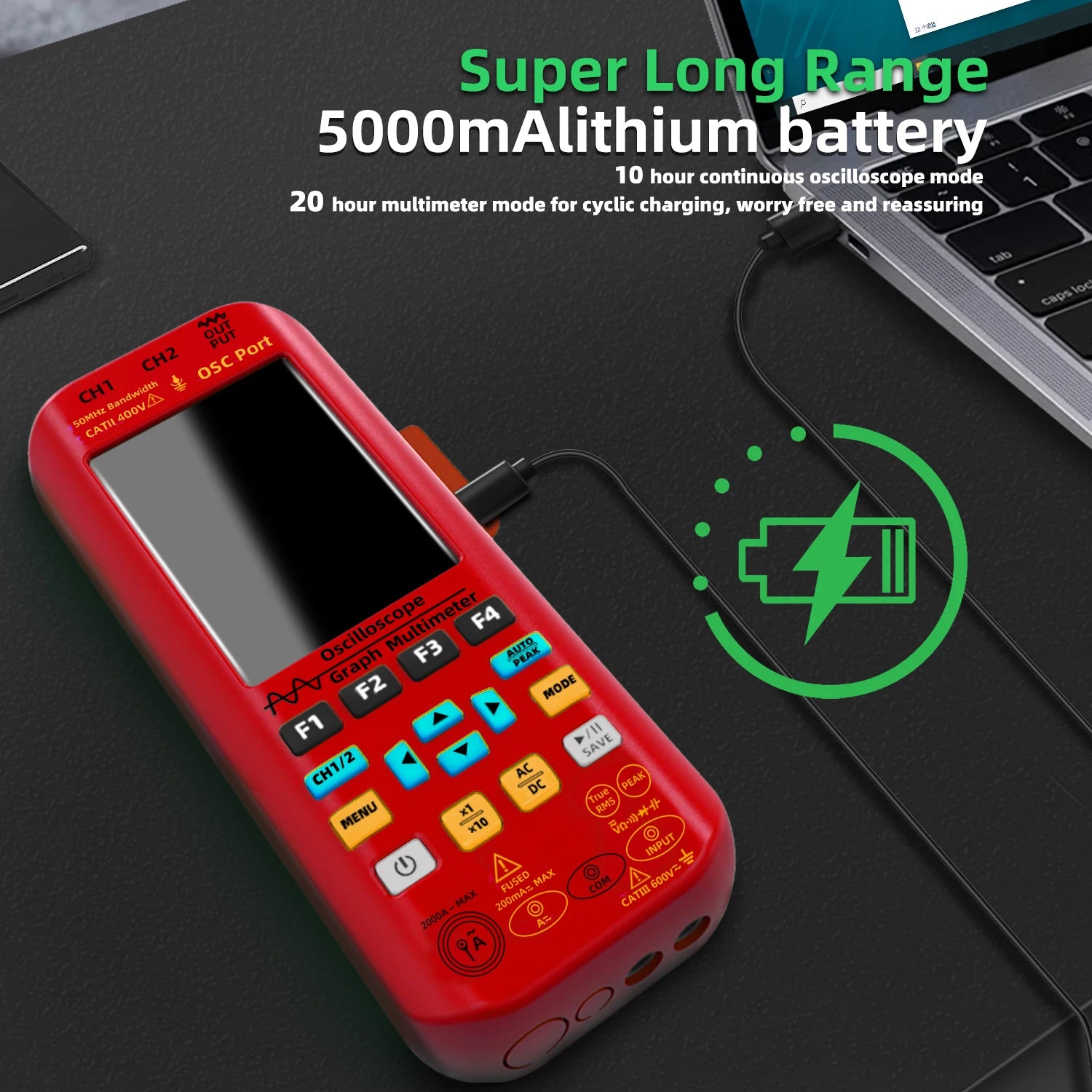

Using a 3.98 inch 480*320px resolution high-definition TFT display screen with a built-in 5000mAh rechargeable lithium battery(18650 battery*2), the Standby for 10 H in Oscilloscope mode and 24 H in Multimeter mode.
Can be used with Flexible current clamp. It can test 6000A current.

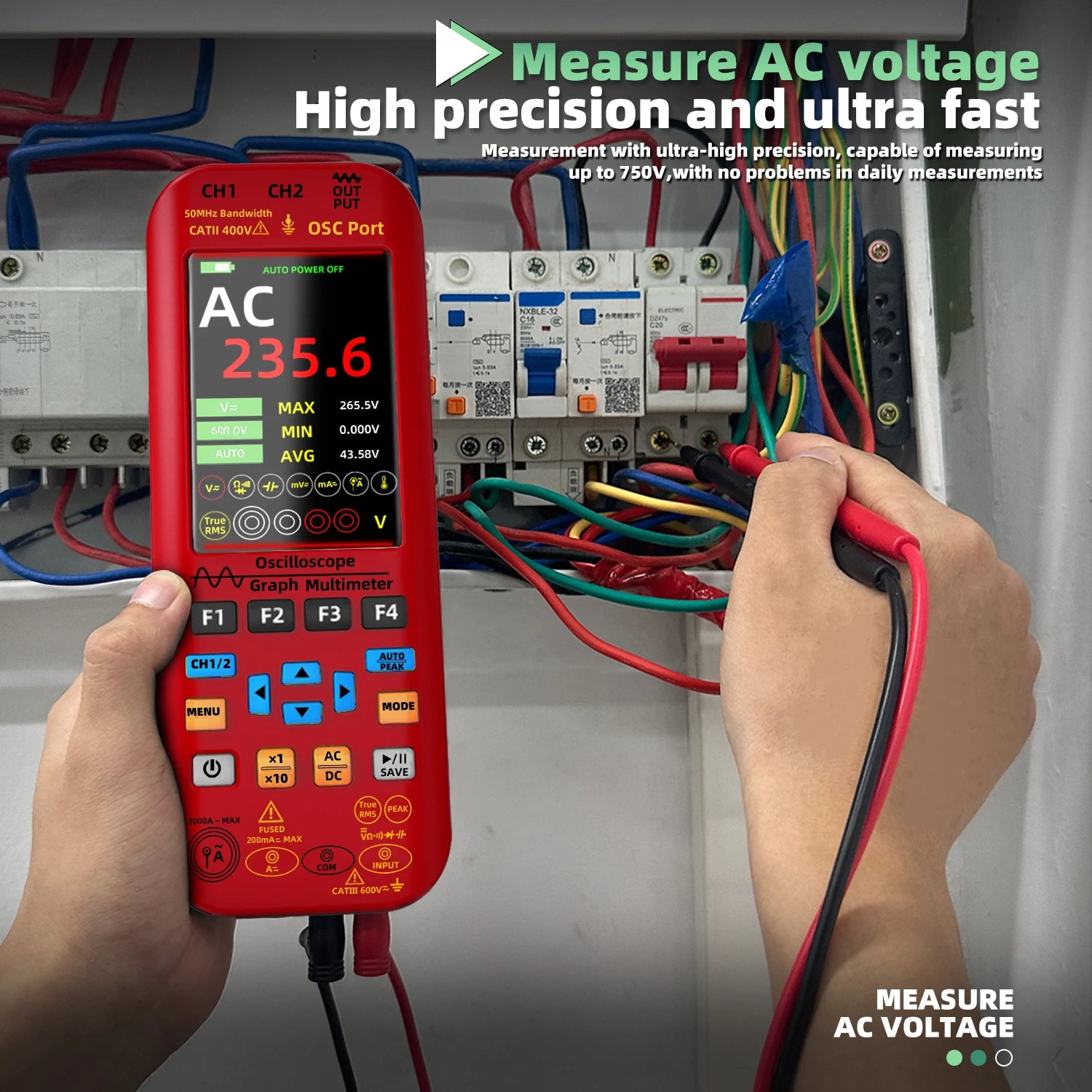

The digital multimeter mode has 6000 Digit, True-RMS, Supports AC/DC Voltage、Current、Temperature、Capacitance、Resistance、Diode、NVC、Continuity other measurement functions. Properties such as auto power off, low battery alert, etc.
Equipped with a built-in DDS function signal generator, it can output 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz; The output frequency, amplitude, and duty cycle are adjustable.
Product Introduction:
[Data Storage and Export]: The data of this graphic oscilloscope meter can be saved and exported to your flash drive, computer, PC, etc.
[Rechargeable]: The handheld oscilloscope multimeter comes with a rechargeable battery and charging cable, ensuring that you never have to worry about running out of power during the measurement.
[Carrying case]: The digital oscilloscope multimeter comes with a high-quality EVA carrying case, which is perfect for use on the go.
Specification:
Maximum display: 6000counts(O7) / 20000counts(O9)
Screen size: 3.9 inches.
Bandwidth: 25MHz(O7) / 50MHz(O9)
Real-time scan rate: 208MSa/s(O7) / 250MSa/s(O9)
Input impedance: 1M ohm
Maximum Input Voltage: x1 Range<150V, x10 Range<300V (DC+AC Peak)
Horizontal seconds range: 100ns/div -20s/div
Vertical sensitivity: 20mV/div -10V/div
DC voltage: 60mV 0.01mV ± (1%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(0.8%+3); 600V/1000V 0.1V/0.1V ±(1%+5)
AC voltage: 60mV 0.01mV ± (1.2%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±(1%+3); 600V 0.1V ±(1.2%+5); 750V 1V ±(1.2%+5)
DC current: 60mA/600mA 0.01mA/0.1mA ±(1%+3)
AC Current: 60mA/600mA 0.01mA/0.1mA ±(1.2%+5)
Flexible Current Clamp AC Current: 600A/6000A 0.1A/1A ±(1%+5)
Resistance: 600 ohm 0.1 ohm ± (1.2% + 5); 6K ohm/60K ohm/600K ohm 0.001K ohm/0.01K ohm/0.1K ohm ±(1.0% + 3); 6M ohm 0.001M ohm ±(1.2% + 5); 60M ohm 0.01M ohm ±(1.5% + 5)
Capacitance: 999.9nF/9.999 uF/999.9 uF 0.1nF/0.001 uF/0.1 uF ± (4.5% + 5); 99.99mF 0.01mF ±(5.0%+10)
Temperature: -20-1000 deg C/-4-1832 deg F 1 deg C/1 deg F ±(2.5% + 5)
Diode: Yes
Continuity: Yes
Power supply: 18650 battery*2 (rechargeable)
Size: 216.6x84.5x36mm
Weight: 384g

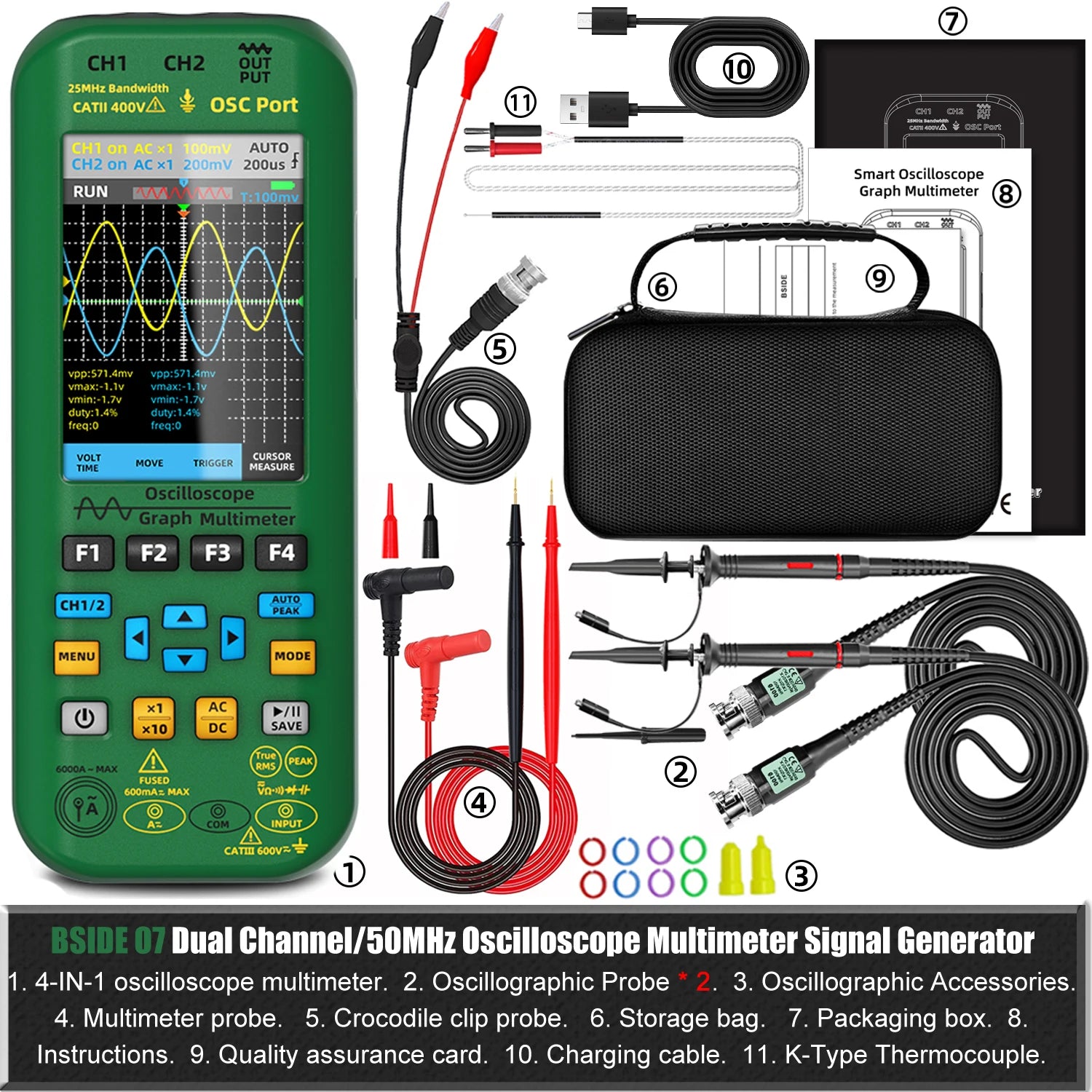

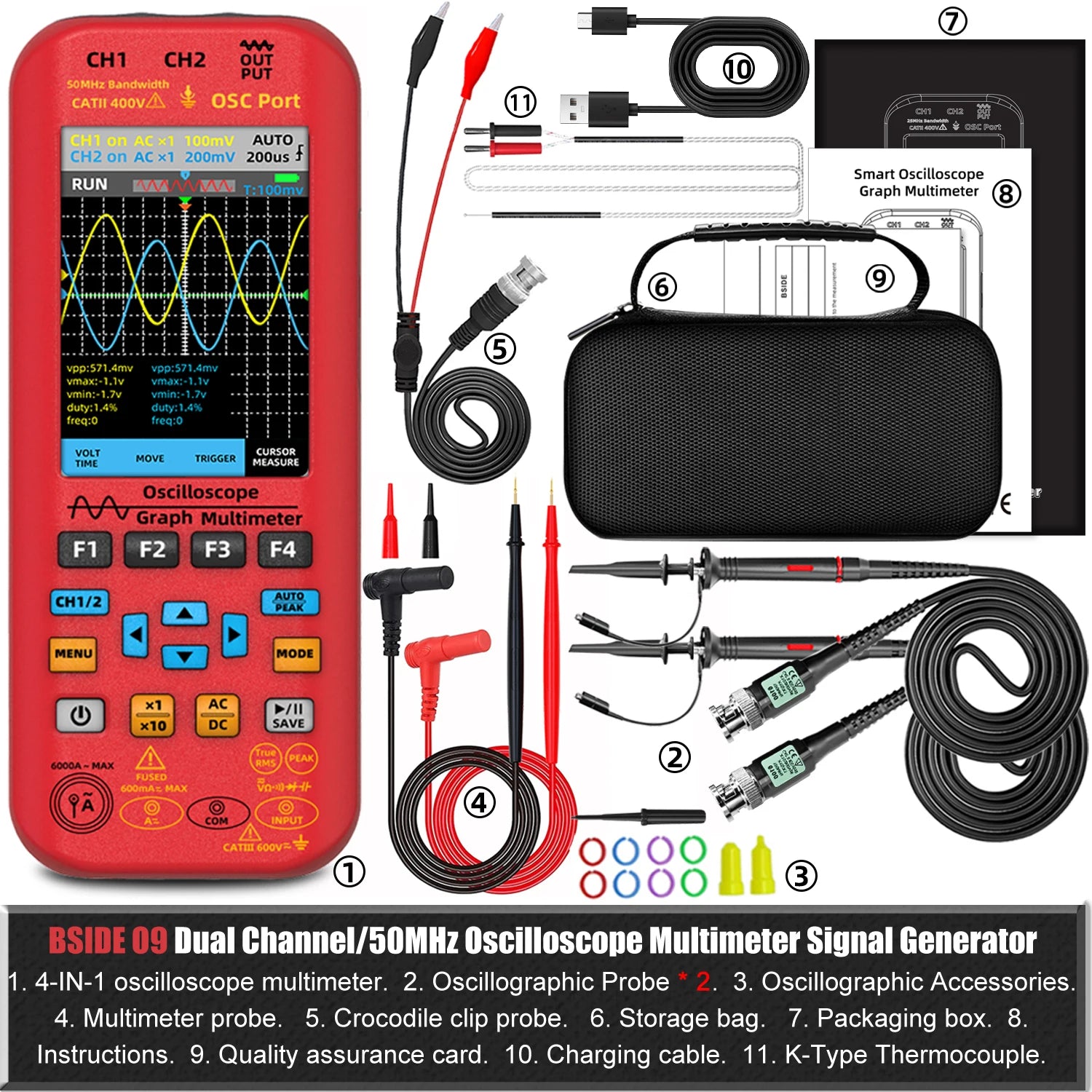

Package includes:

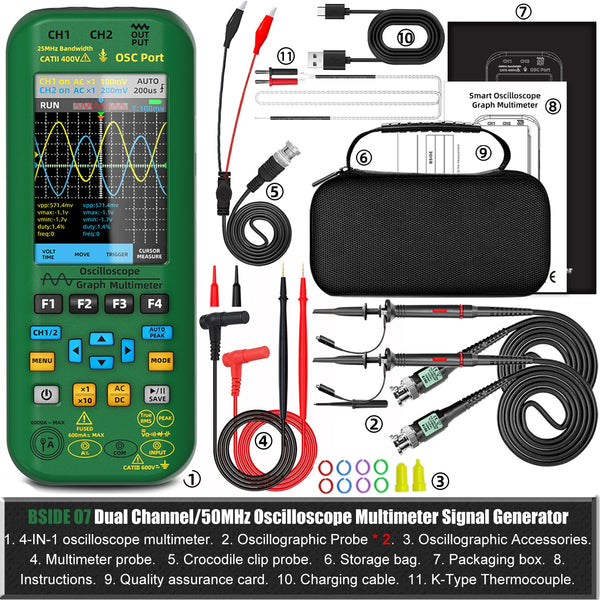

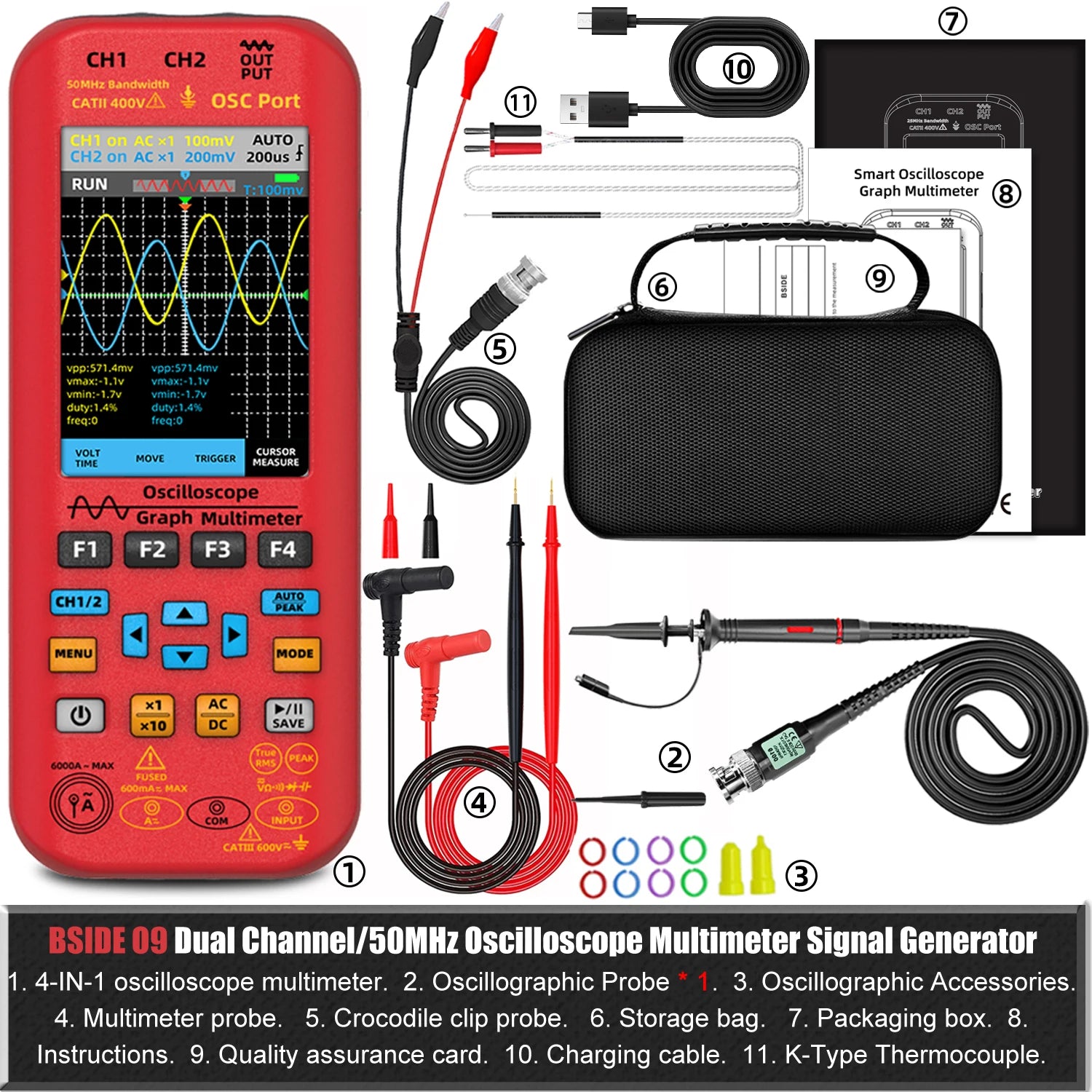

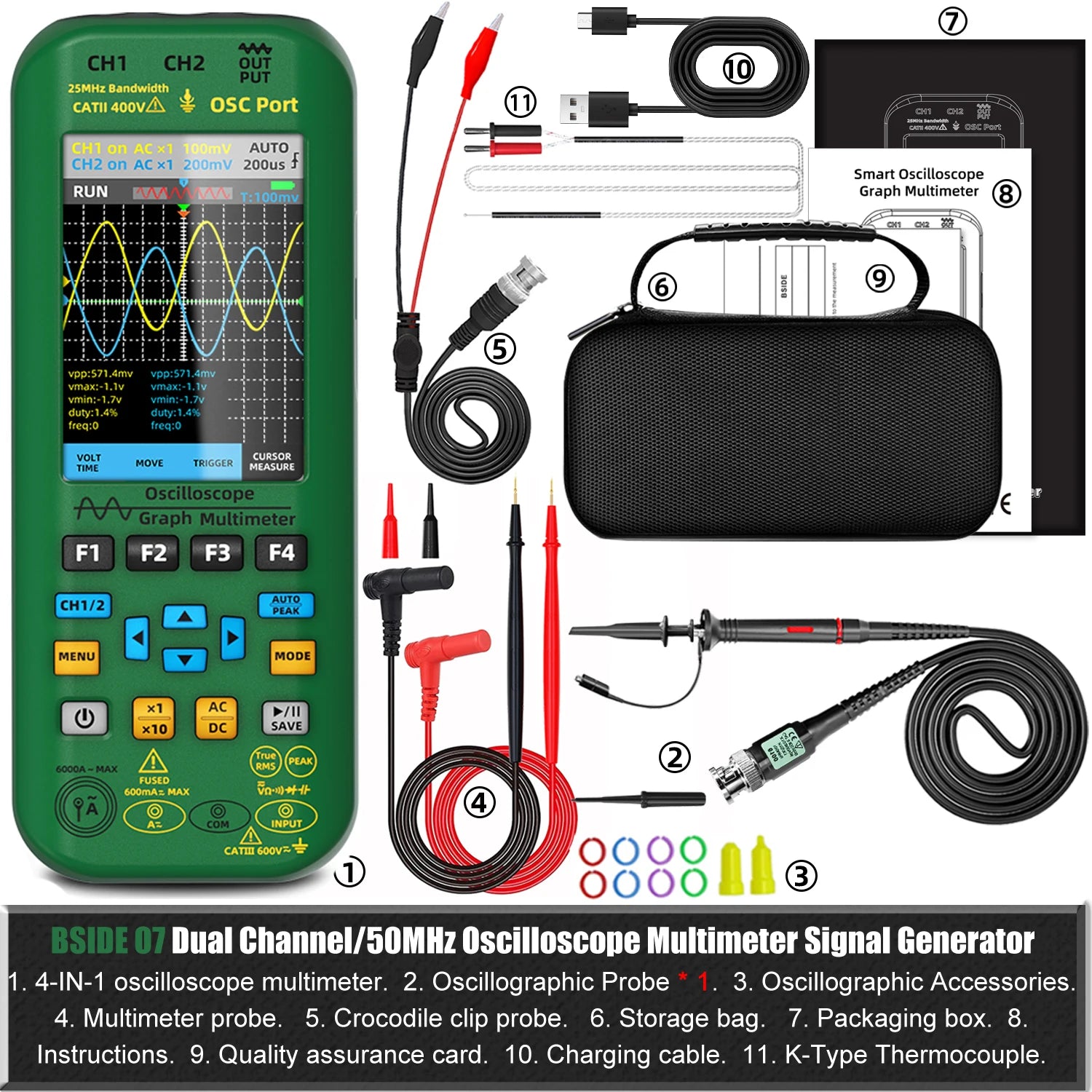

1 x Handheld Oscilloscope Multimeter
1 x EVA suitcase
1 x oscilloscope probe
1 x Oscilloscope Accessory
1 x multimeter pen
1 x Crocodile Clip
1 x box
1 x charging cable
1 x Instruction Manual
1 x Warranty Card
1 x charging cable
1 x User Manual
1 x K-Type Thermocouple
If you need BSIDE TP01 Flexible Current Clamp(MAX-6000A ; Suitable for O1X, O7, O9),
Please order at this link:
https://www.TUFZEN.com/item/1005008227777921.html
