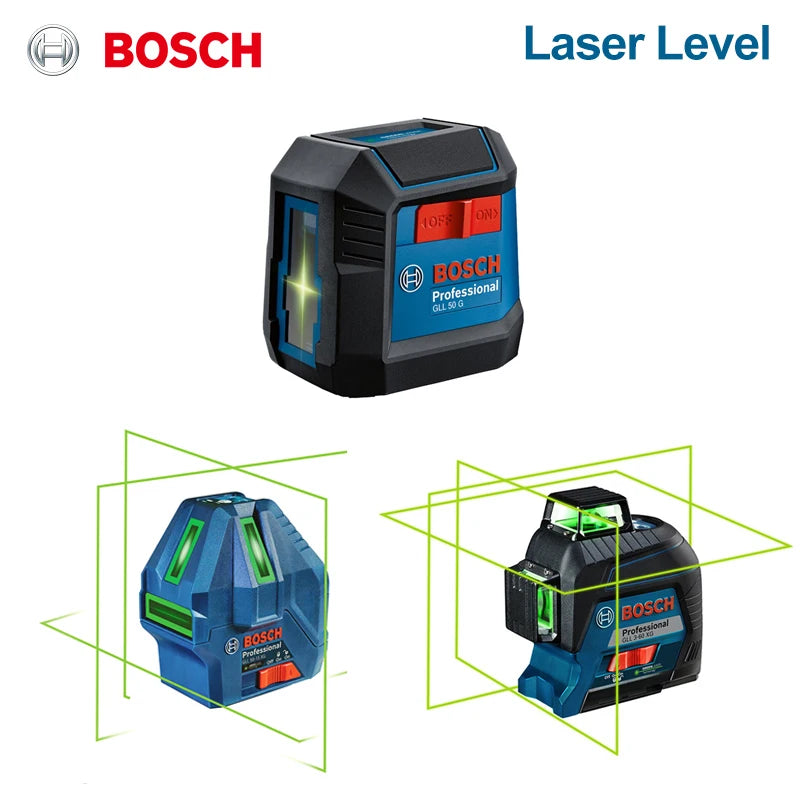

Bosch Professional line level Green Beam Self-Leveling Cross-Line optical Gradienter Rangefinders GLL 3-60 XG/GLL 50-15 XG/GLL50G

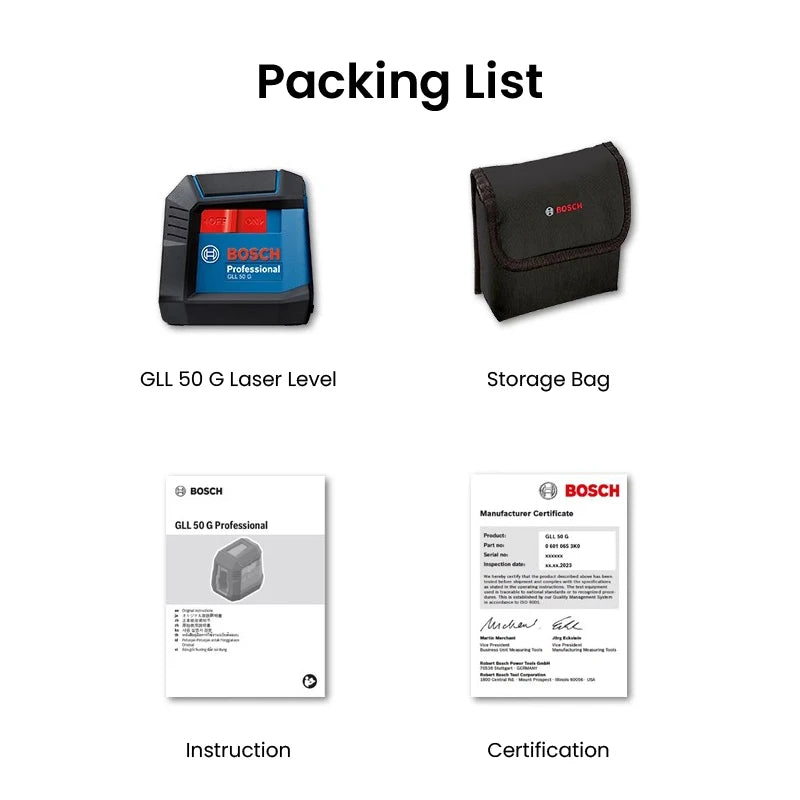

Bosch GLL 50 G Green line level
optical lines: 1 vertical + 1 horizontal
optical color: Green, high brightness, visible in sunlight
Features and Specifications
- Protection: Anti-collision design, embedded window, long service life
- Waterproof & dust-proof: IP 55
- Marking range: 15 meters
- Self-leveling: ±3.5 deg
- Power: Dual battery mode, AA battery*2 or Bosch BA 3.7V/1.0Ah Li-ion battery(not included)
- Tripod interface: 1/4''
- Accessory: Storage bag*1
- Product size: 87x64x87mm
- Net weight: 0.3kg

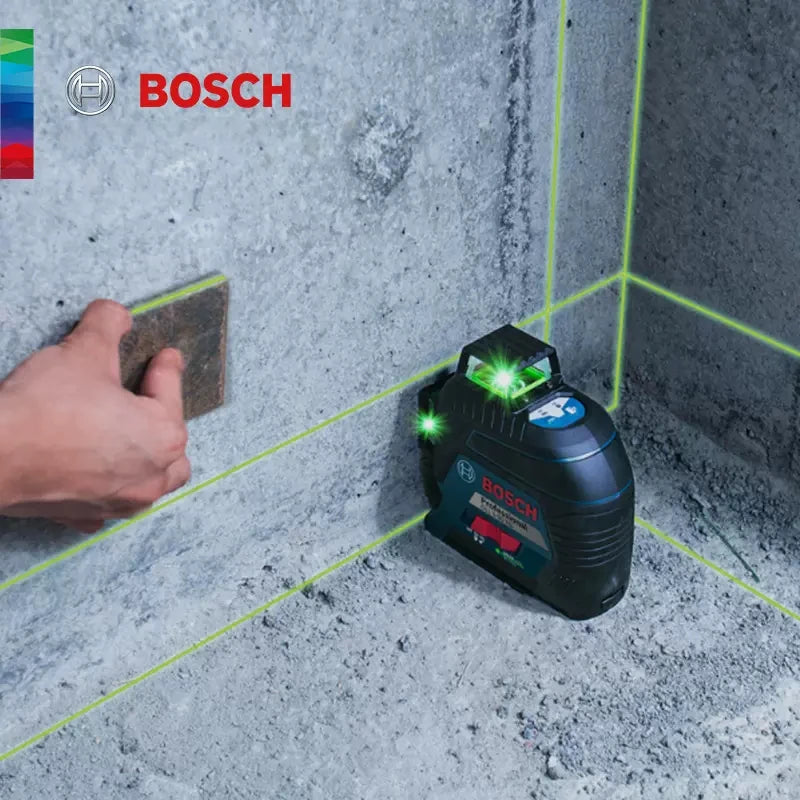

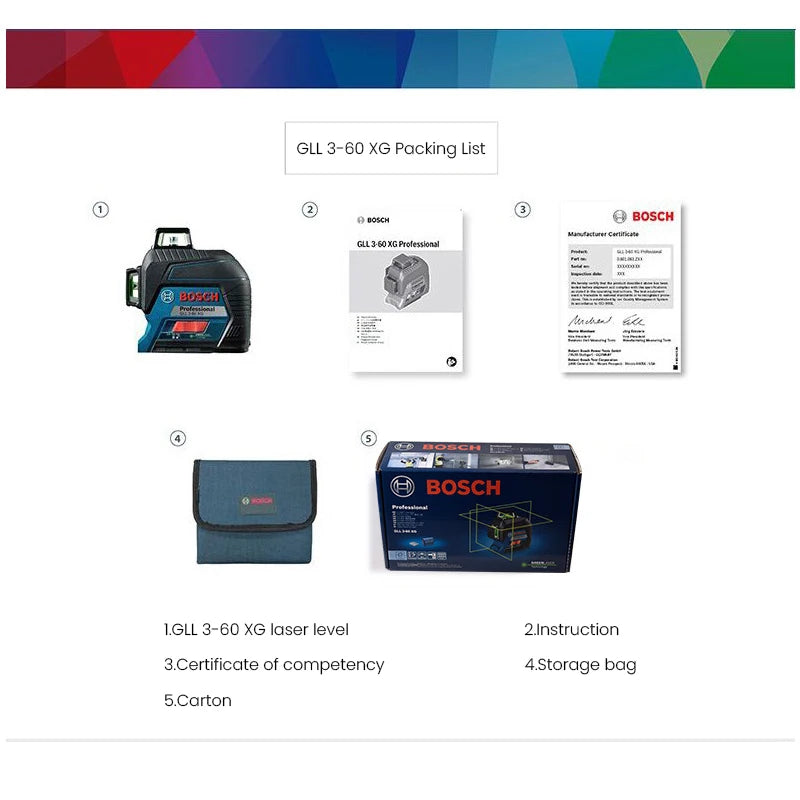

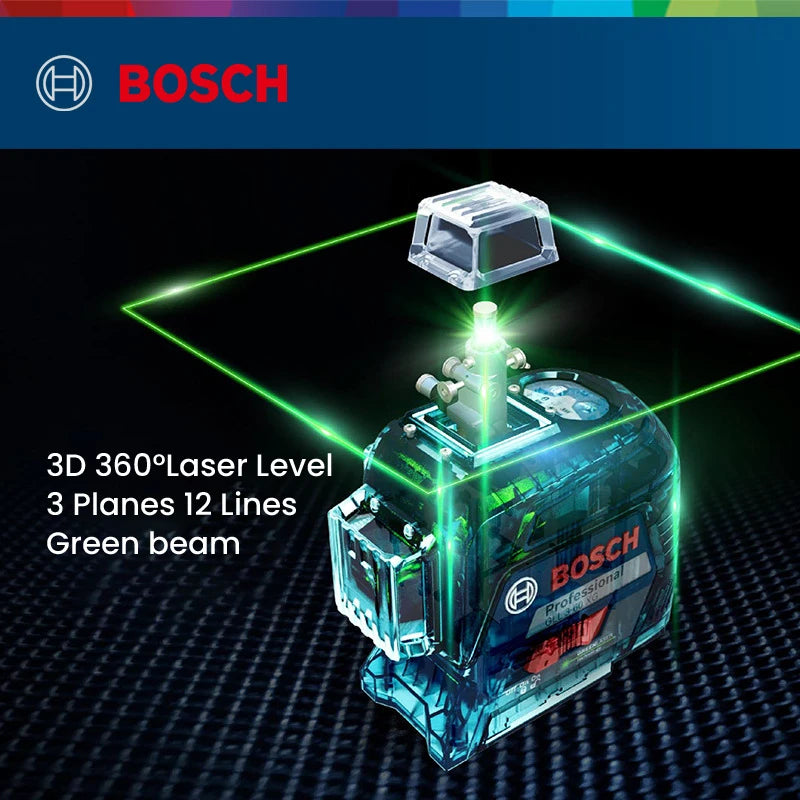

- Bosch GLL3-60XG line level 12 Lines Green 3D Self-leveling 360 Degree Horizontal Vertical Cross Super Powerful Measuring Tool
- Function & Features
- 3x360 deg 12 lines 3D cover the whole room

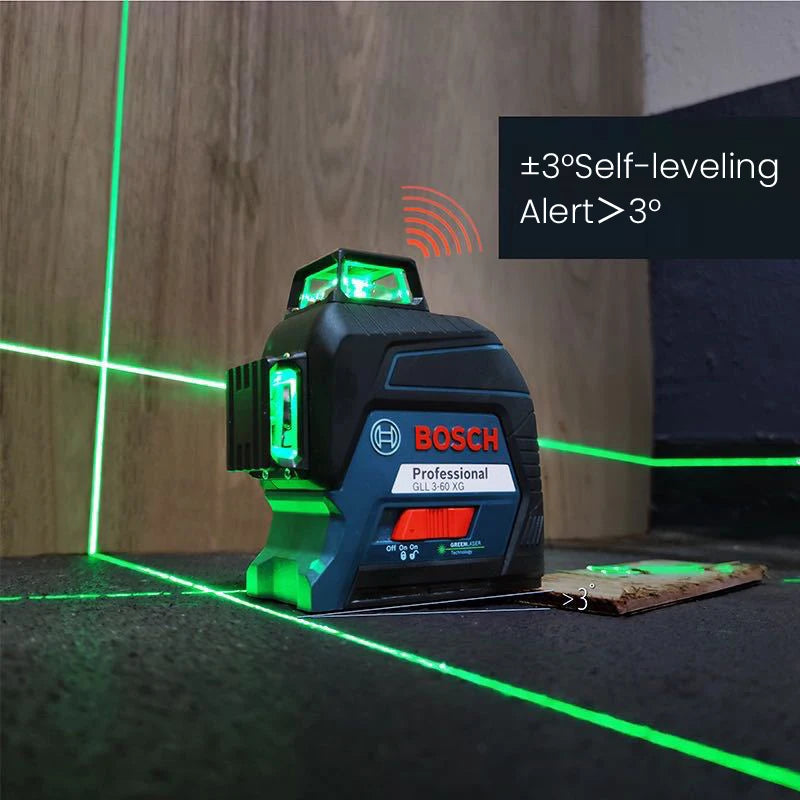

- ±3 deg self-leveling, alert when tilt over 3 deg
- Green beam, visible in sunlight

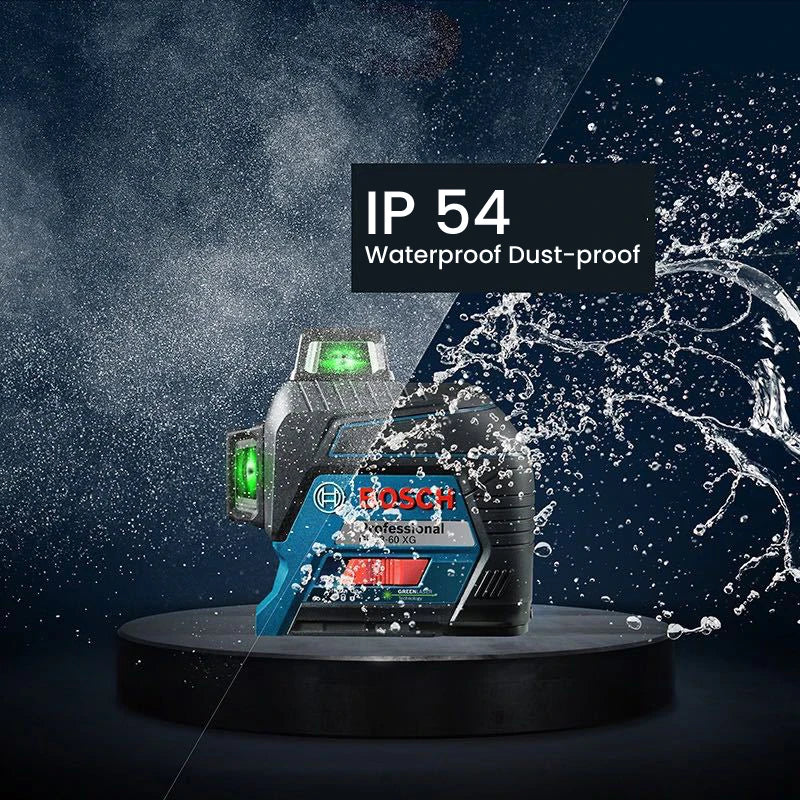

- IP 54 water proof & dust proof
- Mode:
- 1 horizontal 360 deg plane: 4 lines
- 1 vertical 360 deg plane: 4 lines
- 2 vertical 360 deg planes: 8 lines
- 1 horizontal 360 deg plane + 2 vertical 360 deg planes: 12 lines
- Work radius: 30M, extend to 60M with LR7 optical reveiver(not included)
- Compatible tripod: Bosch BT150, 1/4'' & 5/8'' adapter (not included)
- Battery: AA battery x4 (not included)
- Size: 149x84x142mm
- Net weight: 780g
- Bosch GLL 50-15 XG Green line level
- Marking: 5 lines+1 vertical point
- Diagonal construction: supportedProtection level: IP54 dustproof and waterproof
- Base: Removable 360 deg rotating base
- Maximum distance on one side: 15 meters
- Maximum distance with LR7 optical receiver: 50 meters (optional accessory)
- Accuracy: ± 0.2mm/m
- Automatic leveling: ± 2.5 deg
- Leveling time: 4 seconds
- Tripod interface: 5/8''
- Battery: 1.5V AA battery*4 (not included)
- Product List: line level* 1, Rotating platform * 1, Hanging rope * 1, Tool bag* 1
