Features and Specifications

• Who is this product for? It is intended for electricians, repair users and electronics hobbyists.
• What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

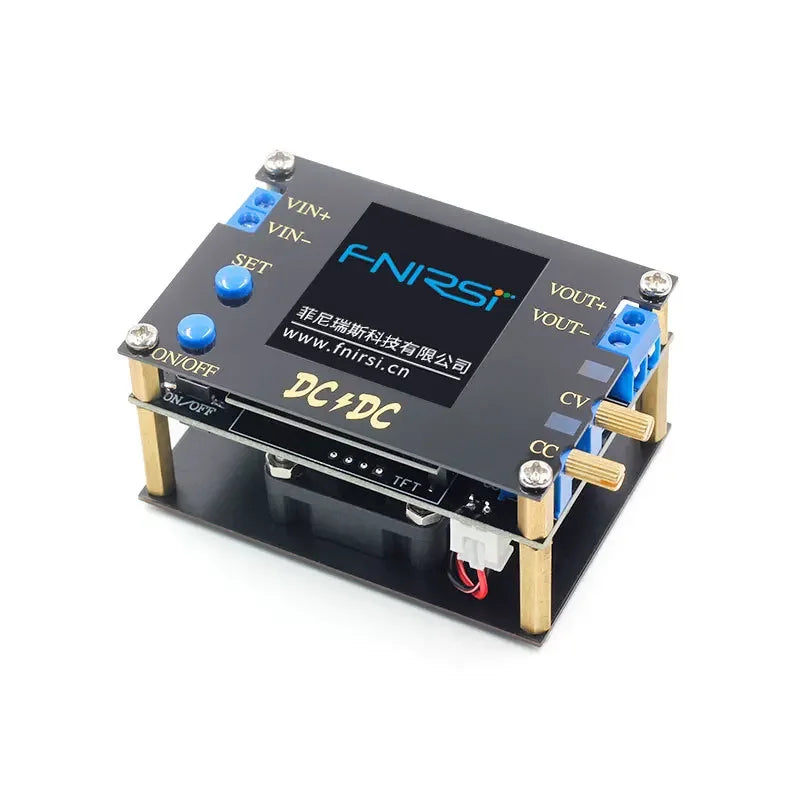

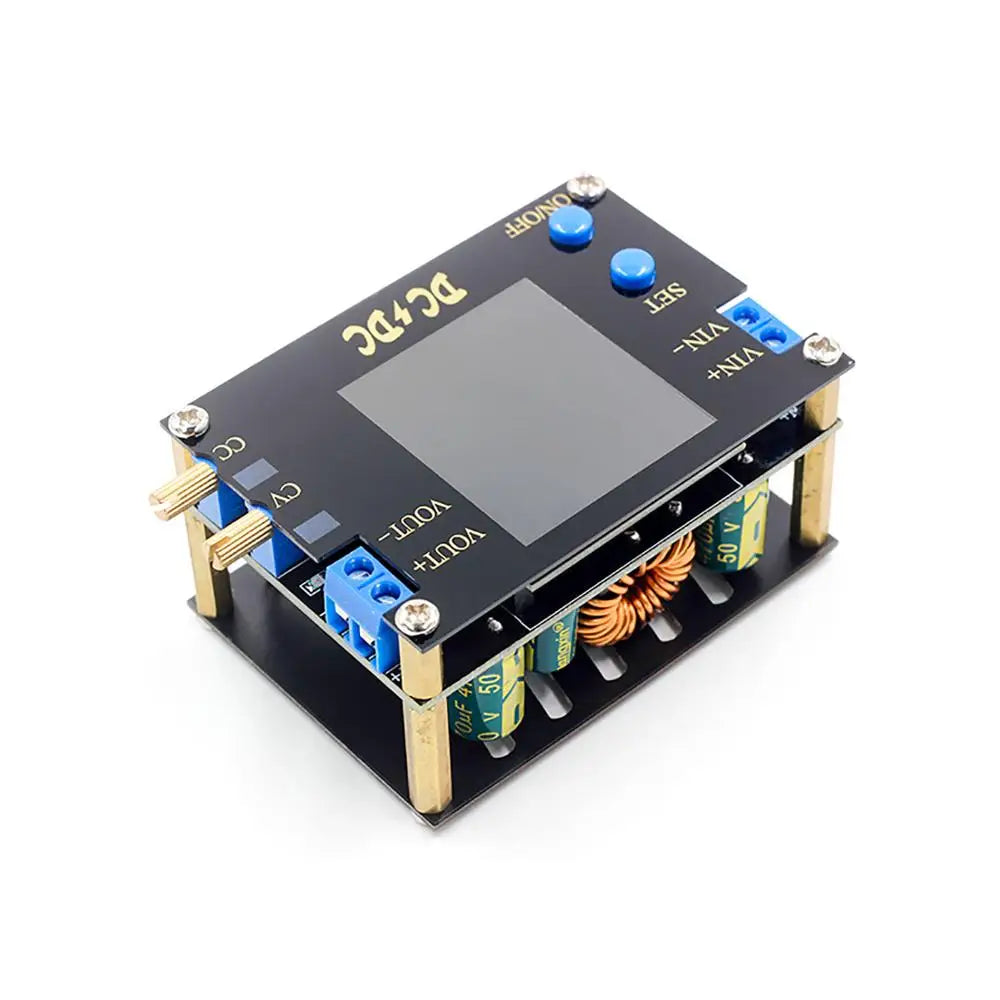

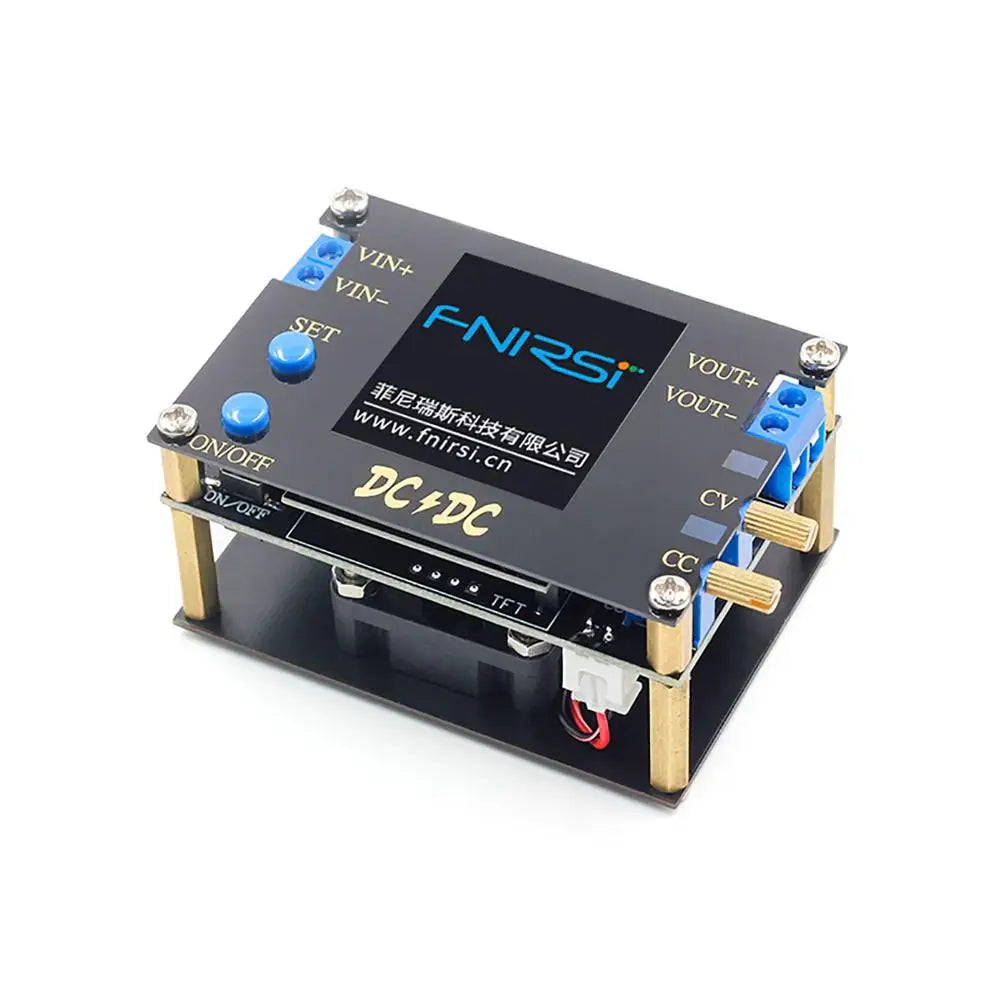

• 4A NC Lifting and Adjustable Power Module

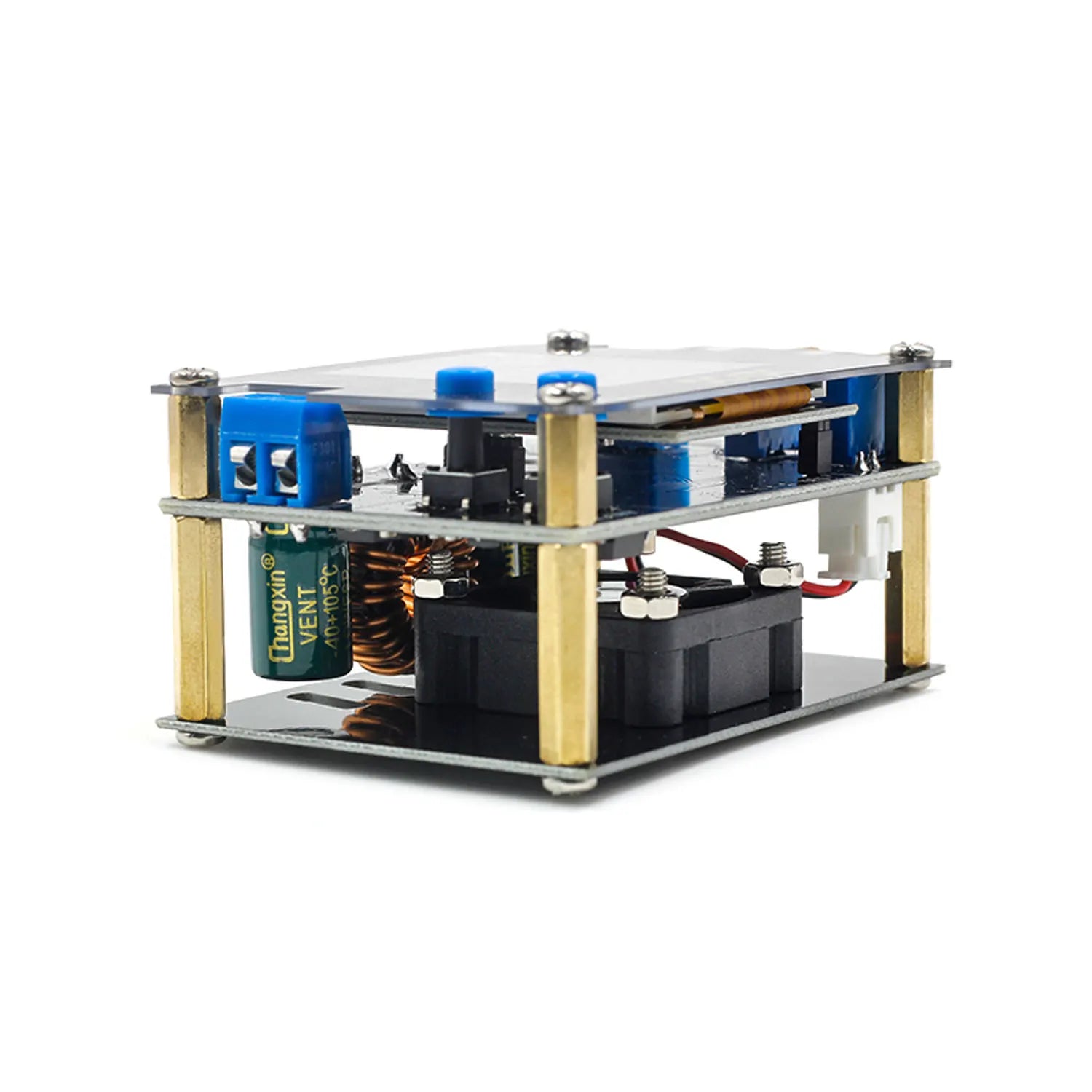

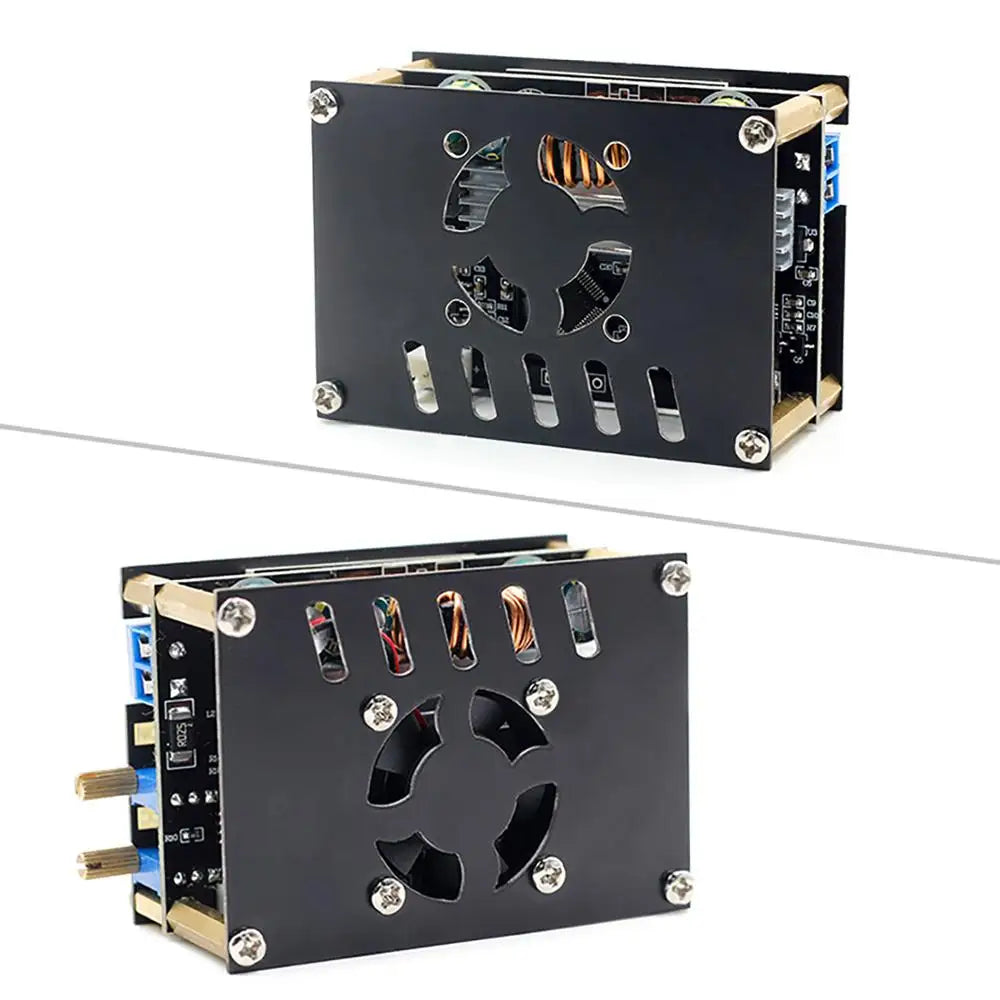

• LCD,Has a large volume heat sink,Optional fan, With housing protection
• With fan / Fanless
• Technical Parameters
• Input voltage
• 7V-32V
• The output voltage
• 0.5V-32V(Weak output capability below 1.8V)
• Output current
• Normal cooling 3A
• dissipation up to 4A
• Output Power
• 35W natural cooling
• Enhanced cooling 50W
• Voltage resolution
• 0.01V
• Current resolution
• 0.001A

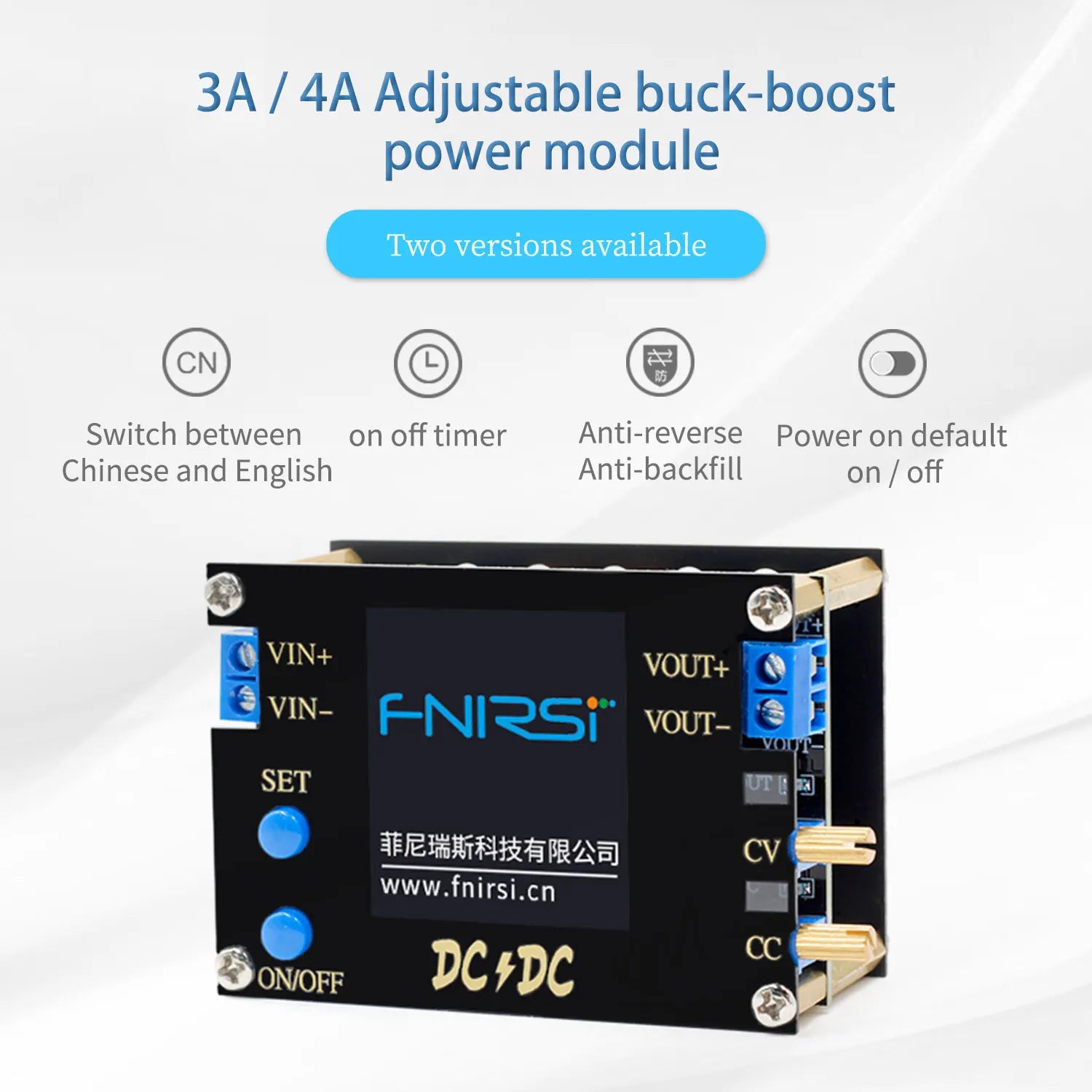

• I nput anti-reverse connection, reverse connection will not burn out; output anti-backflow, no need to add anti-backflow diode when charging the battery
• Can switch between Chinese and English
• Can be set to power on or off by default
• Timing switch,After setting the time, when the time arrives, flip the current power switch state
• Key Function
• Set interface
• The setting option switch is not entered. The setting option is used to switch the setting data.
• Exit setup options and save
• Not enter the setting option switching effect, enter the setting option for switching the setting data effect
• Enter setup options
• Rotate left and right
• Current limiting current
• Output voltage

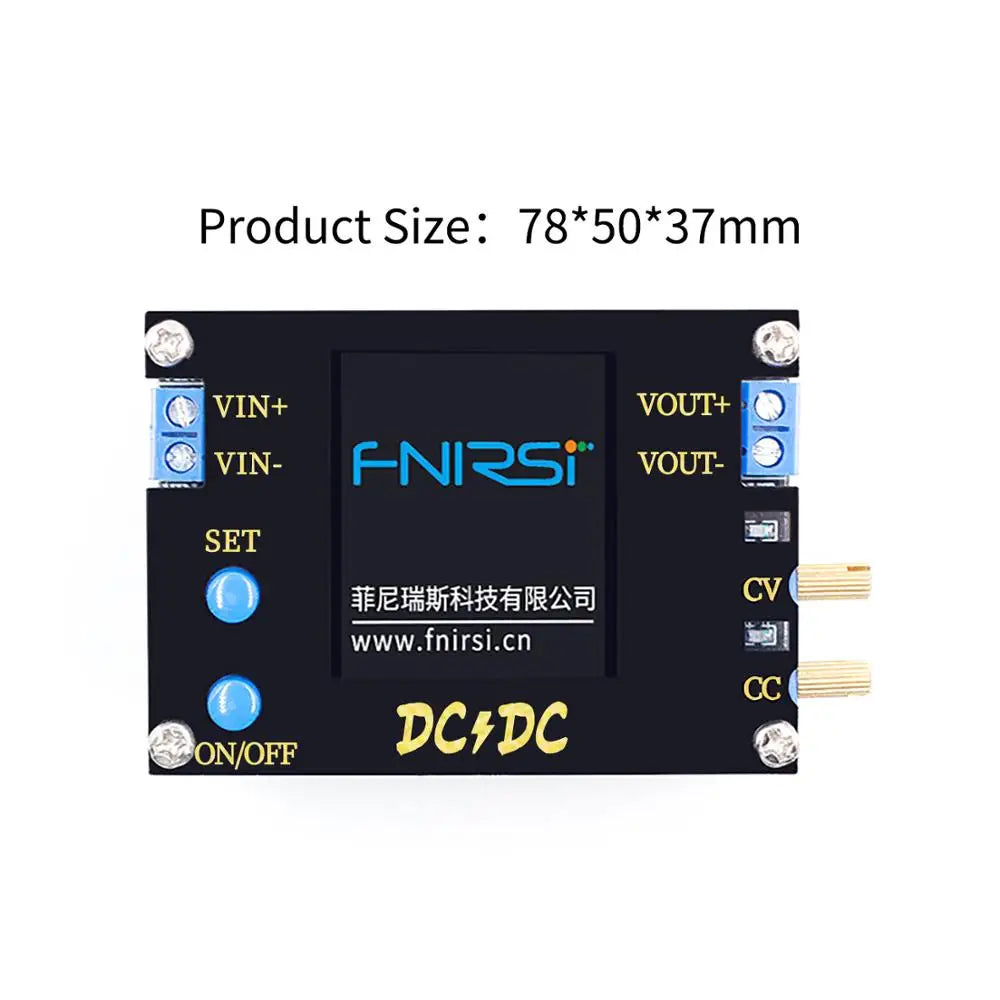

• Interface description
• 1,Vin: Input voltage value
• 2,Out: Output voltage value
• 3,Cur: Output current value
• 4,Pow: Output power value
• 5,C/F: Temperature value (unit can be set)
• 6,Indicator: Green light: output switch indicator
• red light: current limit indicator
• 7,Timer: timing time
• 8,timing: Timer switch
• 1,Language: System language setting
• 2,switch: Power-on default switch settings
• 3,temperature: Temperature unit setting
• 4,timing: Output power value
• 5,time: Timer function switch and time setting
• 1 Green indicates output voltage and blue indicates output current;
• 2 The top value is the maximum value in the displayed waveform, and the bottom value is the minimum value in the displayed waveform.
• Display range parameters of input voltage, output voltage, and output current
• 1 Output overvoltage protection (OVP): 1.8V-32V custom adjustment,default 32V
