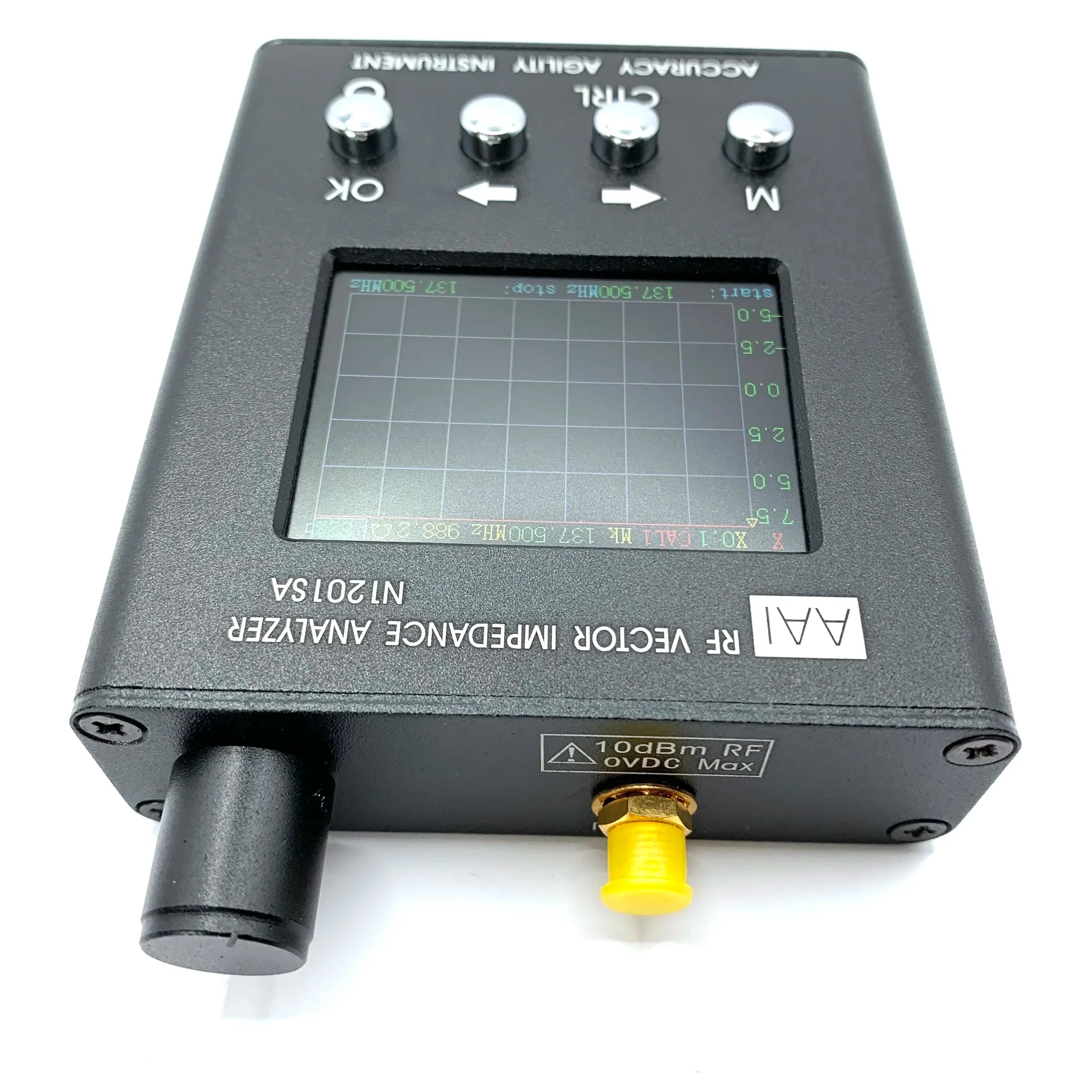

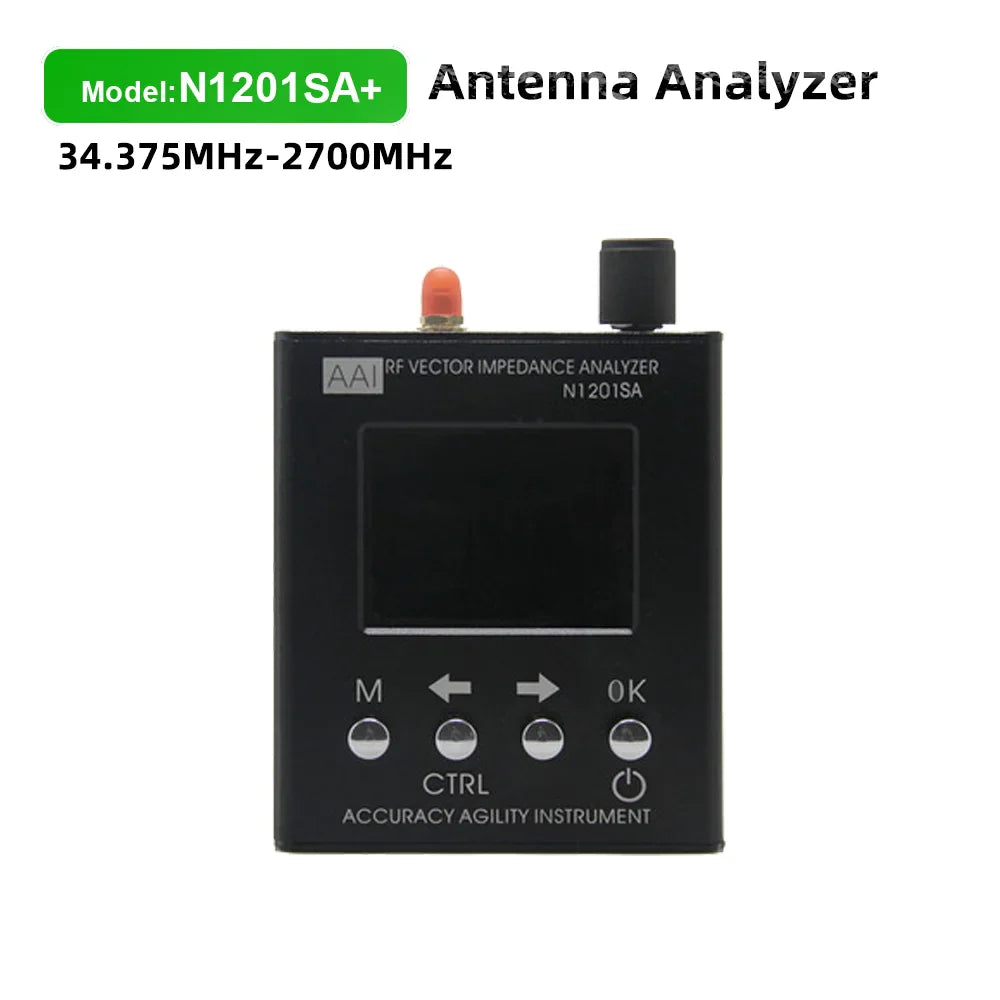

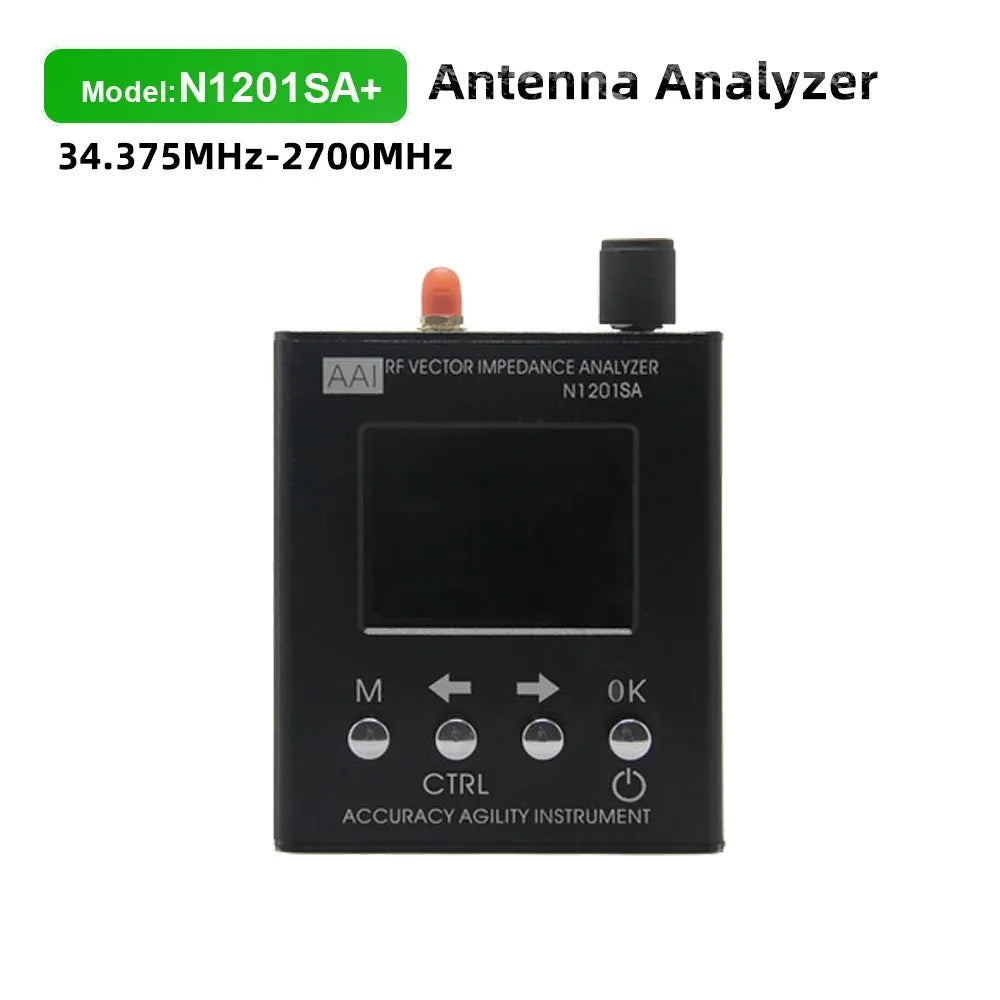

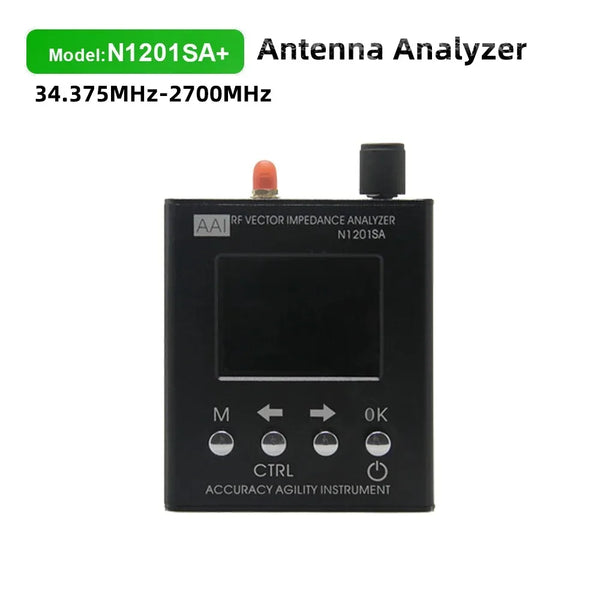

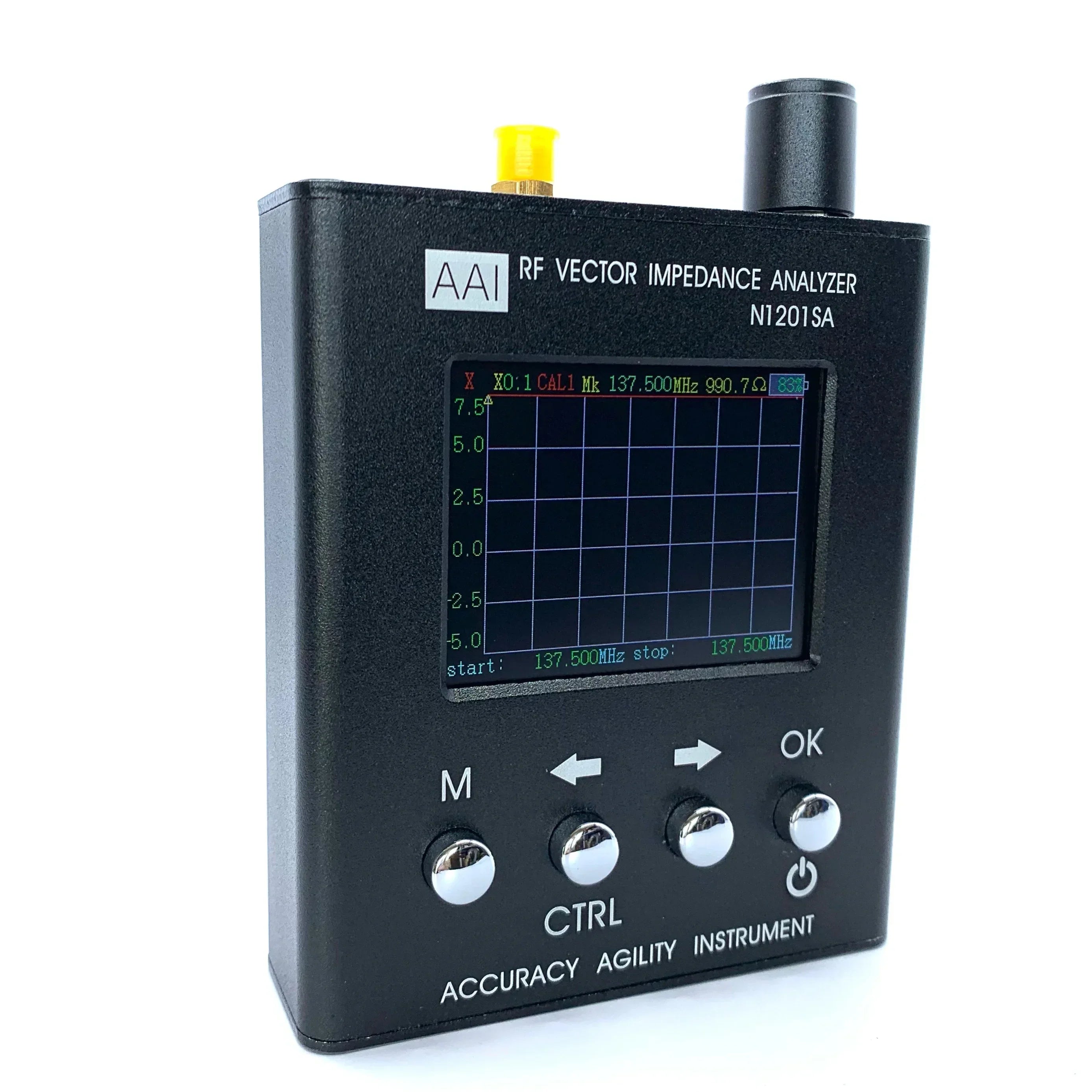

AAI N1201SA+ Accuracy Agility Instrument

Our product is Upgrated and we sell the N1201SA+ as the same price of N1201SA.

Specifications:
- working currency 34.375MHz-2700MHz
- stepped frequency 1kHz
- Display 2.4cun TFT trdp
- resolution ratio 320*240(QVGA)
- 2000mAH(7.4Wh)
- power consumption <1.5W
- charge current 400mA

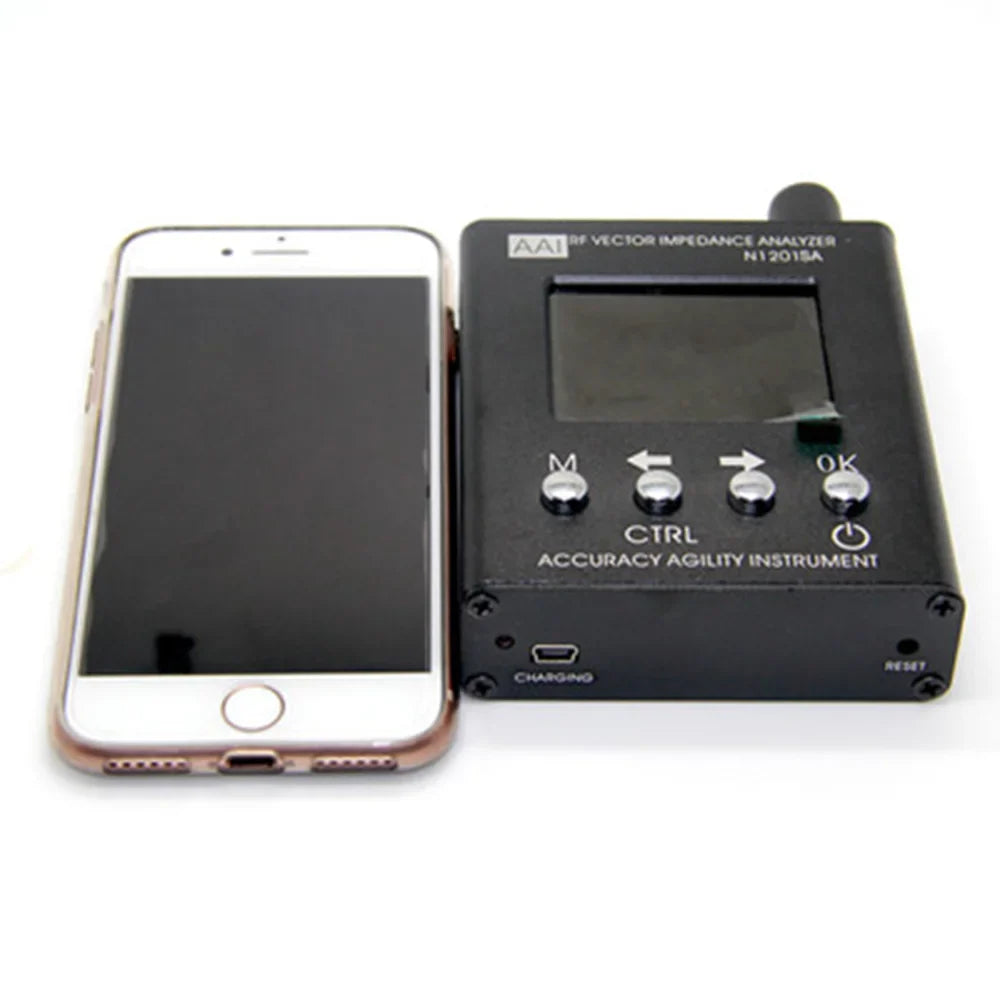

- charge port USB
- Auto power off can be set 5-60minutes

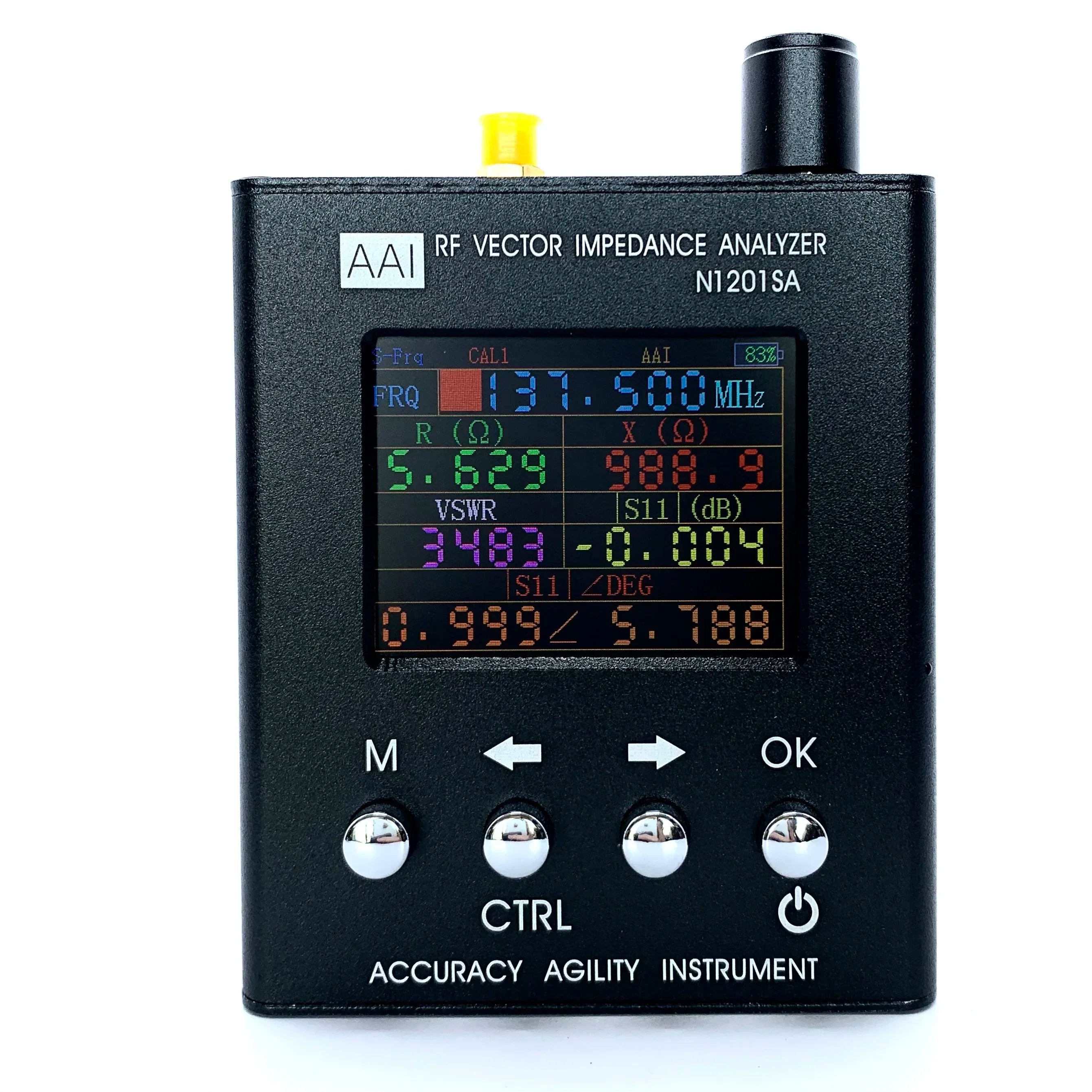

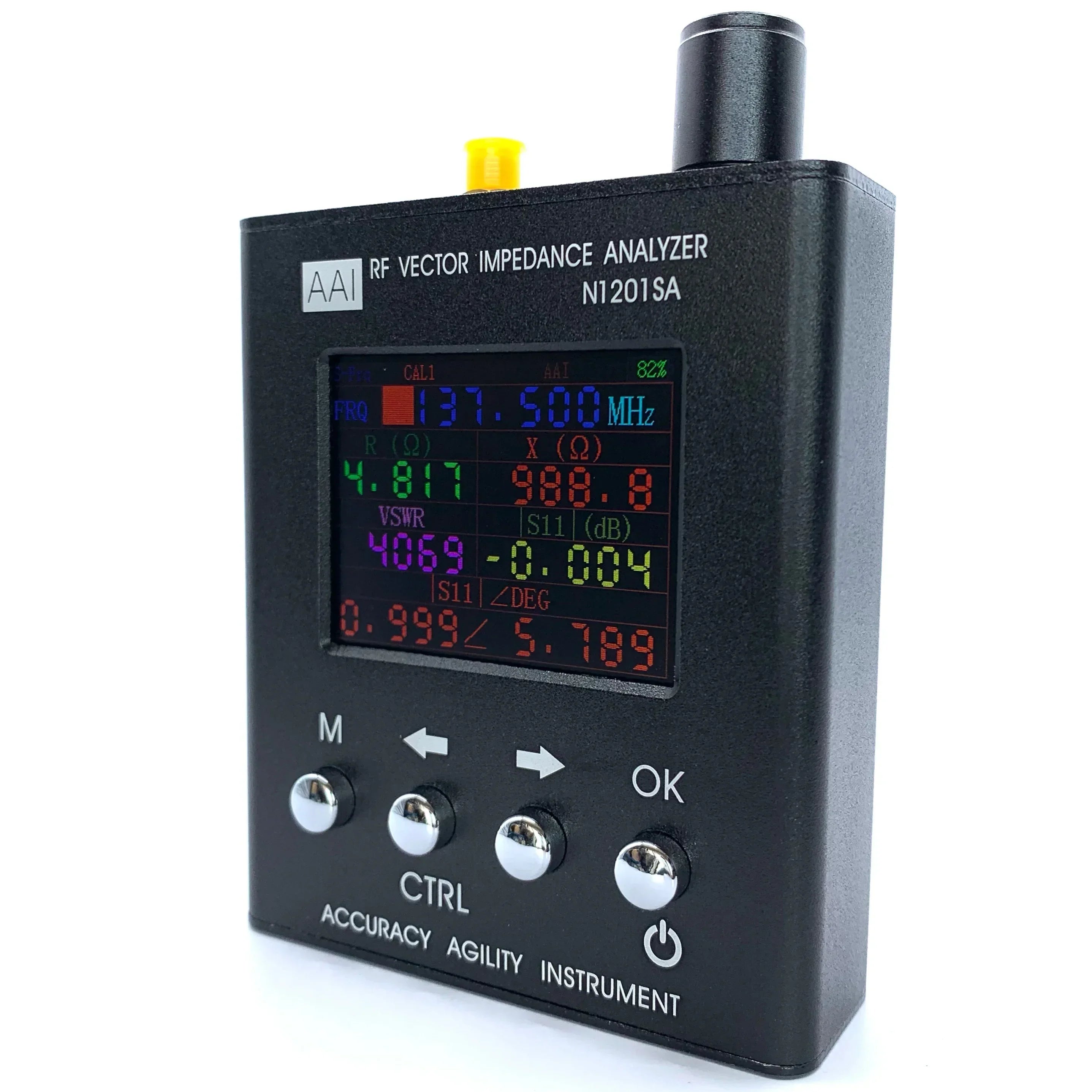

measured parameters resistence reactance standing wave s11
resolution ratio 4 number
frequency accuracy about 5ppm
- Connector SMA-K
- measurement range:
- Impedance:0.1-1000
- Standing wave:1.000-65
- S11(dB):0dB--60dB

Startup and shutdown
- Hold down the CTRL key off press the power switch button.
- The boot state, long press (2S above) the switch button, after the release, the instrument will shut down
- The boot state, long press (2S above) the switch button, after the release, the instrument will shut down

Recommend the use
1. in order to ensure the accuracy of measurement and calibration, preheat the instrument at least 15 minutes.
2.try to use good quality RF cable and connectors.
3.calibrated cable marked to the next may not need to calibrate and direct use.
4. test cable process affect the measurement accuracy, it is recommended that, where possible, do not choose too long test cable.
5.measurement and calibration before, make sure you are not in a strong wireless signal, so as to avoid interference caused by inaccurate measurements.
6.if the impedance measurements themselves do not understand, you can refer to a vector network analyzer instructions and tutorials. This instrument is equivalent to a single-port vector network analysis.

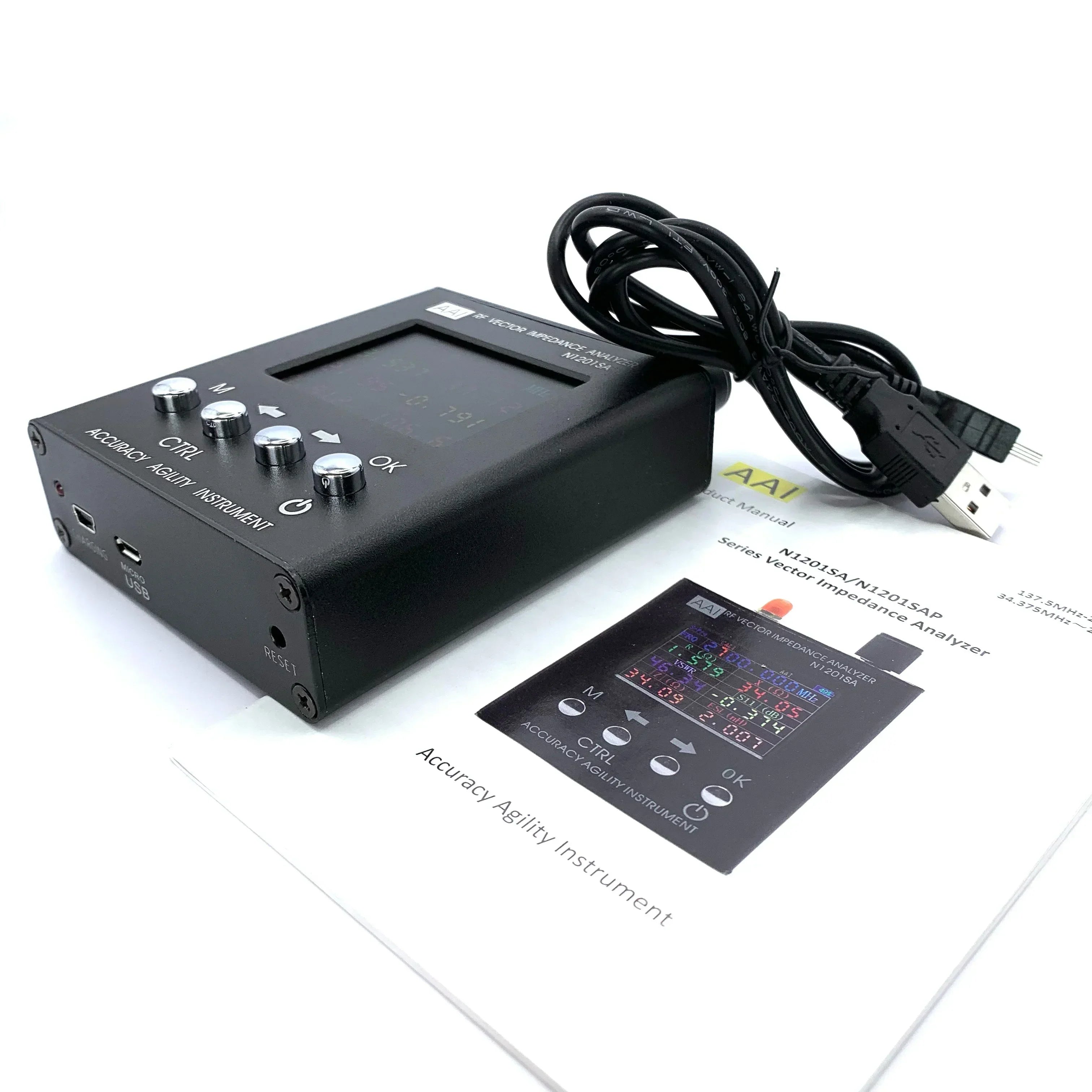

kit Content:
- 1 x N1201SA+
- 1 x Manual
