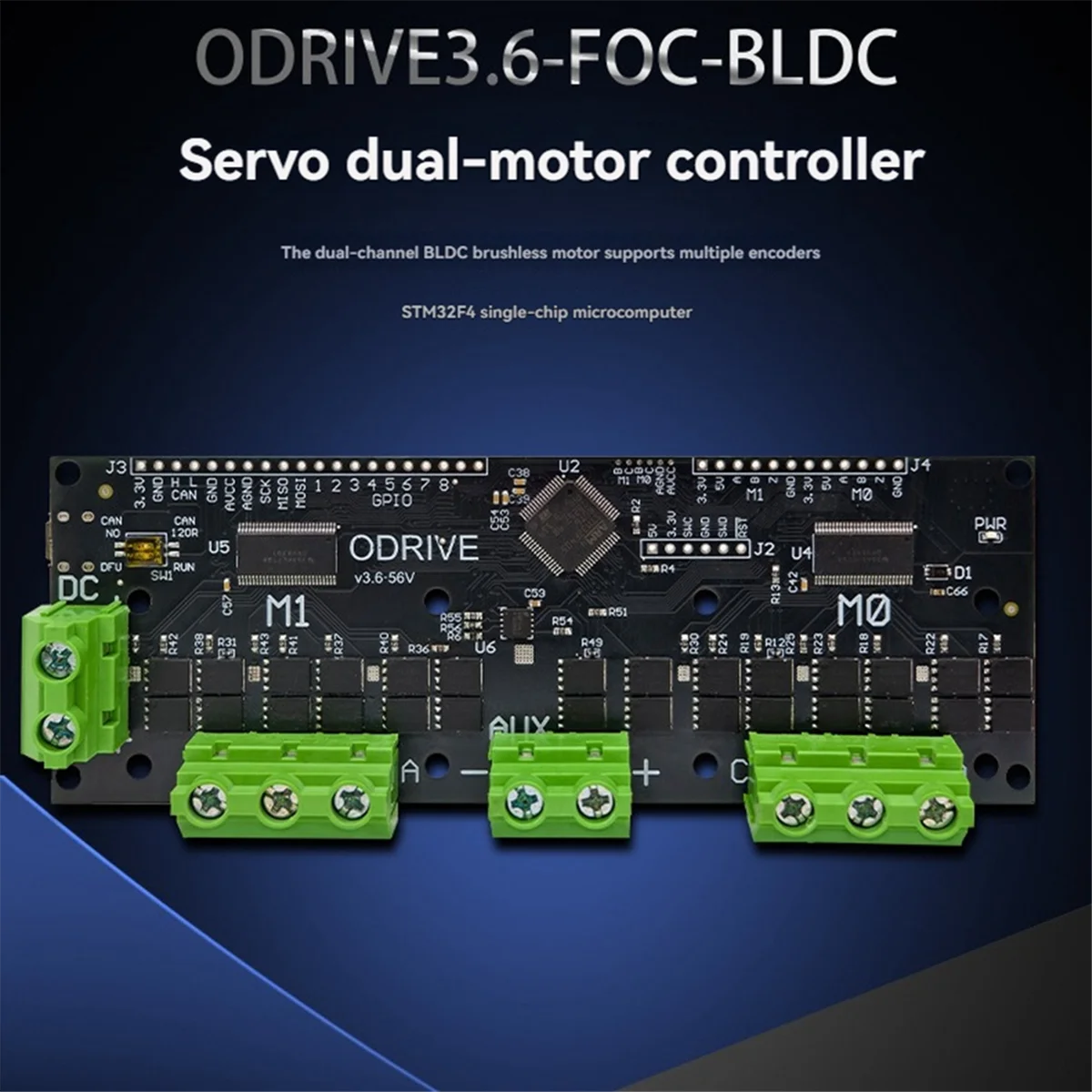

ODrive V3.6 12-56V Dual-Axis FOC BLDC Servo Motor Controller Board

Sale price
$38.96
List price
$55.65
You save
$16.69 (30%)

Prices include VAT and any applicable duties.
Delivery estimate Estimated arrival is calculated for your delivery market.
Ships in 1-3 business days. Remote areas or special items may take longer.

ODrive V3.6 Dual-Axis FOC BLDC Servo Motor Controller Board

A third-party ODrive V3.6-compatible controller for evaluating dual-axis brushless motor and servo-control projects. The board is based on the STM32F405 platform and provides two three-phase motor outputs with encoder and communications interfaces.

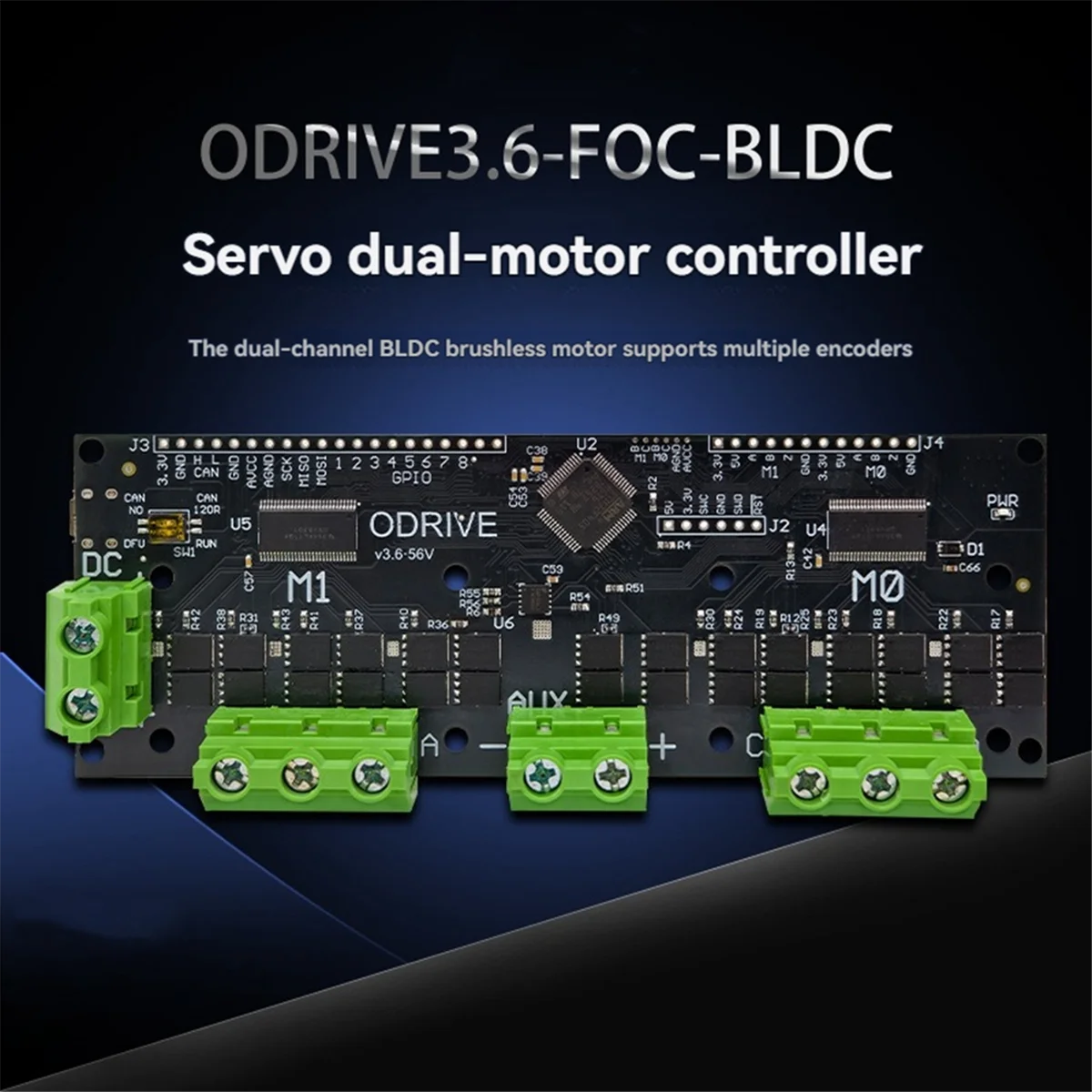

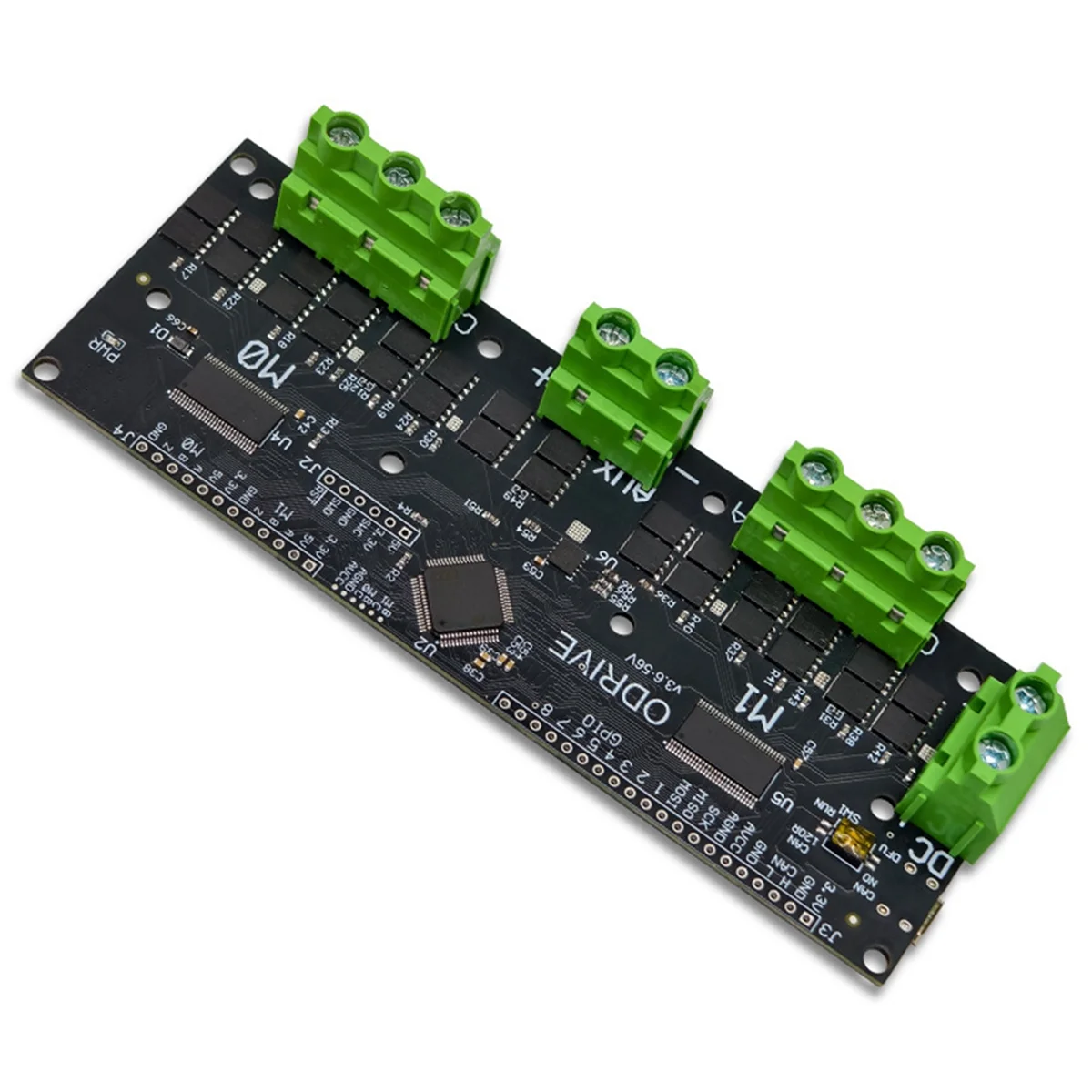

ODrive V3.6 dual-axis FOC BLDC servo motor controller board

Board Functions

  • Two motor-control axes for compatible three-phase BLDC or permanent-magnet motors.
  • STM32F405 controller with USB, CAN, UART, step/direction, PWM and analog-control interfaces associated with the V3.6 platform.
  • Encoder inputs for supported incremental, Hall and compatible SPI feedback devices.
  • Brake-resistor connection for systems that require regenerative-energy management.

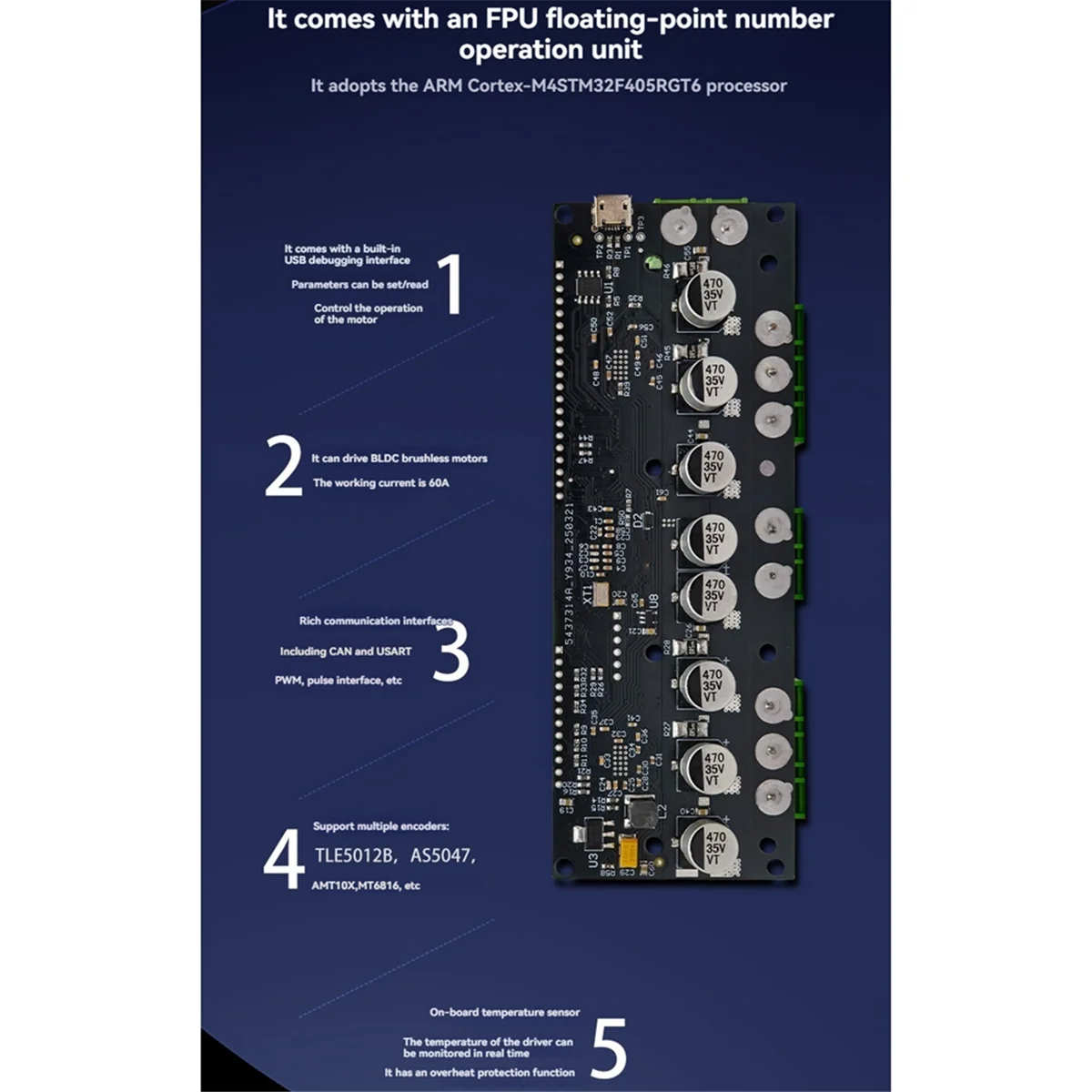

ODrive V3.6 motor power encoder and communication interfaces

Power and Compatibility

  • The supplied product images identify this board as a 12-56 V version. Verify the actual board marking and component ratings before selecting a power supply.
  • This is not presented as an official current-generation ODrive Robotics product. Do not assume official current, thermal or firmware limits apply unchanged to third-party hardware.
  • ODrive V3.6 is a legacy platform. Official documentation lists two axes and supports USB, CAN, UART, analog, PWM and step/direction control, but recommends newer ODrive hardware for new designs.
  • Motor current, cooling, brake resistance and supply protection must be engineered for the specific motor and mechanical load.

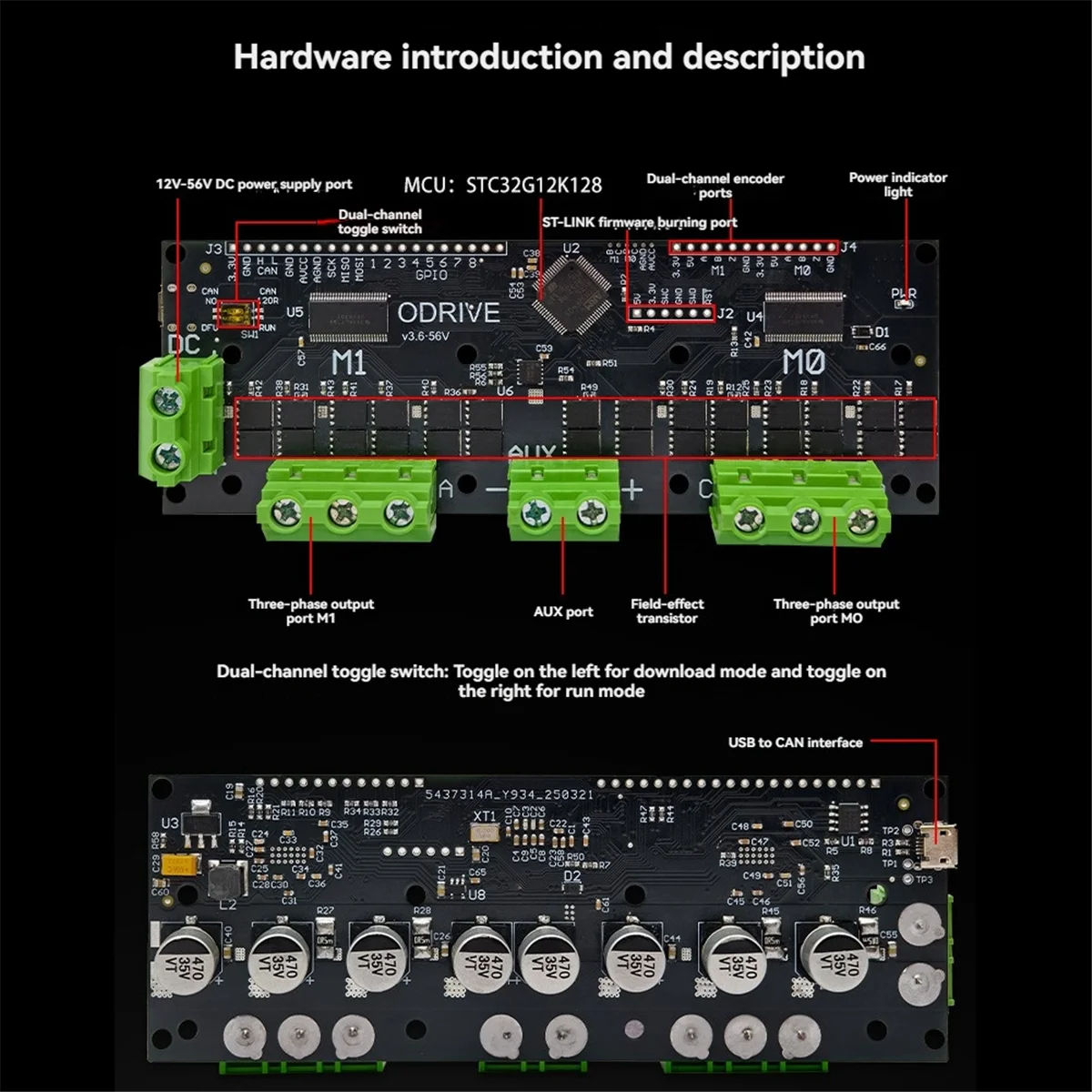

ODrive V3.6 compatible controller wiring and encoder connections

Before Power-Up

  • Confirm motor phase wiring, encoder voltage and pinout, DC bus polarity and brake-resistor configuration.
  • Use current-limited commissioning where possible and secure the board in a ventilated enclosure.
  • Match firmware and configuration tools to V3.6-compatible hardware; newer ODrive GUI and firmware features may not support this legacy board.

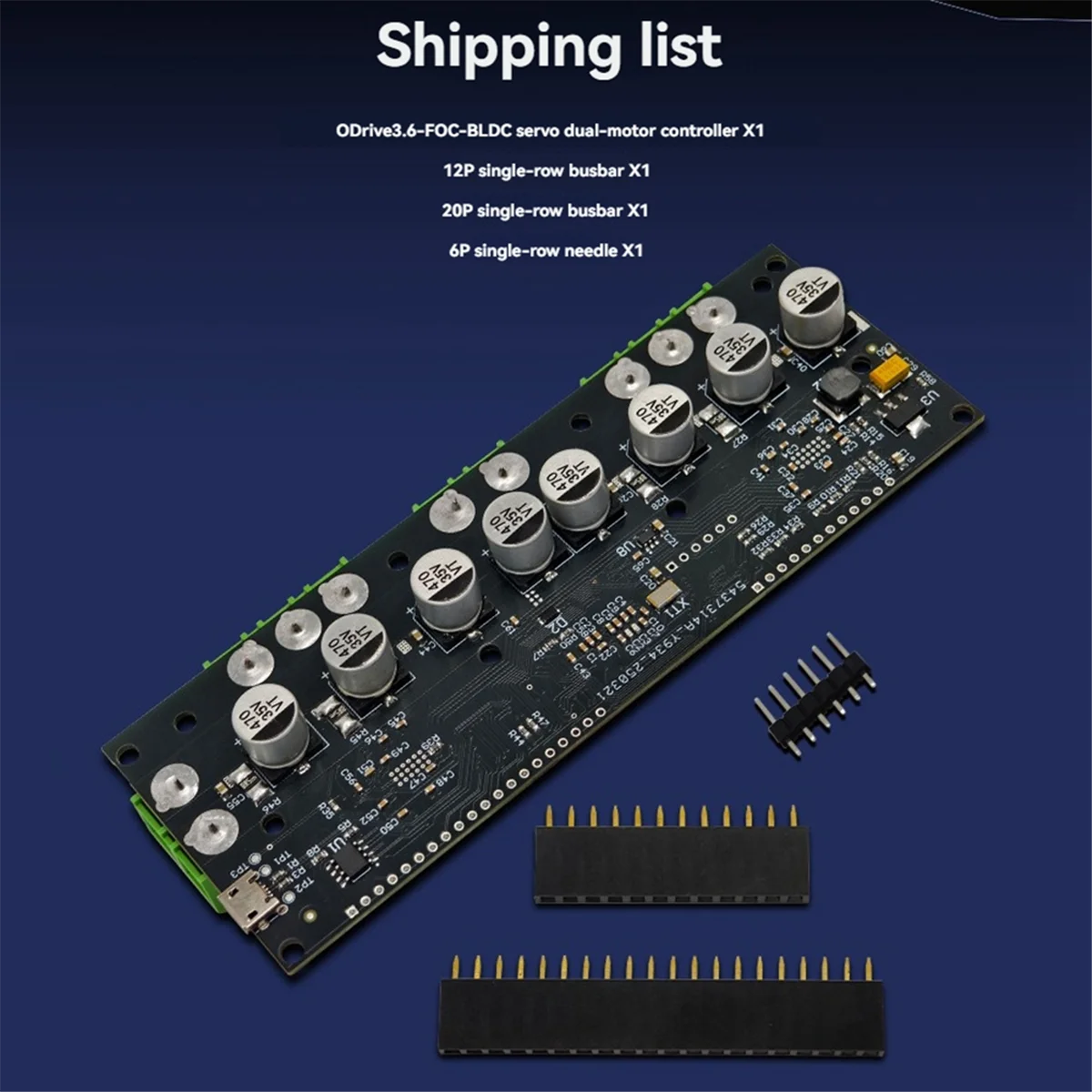

ODrive V3.6 dual motor control board package and dimensions
