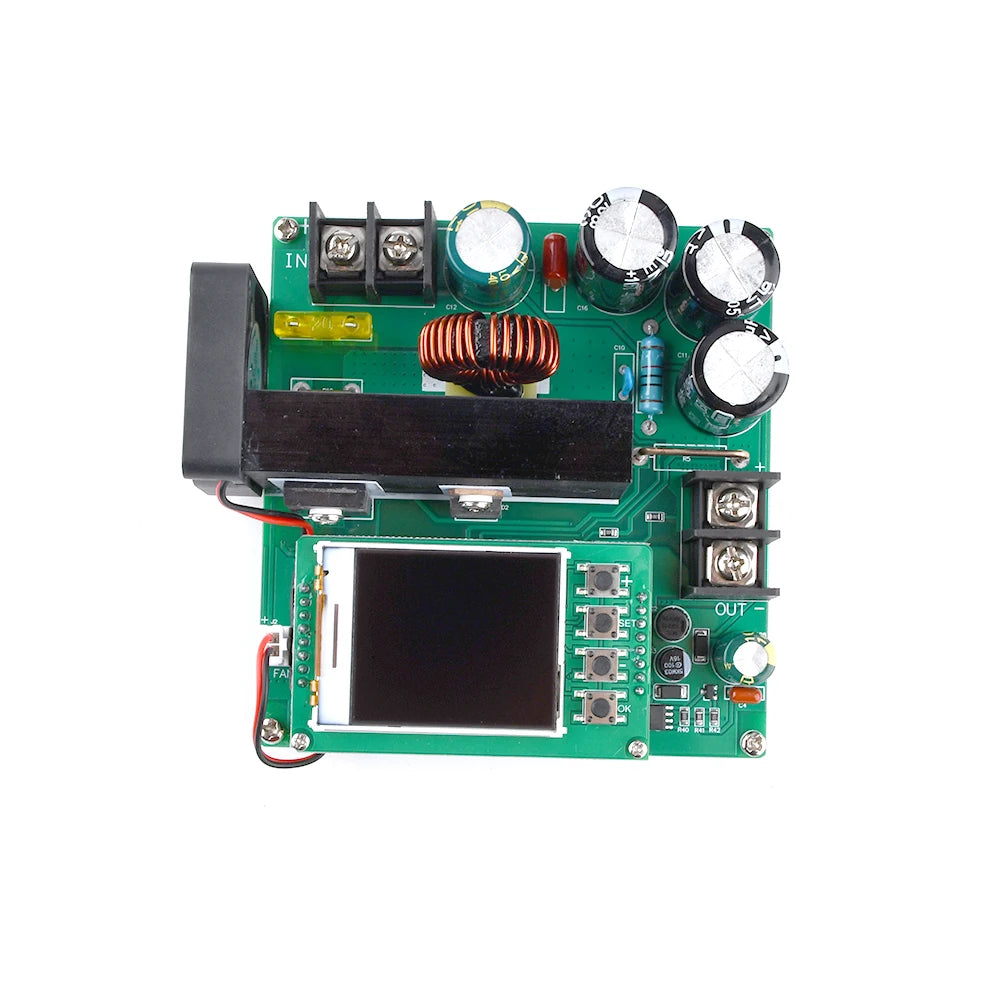

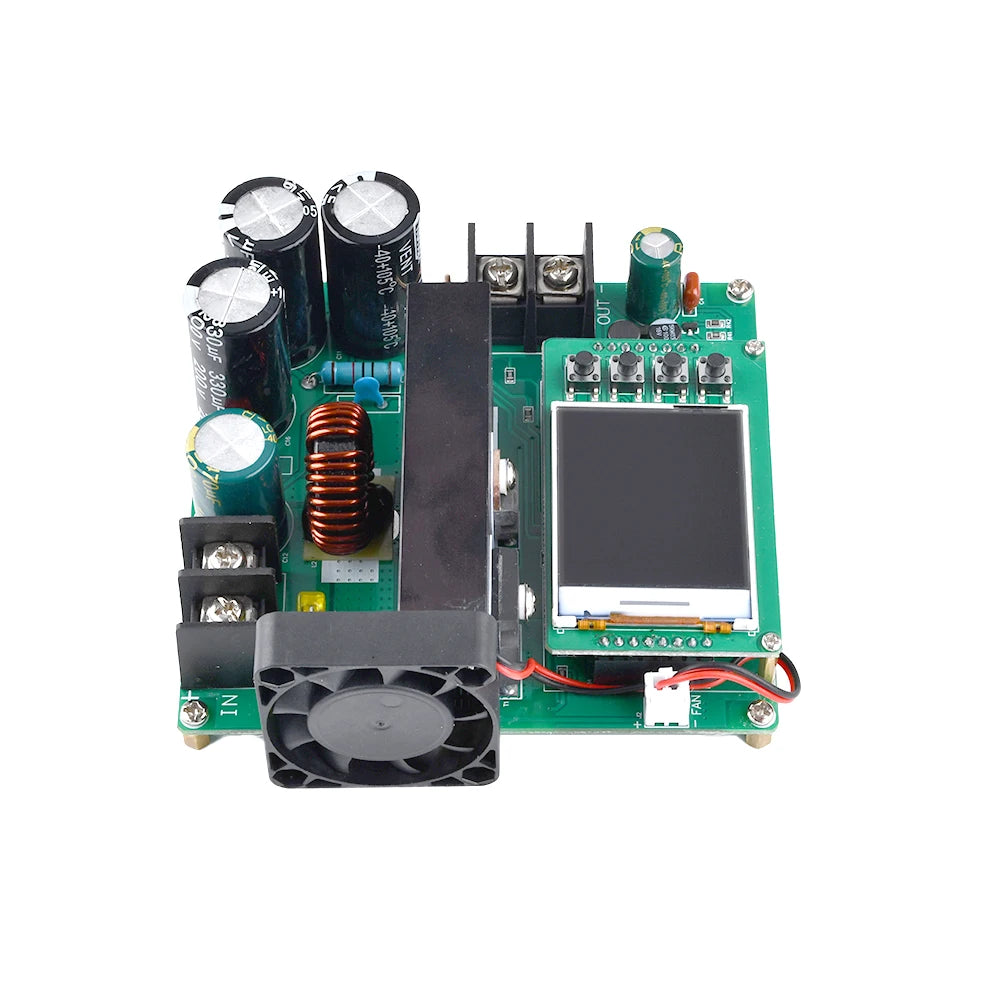

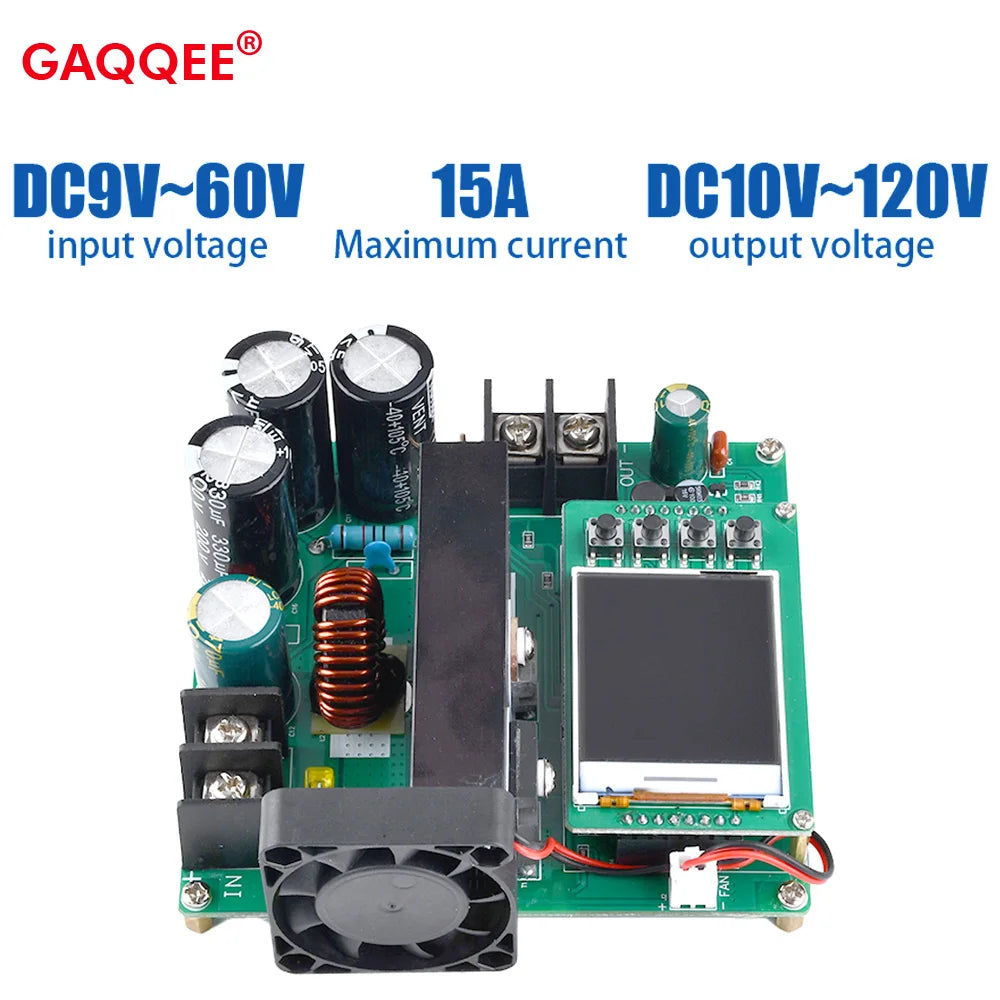

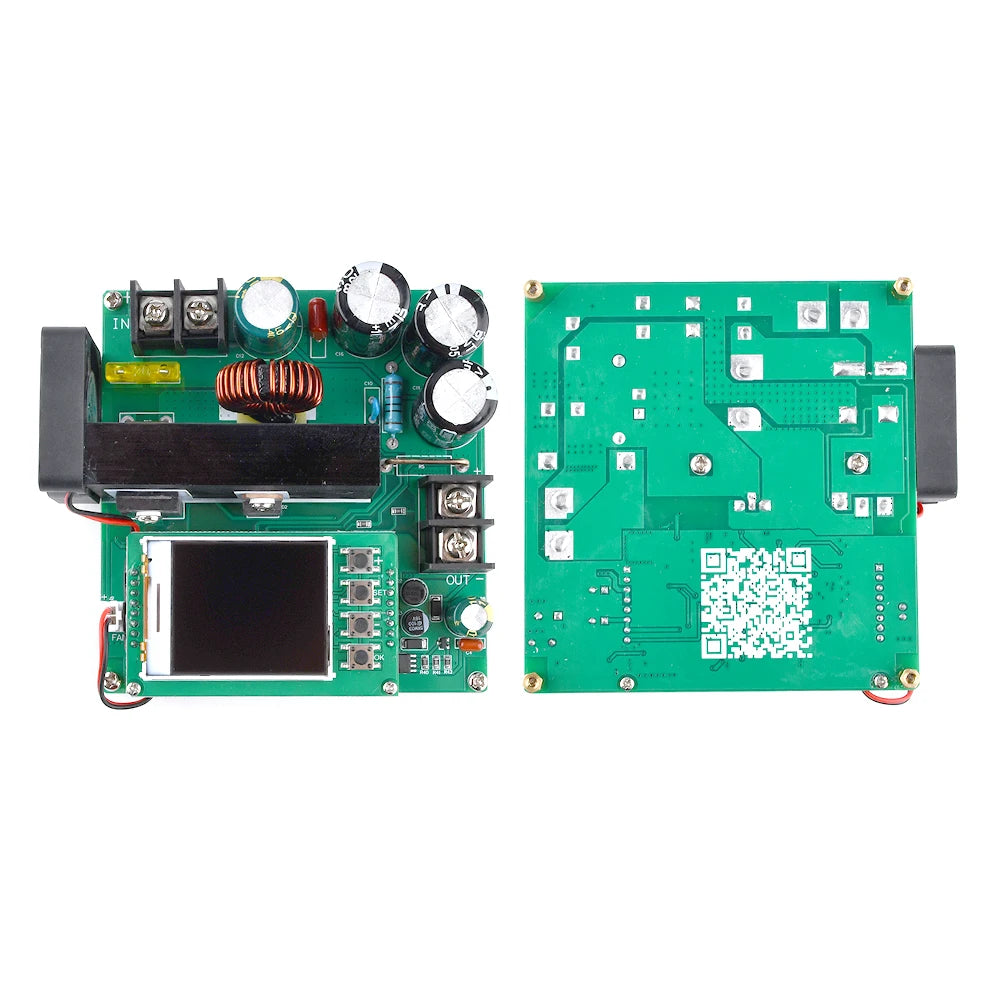

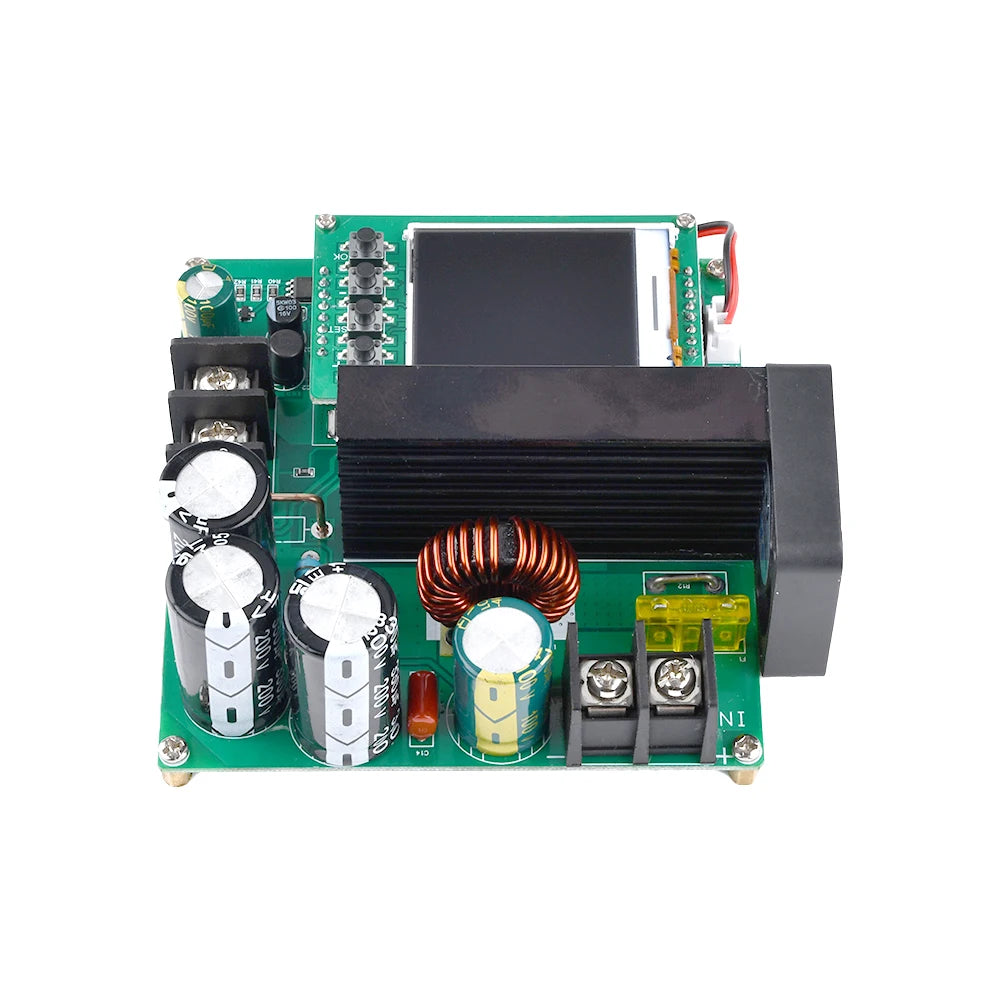

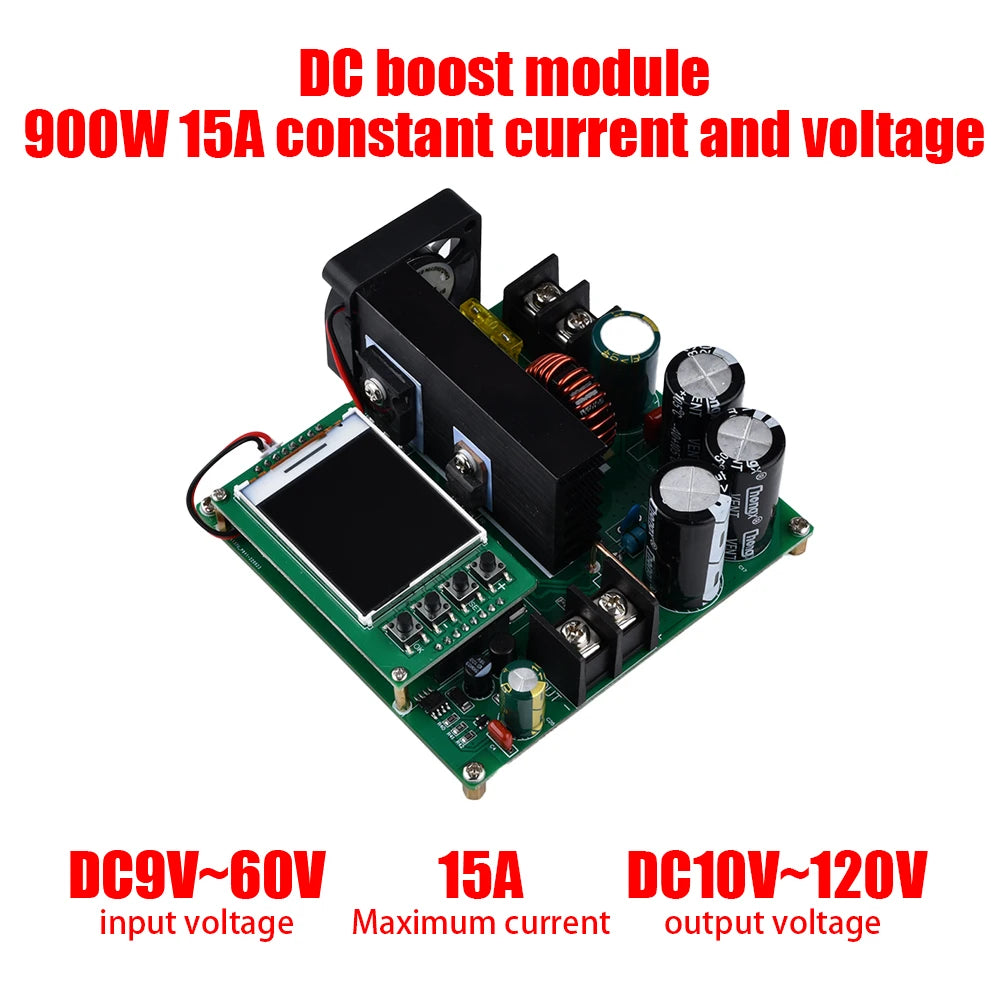

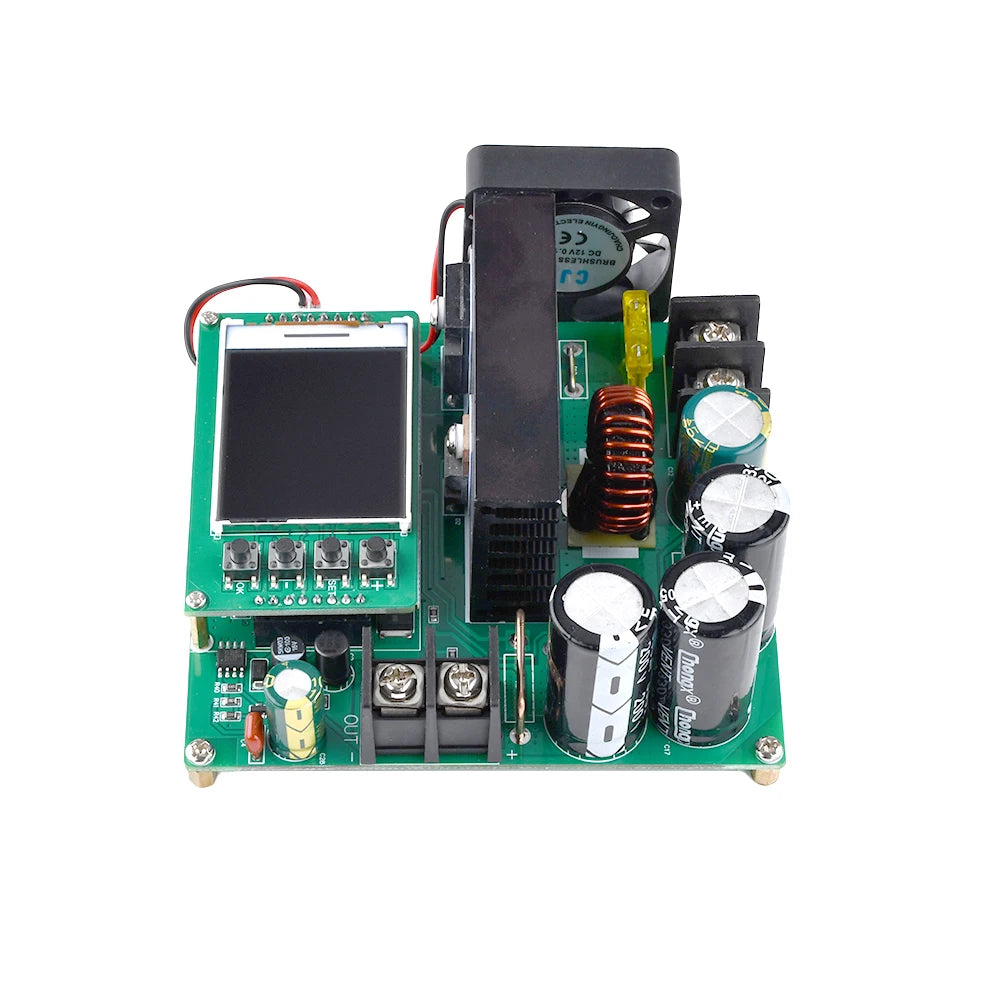

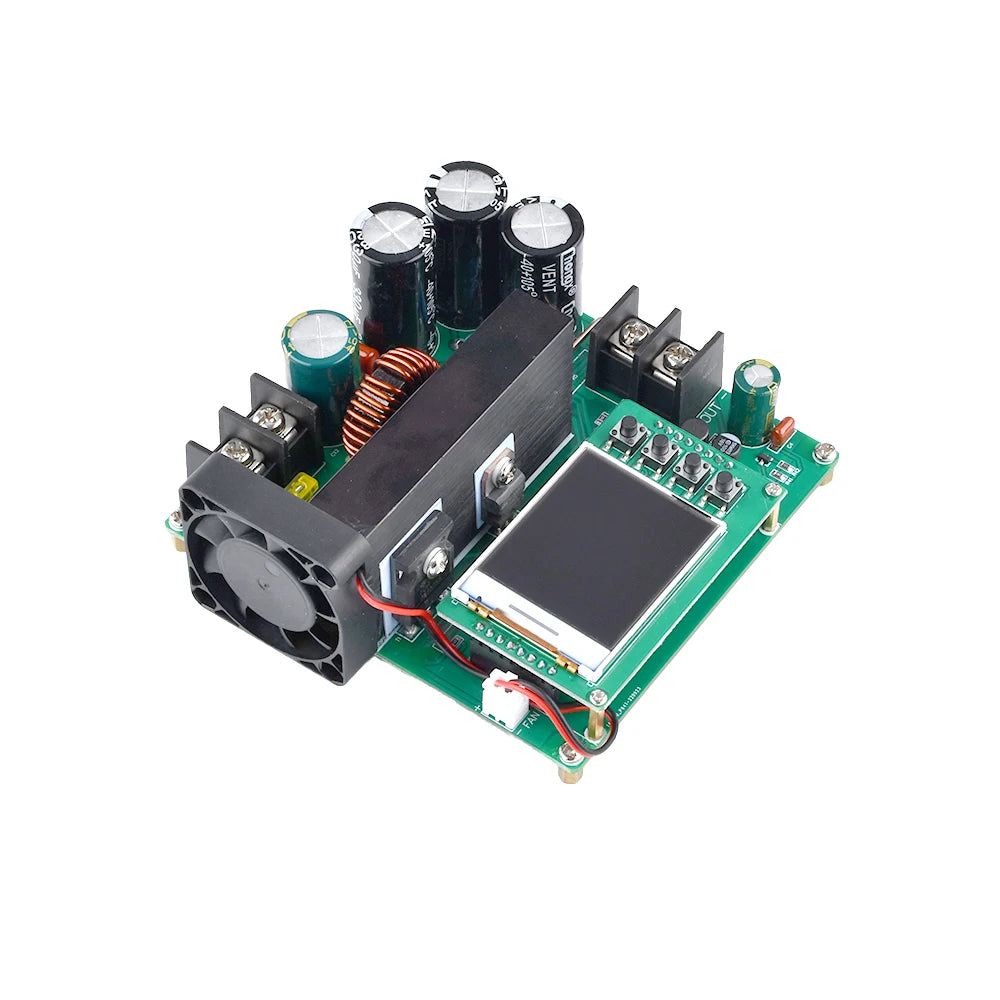

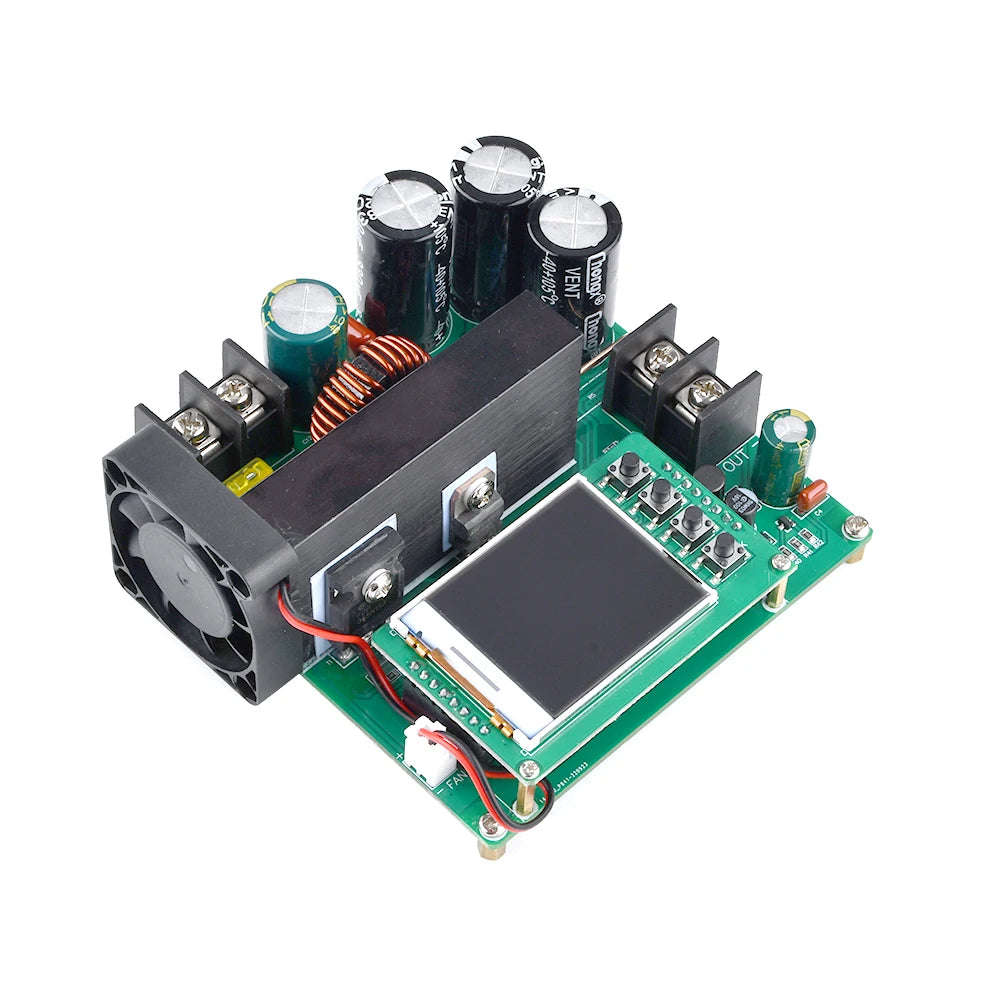

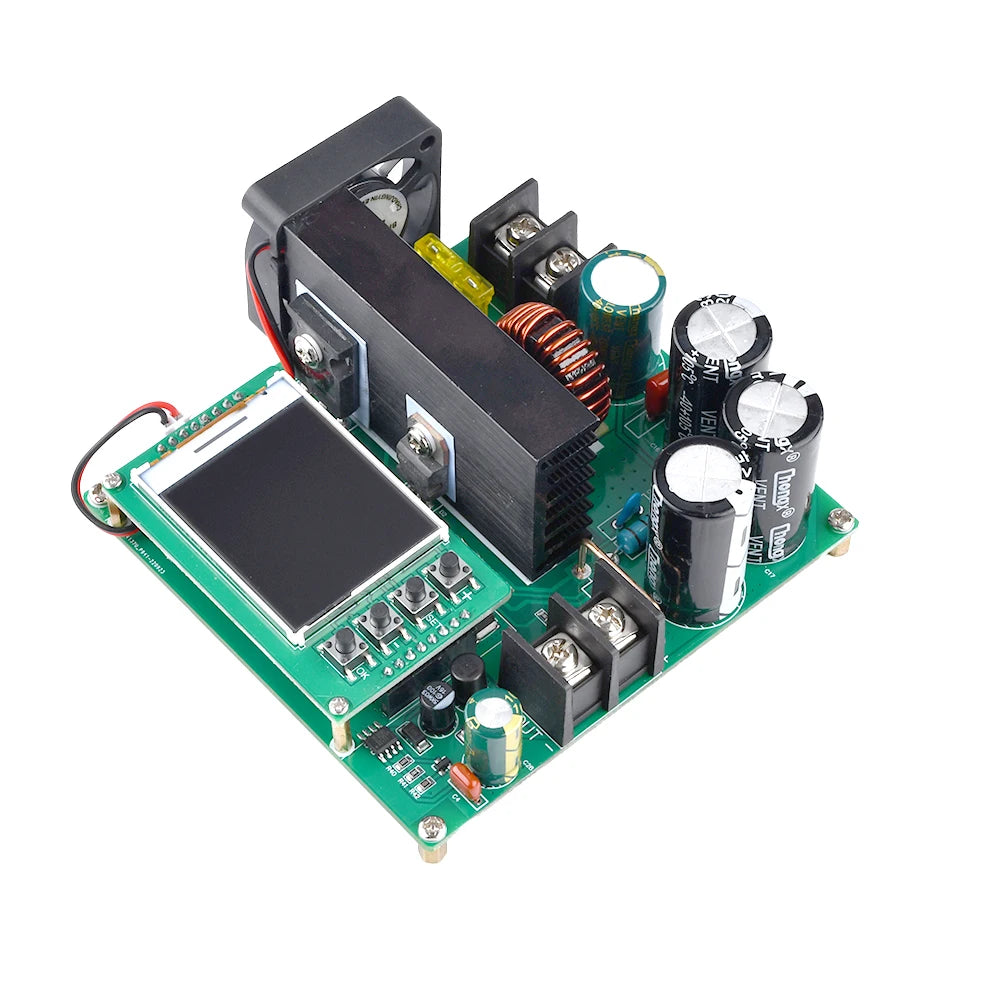

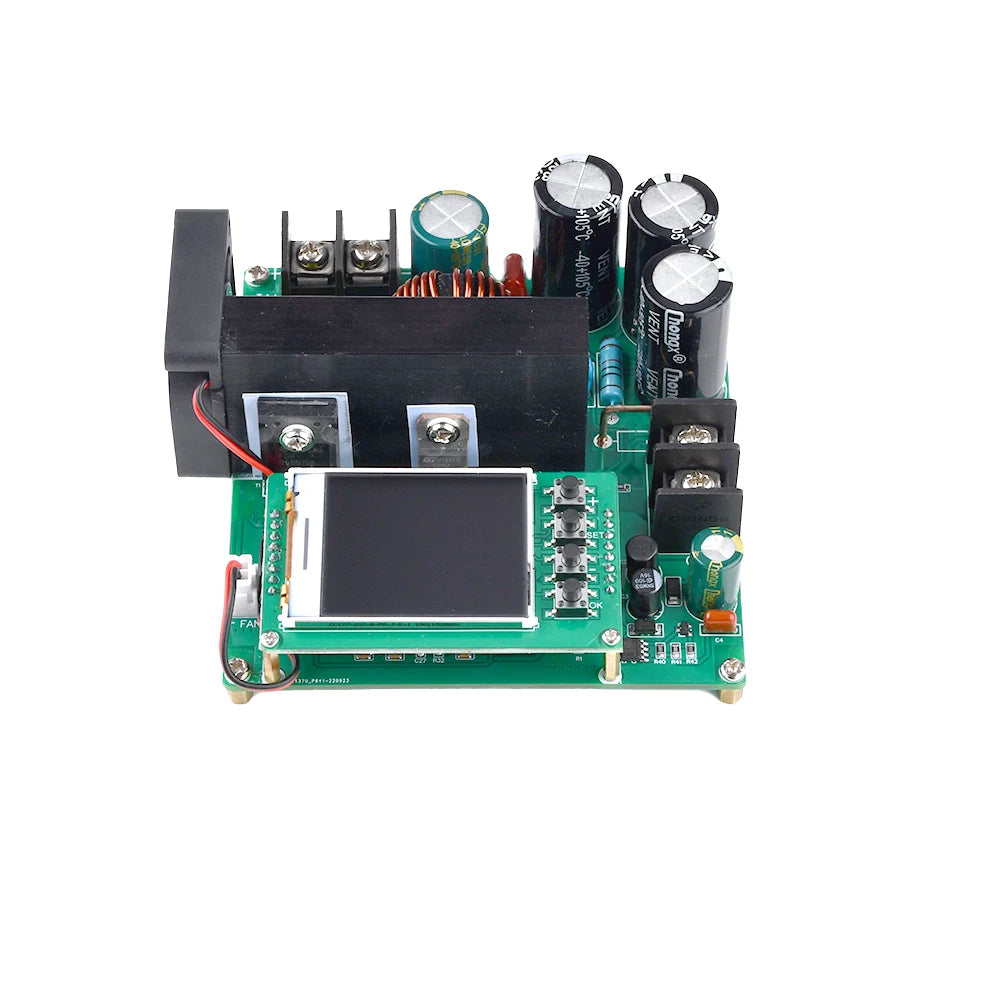

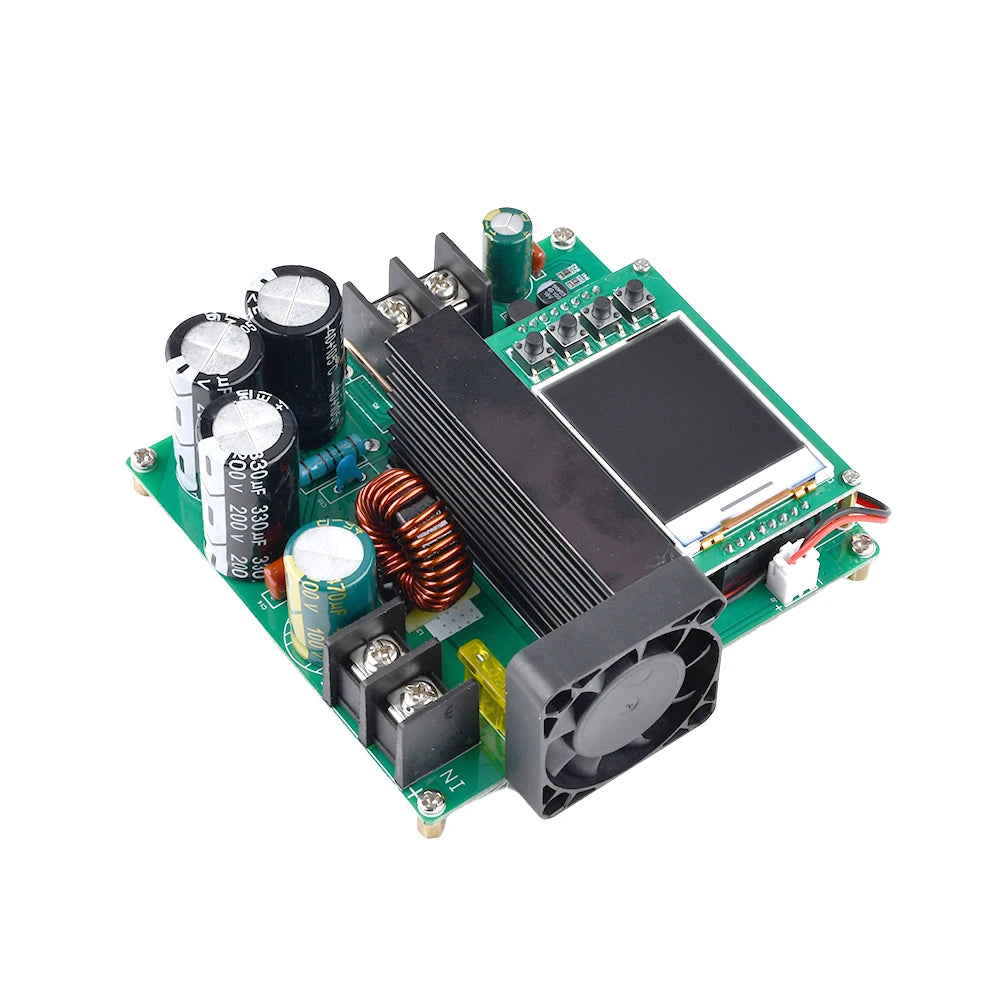

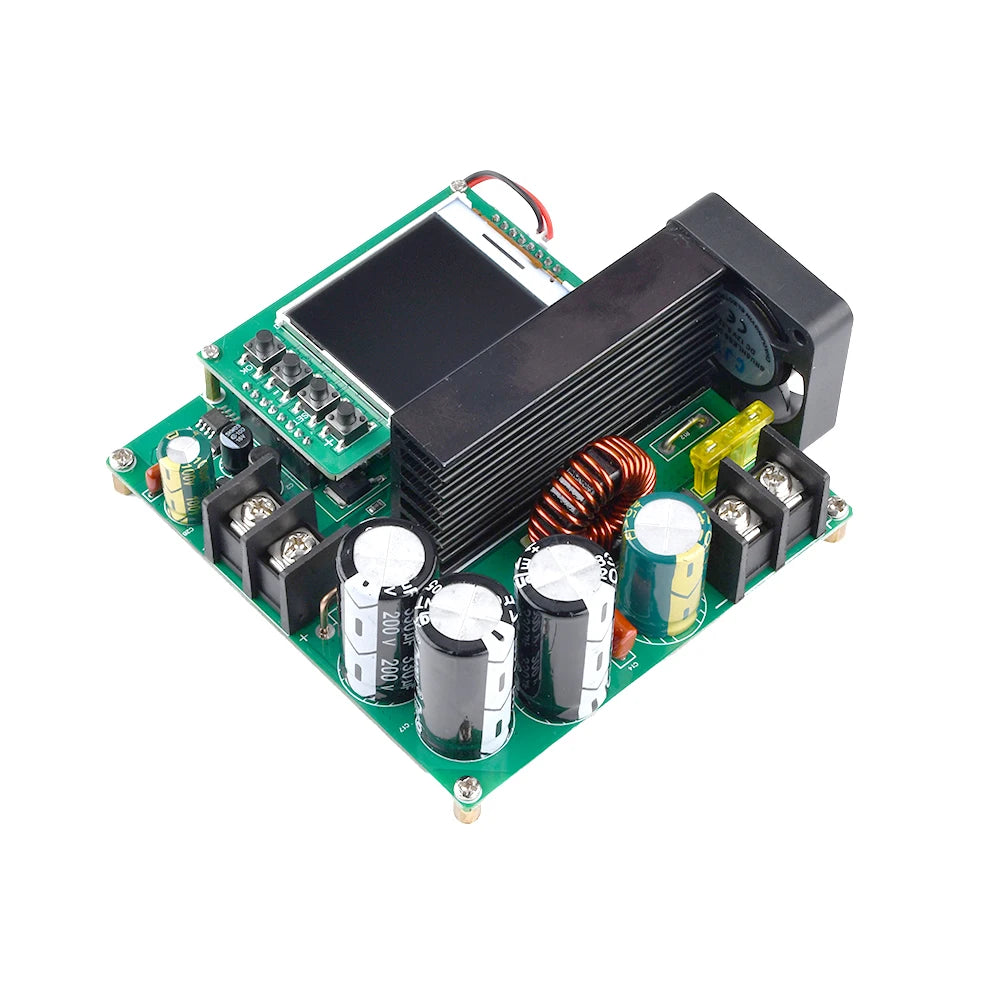

900W 15A Boost Converter DC-DC 9V-60V to 10V-120V LCD Display Control Step Up Module High Precise Voltage Transformer Regulator
900W High Precise Boost Converter DC-DC 9V-60V to 10V-120V LCD Display Control Step Up Module Voltage Transformer Regulator
Output current: 0-15A
Conversion efficiency: 85%
Active heat dissipation Continuous operation with input fan
Features and Specifications

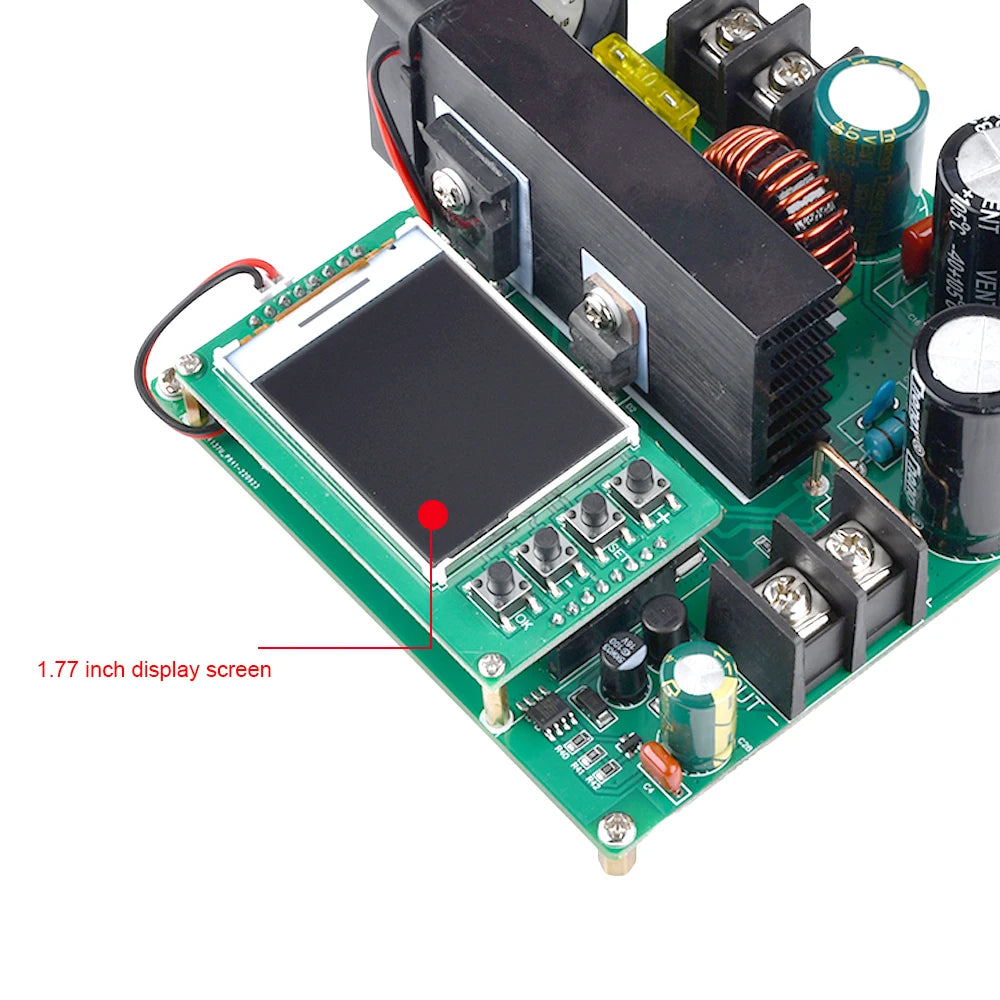

- Digital control + colour screen display
- Storage groups: 10 groups
- Technical parameters
- Input voltage (U-IN): DC9V-60V
- Input current: 0-15A

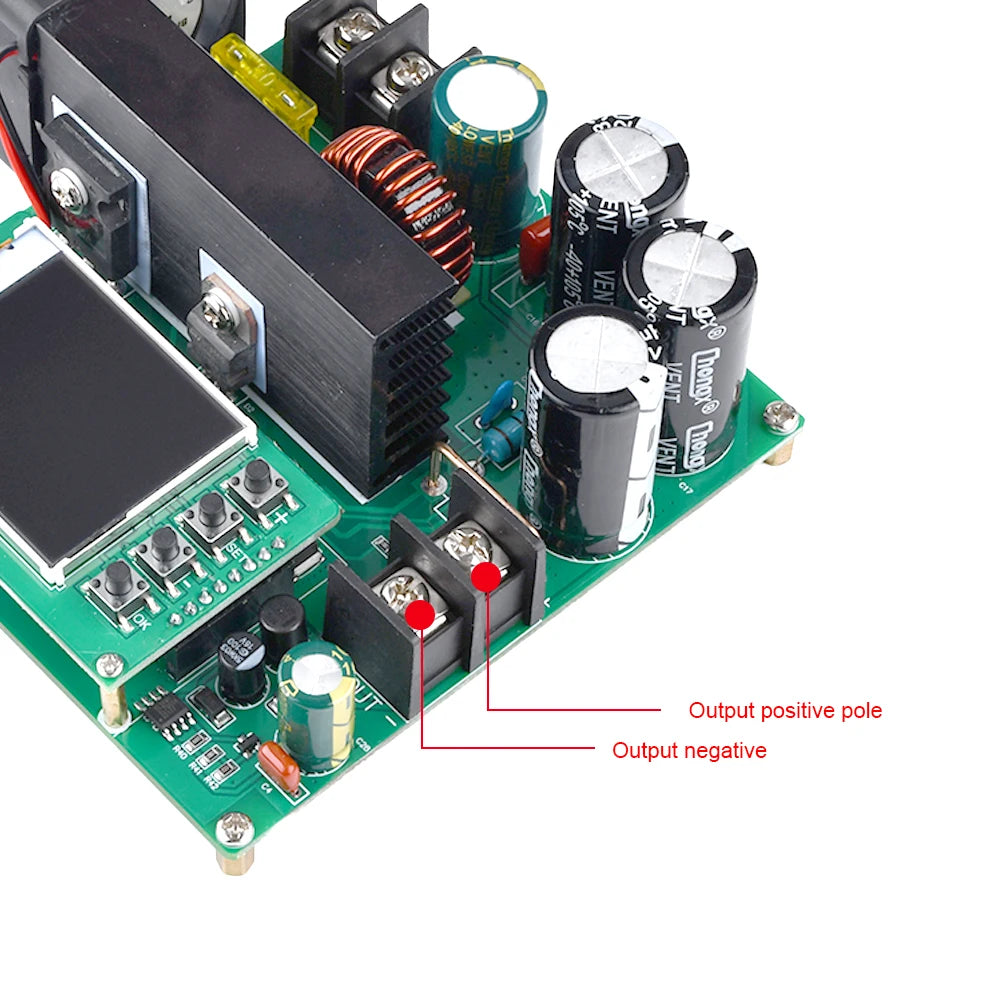

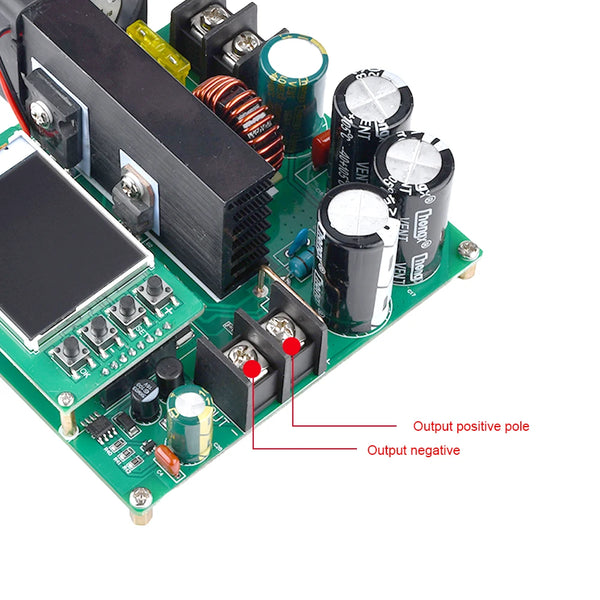

- Output voltage (U-OUT): 10V-120V
- Conversion efficiency:85%
- Operating frequency: 150KHZ

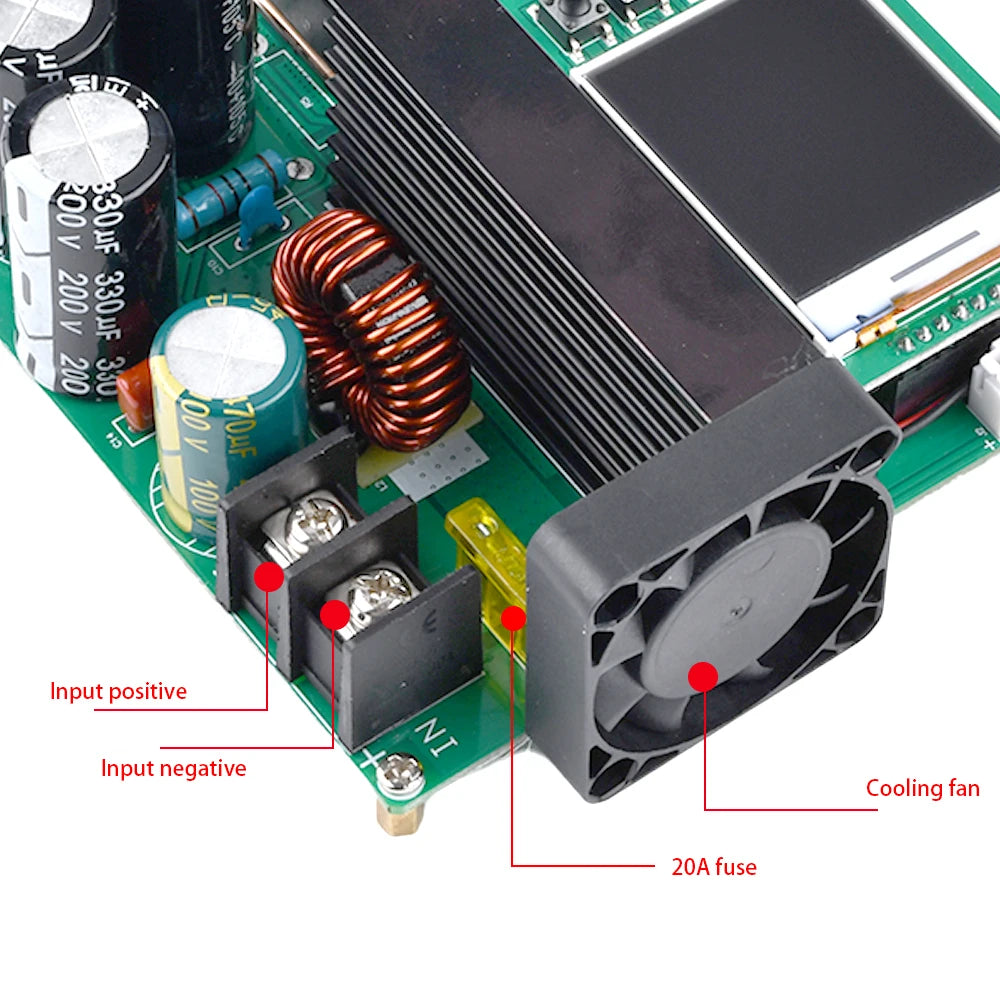

- Short circuit protection: 20A fuse (non-self-recovery)
- Working temperature: -40 deg C-85 deg C
- Heat dissipation mode: active heat dissipation Continuous operation by connecting input fan
- Control mode: CNC + colour screen display
- Voltage adjustment display: 009.0V-120.0V
- Current adjustment display: 00.01A-15.00A
- Output ripple: ≤50mV
- Storage group: 10 groups
- Standby power consumption: less than 150mA (measured at 12V input)
- Dimensions: 110mm x 105mm x 48mm (product)
- When the input is switched on, the output always has electrical output and the voltage is equal to the real-time output voltage shown on the interface
- Product information
- https://www.banber.com/gather/632d0a35106503000802b5a2.html(English vision)
- 900W 15A CNC LCD Display Constent Current Constent Voltage DC Boost Module X1
