Product Summary
8MP 4K Sony IMX317 Sensor USB 3.0 0.5X Microscope Camera Measurement Electronic Digital is a soldering and rework tool selected for soldering, desoldering, spot welding and board repair tasks. It is suitable for PCB repair users, makers and electronics assembly workflows who need practical electronics hardware for reliable project work.
Best For
- soldering, desoldering, spot welding and board repair tasks
- PCB assembly, battery pack work and repair bench setups
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for PCB repair users, makers and electronics assembly workflows.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
8MP 4K Sony IMX317 Sensor USB 3.0 Microscope Camera UVC Measurement Electronic Digital Eyepiece for Repair PCB Soldering Jewel
Feature:
High Quality, High Resolution, Clear Images
Certificate:CE,FC,RoHS
Sony Sensor Camera.
Supply USB output ports. OTG function.
Specification:
Model: HY-900B
Name: USB3.0 Color 8MP driver-free UVC digital camera
Sensor: 8MP, Micron 1/2.5 inch, Sony IMX317
Sensor size: 8.365mm(H)x6.615mm (V)
Pixel size: 1.62umm x 1.62um
Resolution: 3840x2160; 1920x1080; 1280x720
Image output format:MJPEG
Frame rate: (MJPEG): 3840x2160 @ 30fps; 1920x1080 HDR @ 30fps; 1280x720 HD @30fps
Programmable control: Brightness, Contrast, Color saturation,Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
White Balance: Auto/Manual
One-click white balance: Support
Exposure control: Auto/Manual
Spectral response: 400nm-700nm
Dynamic Range: 74 dB (Linear) - 85 dB (HDR)
SNR: 39dB
Sensitivity: 2400 mV/Lux-sec
Image output: USB3.0, 5Gbit/s
Support driver-free: USB Video Class (UVC)
Working Temperature: -25 deg C-75 deg C
Support systems: Win XP/Win7/Win10/win11
Linux / Android (Devices that comply with the UVC protocol)
MAC OS X10.4.8 or later (Devices that comply with the UVC protocol)

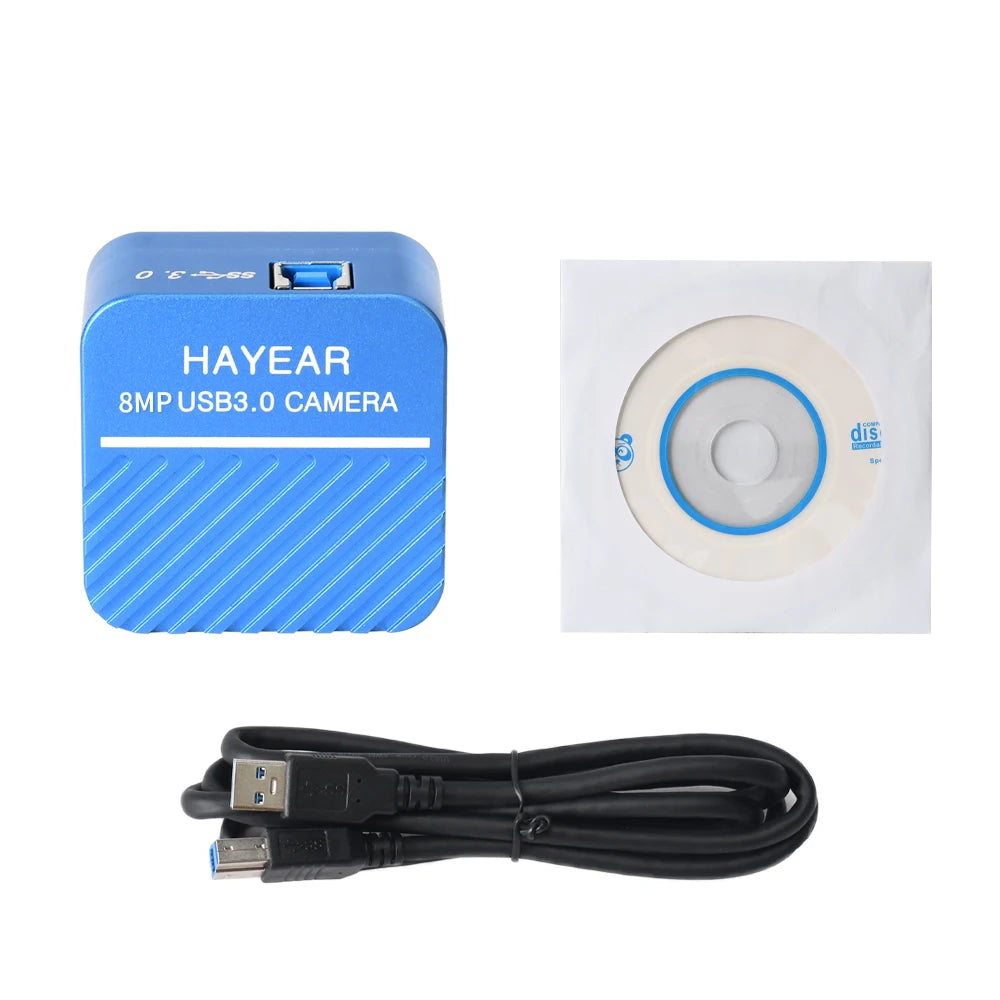

Package including:
1 x 8MP USB3.0 Microscope Camera
1 x USB line
1 x Measurement Software (Online download)
1 x 0.5X adapter, 30/30.5mm adapter (for Eyepiece Kit)
