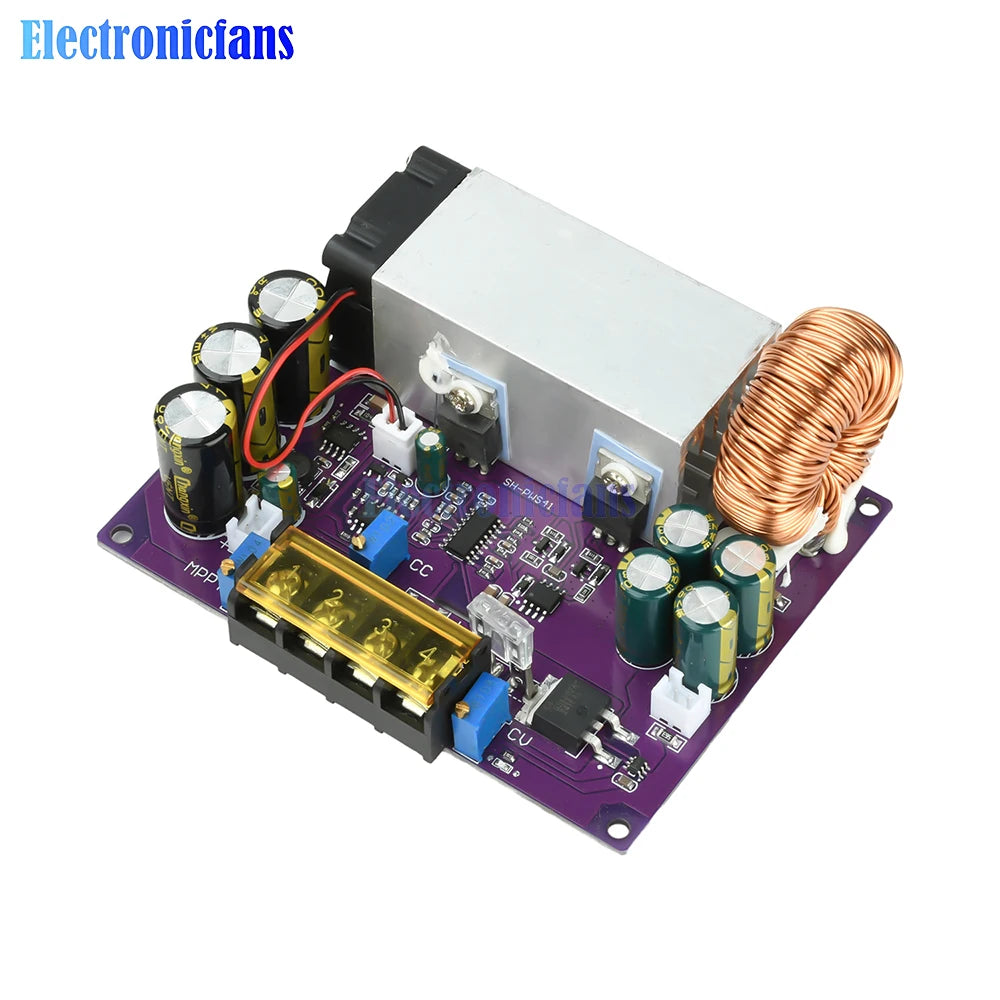

800W 25A MPPT Solar Charger Power Supply Module 18V-90V to 2-60V DC-DC Step Down Buck Converter Auto Charging Board Ideal Diode

800W 25A MPPT Solar Charger Power Supply Module 18V-90V to 2-60V DC-DC Step Down Buck Converter Auto Charging Board Ideal Diode

power conversion, battery testing, charging and regulated output projects

DIY electronics, battery packs, solar modules and bench power workflows

Electronics testing, repair, prototyping and maker workflows

Features and Specifications

• Who is this product for? It is intended for electronics builders, repair users and lab bench users.
• What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
• Supports 18-90V wide voltage input, compatible with various solar panels for flexible and efficient operation
• Supports adaptive 5W-800W photovoltaic panels to meet diverse power requirements across scenarios
• Features output reverse current protection with built-in high-current ideal diode functionality, enabling direct battery charging

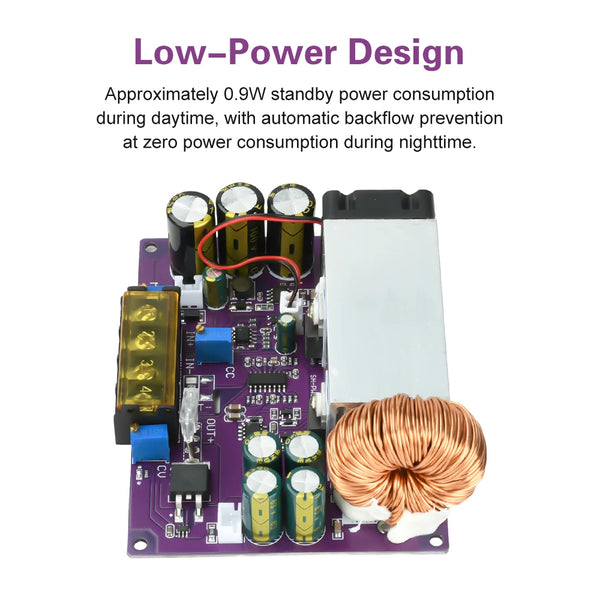

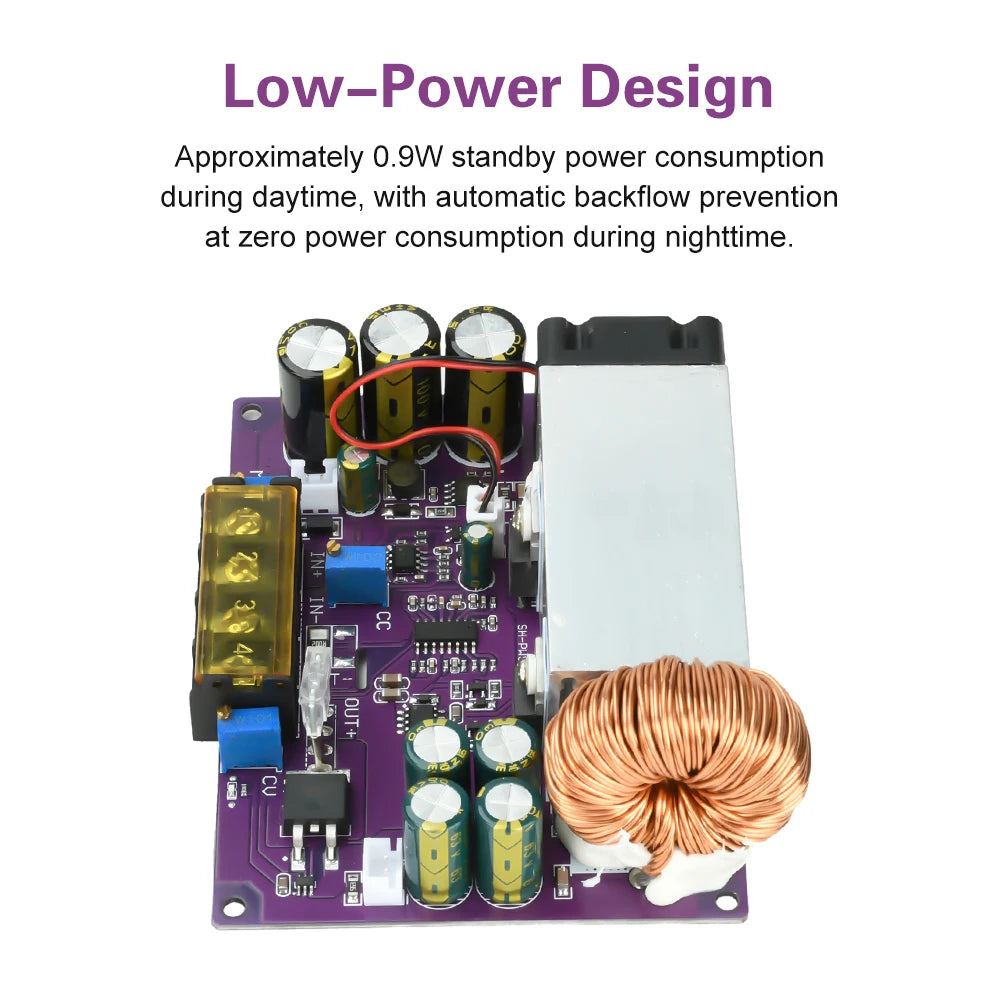

• Standby power consumption approx. 0.9W during daylight; zero power consumption with automatic backflow prevention at night

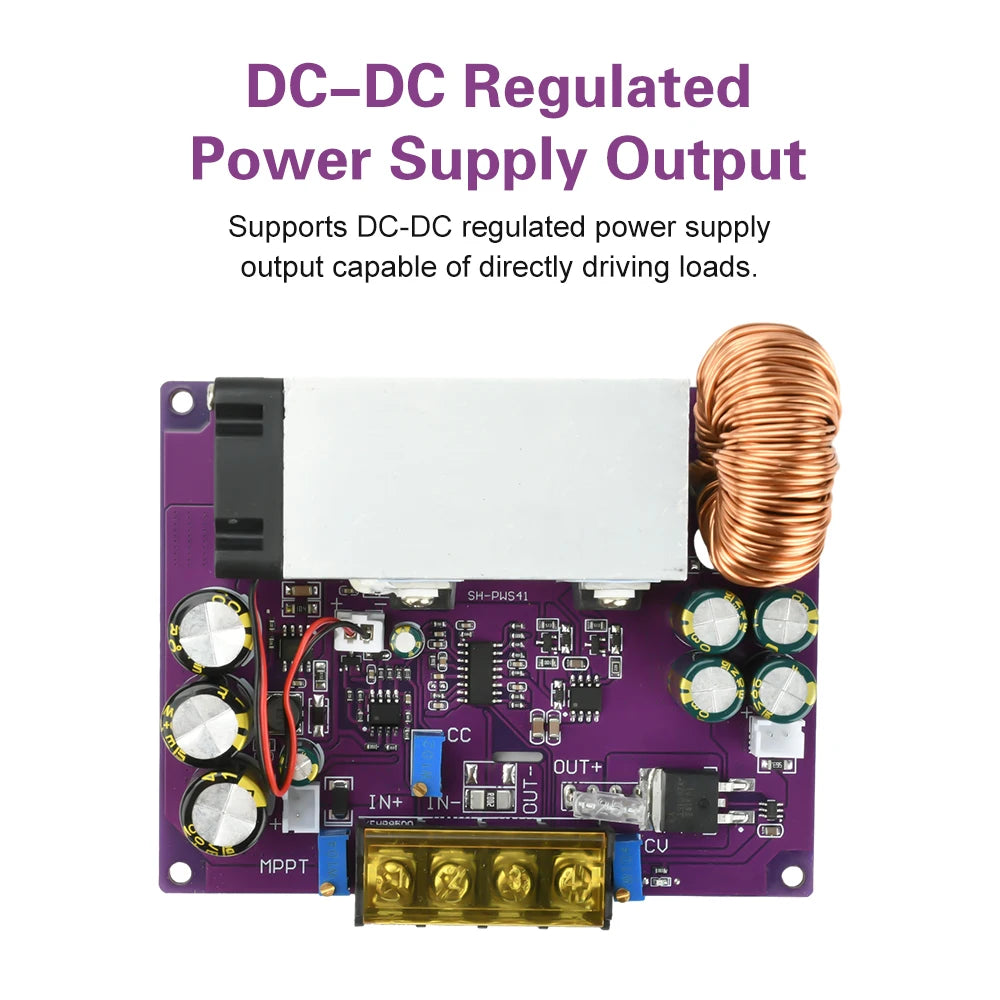

• Supports DC-DC regulated power output for direct load connection
• Parameter
• Input Voltage: DC 18-90V
• Output Voltage: DC 2-60V
• Output Current: 0-25A adjustable
• Unattended automatic lithium battery charging without activation
• Charges even on cloudy days; automatically stops when fully charged
• Automatic temperature-controlled fan cooling
• Can function as a step-down regulated adjustable power supply

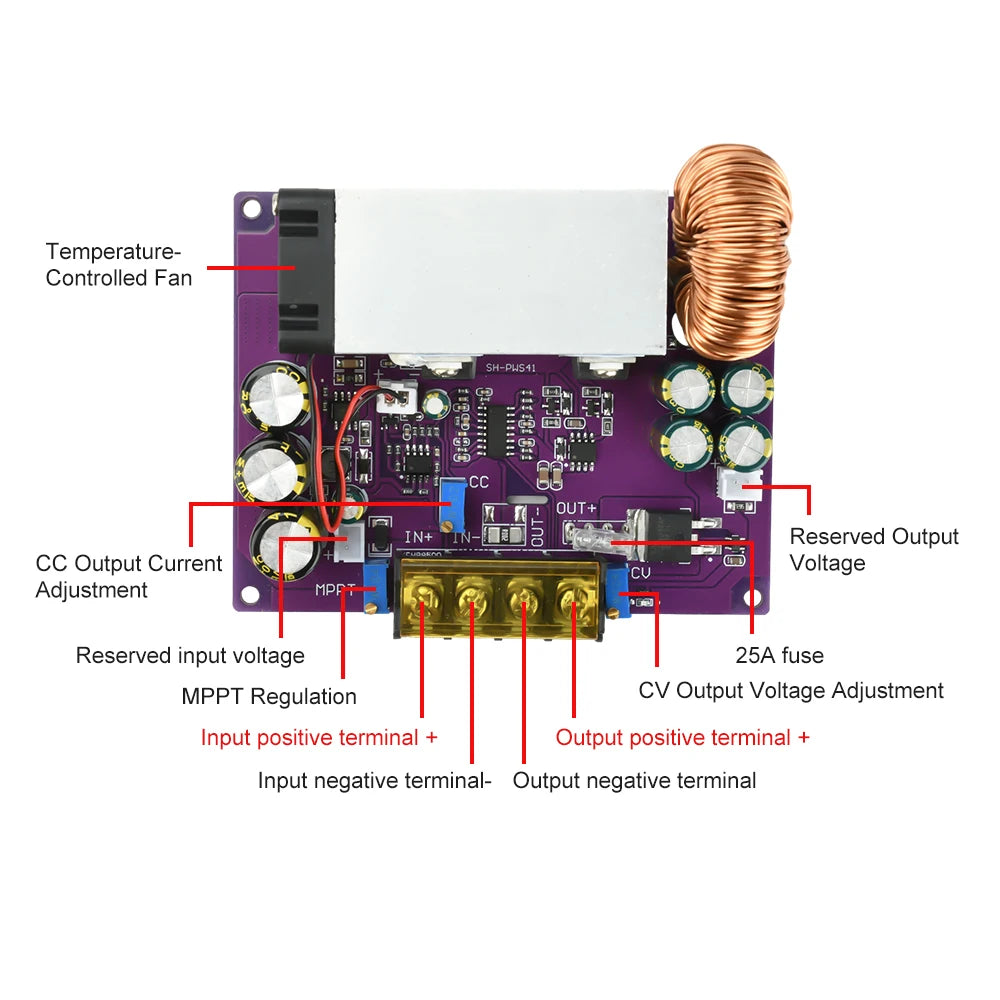

• Commissioning Procedure
• Connect 16V-80V PV panel input (do not exceed input voltage; observe polarity). Correct wiring activates the power indicator light. If the output indicator light illuminates immediately, proceed directly to Step 3.
• If the power indicator lights up after input connection but no output voltage is present, first adjust the MPPT potentiometer counterclockwise until voltage output appears and the output indicator lights up.
• For charging a 12V battery, set output to 14.2V; for a 24V battery, set output to 28.4V; for a 48V battery, set output to 56V.
• Set the output voltage to 14.2V and output current to 20A. Adjustable range: 1-20A. Set the MPPT voltage to 17V.
• Package include
• Module*1
