Product Summary
4K 60FPS SONY IMX585 Sensor UHD Measuring Digital Electronic Microscope Camera 8MP HDMI USB is a soldering and rework tool selected for soldering, desoldering, spot welding and board repair tasks. It is suitable for PCB repair users, makers and electronics assembly workflows who need practical electronics hardware for reliable project work.
Best For
- soldering, desoldering, spot welding and board repair tasks
- PCB assembly, battery pack work and repair bench setups
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for PCB repair users, makers and electronics assembly workflows.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.

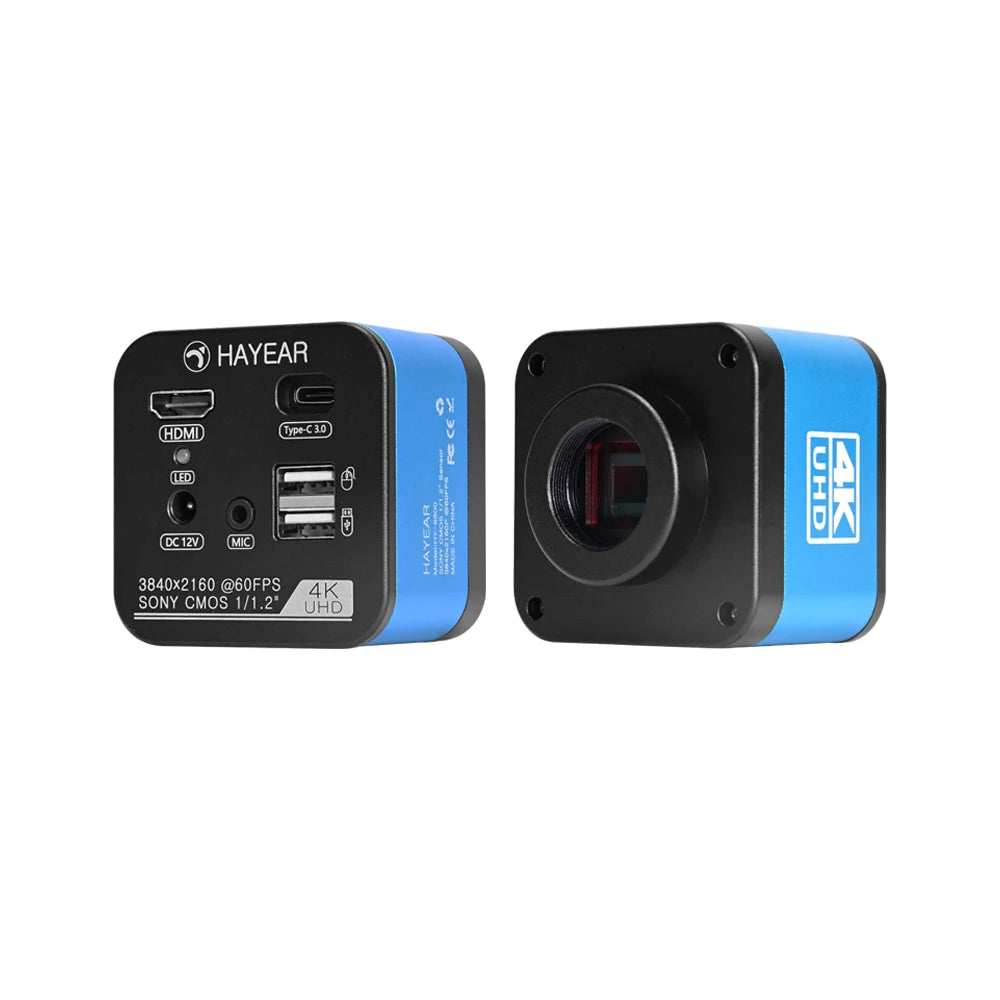

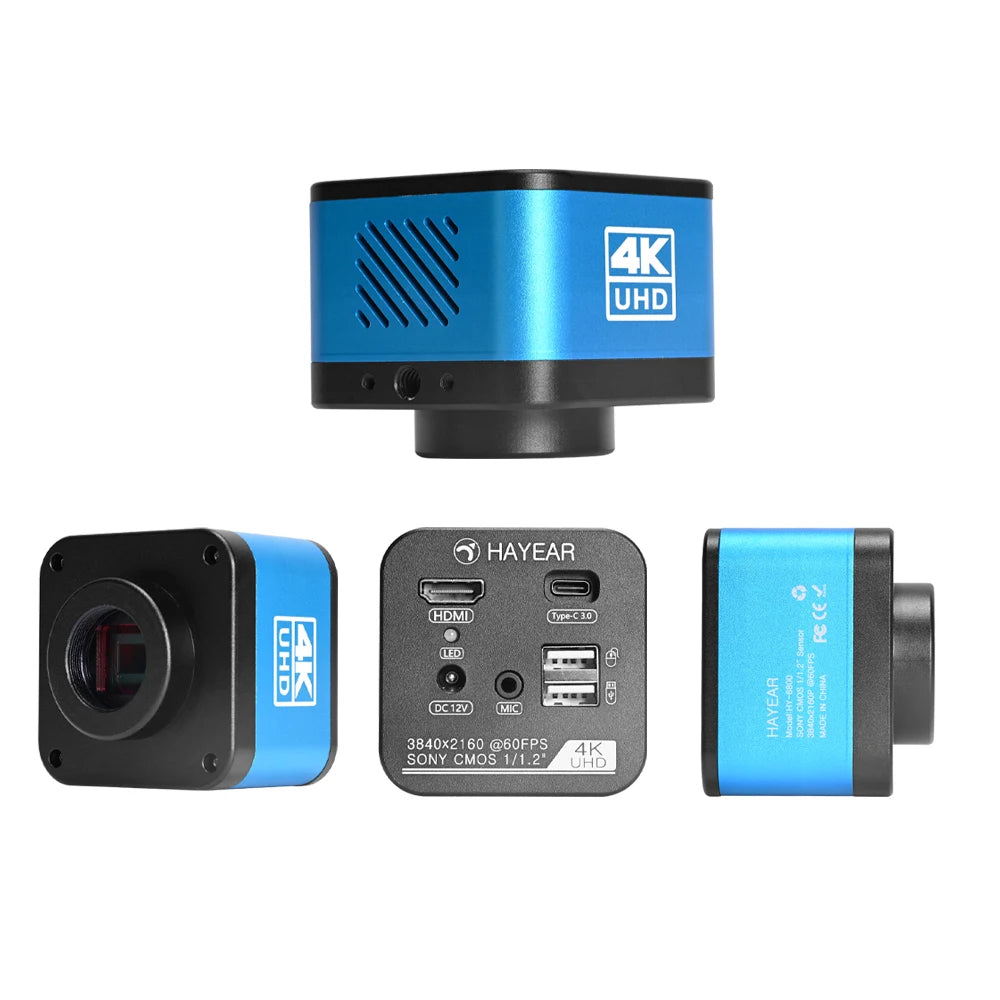

4K 60FPS SONY IMX585 Sensor UHD Measuring Digital Electronic Microscope Camera 8MP HDMI USB Type-C 3.0 for SMT Soldering Lab
Model name |
HY-6800 |
Sensor |
SONY CMOS 1/1.2" IMX585 4K sensor |

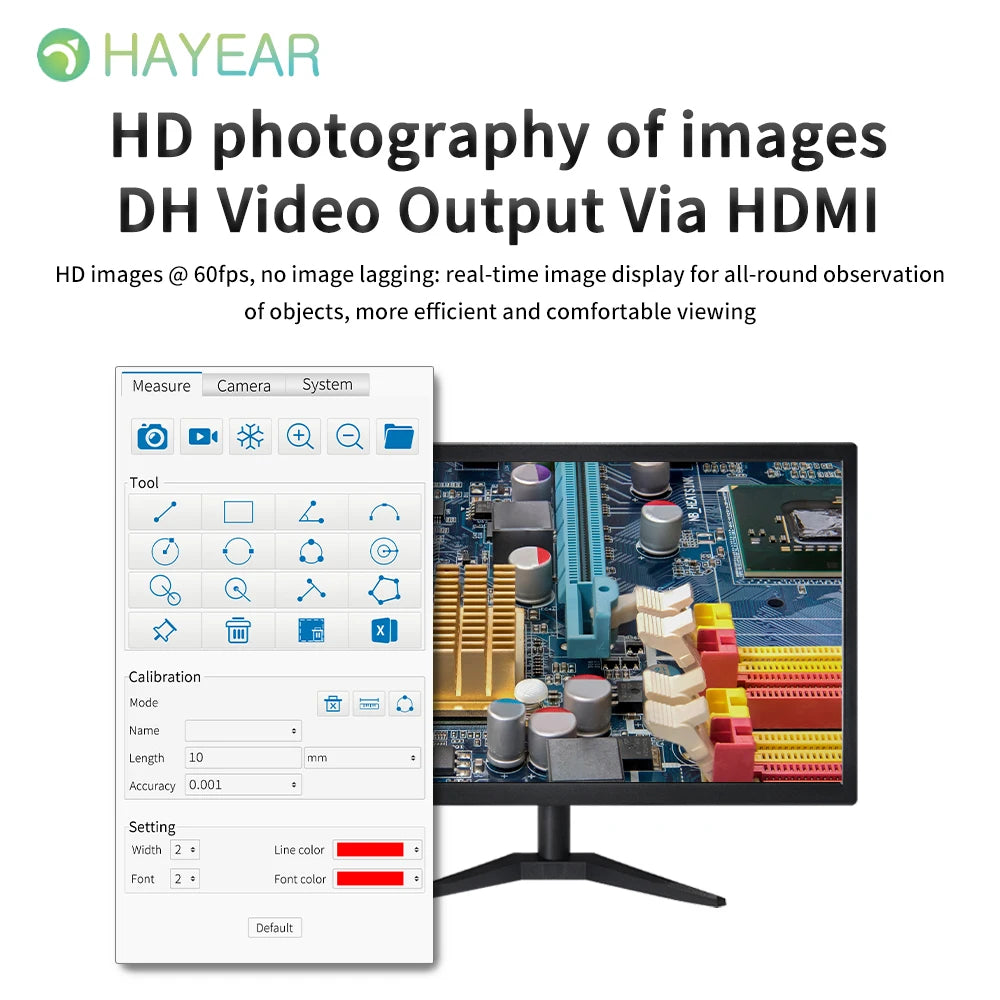

Video output |
4K/1080P (HDMI Output) |
Sensor size |
1/1.2 inch |
Pixel size |
2.9 x 2.9um |
HDMI Resolution |
3840 x 2160 @60FPS(4K), 1920 x 1080P @60FPS; |
Frame rate |
60FPS |
Picture resolution |
3840 x 2160 (8 Mega pixel) |
Video record |
Support 4K @60FPS Recording |
USB interface |
Type-C 3.0 (USB 3.0) |
USB Output resolution |
3840 x 2160 @30FPS; 1920x1080P @60FPS |
Spectral response (wavelength) |
400nm-1000nm |
Timed photo/video recording |
Support Timed photo/video recording |
Dual-output |
Supports simultaneous HDMI/USB output |
Comparison in one screen |
Support |
Digital Zoom |
15X |
White balance |
Support One-click/Auto/Manual White balance |
Snap |
Support 4K still picture |
Lens interface |
Standard C/CS interface |
Video output interface |
HDMI/USB Dual output interface |
Storage |
USB Flash Drive |
PC systems |
Support Windows/Mac/ Linux system, with Measurement software(Gift) |

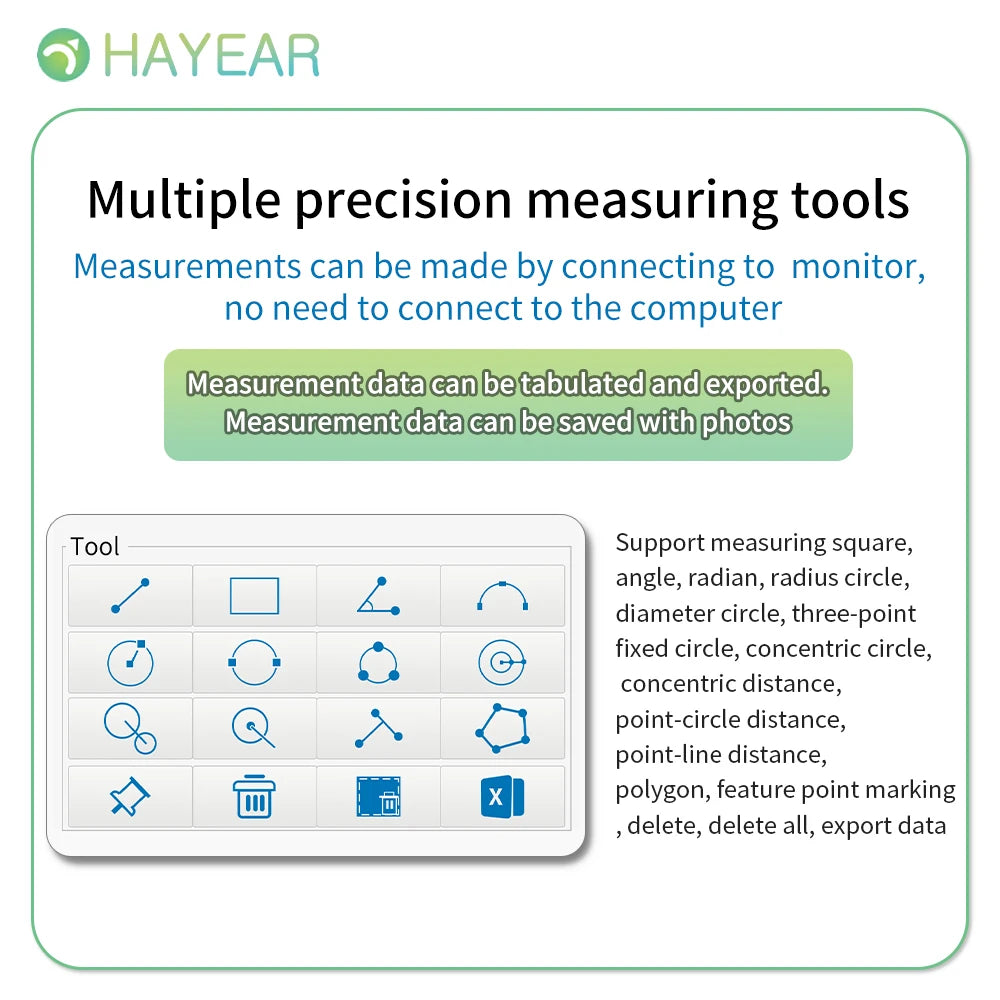

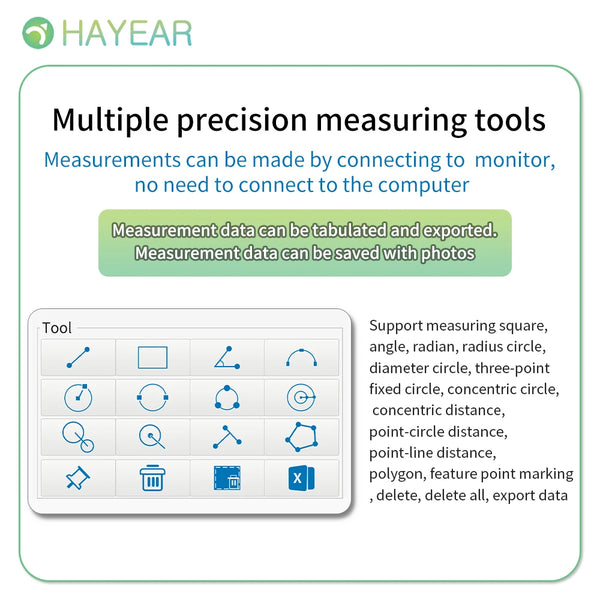

Image measurement |
Support HAYEAR measurement software |
Language |
Chinese, English |
Working voltage |
DC 12V/1A |

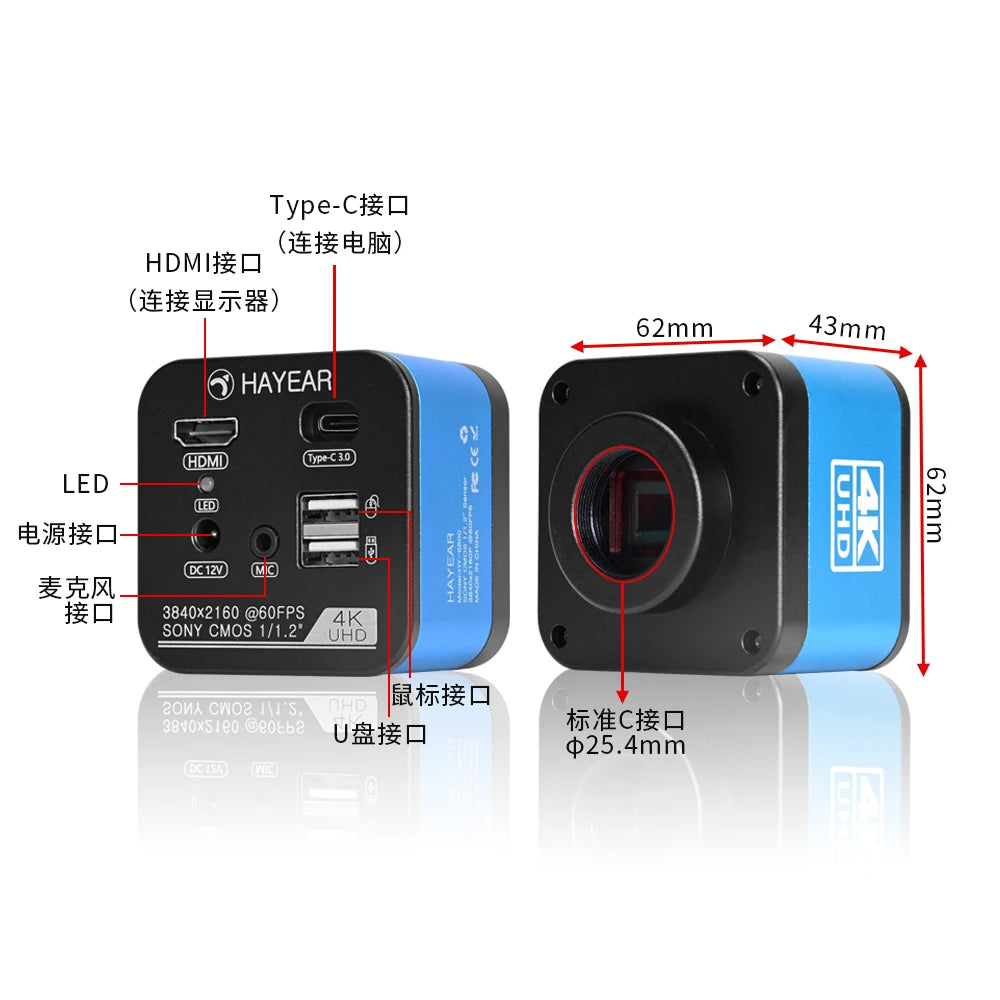

Size |
63x63x54(LxWxH)mm |
