433Mhz Wireless Remote Control EV1527 Learning Code Transmitter 2 bottons DC 12V 10A RF Relay Receiver

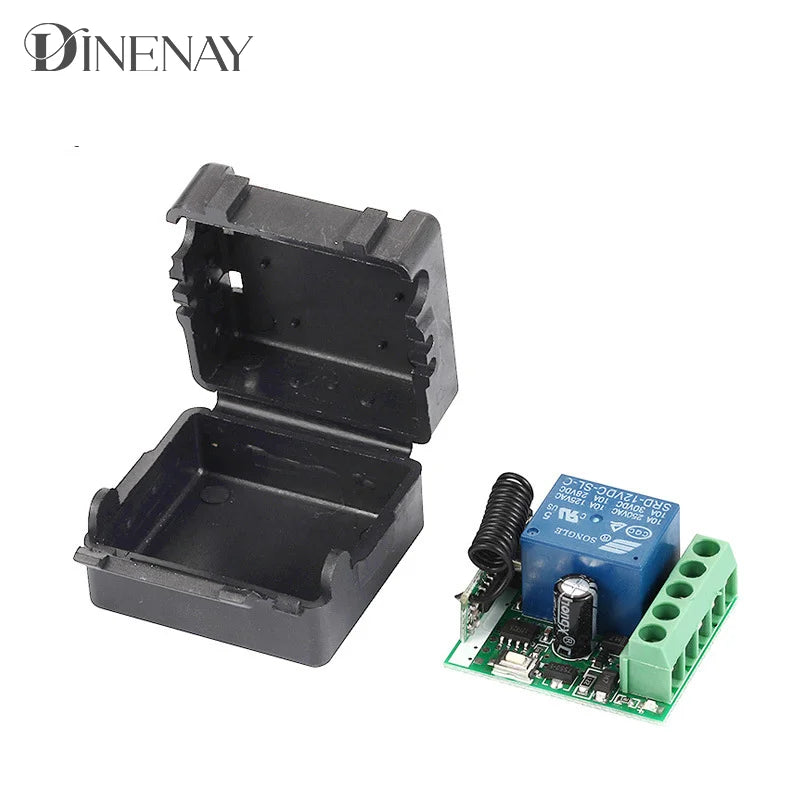

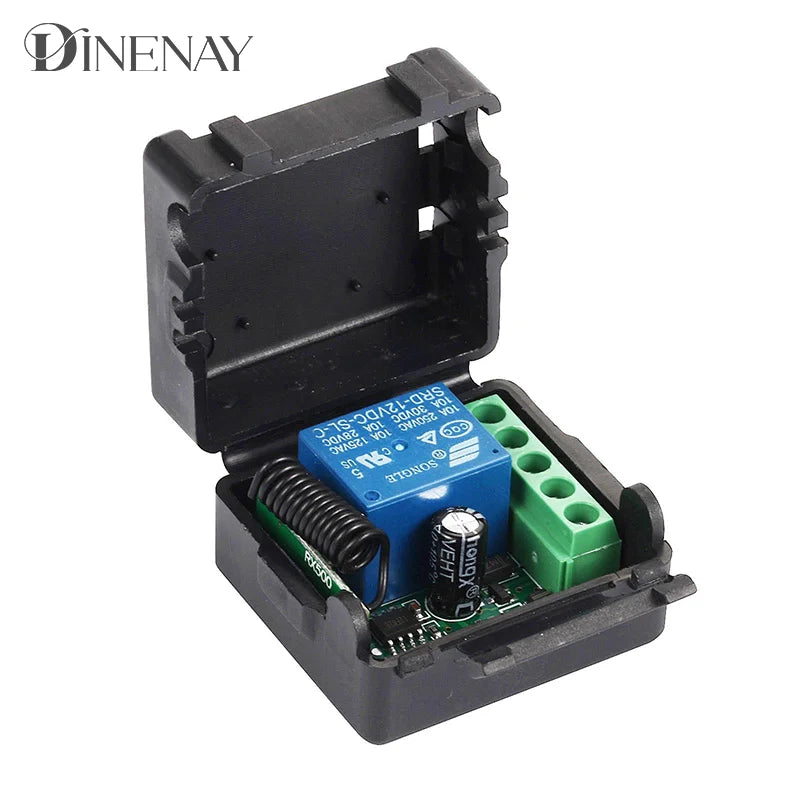

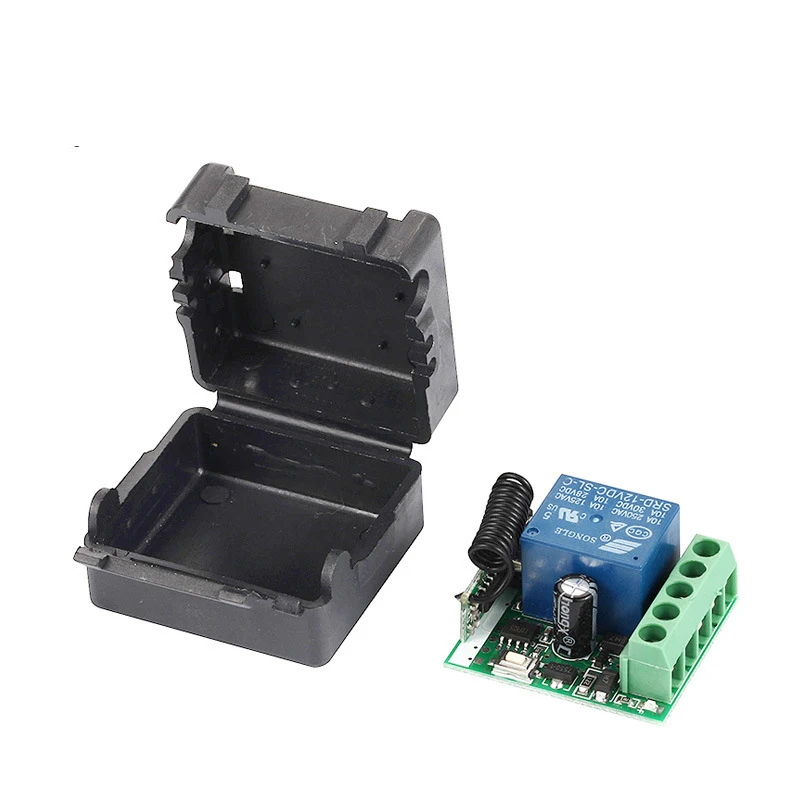

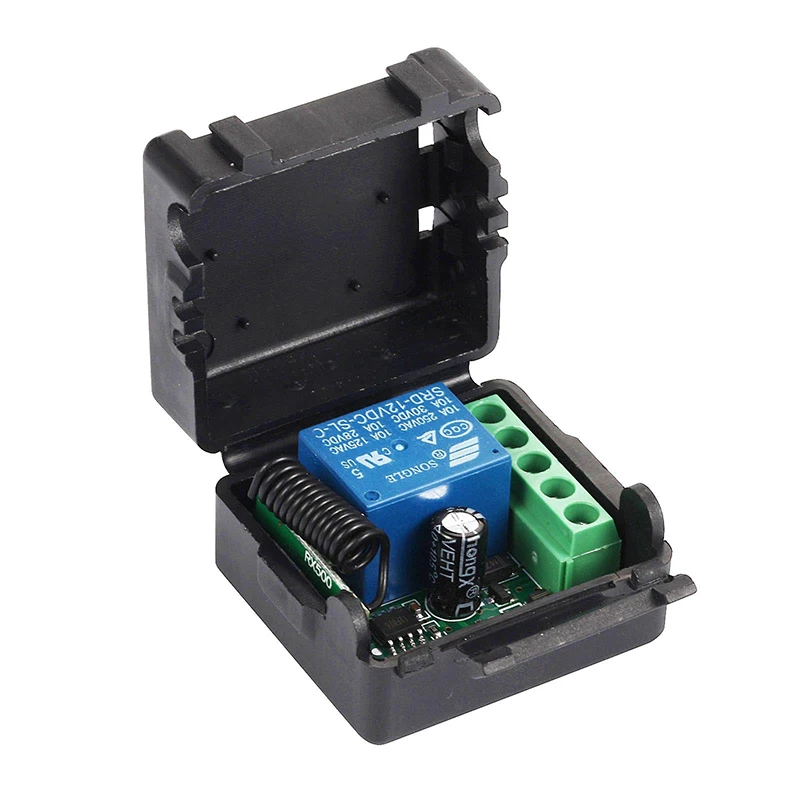

12V single channel receiving 433 frequency one [with shell]
Single-channel controller technical parameters:
1. Working voltage: 12V
2. Standby current: 8mA
3. Working frequency: 433Mhz
4. Coding type: fixed code, learning code
5. Receiving sensitivity -105dbm

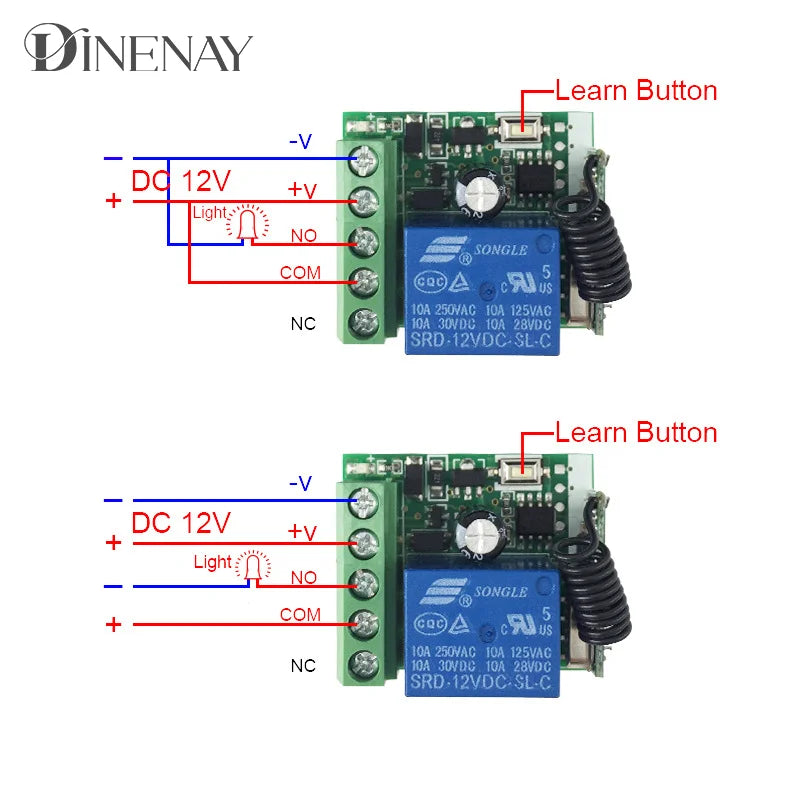

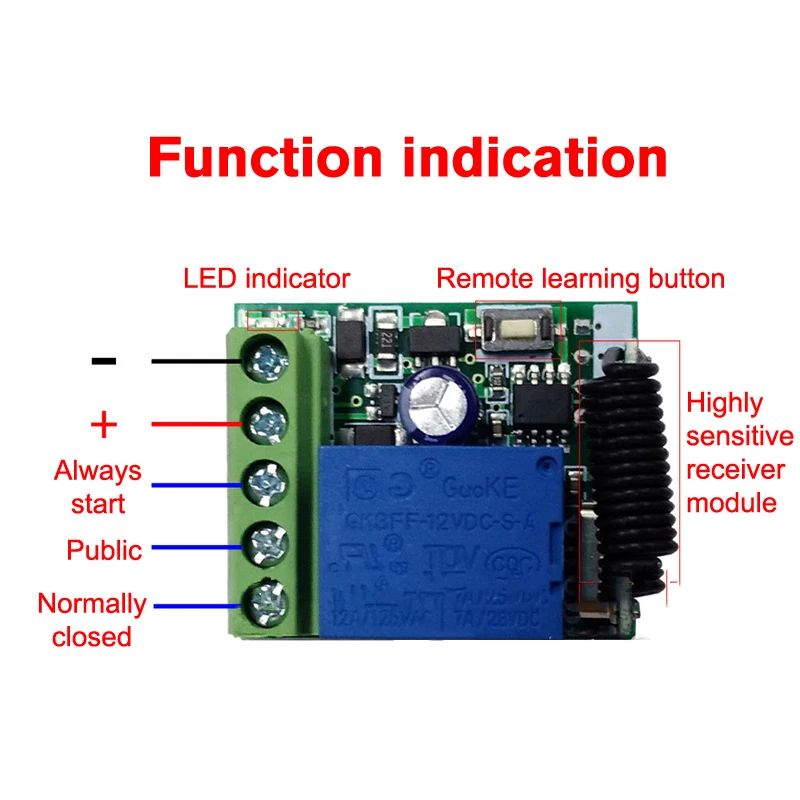

6. Output: 1-way unconnected switch (jog/self-lock/interlock can be set by yourself)
7. Load recommendation: 10A relay (reservation should be reserved in use) recommended load < 90w, inductive load < 50w and not suitable for frequent start and stop
8. Output mode: electric shock output (can control AC, DC)

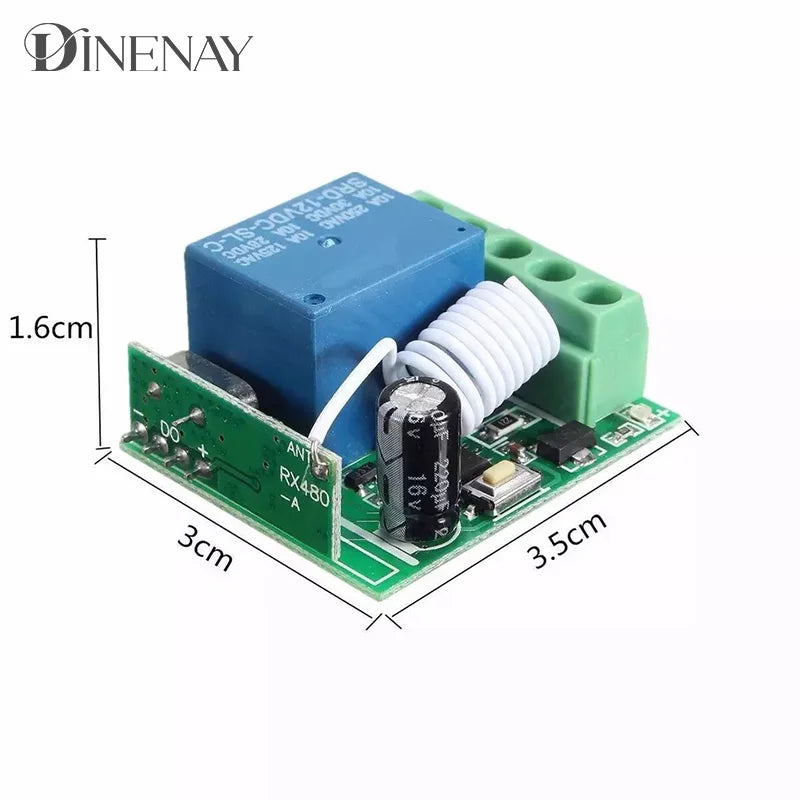

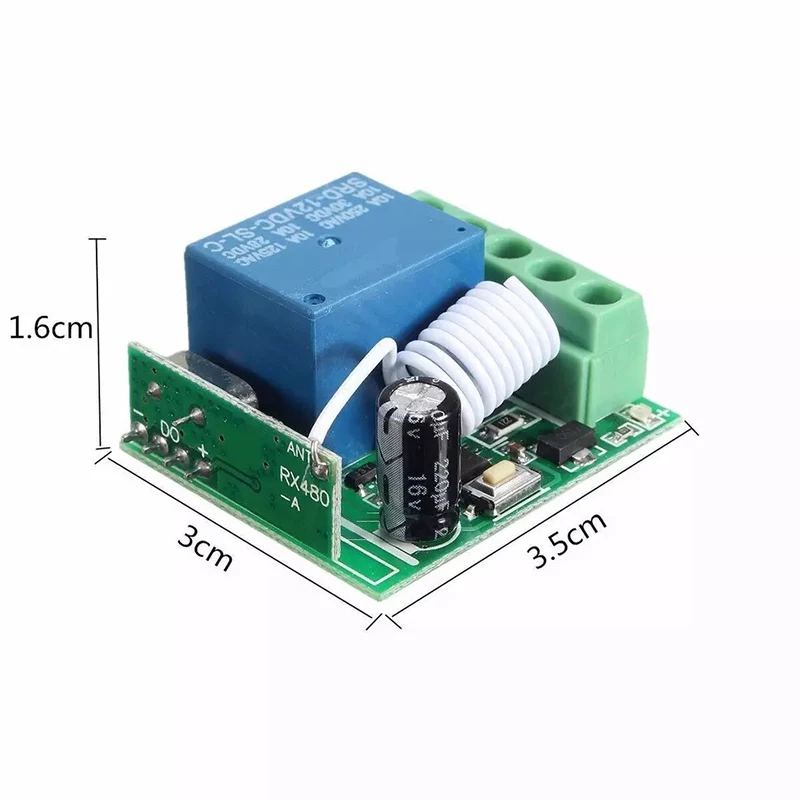

9. Circuit board size: 34*31*16MM

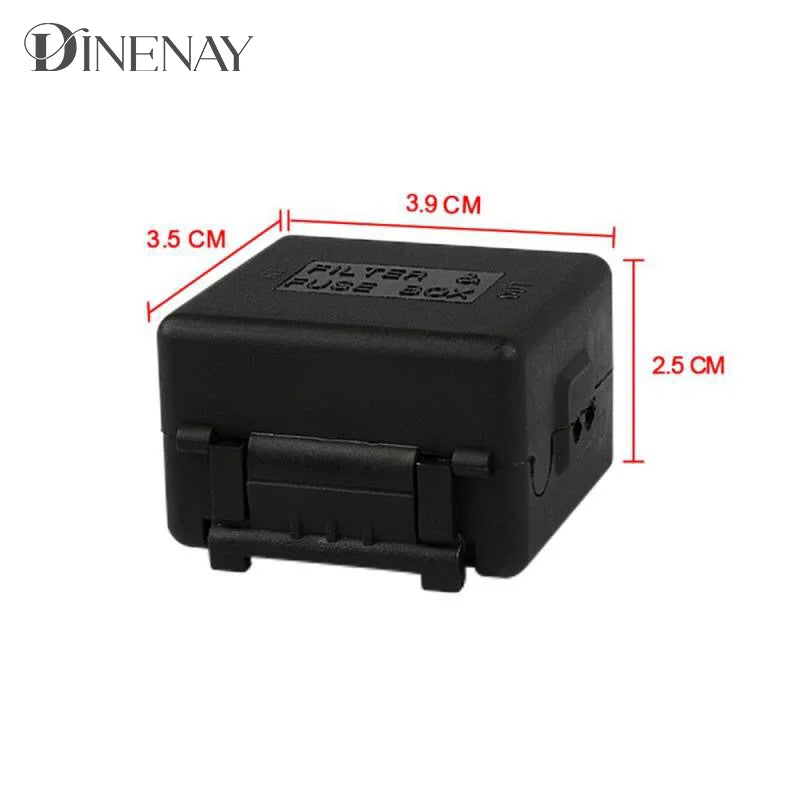

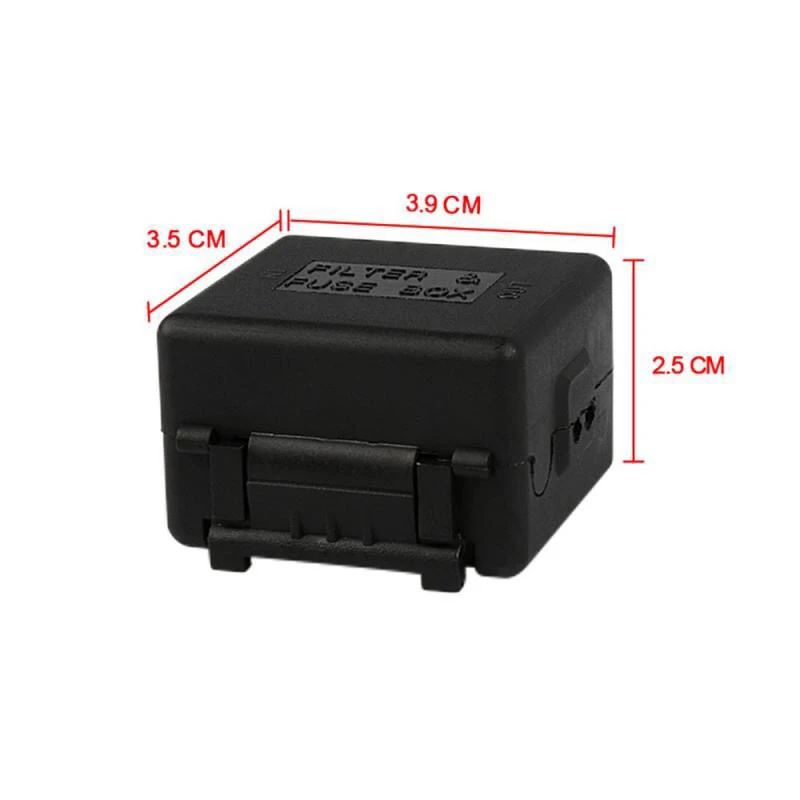

10. Shell size: 42*39*26MM
