Product Summary

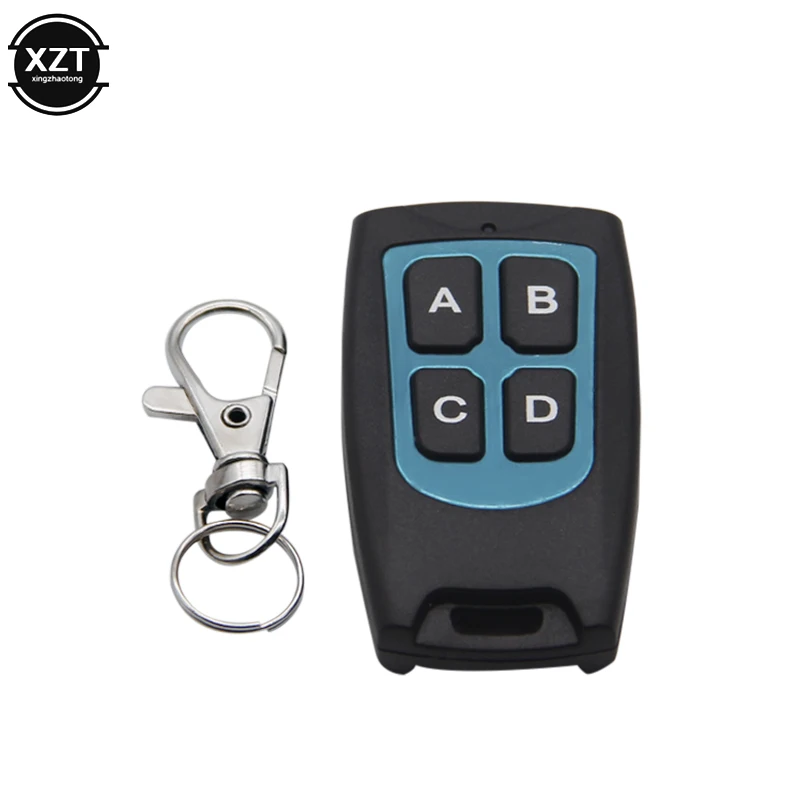

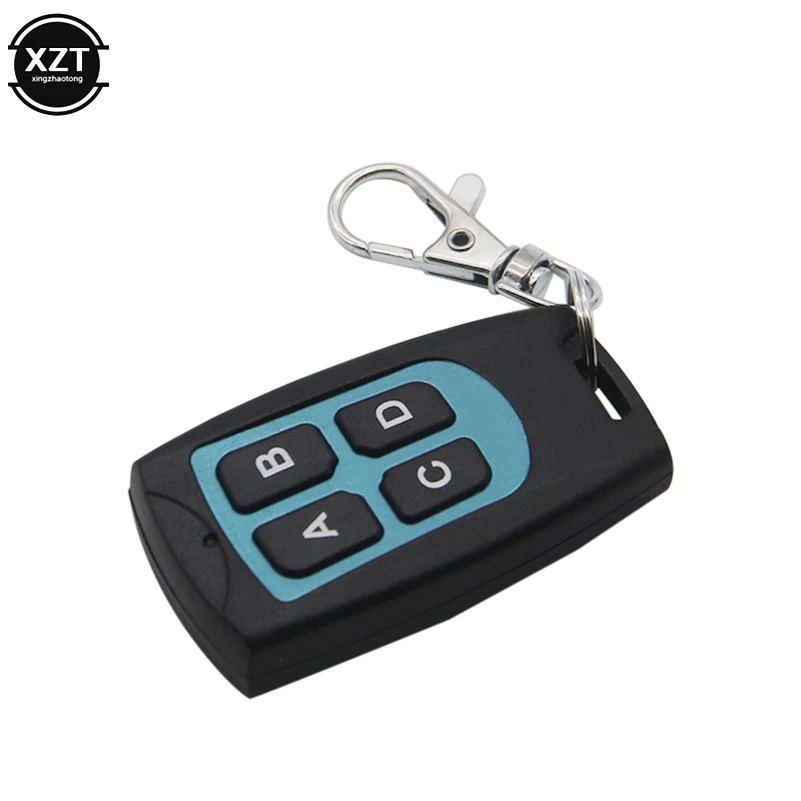

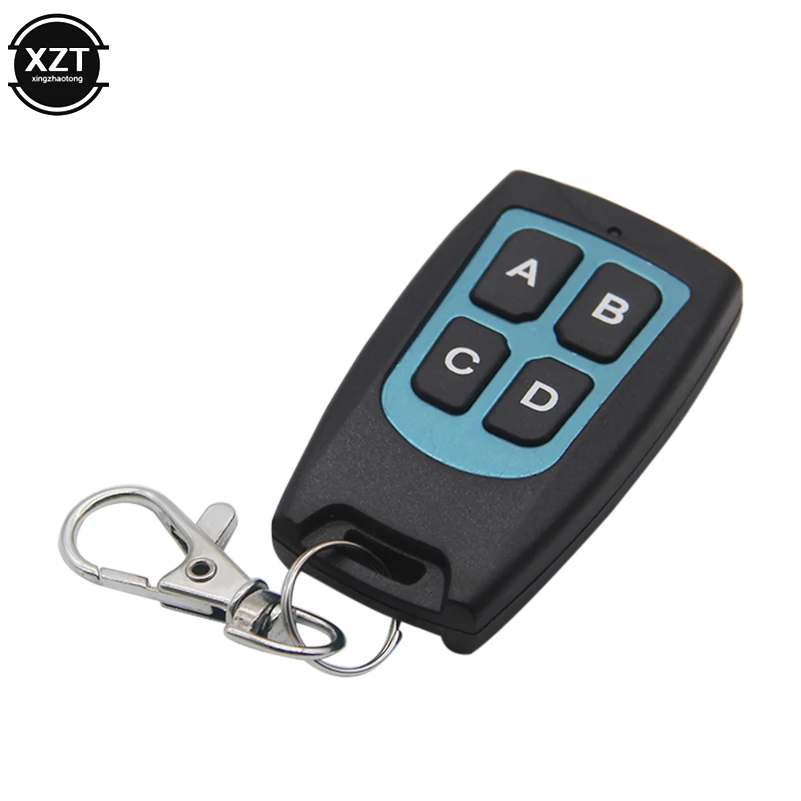

433.92 Mhz Duplicator Copy Remote Control For TOP 432EV TOP-432NA TOP432NA For Universal is a RF wireless product selected for wireless communication, antenna experiments and radio signal workflows. It is suitable for radio users, SDR experimenters and wireless project builders who need practical electronics hardware for reliable project work.
Best For
- wireless communication, antenna experiments and radio signal workflows
- SDR receivers, LoRa modules, antennas and RF test setups
- Electronics testing, repair, prototyping and maker workflows
FAQ
Who is this product for? It is intended for radio users, SDR experimenters and wireless project builders.
What should I check before buying? Review the product options, specifications, included accessories and compatibility details on this page.
Features:
1.Privacy is strong
2.One to one key copy
3.Each key password alone save
4.Can continuous repetitive copy use one million times
Specifications:
Working voltage: DC12V (27A battery a including)
Operating Current: ≤ 8mA
Working frequency: 433.92MHz
Modulation Mode: ASK (AM)
The transmission power: ≤ 100mW
Emission Distance: 50 to 100 m (proof)
The encoding type: self Copy
The working temperature: -10 deg C to +50 deg C
Works with the following remote control IC modules (please check your remote control before ordering),and your remotes also should be Fixed code or Learning code. AX5326-3.PT2262.PT2260.EV1527.FP527.PT2242.HT600.HT680.HT6207.HT6010.HT6012.HT6014.AX5326-4.SMC918.PT2240.HT6013.HT6013.HT12D,etc
Uses: garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products
How to Program (it's easy!):
Step 1 -delete the existing code of our remote duplicator
1)Click and Hold A and B buttons together - Led will flash 3 times
2)Keep holding A button and release B button
3)Keep holding A button and push B button 3 times, Led will start flashing Non-stop
Now press any key on the remote control, LED lights are not bright, so delete code success; if you press the button LED lamp is lit, indicating that the code is not deleted !
Step 2 - clone your remote
1)Put both remotes Into back to Back position. Make sure they have direct contact
2)Click and hold 1 button on your remote and 1 button on your clone remote. Keep holding until led will make 2 blinks then 3 blinks then goes into Steady and you have successfully cloned. ( the left keys follow the same above operation)
If for some reason the clone does not go further then 2 blinks , it means the signal does not go through, please shift the remote slowly up and down until you get the point where it will go through.
Notice:
The essential condition for the selection of the remote control;the copyed remote control operates normal,chip is compatible and frequency is correct.
Before buying,please make sure the copyed remote control operating frequency or choose & buy the frequency adjustable type remote control.
Before buying,please confirm whether your remote control can be copyed or not.
Our remote control can copy the fixed codes and learning codes
rather than stealth codes.It can't copy car remote control, two-way remote control and rolling code remote control (Rolling code chips start with HCS commonly,such as HCS200,HCS201,HCS300,HCS301,etc)
kit:
1 x User Manual
1 x Remote Control
Note:If u press the B button,it maybe will not work,Please long press the B button to wake up the B button
