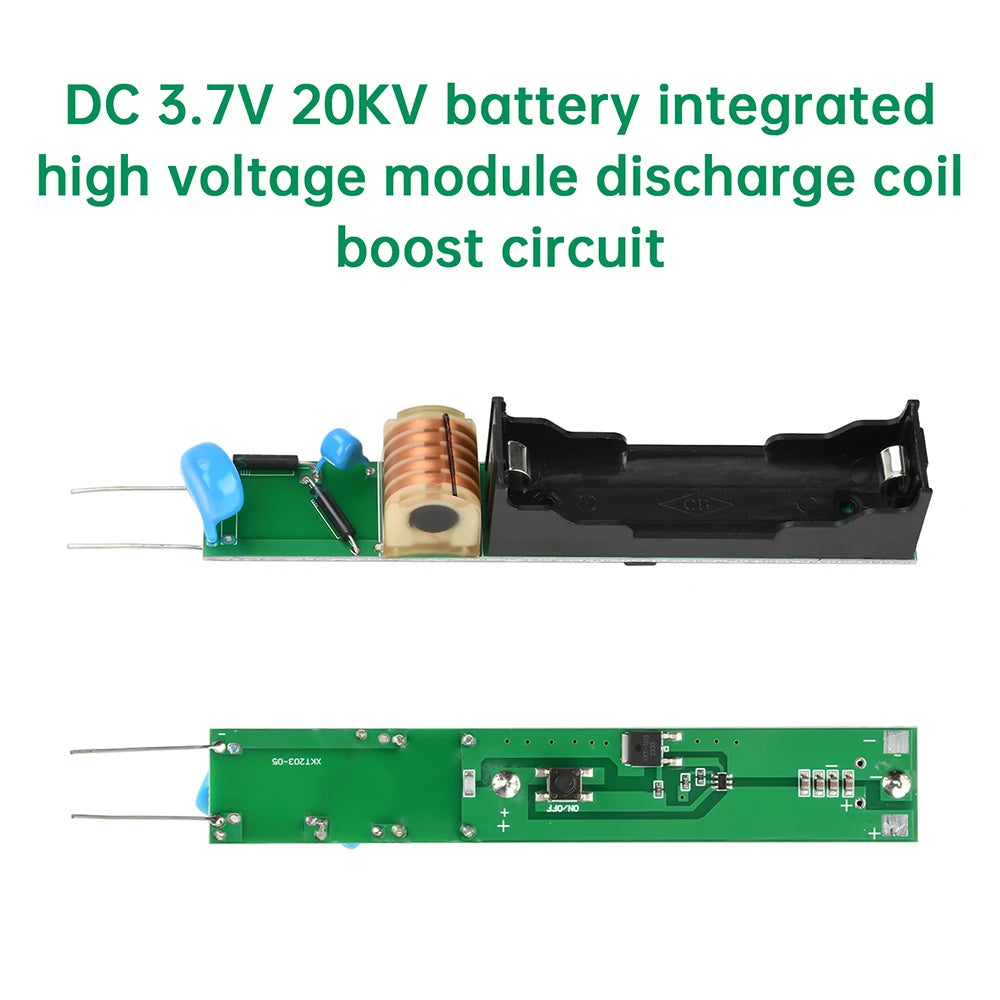

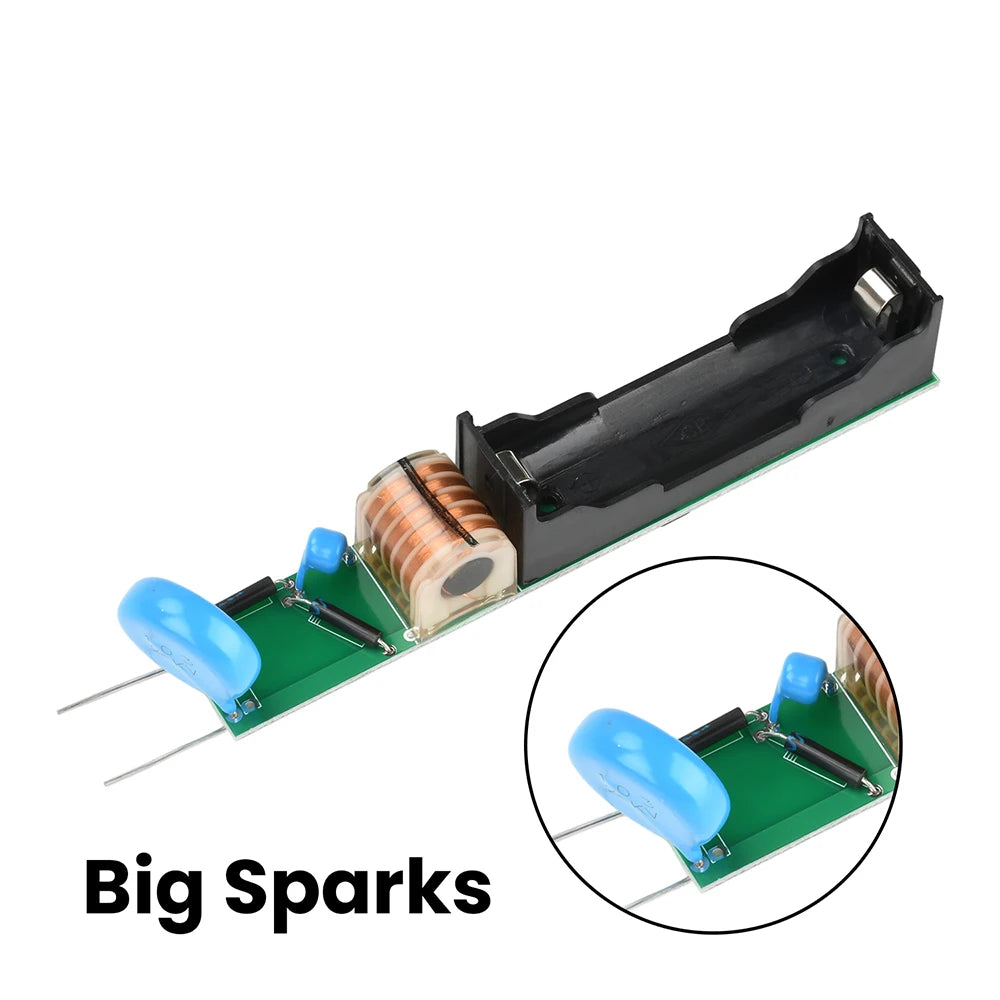

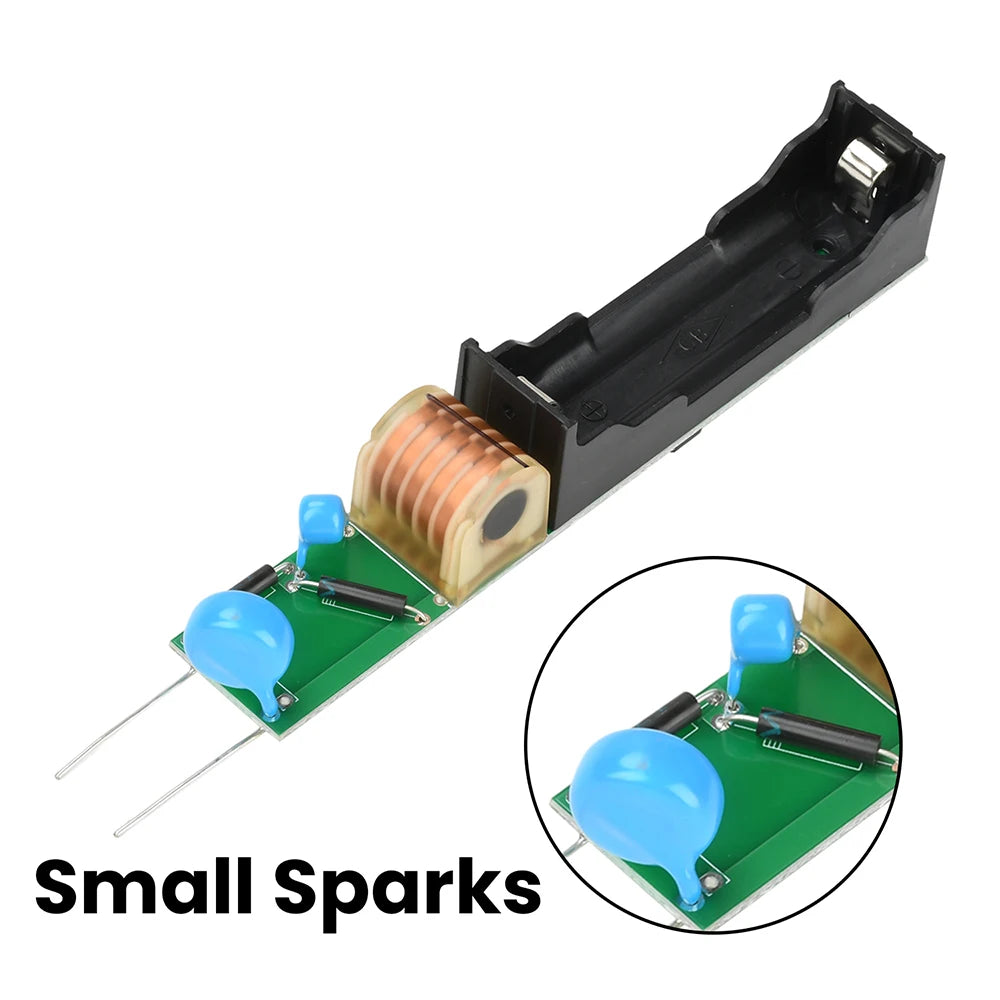

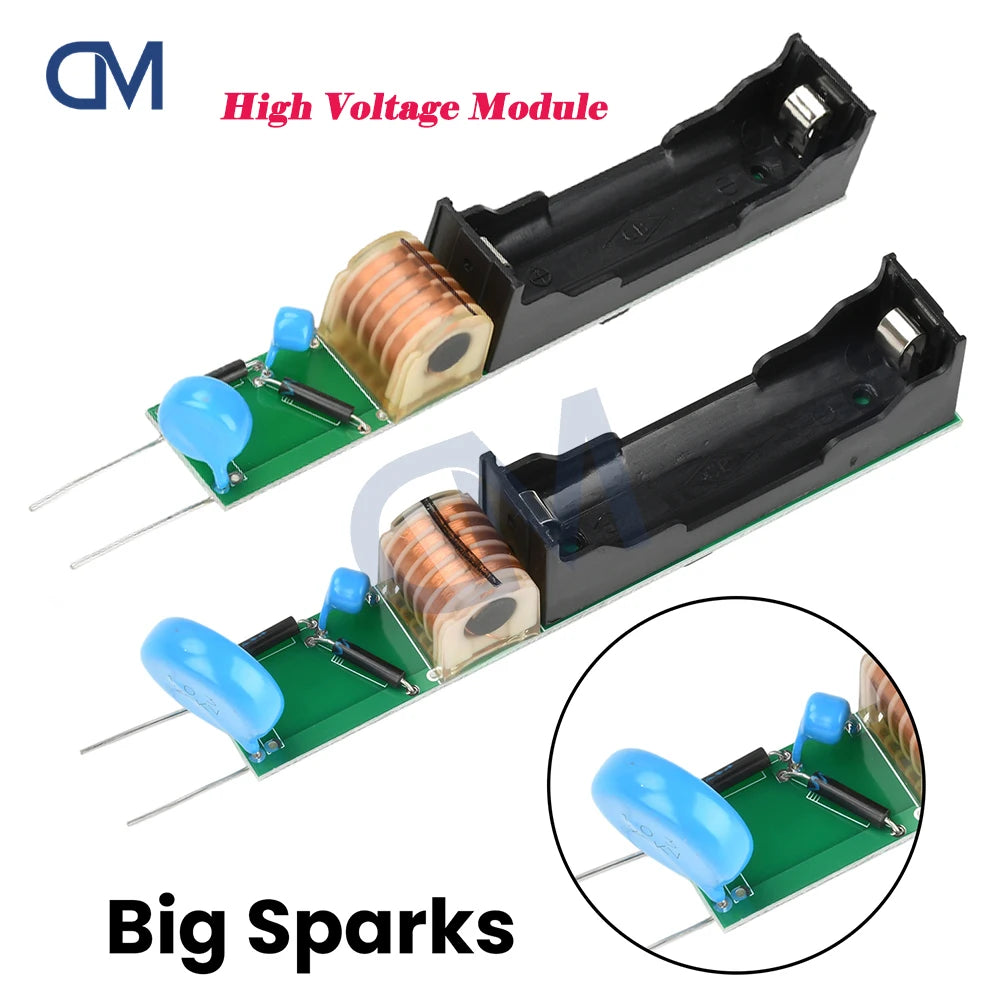

3.7V Ignition Coil Booster 20KV High Voltage Step Up Transformer arc waveform Hipot Generator Inverter Power Supply

3.7V Ignition Coil Booster 20KV High Voltage Step Up Transformer arc waveform Hipot Generator Inverter Power Supply

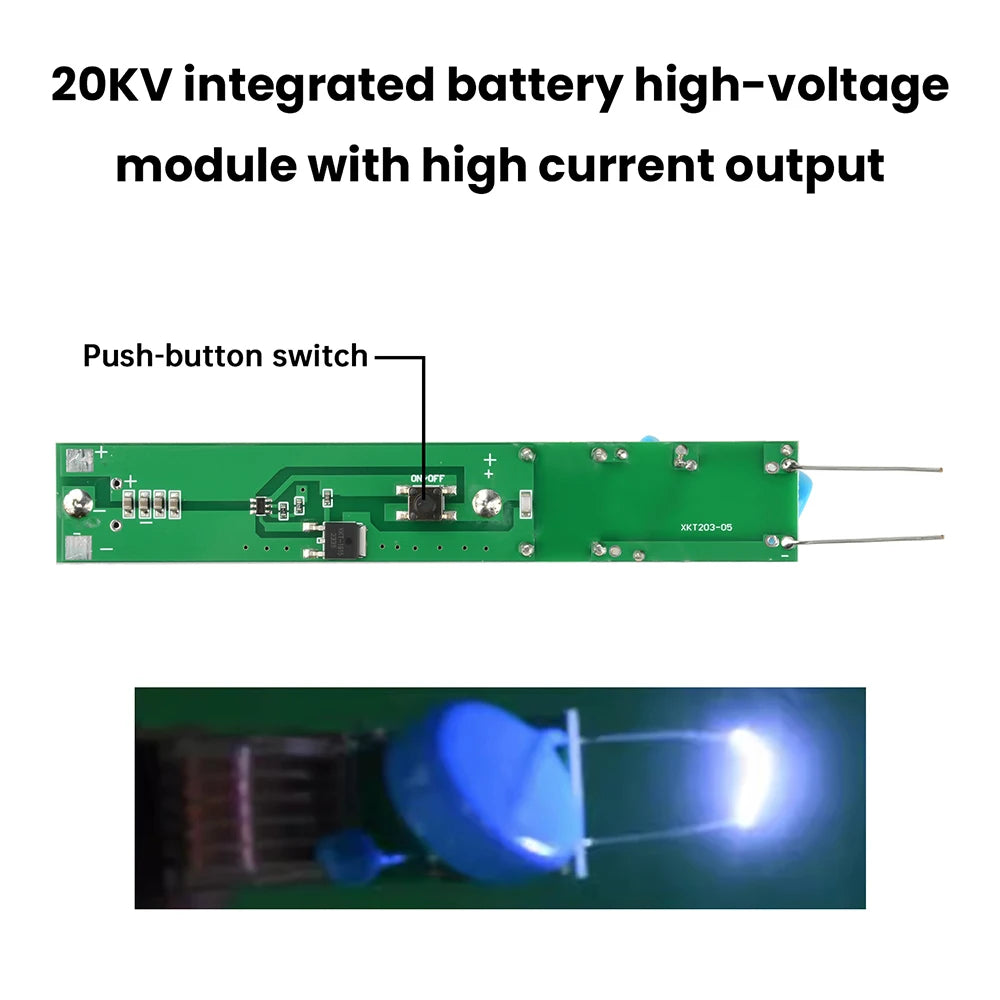

High voltage output, up to 20KV, with a long discharge distance.

Supports lithium battery power supply, stable performance, and easy to use.

Supports no-load operation, and the output voltage can be increased or decreased arbitrarily.

Features and Specifications

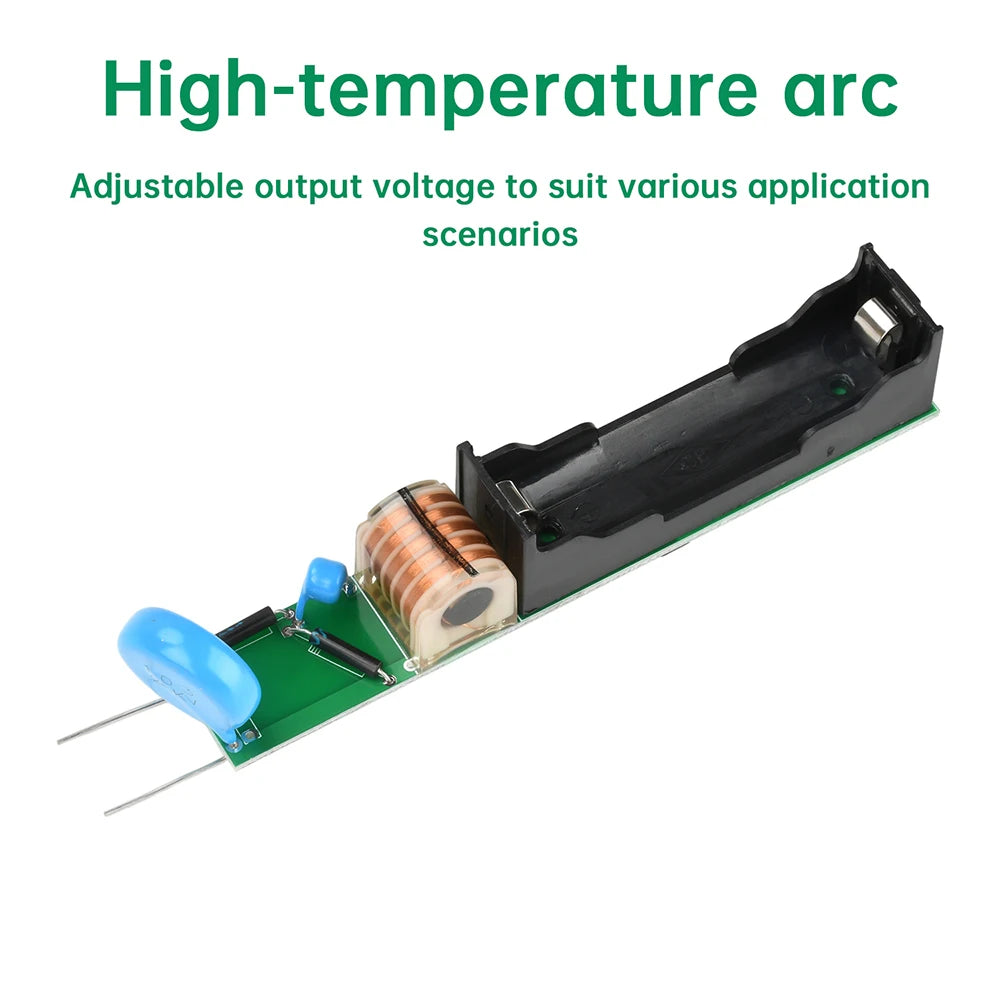

• The output voltage can be adjusted to adapt to various application scenarios.
• The structure is sturdy, durable, and suitable for no-load operation.
• Product Introduction
• Module parameters:
• Power supply voltage: standard 3.7V single 18650 lithium battery power supply
• Working current during discharge: about 2A
• Power supply battery capacity: It is better to have a capacity greater than 2200mAH, as small capacity batteries with high internal resistance will result in much lower output voltage
• Discharge distance: about 13-18mm

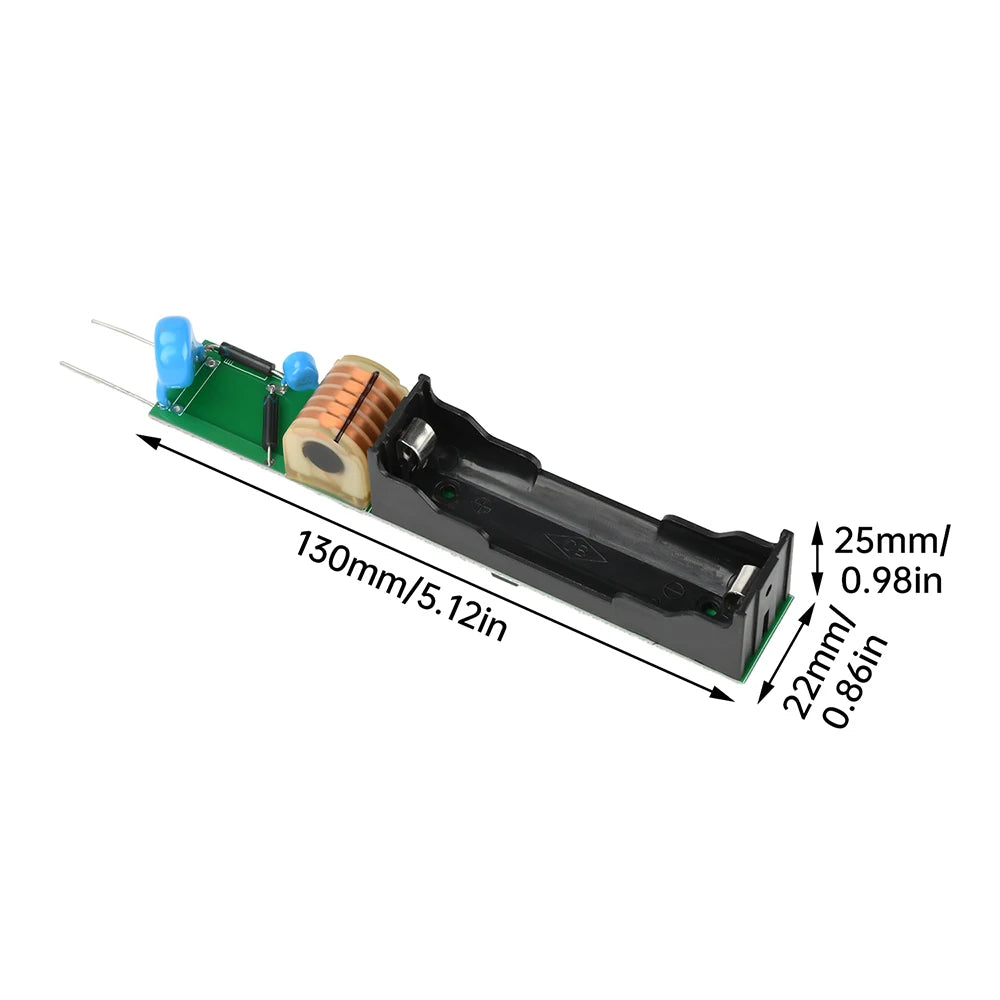

• Module size: Length 130mm, Width 22mm, Height 25mm
• The standby current of this module chip is about 0.3mA. When not in use for a long time, the battery needs to be removed and placed separately.
• 1X module
