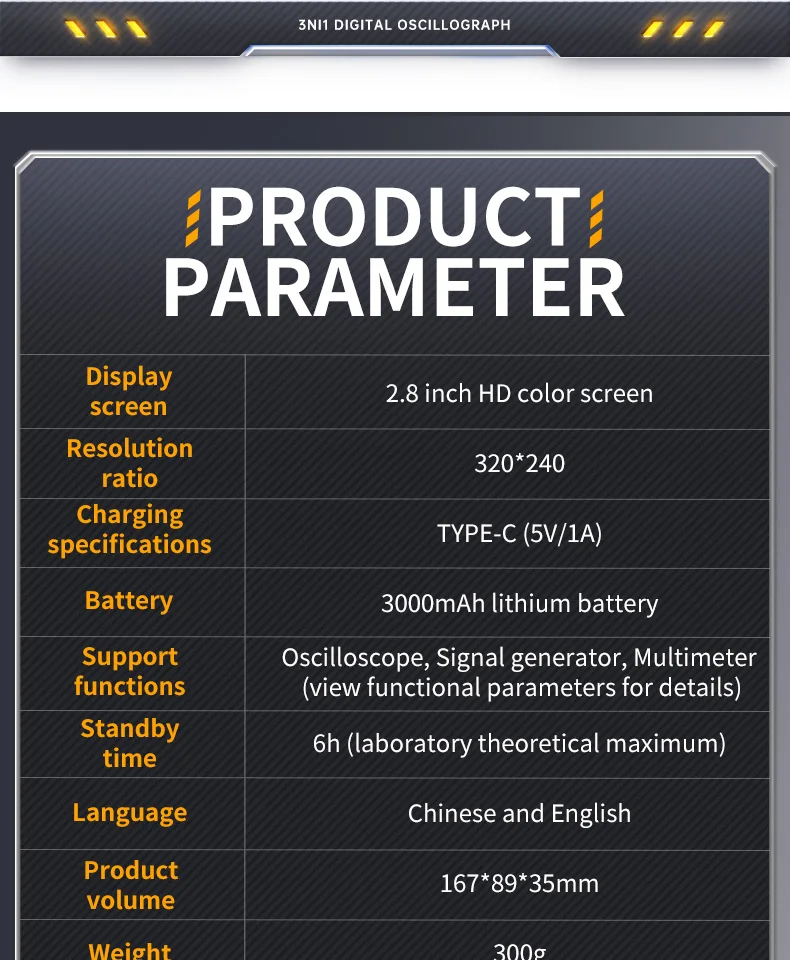

Basic Parameter
Product Model：2C53T

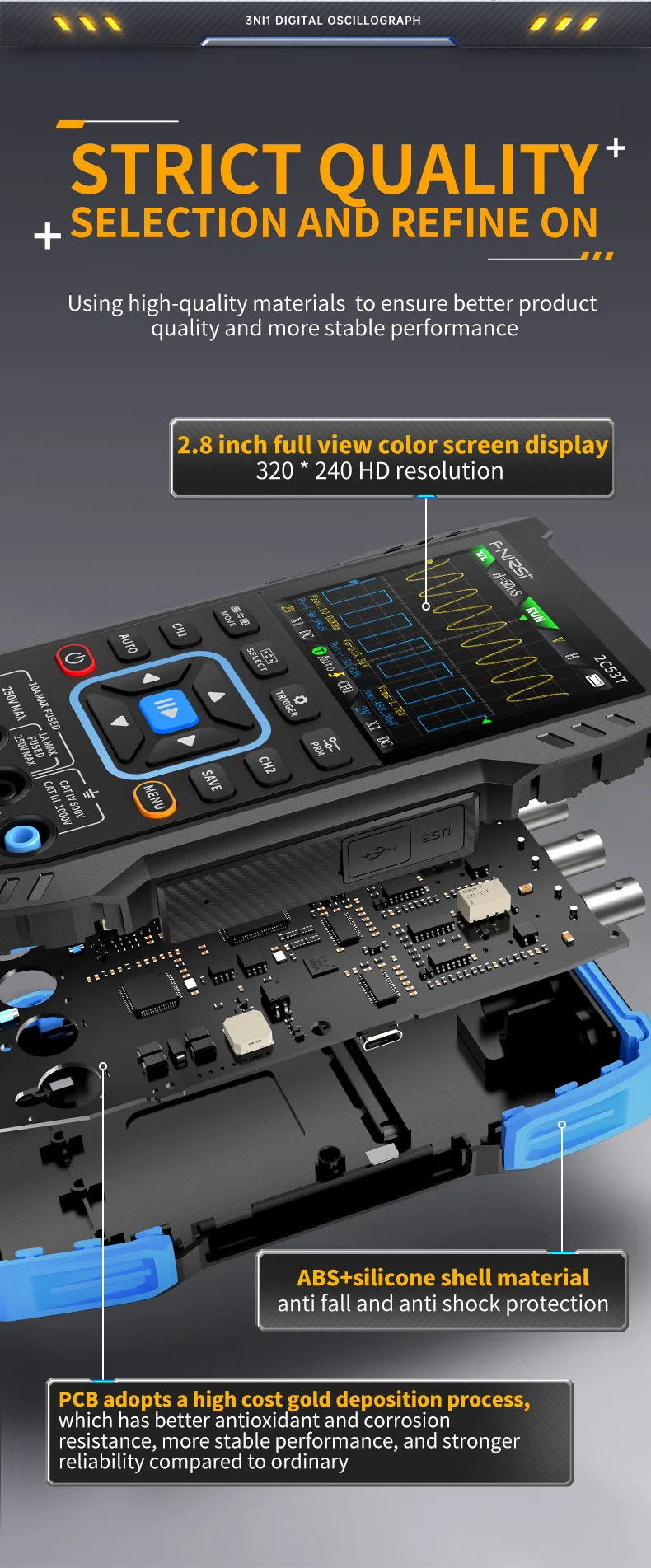

Display：2.8 inch HD color screen
Charging specifications: TYPE-C (5V/1A)

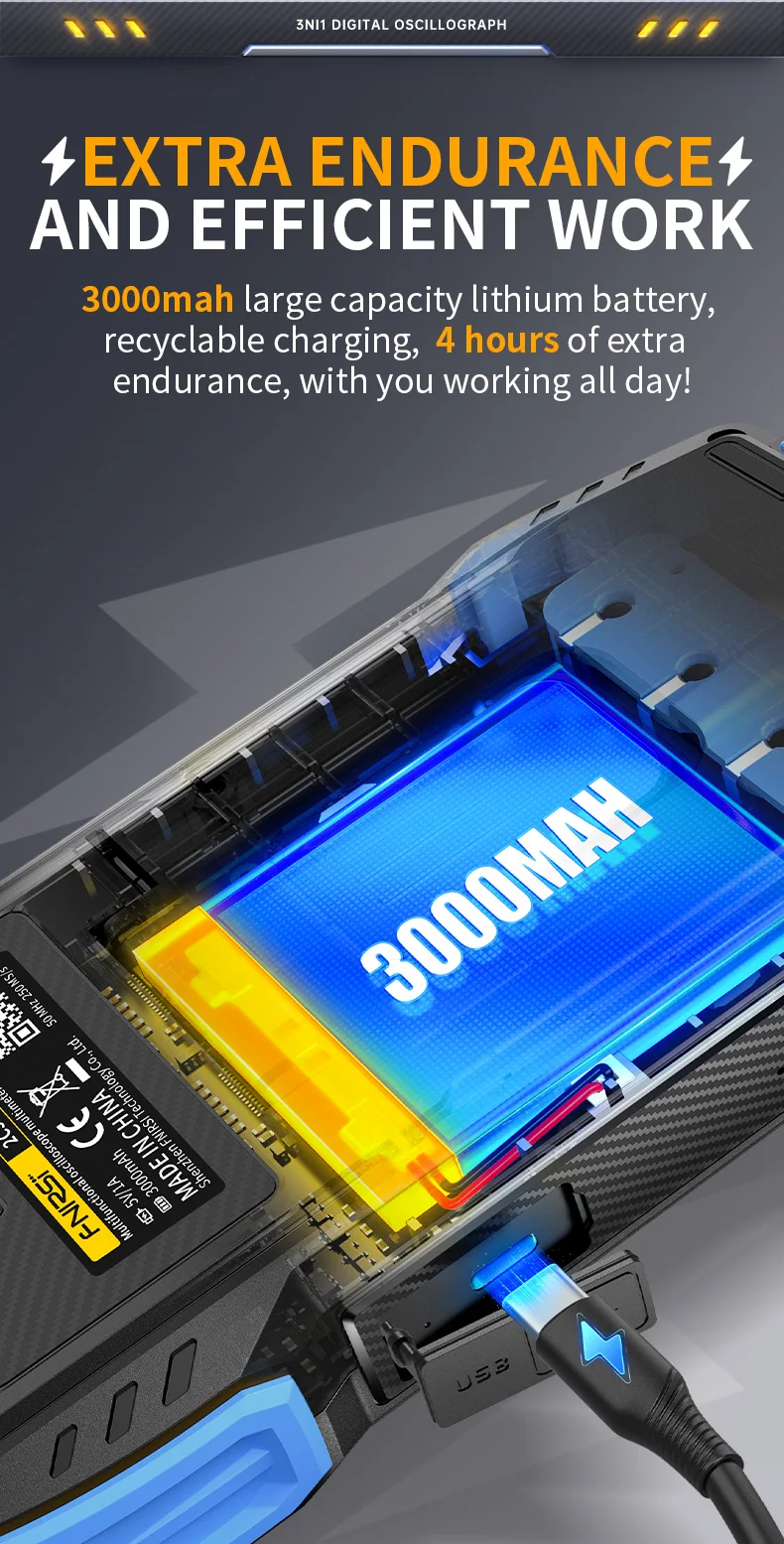

Battery: 3000mAh lithium battery
Display：2.8 inch HD color screen
Charging specifications: TYPE-C (5V/1A)
Battery: 3000mAh lithium battery

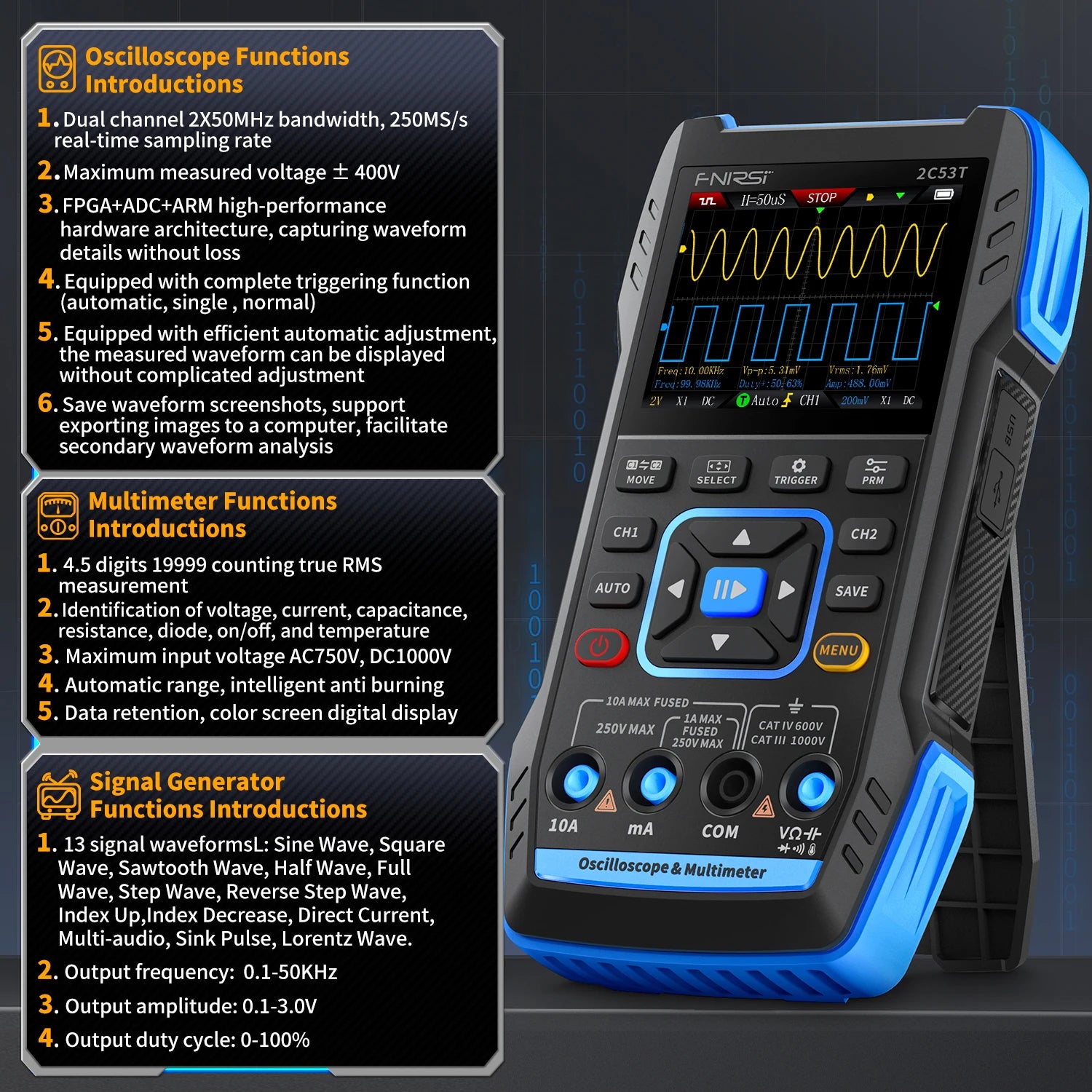

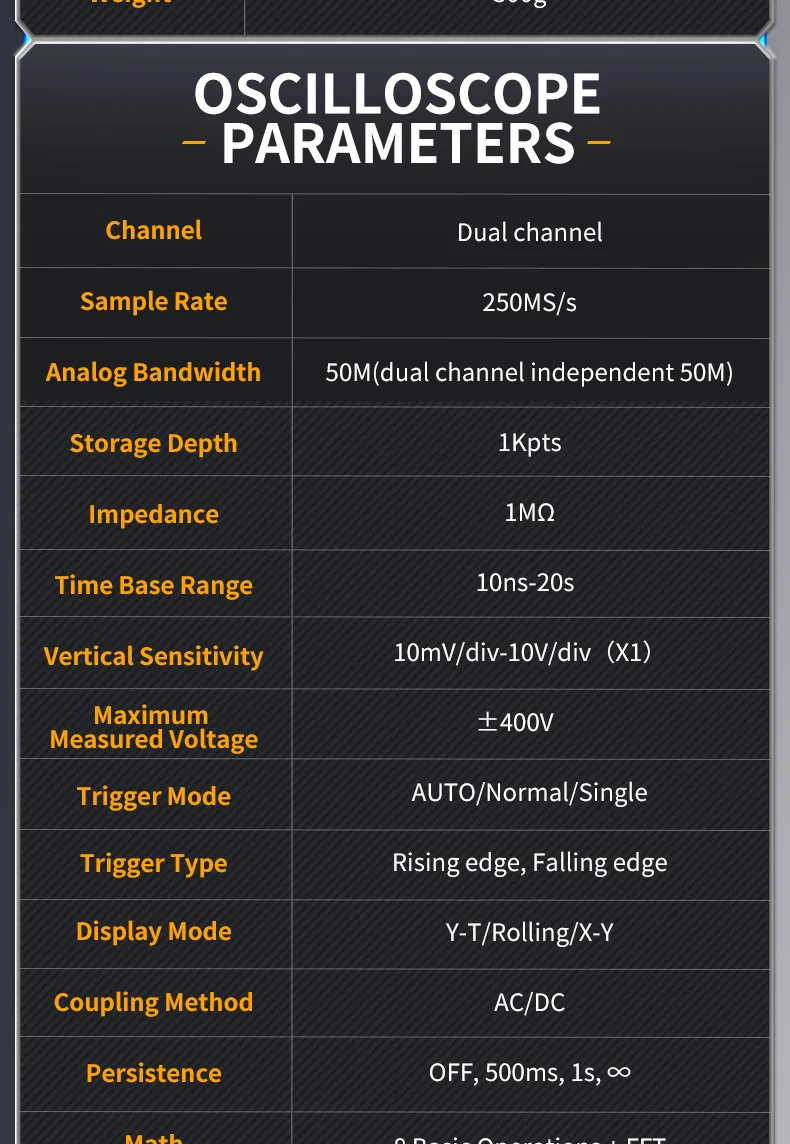

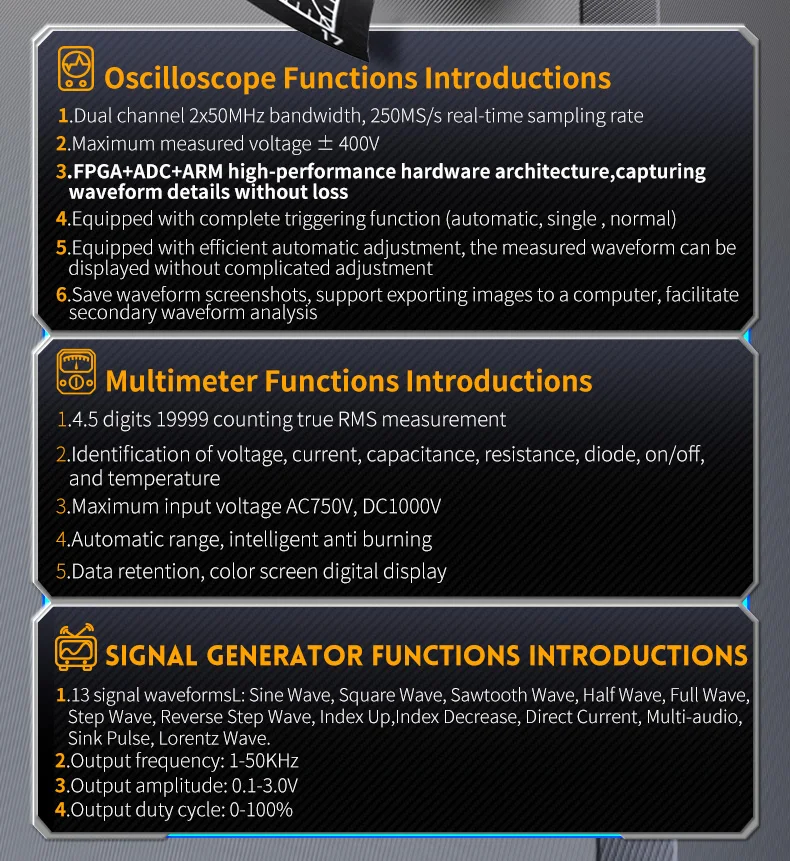

Parameter

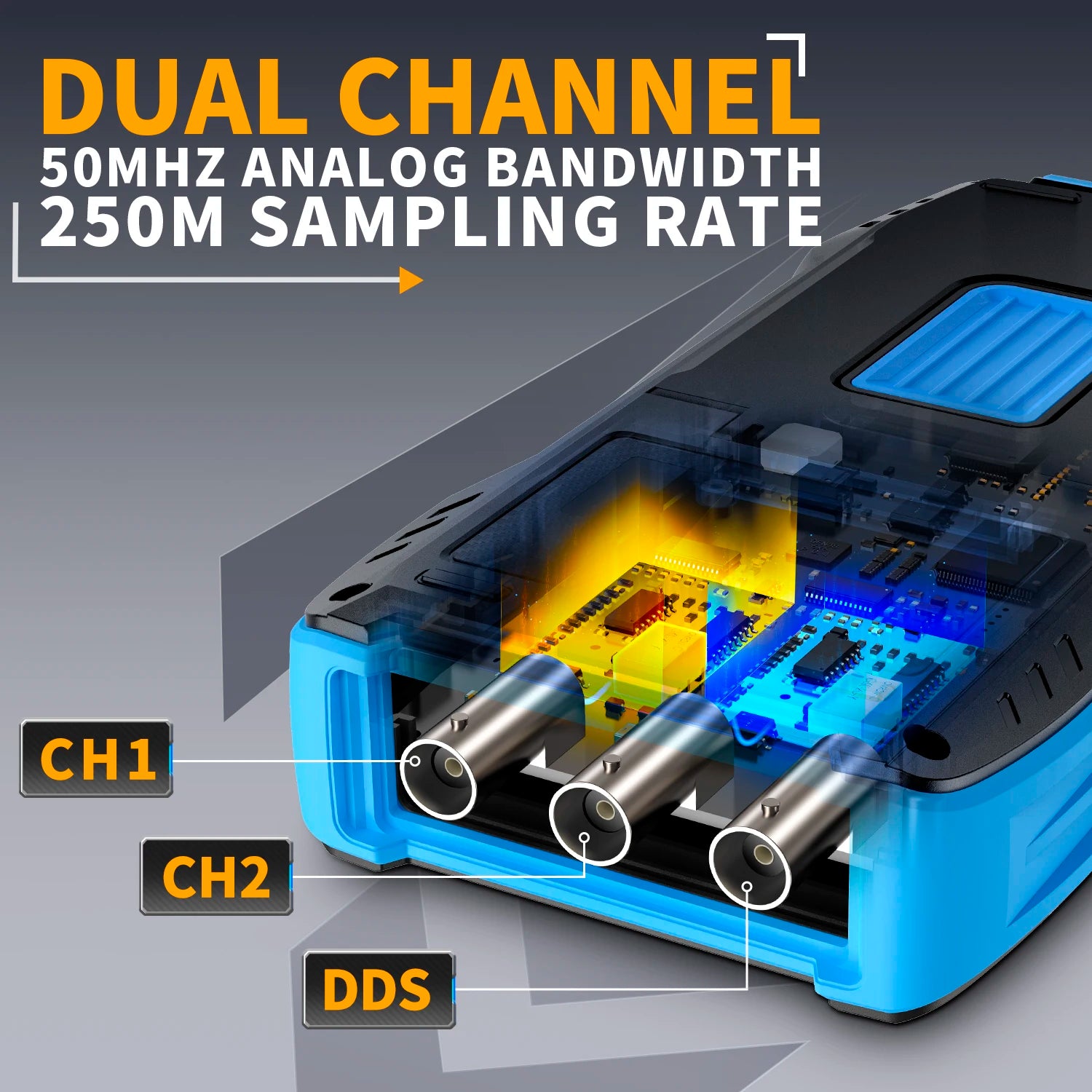

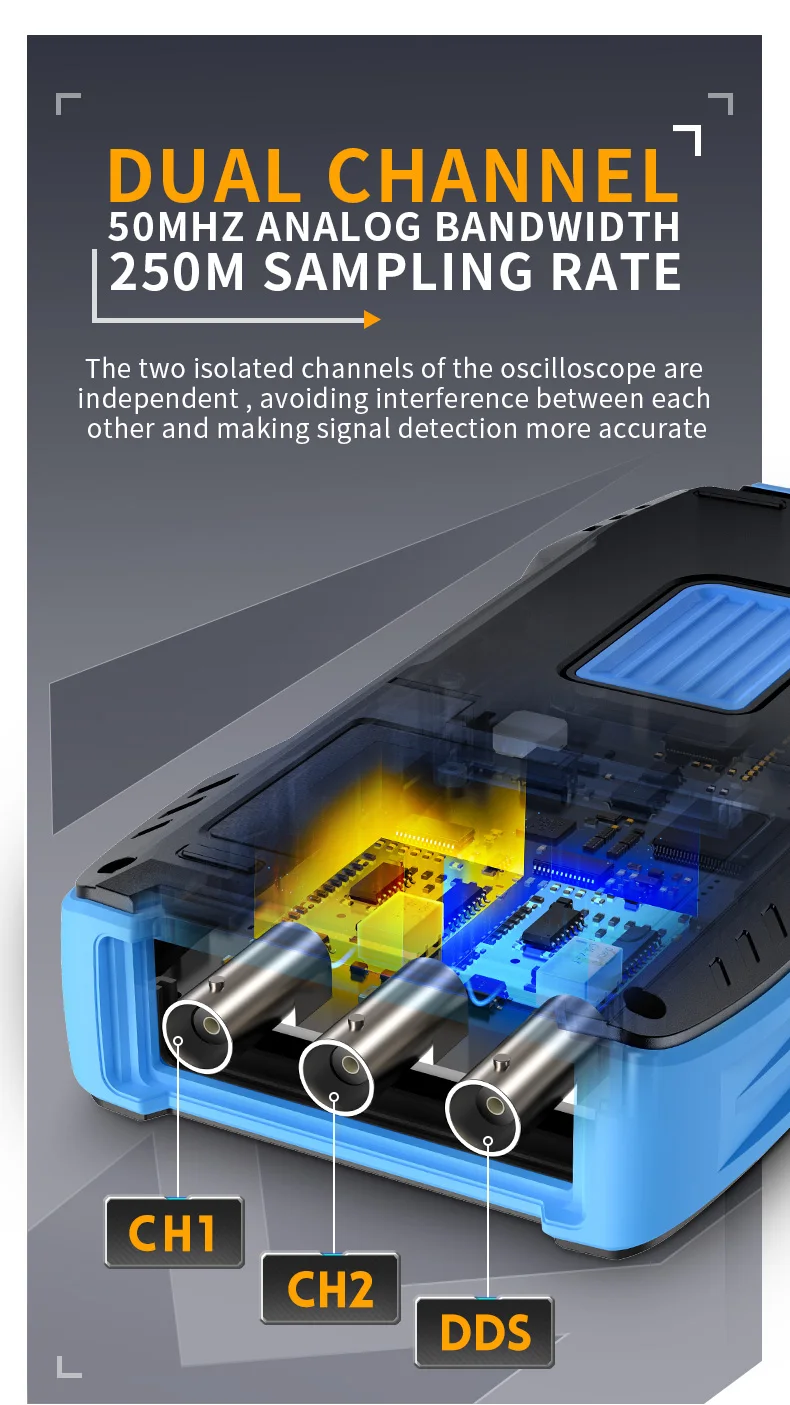

Channel: Dual channel
Sample Rate: 250MS/s
Analog Bandwidth: 50M(dual channel independent 50M)
Storage Depth: 1Kpts
Impedance：1MΩ
Time Base Range：10ns-20s
Vertical Sensitivity：10mV/div-10V/div（X1）
Maximum Measured Voltage：±400V

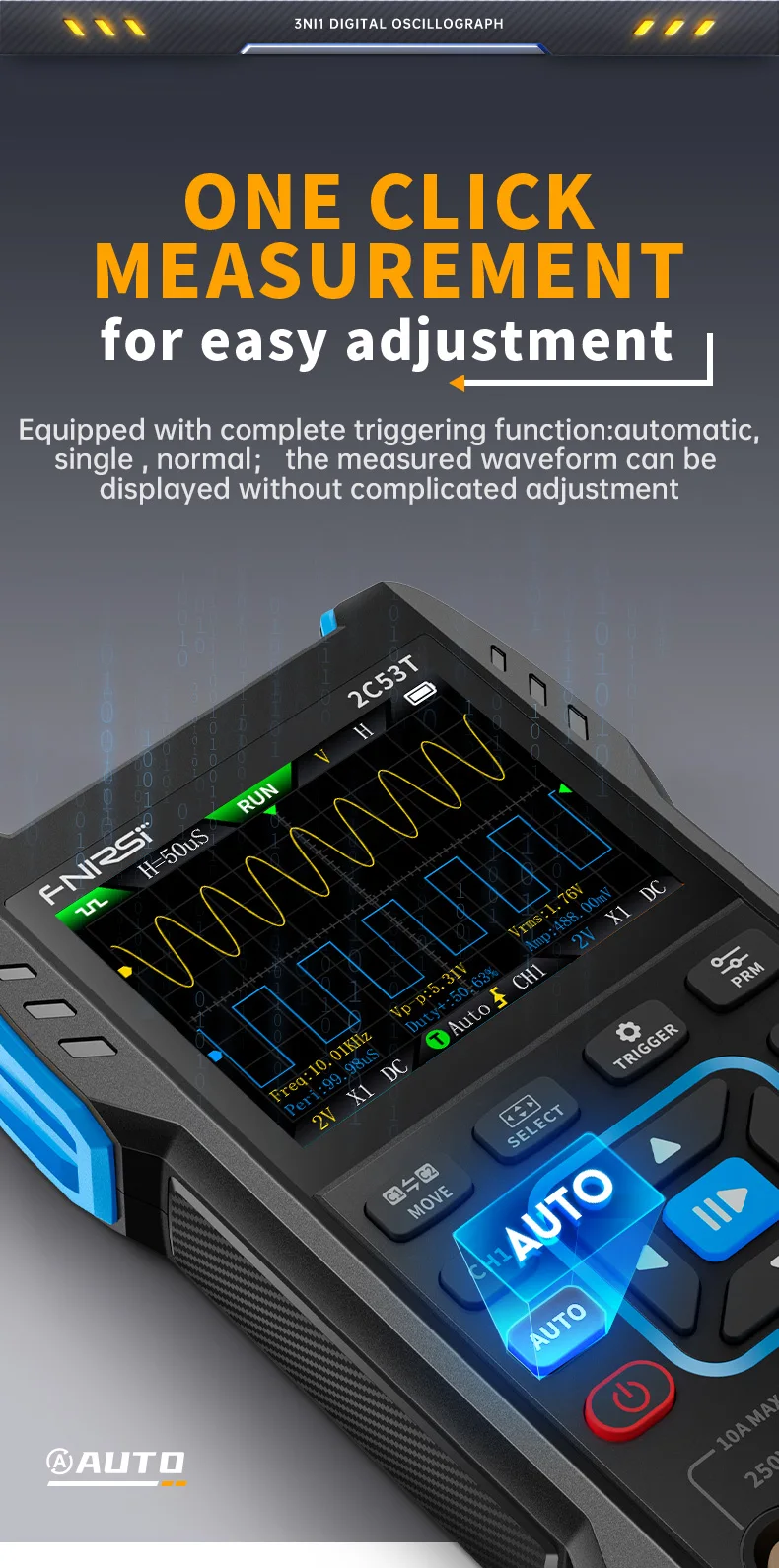

Trigger Mode：AUTO/Normal/Single
Trigger Type：Rising edge, Falling edge

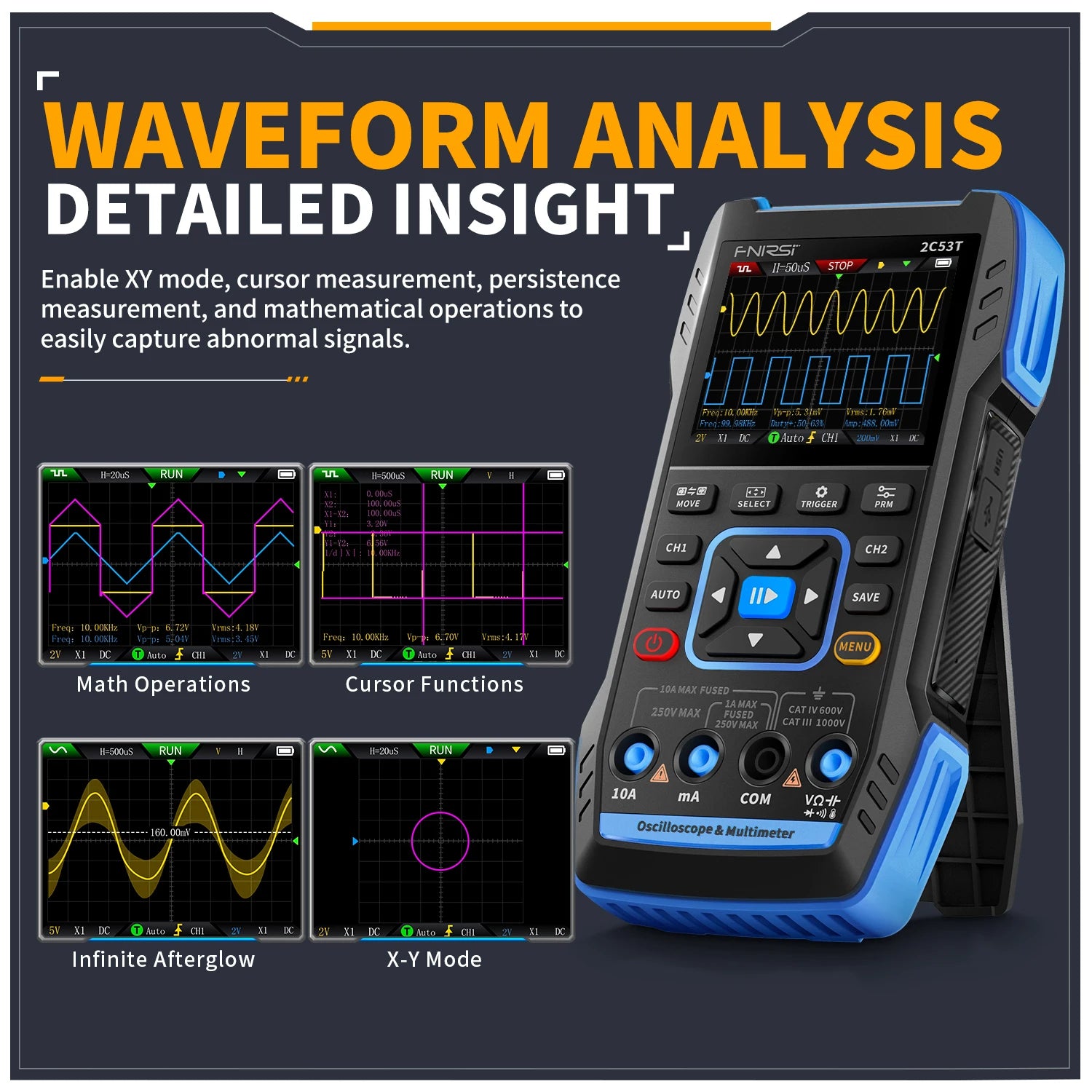

Display Mode：Y-T/Rolling/X-Y
Coupling Method：AC/DC
Persistence：OFF, 500ms, 1s, ∞

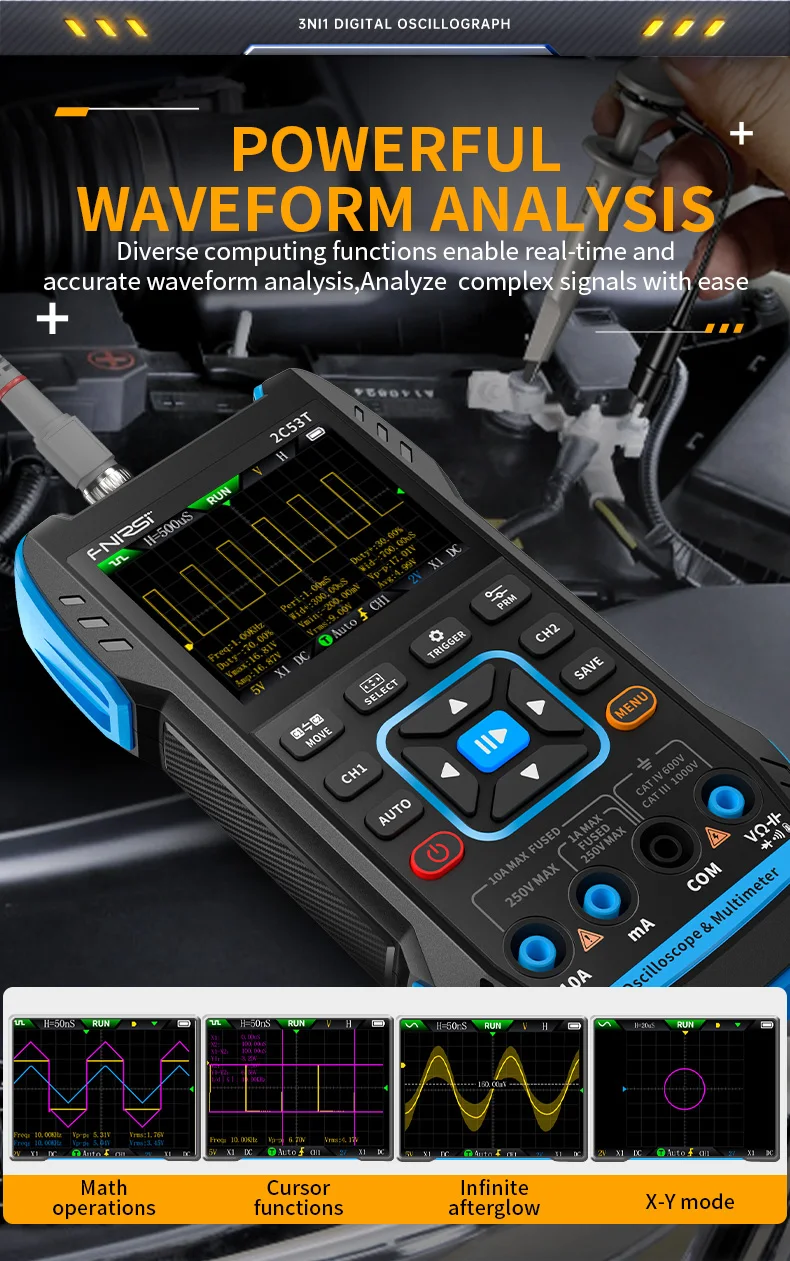

Math：8 Basic Operations + FFT

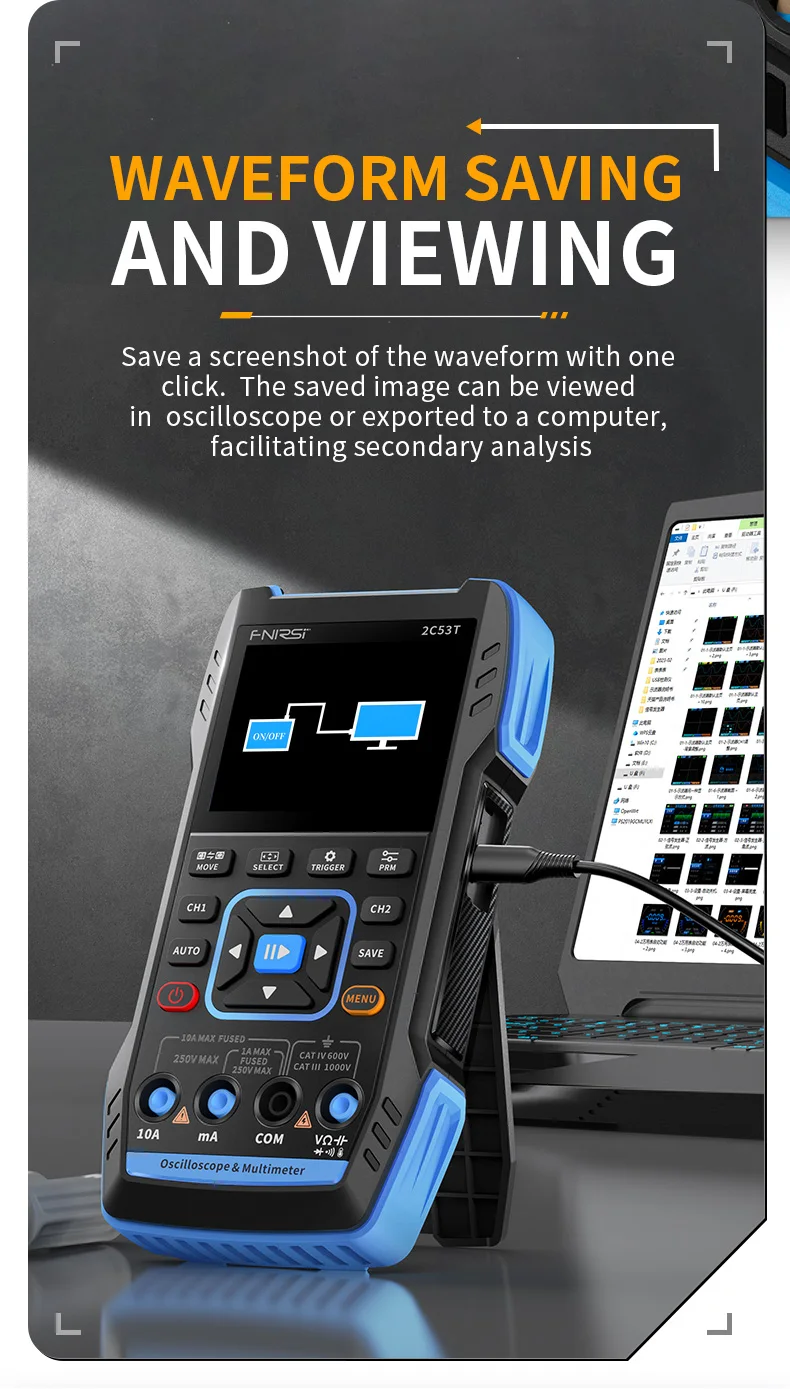

Waveform Screenshot Save：Supported
Export Waveform Image：Supported
Cursor Measurement：Supported
Sample Rate: 250MS/s
Analog Bandwidth: 50M(dual channel independent 50M)
Storage Depth: 1Kpts
Impedance：1MΩ
Time Base Range：10ns-20s
Vertical Sensitivity：10mV/div-10V/div（X1）
Maximum Measured Voltage：±400V
Trigger Mode：AUTO/Normal/Single
Trigger Type：Rising edge, Falling edge
Display Mode：Y-T/Rolling/X-Y
Coupling Method：AC/DC
Persistence：OFF, 500ms, 1s, ∞
Math：8 Basic Operations + FFT
Waveform Screenshot Save：Supported
Export Waveform Image：Supported
Cursor Measurement：Supported

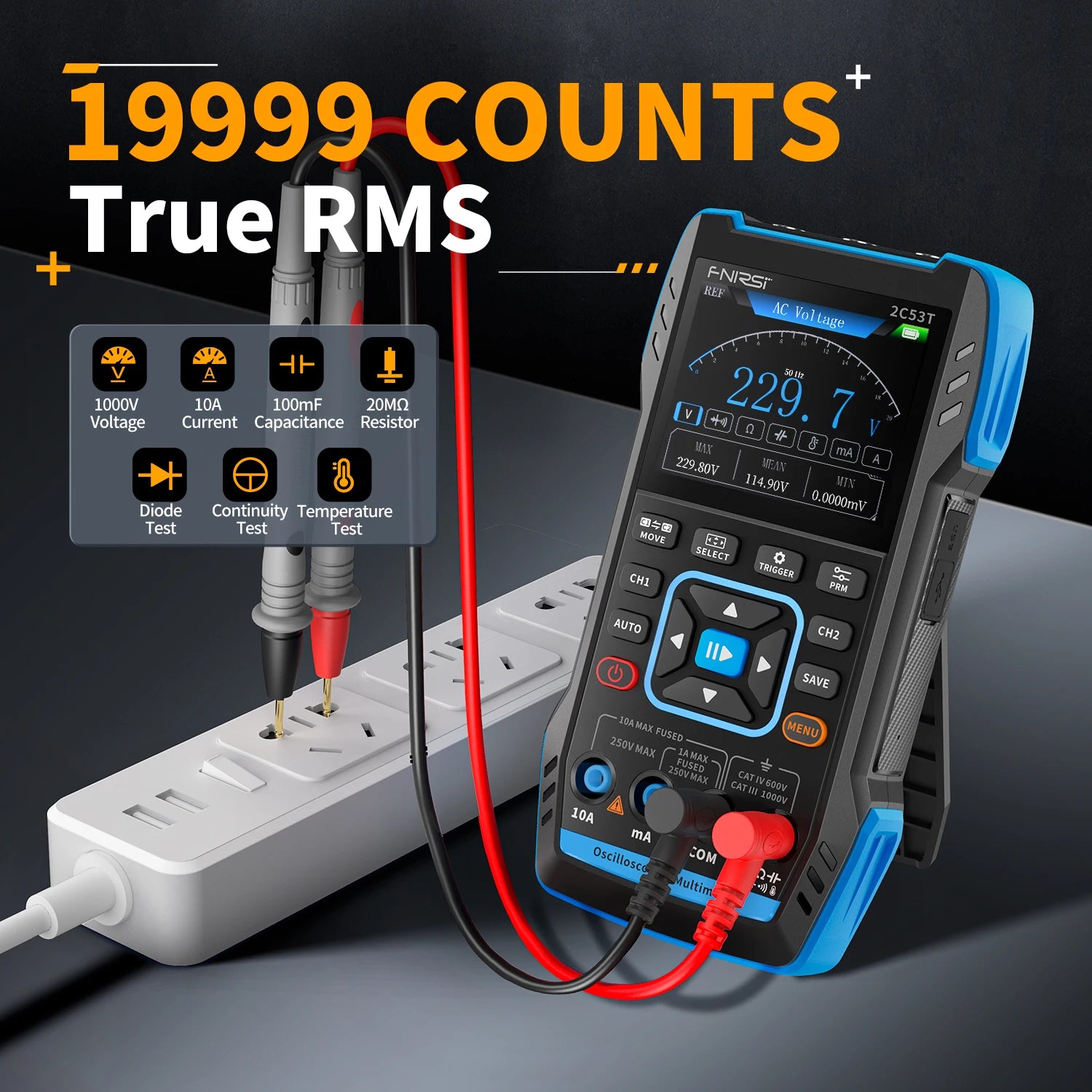

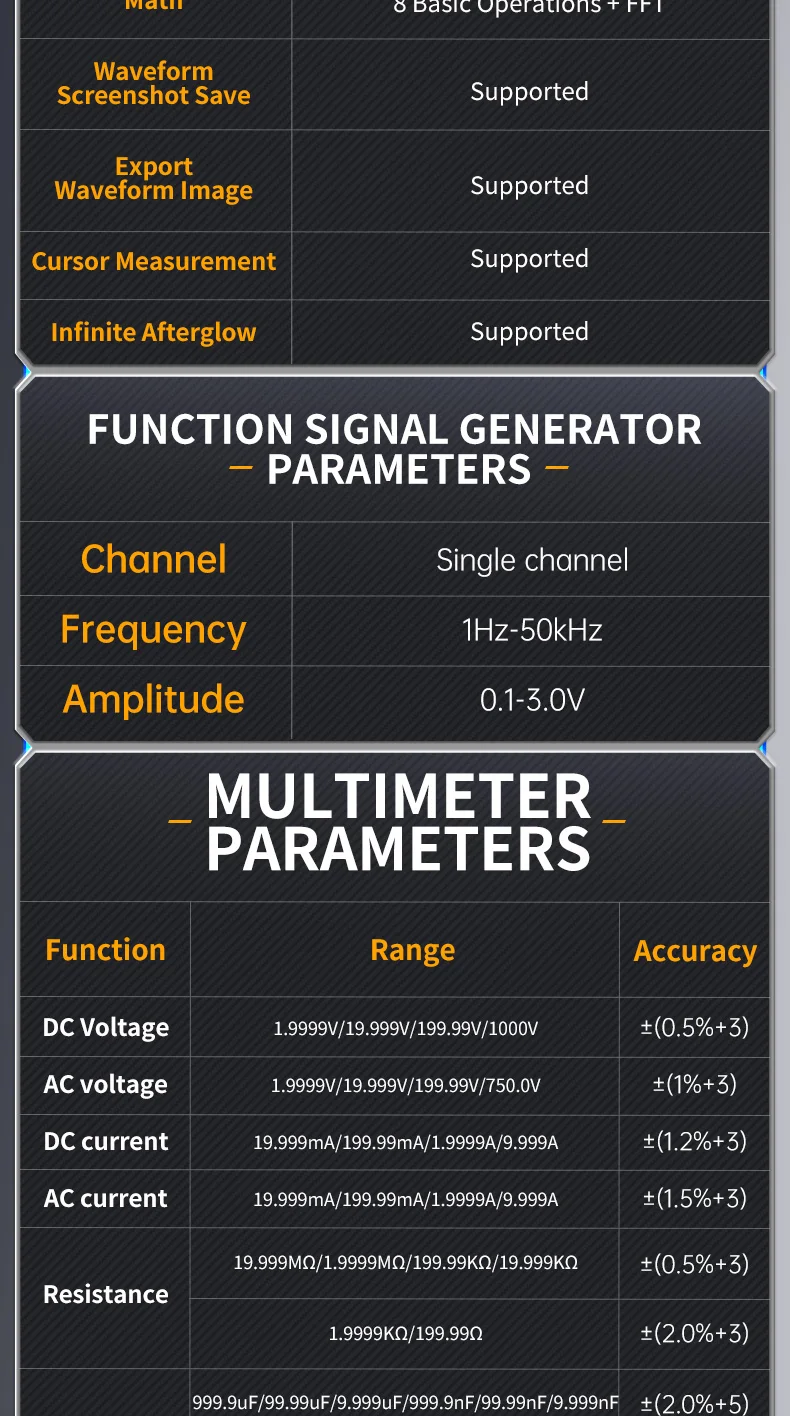

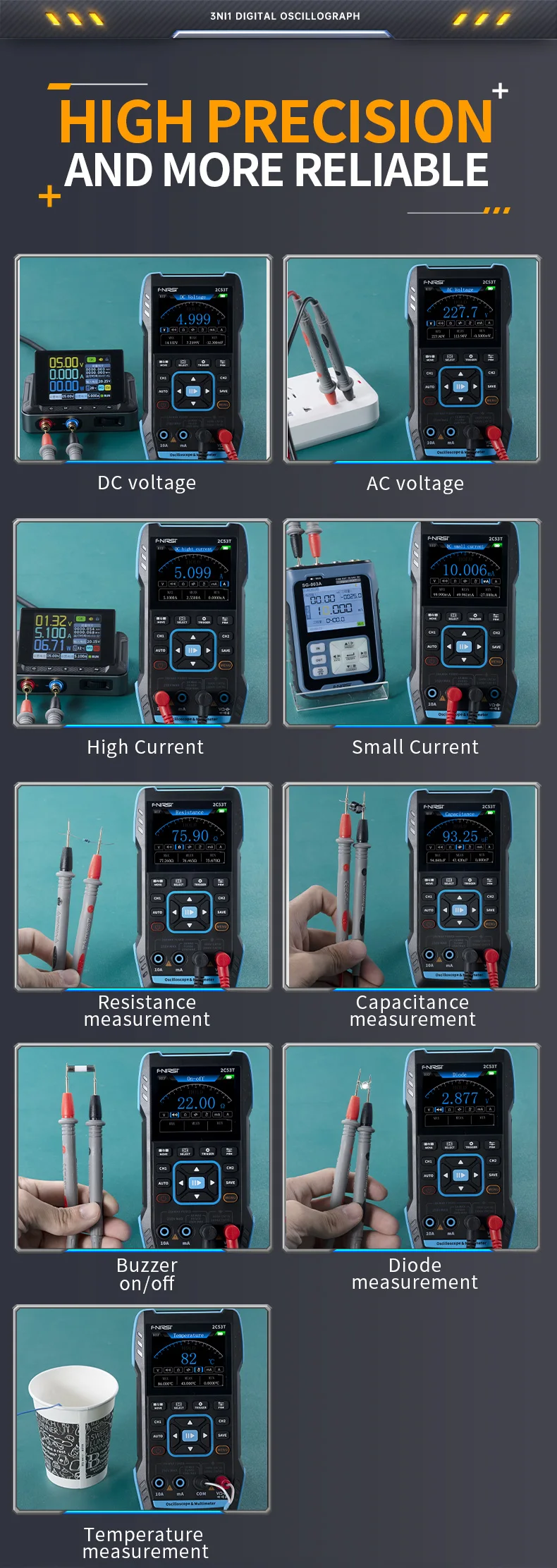

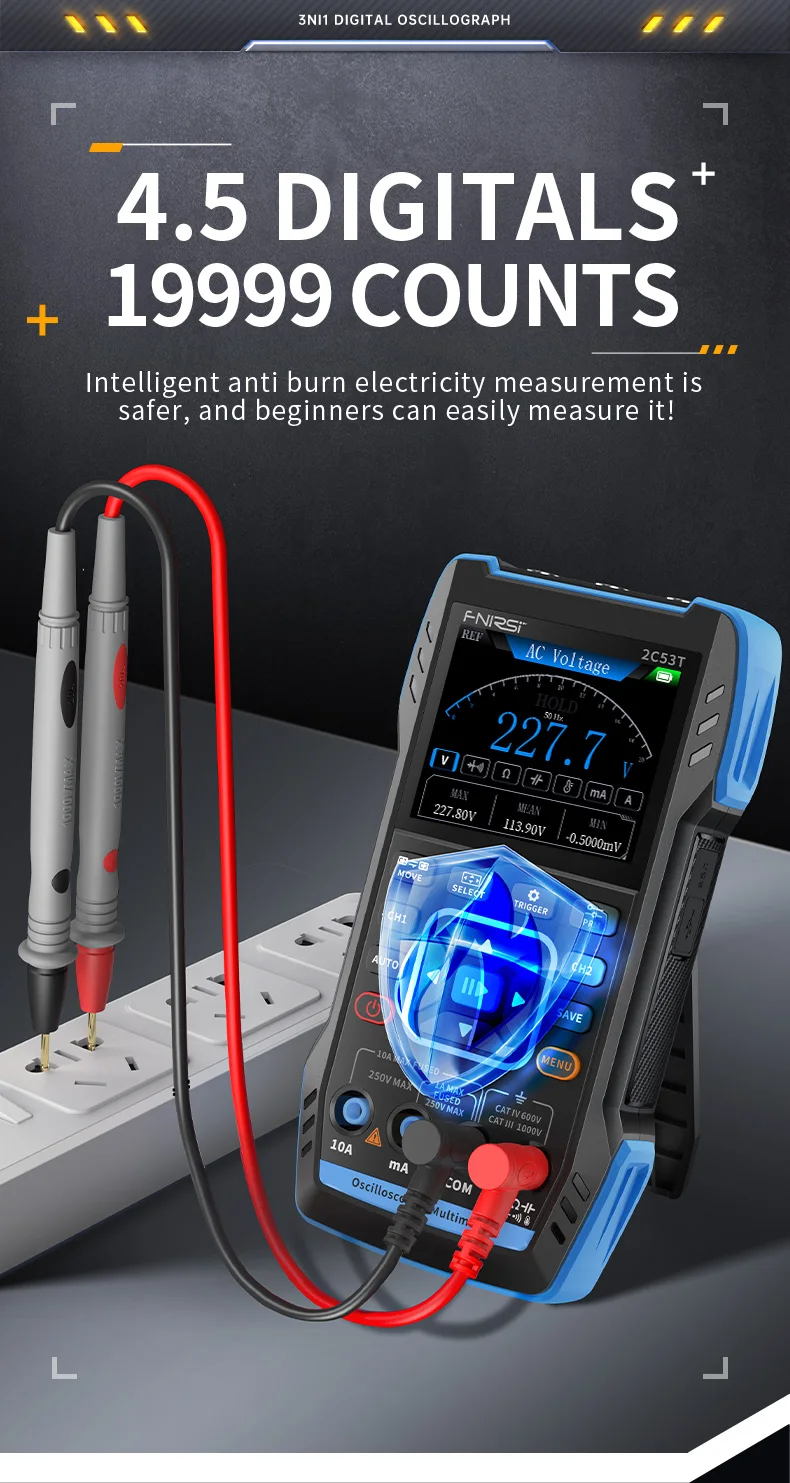

Multimeter Parameter
DC Voltage：1.9999V/19.999V/199.99V/1000V
AC Voltage：1.9999V/19.999V/199.99V/750.0V
DC Current：19.999mA/199.99mA/1.9999A/9.999A
AC Current：19.999mA/199.99mA/1.9999A/9.999A
Resistance：19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ, 1.9999KΩ/199.99Ω
Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF
Temperature: (-55~1300℃)/(-67~2372℉)
Diode: YES
Continuity test: YES
AC Voltage：1.9999V/19.999V/199.99V/750.0V
DC Current：19.999mA/199.99mA/1.9999A/9.999A
AC Current：19.999mA/199.99mA/1.9999A/9.999A
Resistance：19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ, 1.9999KΩ/199.99Ω
Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF
Temperature: (-55~1300℃)/(-67~2372℉)
Diode: YES
Continuity test: YES

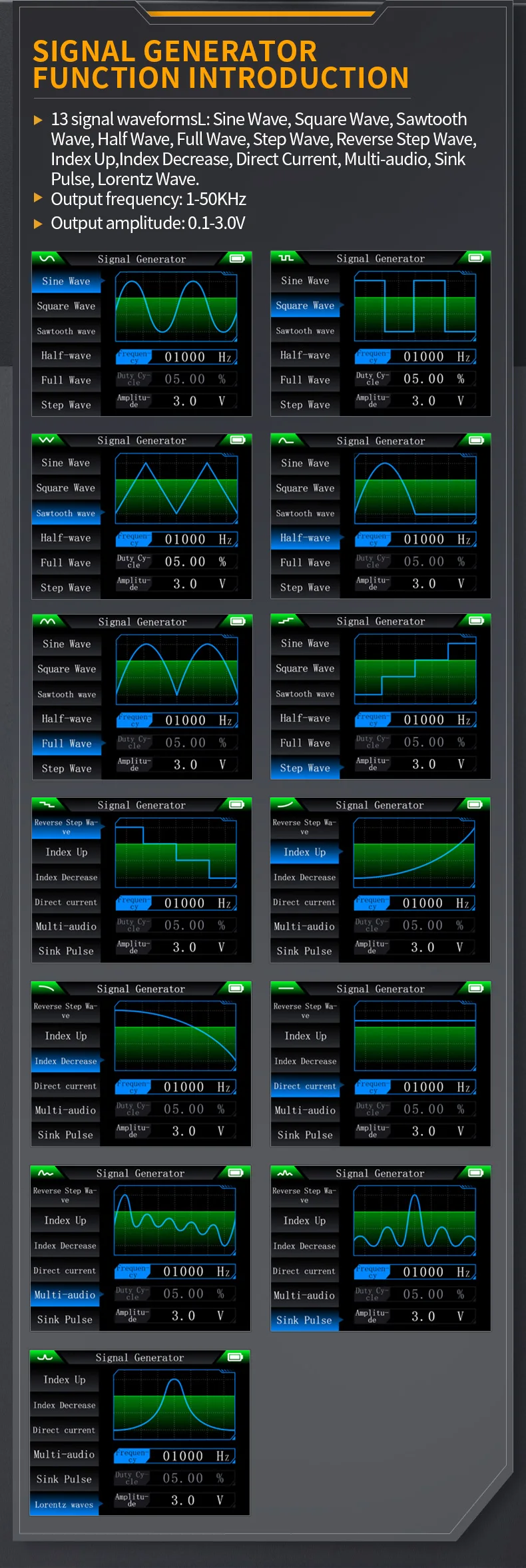

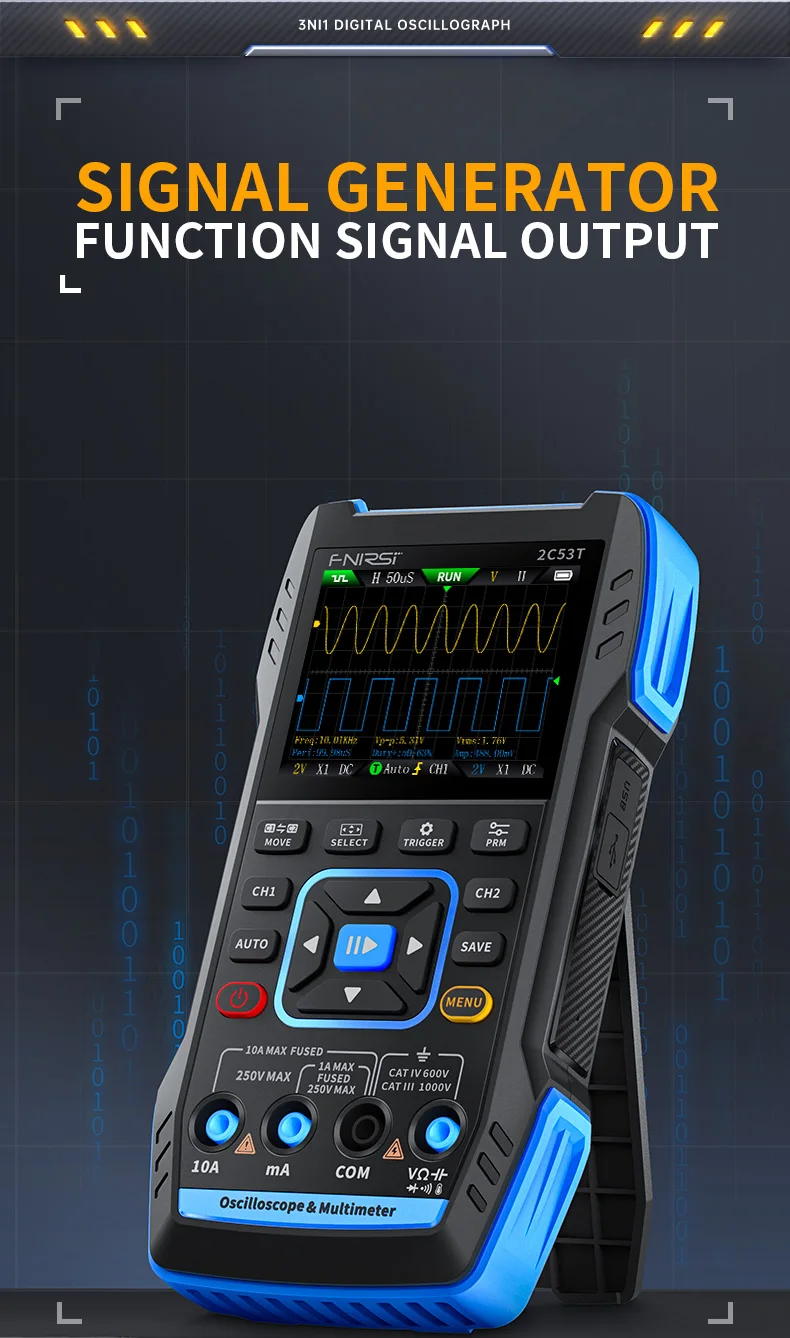

Signal Generator Parameter
13 Signal waveforms: Output waveform: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, reverse step wave, exponential rise, exponential fall, DC, multi-audio, Sinker pulse, Lorentz wave
Output frequency: 0-50KHZ
Output amplitude: 0-3V
Output duty cycle: 0-100%
Output frequency: 0-50KHZ
Output amplitude: 0-3V
Output duty cycle: 0-100%

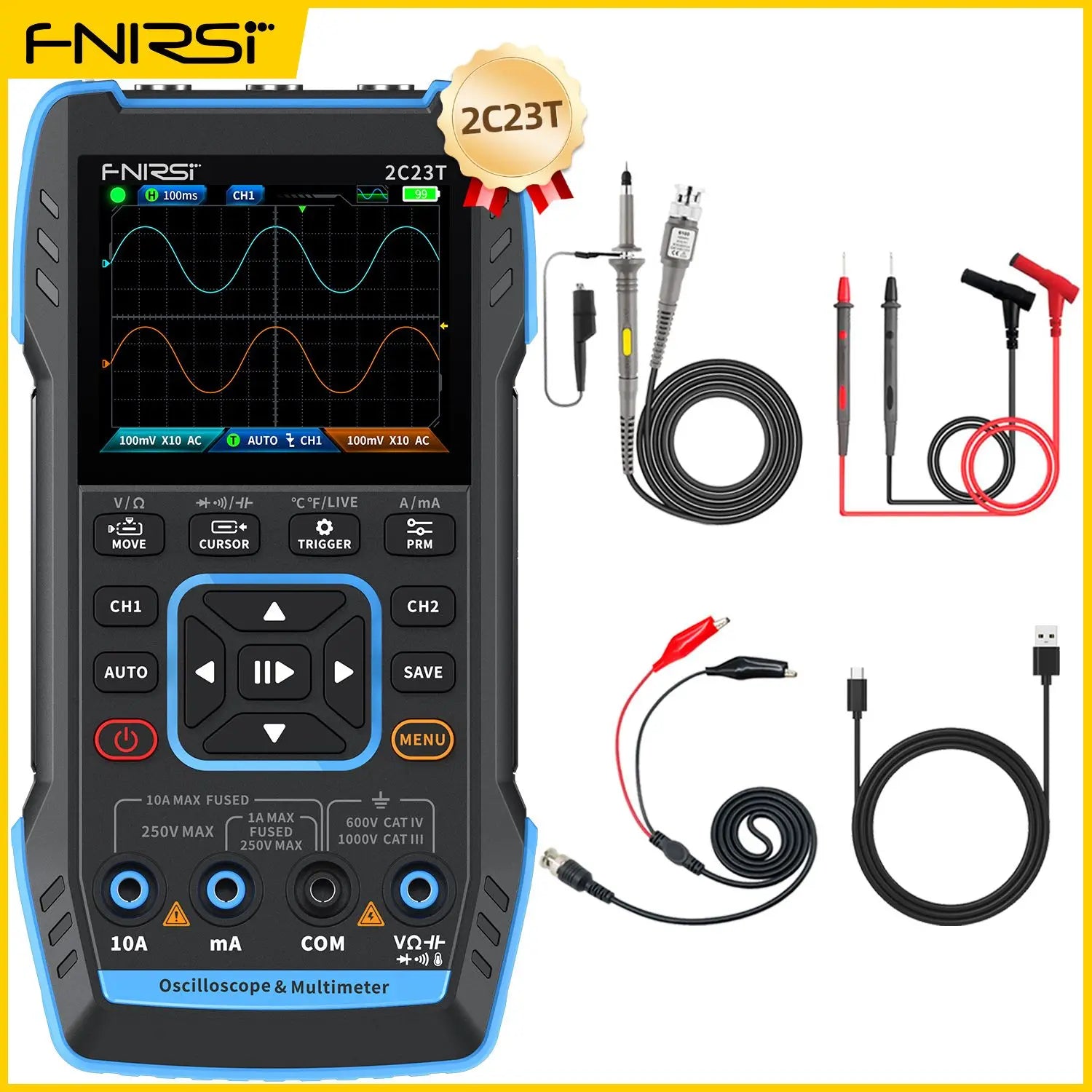

2C23T Standard
2C23T *1
P6100 Probe *1
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
User Manual *1
Packaging box *1
P6100 Probe *1
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
User Manual *1
Packaging box *1

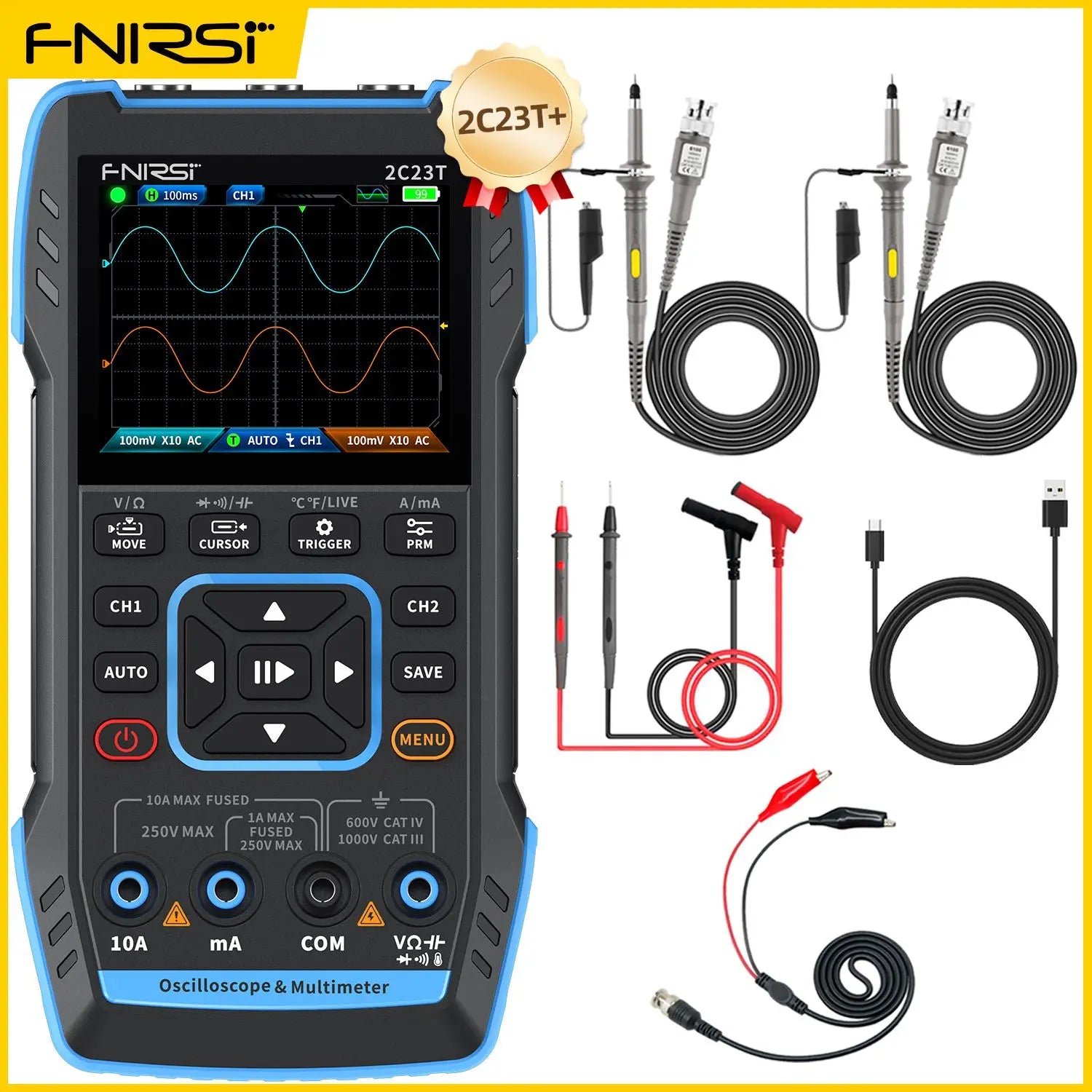

2C23T Option
2C23T *1
P6100 Probe *2
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
User Manual *1
Packaging box *1
P6100 Probe *2
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
User Manual *1
Packaging box *1

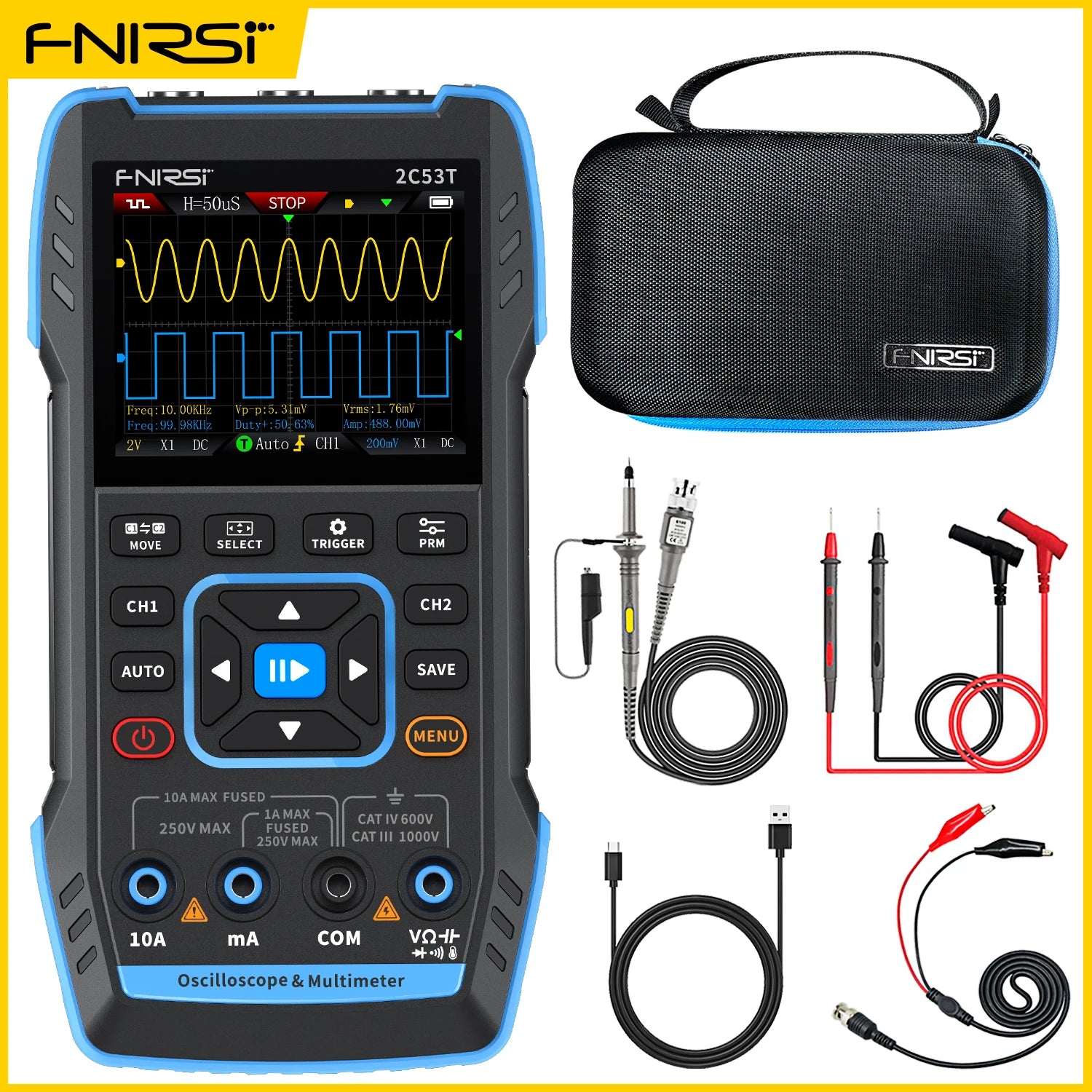

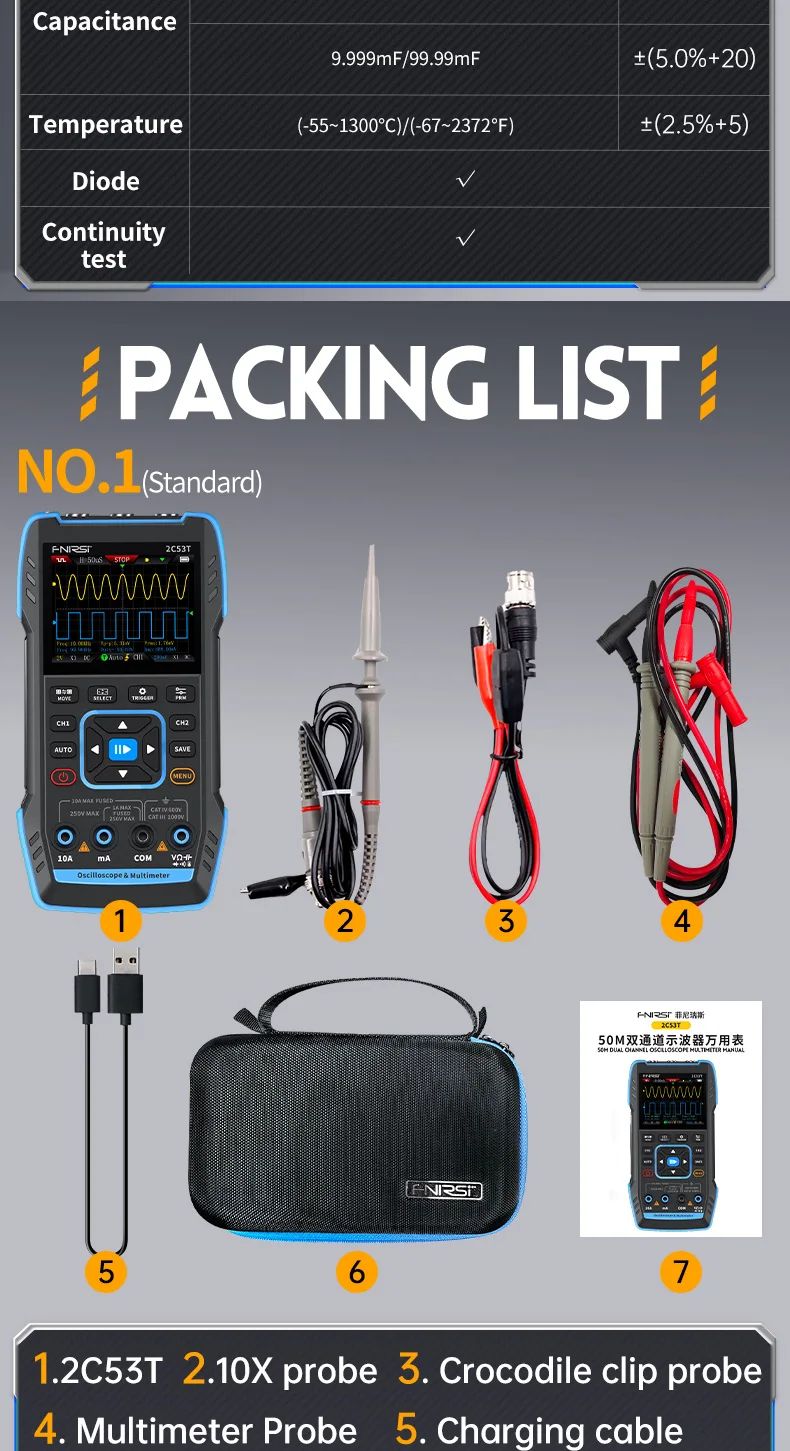

2C53T Standard
2C53T Oscilloscope*1
10X P6100 Probe *1
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
Storage handbag *1
User Manual *1
Packaging box *1
10X P6100 Probe *1
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
Storage handbag *1
User Manual *1
Packaging box *1

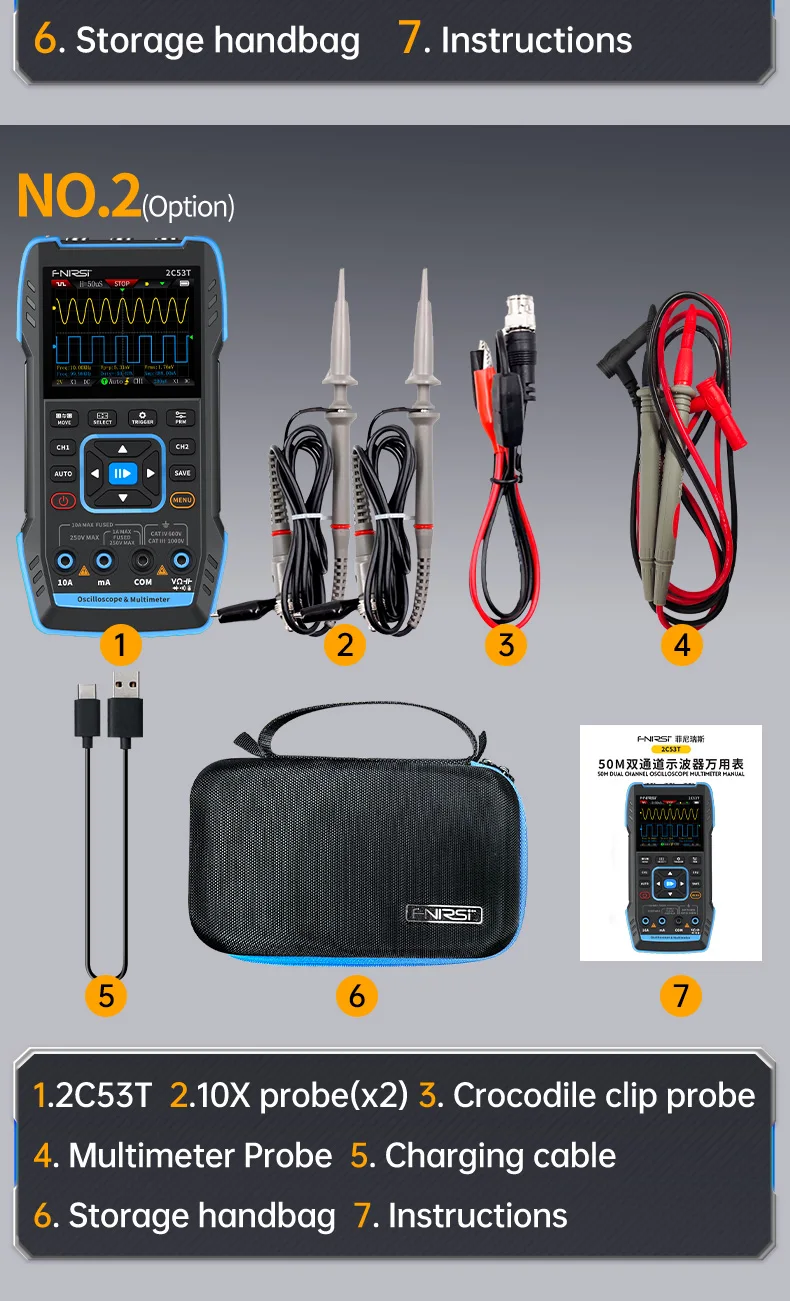

2C53T Option
2C53T Oscilloscope*1
10X P6100 Probe *2
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
Storage handbag *1
User Manual *1
Packaging box *1
10X P6100 Probe *2
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
Storage handbag *1
User Manual *1
Packaging box *1
