2-Way 0-50MHz 100W Manual Coaxial Antenna Switch for RF Benches

2-Way Manual Coaxial Antenna Switch

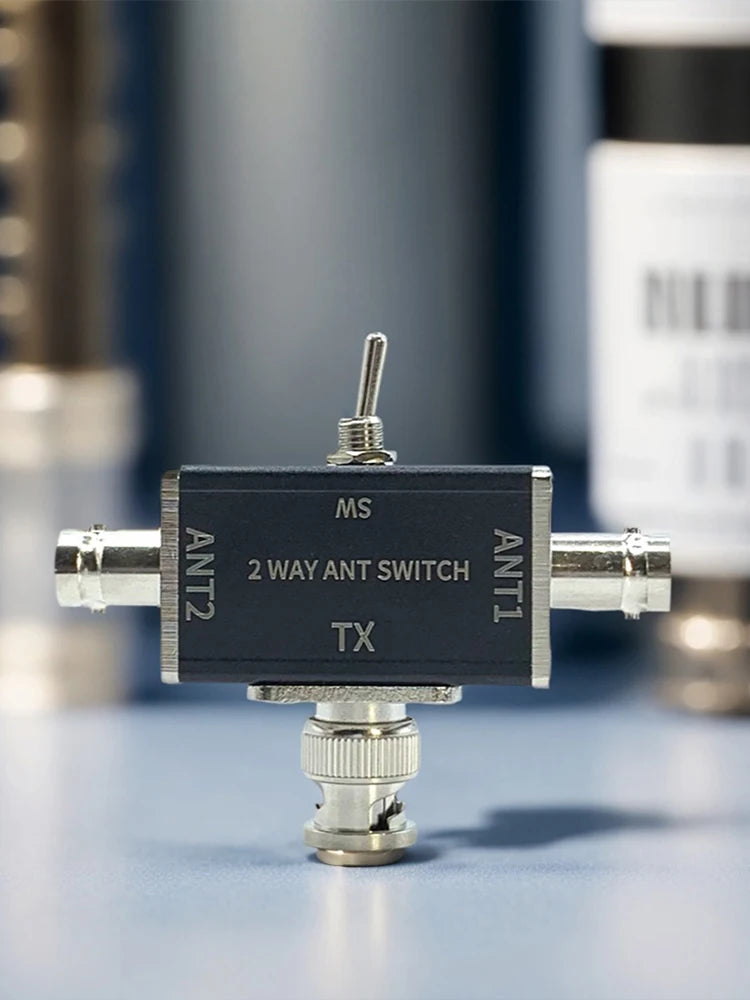

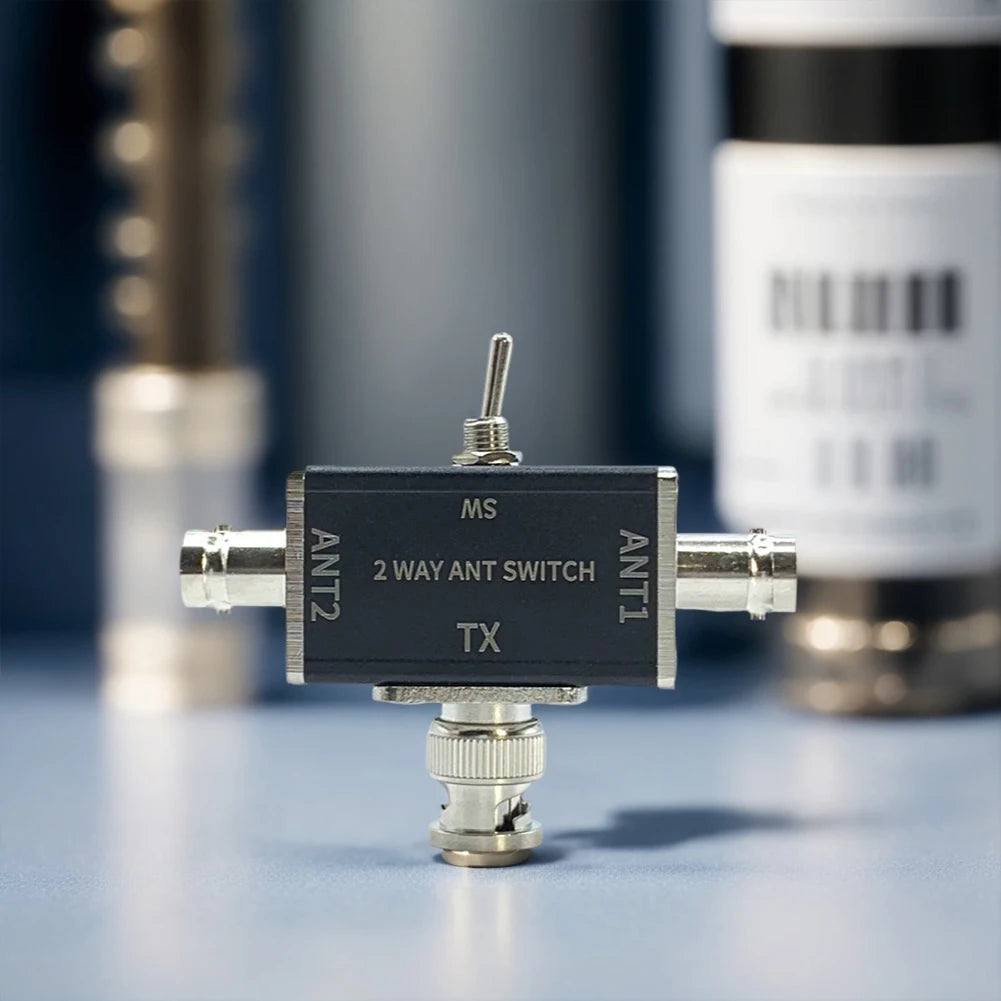

A compact passive RF routing switch for selecting one of two coaxial paths from a common TX port. The enclosure is marked ANT1, ANT2 and TX for clear bench wiring during antenna, receiver, or RF test-set changes.

Configuration

• Switching: 1 common input / 2 selectable outputs.
• Operating range: 0–50 MHz.
• Maximum rated power: 100 W.

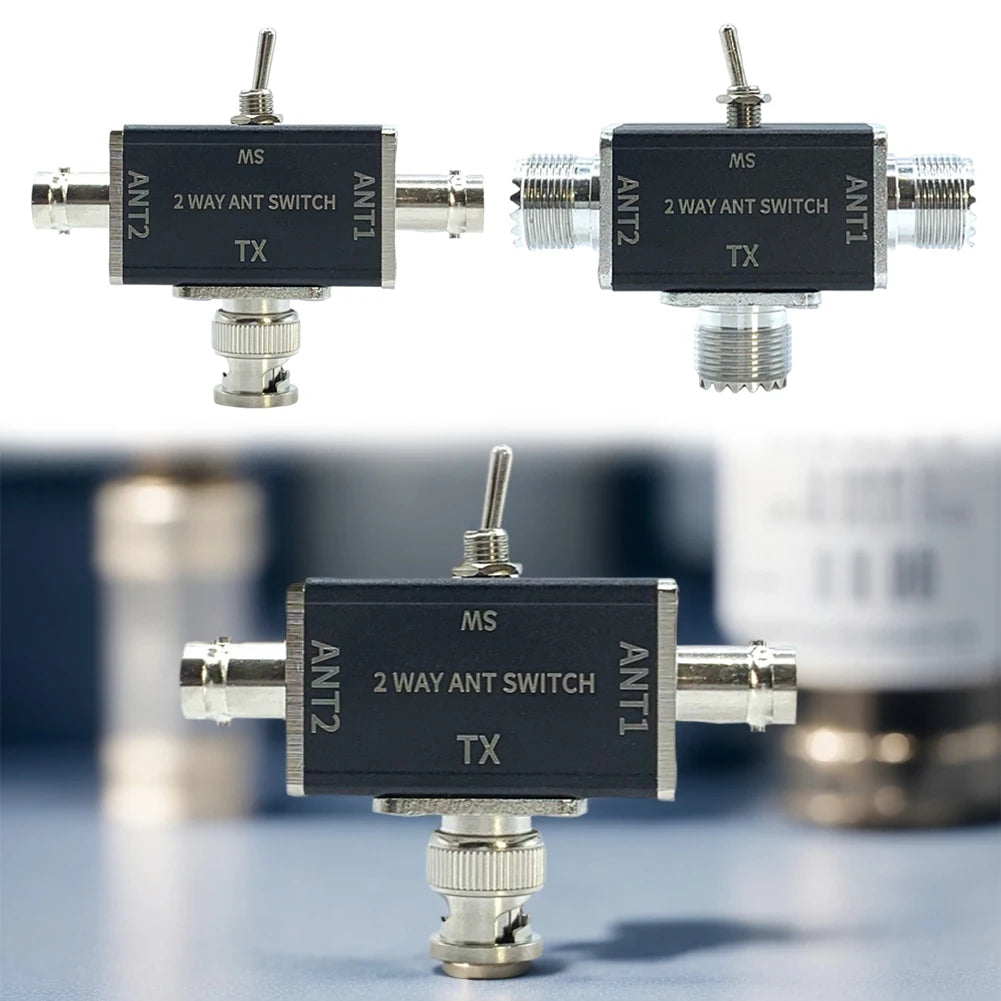

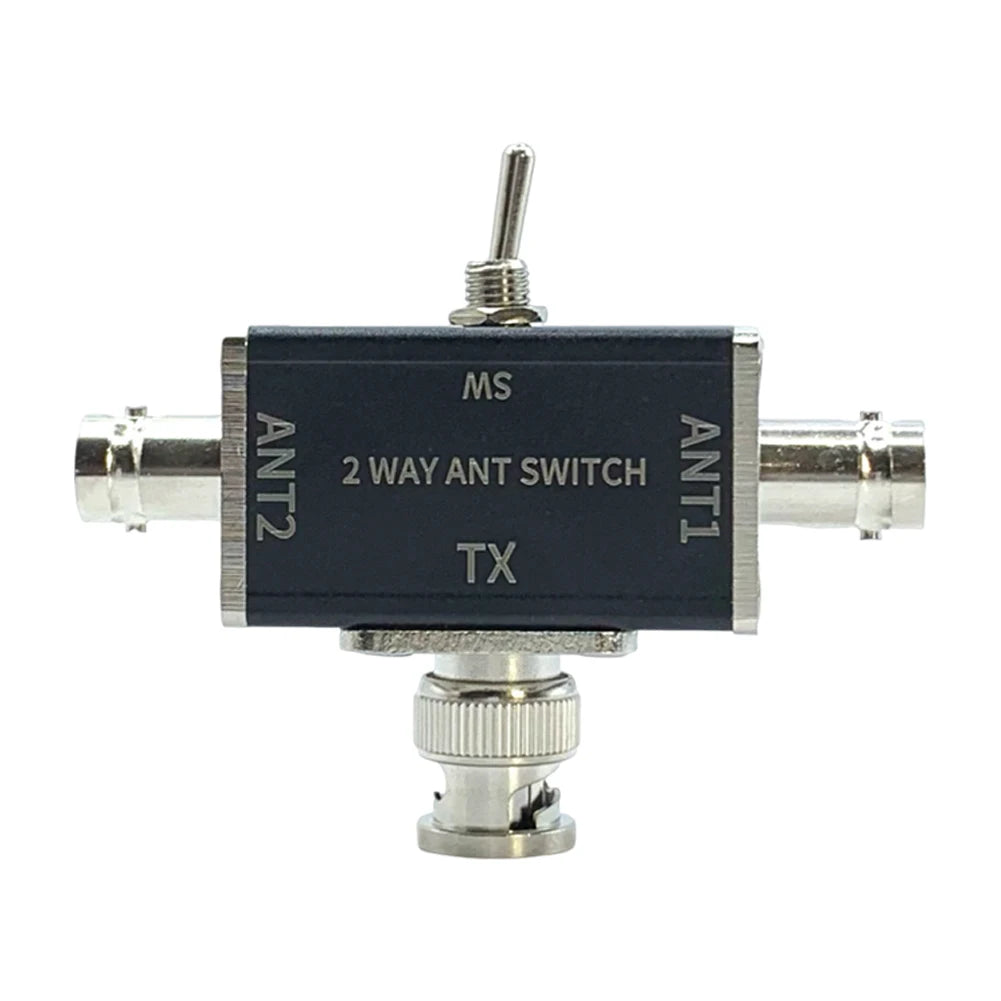

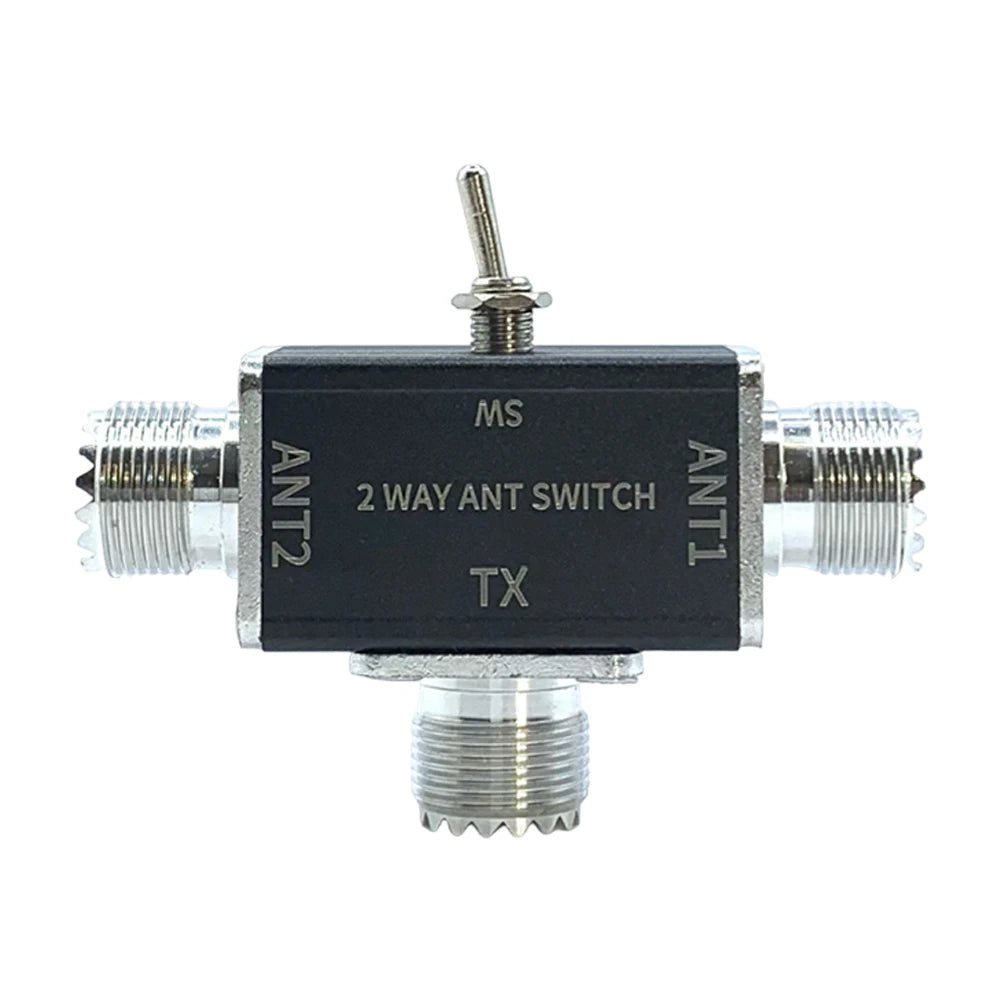

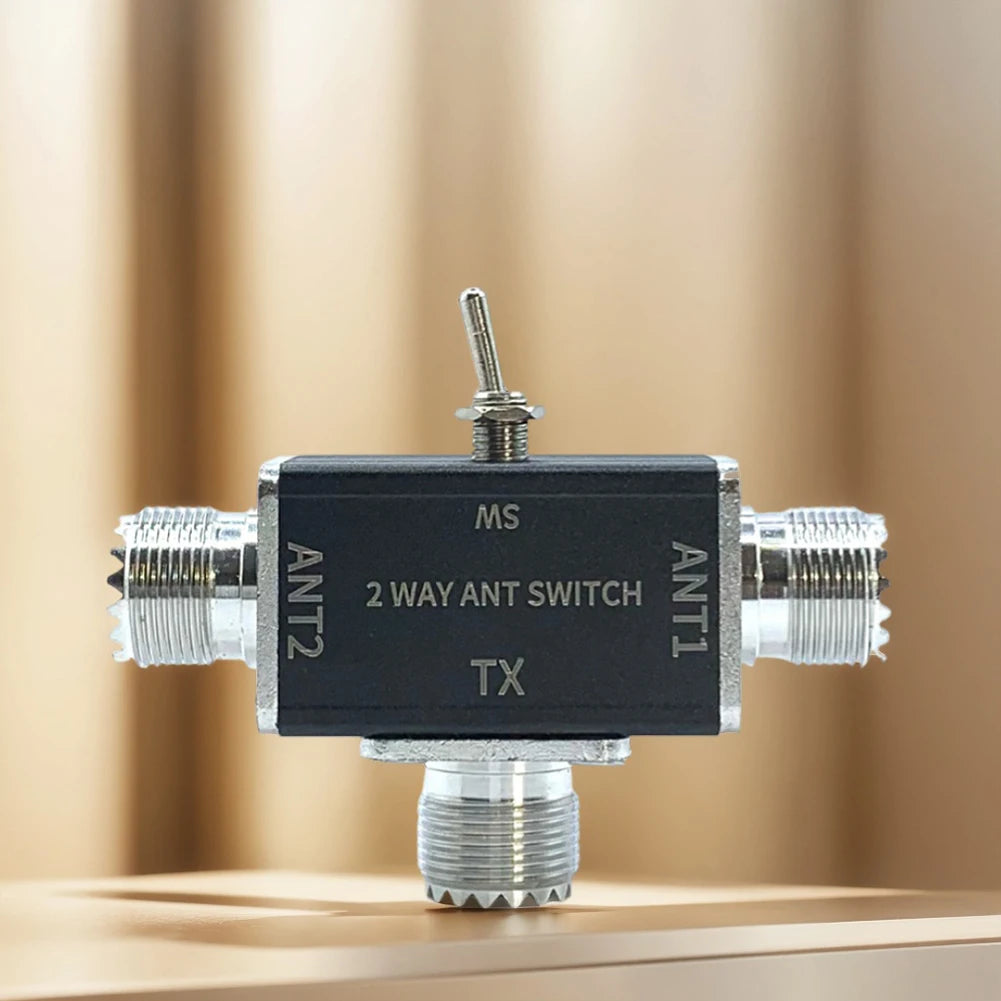

• Connector options: choose either the BNC version or the SO-239 version; all three RF ports use the selected connector style.
• Housing: metal enclosure, approximately 73 × 58 × 25 mm.
• Switch positions: ANT1, ANT2 and an OFF/ground position as stated by the source specification.

Suitable Bench Uses

• Selecting between two 50-ohm coax paths for low-frequency RF bench setups.

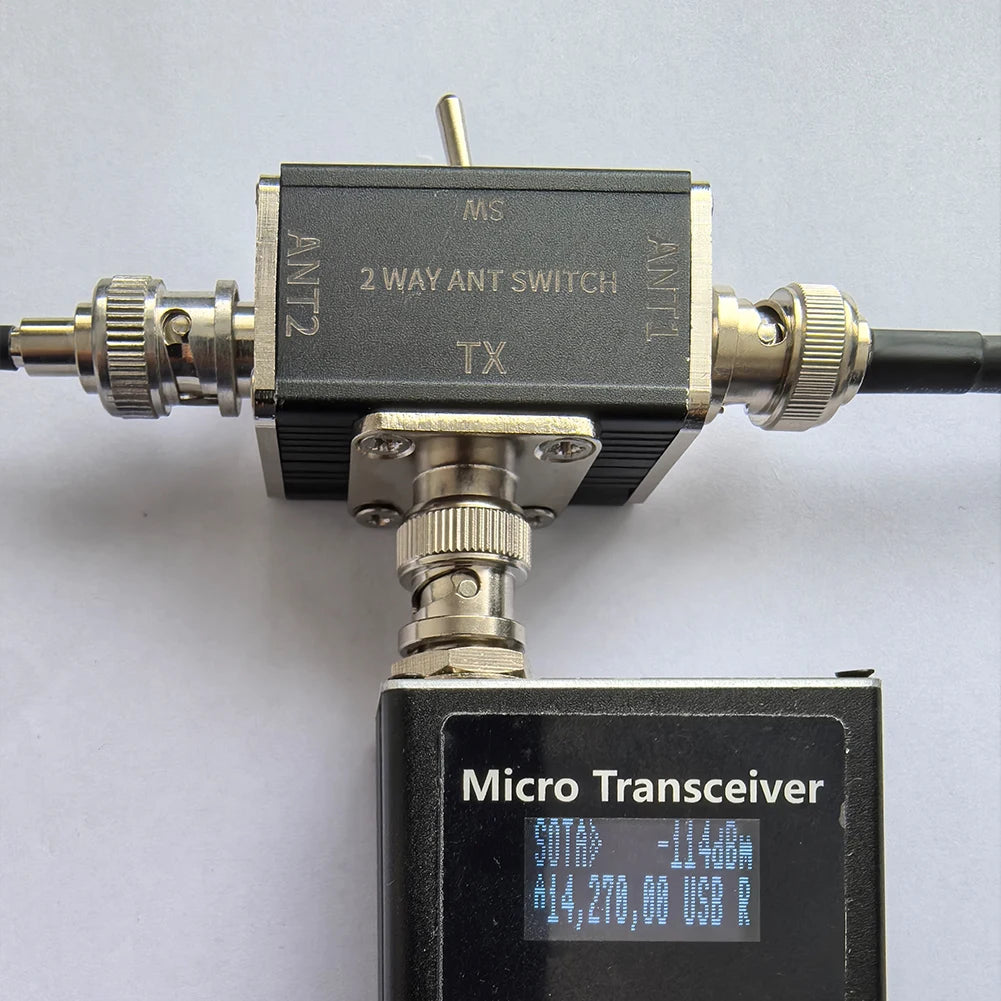

• Changing between two antennas, receivers, or test paths without repeatedly reconnecting cables.
• Organizing portable or fixed RF workstations where BNC or SO-239 connector compatibility is required.

Selection and Use Notes

• Match the connector version to the cables and equipment already in your setup; the BNC and SO-239 versions are not interchangeable without adapters.
• Confirm the complete RF chain is appropriate for the stated frequency and power limits before use.
• Switch positions only with RF output disabled or reduced to avoid hot-switching connected equipment.
• Package includes one manual coaxial antenna switch.
