The KCX_TFT2.8_PLAYERV2 is a two-channel audio decoder and control board with a 2.8-inch color display. It supports local USB/TF playback, Bluetooth audio, line input, PC USB sound-card operation, analog output, and I²S digital output for DIY audio systems.
Core Specifications
- 2.8-inch 320 x 240 IPS color display.
- Bluetooth 5.3 + BR + EDR.
- Operating supply: regulated DC 4.5-5.0V.
- Two-channel stereo analog output and I²S master output.
- Supports MP3, WAV, WMA, FLAC, and APE files from USB or TF storage.
- FAT12, FAT16, FAT32, and exFAT storage formats; up to 64GB listed.
Interfaces and Controls

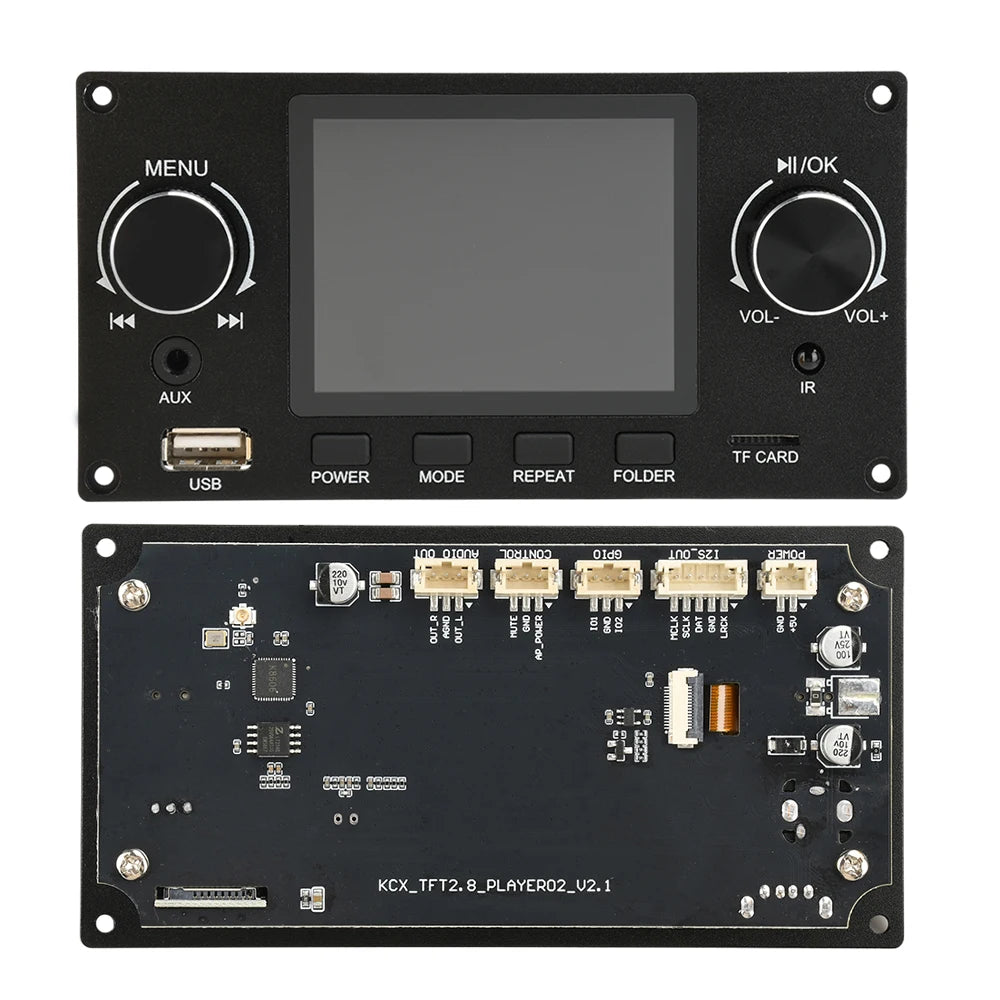

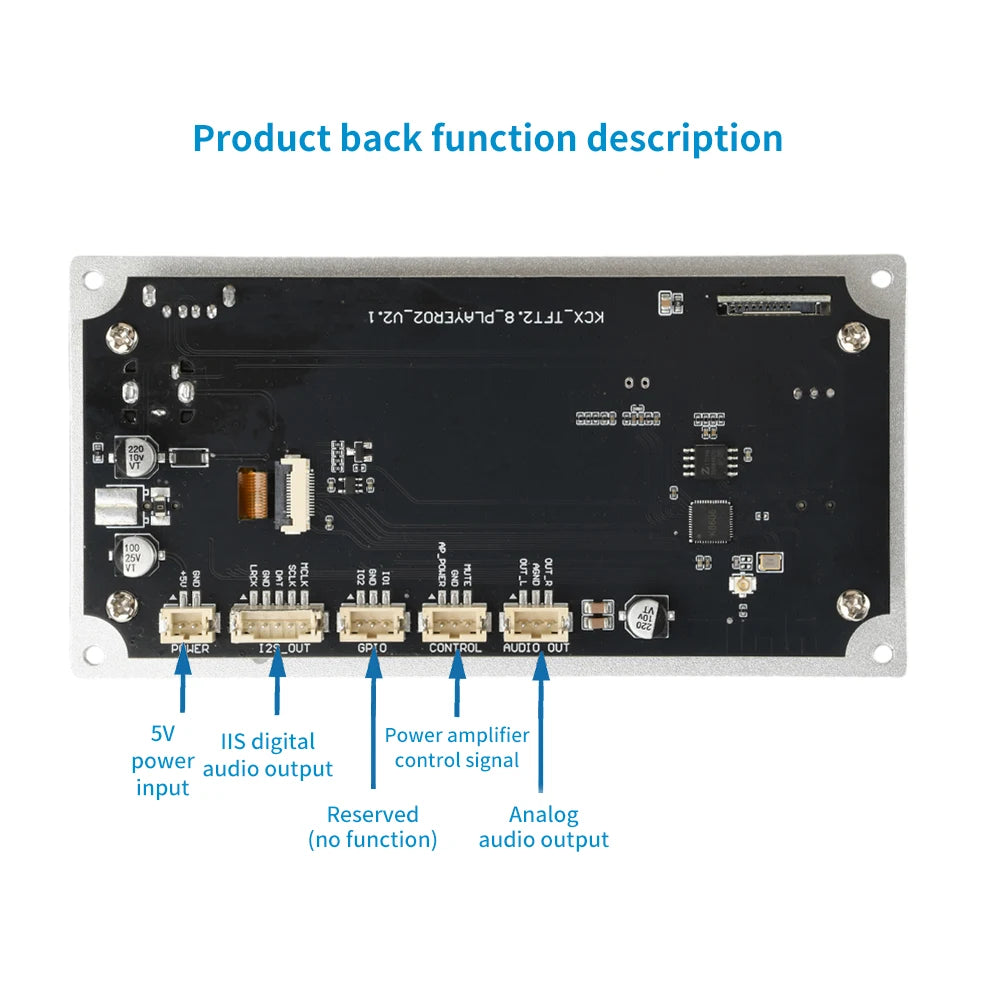

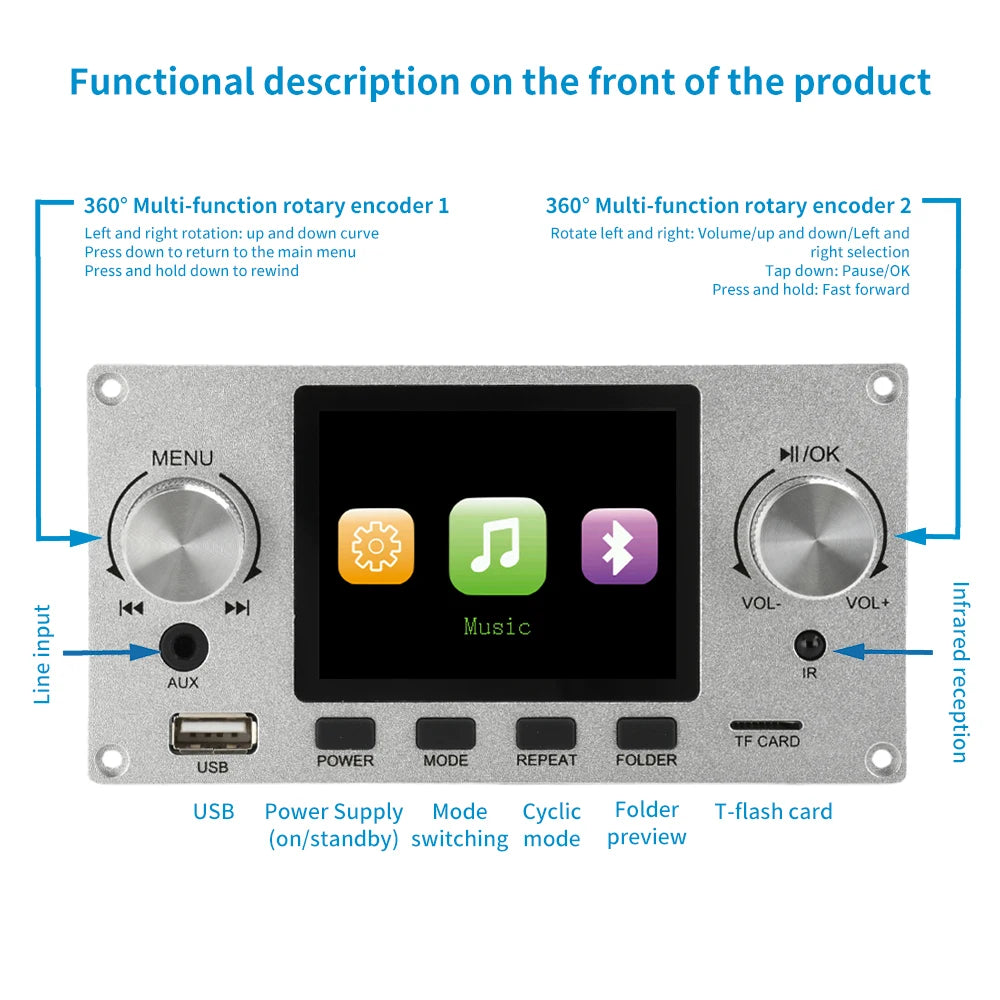

The split-board design provides connections for power, infrared receiver, analog audio output, USB, TF card, line input, I²S output, keypad controls, and two rotary encoders. The front panel provides menu, playback, track, volume, repeat, folder, mode, and power controls.
Integration Notes
Use a clean regulated 5V supply and keep interface cables short. The analog output is a line/headphone-level signal; an external power amplifier is required to drive speakers. Do not connect an amplifier's speaker output to the line-input pins.
