0-60V CNC Adjustable DC Stabilized Voltage Power Supply Constant Voltage and Constant Current 15A/20A 900/1200W Step-Down Module

Sale price
$29.99
List price
$38.99
You save
$9.00 (24%)

Prices include VAT and any applicable duties.

Model:Single board
Delivery estimate Estimated arrival is calculated for your delivery market.
Ships in 1-3 business days. Remote areas or special items may take longer.

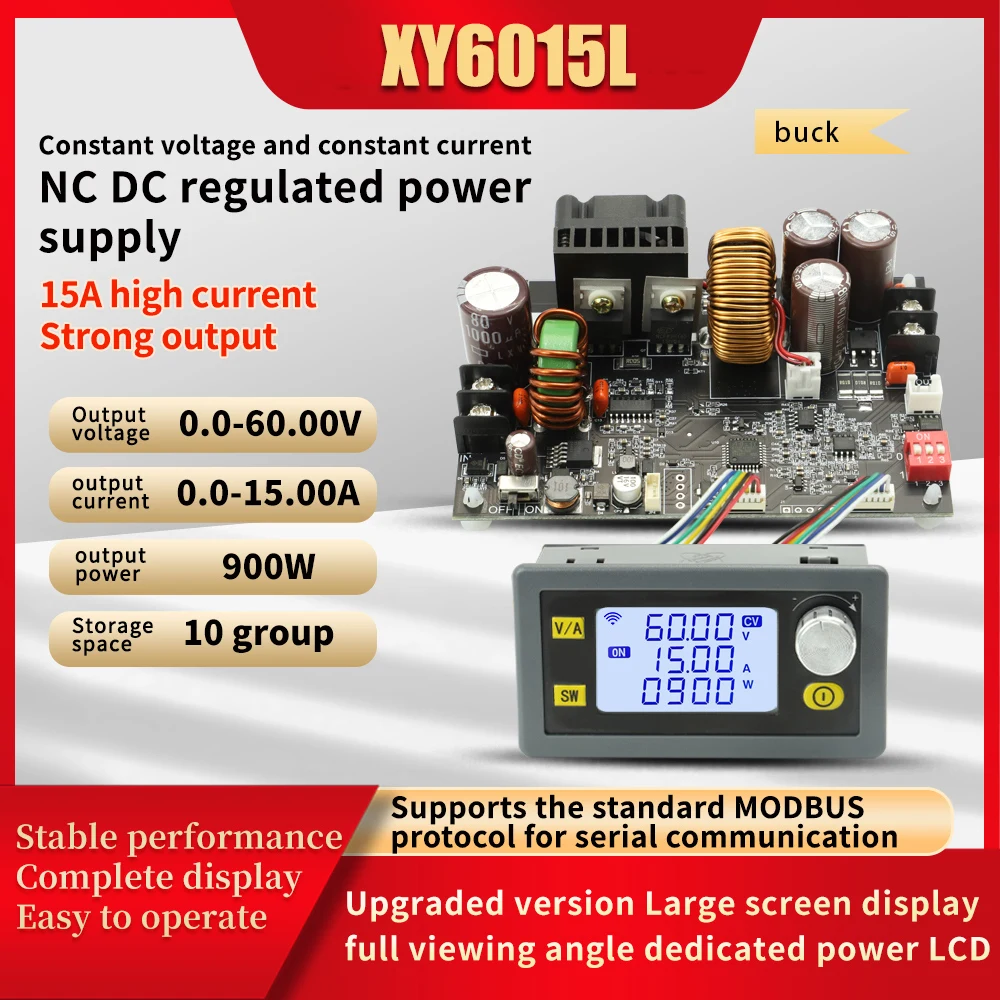

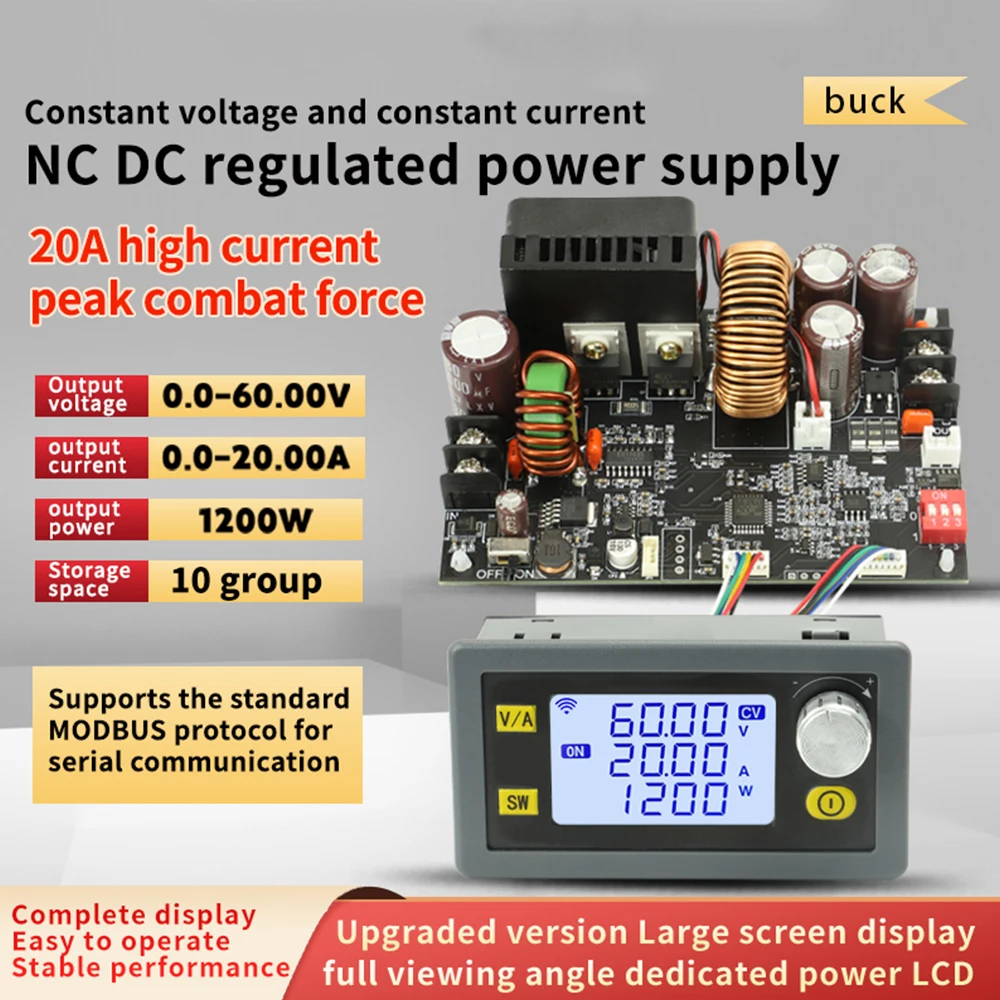

A compact CNC-controlled DC step-down (buck) power supply module with constant voltage (CV) and constant current (CC) regulation. Feed it 6–70 V DC and set any output from 0 to 60 V with 0.01 V / 0.01 A resolution on the large full-view LCD. Two versions are available: XY6015L (15 A / 900 W) and XY6020L (20 A / 1200 W). It is a practical core for a bench power supply, battery charger, or LED / motor test rig.

Key Features

  • Constant voltage and constant current – CV/CC regulation, adjustable with an encoder knob.

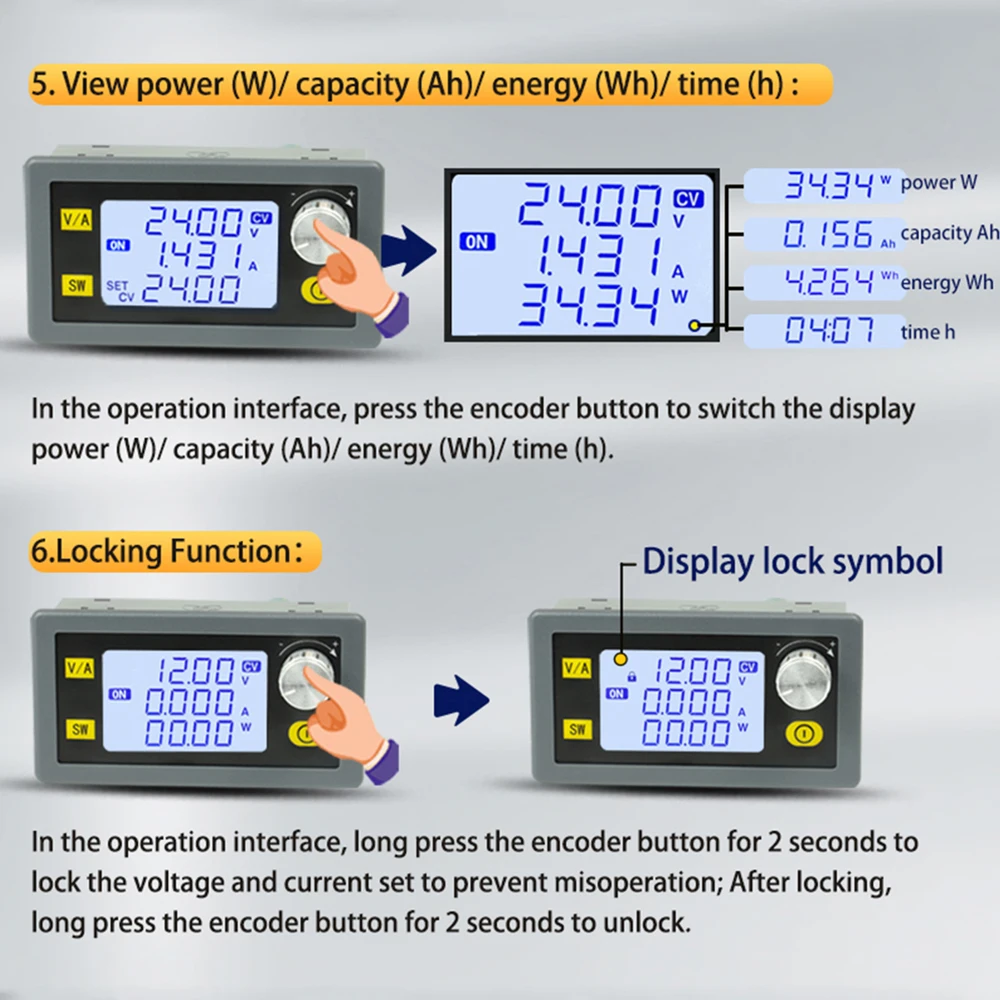

  • Large LCD – shows set and measured voltage, current, power, capacity (Ah), energy (Wh), time and temperature.
  • 10 data groups – store frequently used voltage/current settings and recall them quickly.

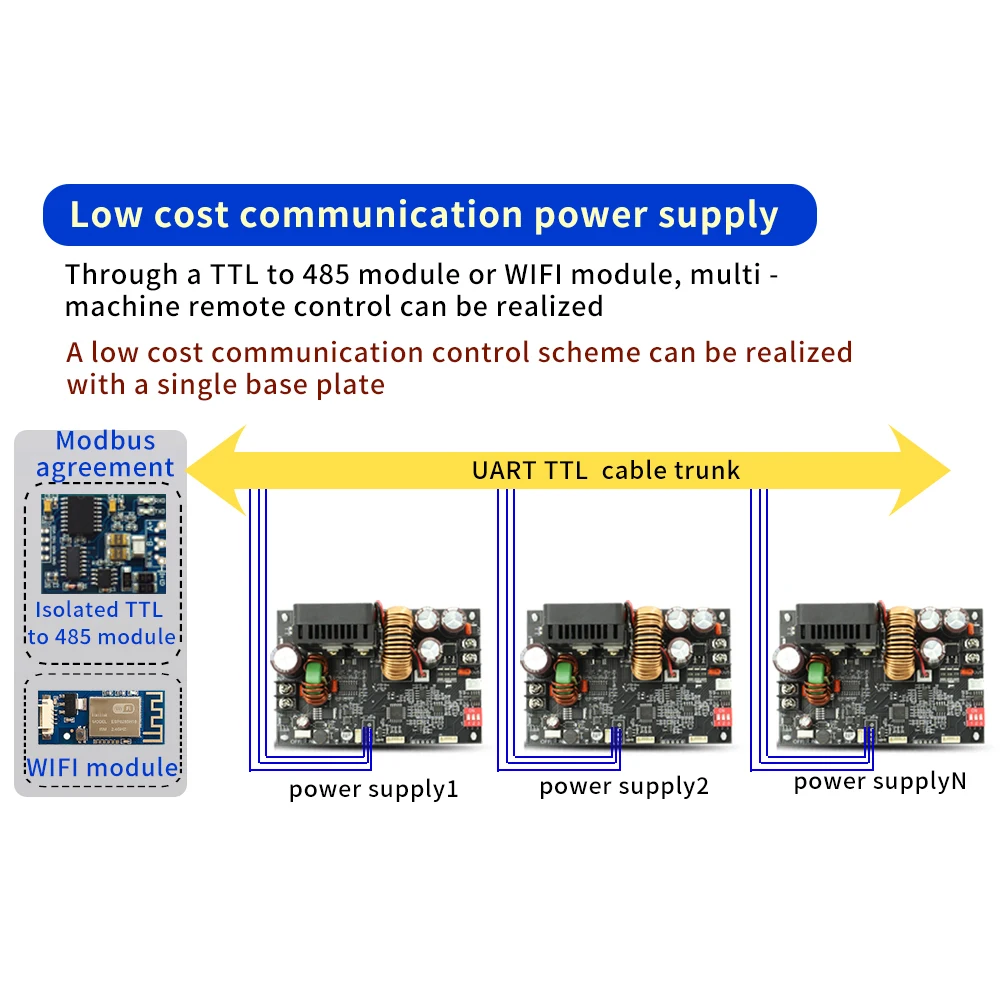

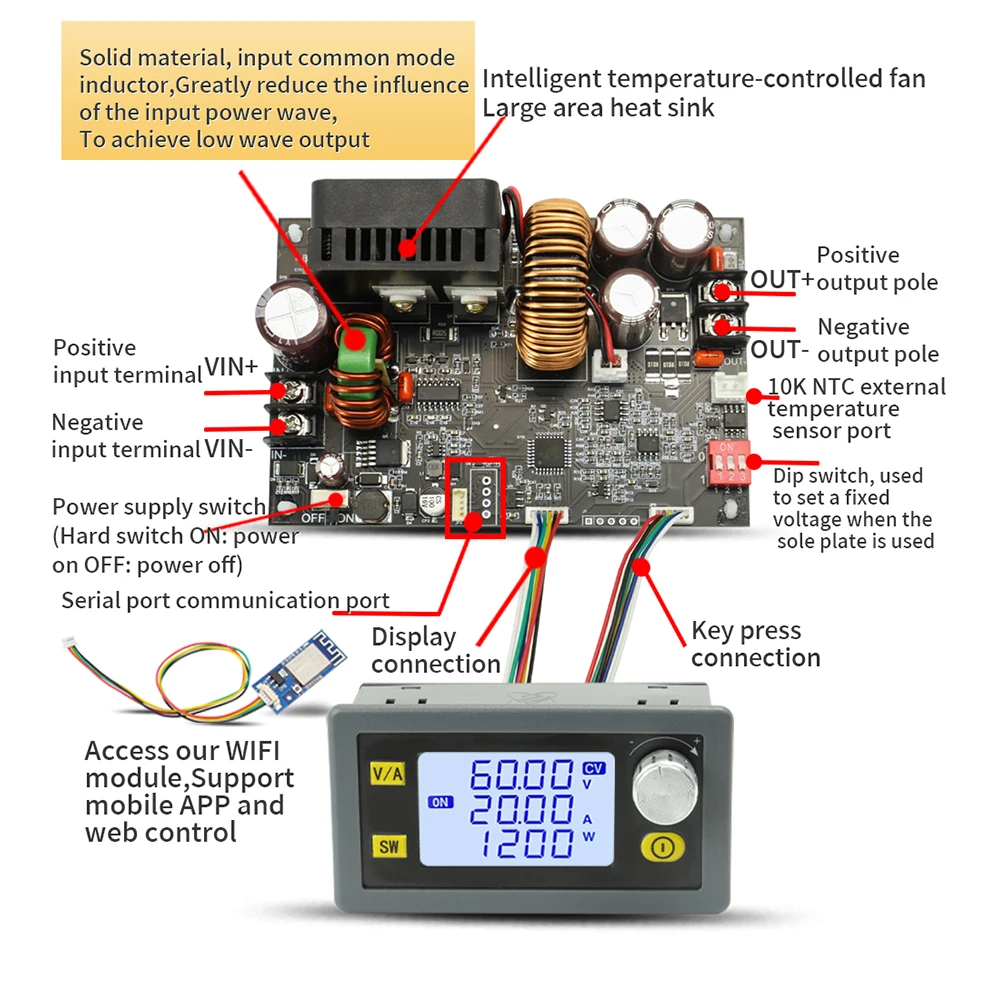

  • Serial communication – supports the standard MODBUS protocol over TTL; RS485 / WiFi communication is possible with optional adapter modules (not included).
  • Full protection set – input under/over-voltage, output over-voltage, over-current, over-power, over-temperature, timeout, over-capacity and over-energy protection.
  • Automatic cooling fan – fan turns on above 2 A / 50 W / 50 °C and off below 1.5 A / 45 W / 45 °C.
  • Key lock – long-press the encoder to lock the settings against accidental changes.

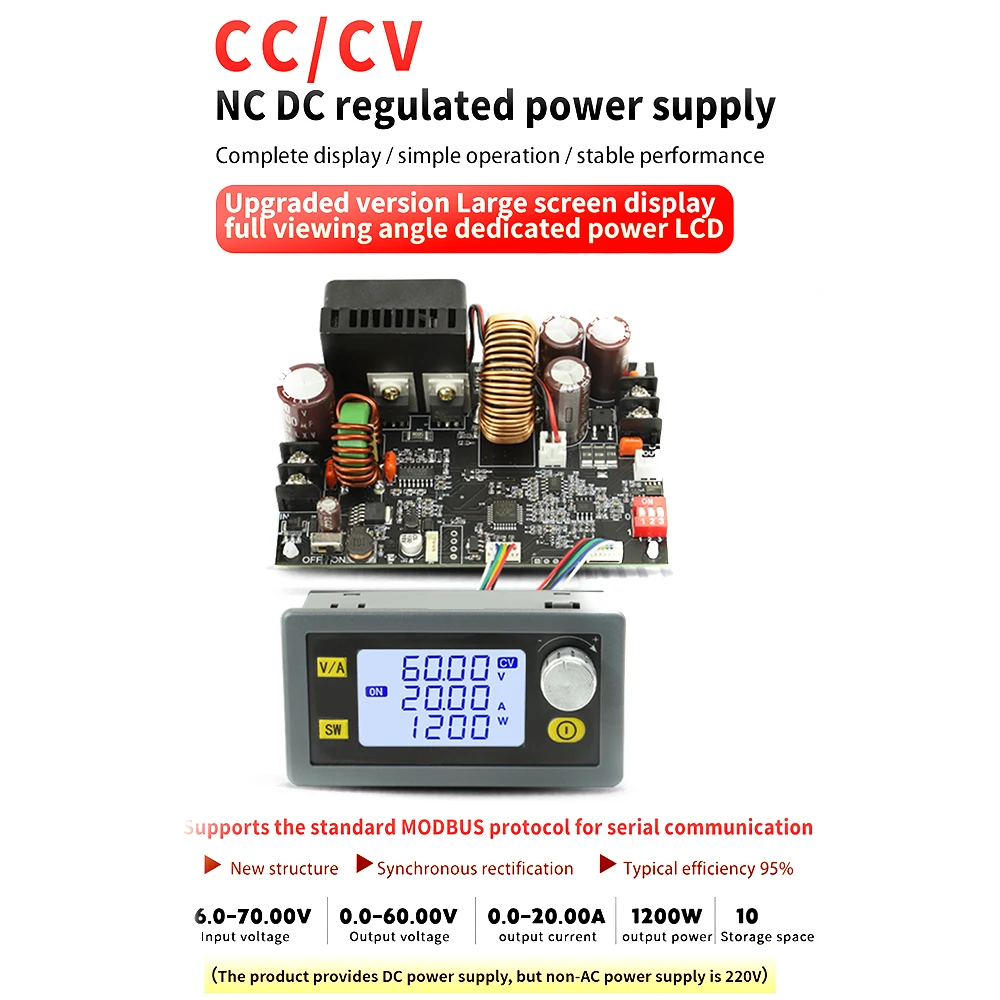

Specifications

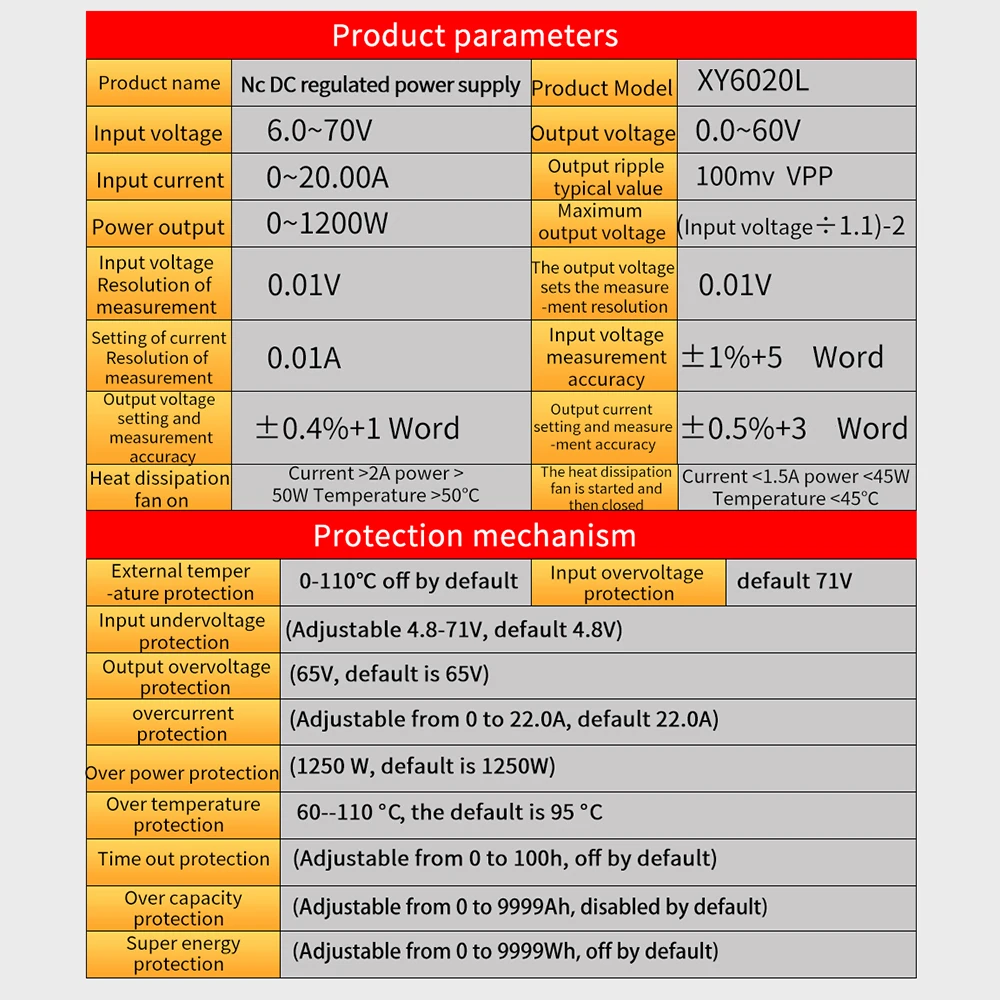

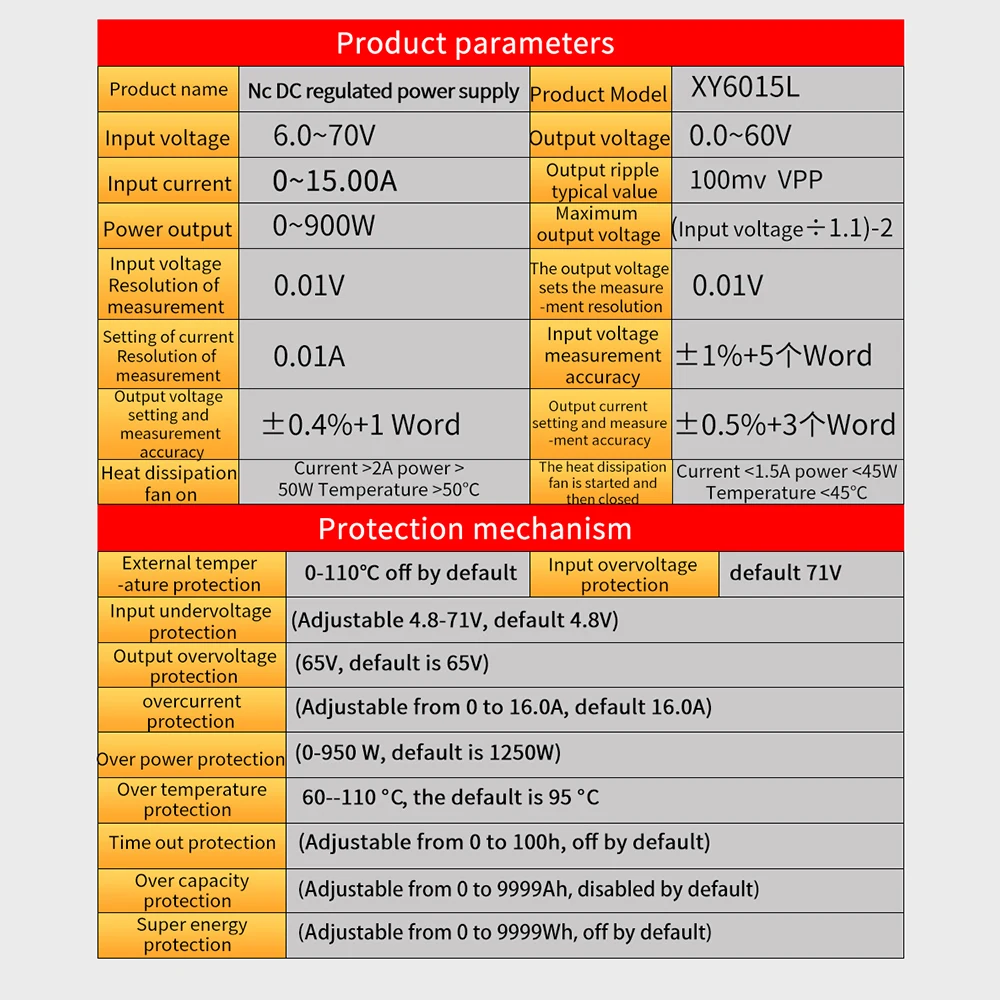

Model XY6015L XY6020L
Input voltage 6.0–70 V DC 6.0–70 V DC
Output voltage 0.0–60 V 0.0–60 V
Output current 0–15.00 A 0–20.00 A
Output power 0–900 W 0–1200 W
Maximum output voltage (Input voltage ÷ 1.1) − 2 V
Output ripple (typical) 100 mV p-p
Resolution Voltage 0.01 V, current 0.01 A
Accuracy Input voltage ±1% + 5 digits; output voltage ±0.4% + 1 digit; output current ±0.5% + 3 digits
Over-current protection Adjustable, default 16 A Adjustable 0–22 A, default 22 A
Over-power protection Default 950 W Default 1250 W
Input protection Over-voltage default 71 V; under-voltage adjustable 4.8–71 V (default 4.8 V)
Output over-voltage protection Up to 65 V (default 65 V)
Over-temperature protection 60–110 °C, default 95 °C; external temperature protection 0–110 °C (off by default)
Timeout / capacity / energy protection 0–100 h / 0–9999 Ah / 0–9999 Wh, off by default
Communication TTL serial, MODBUS protocol

Package Contents

  • Complete module: display/control head ×1, power base board ×1, connecting cable ×2

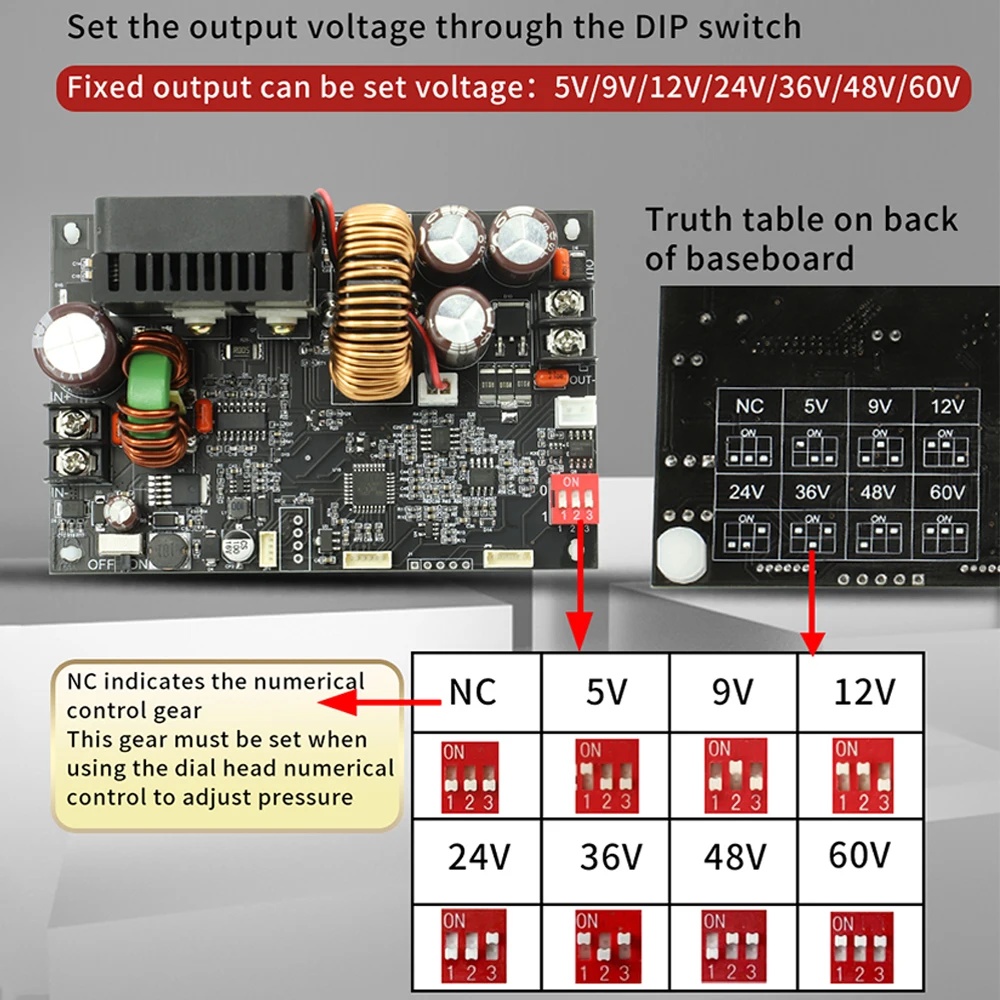

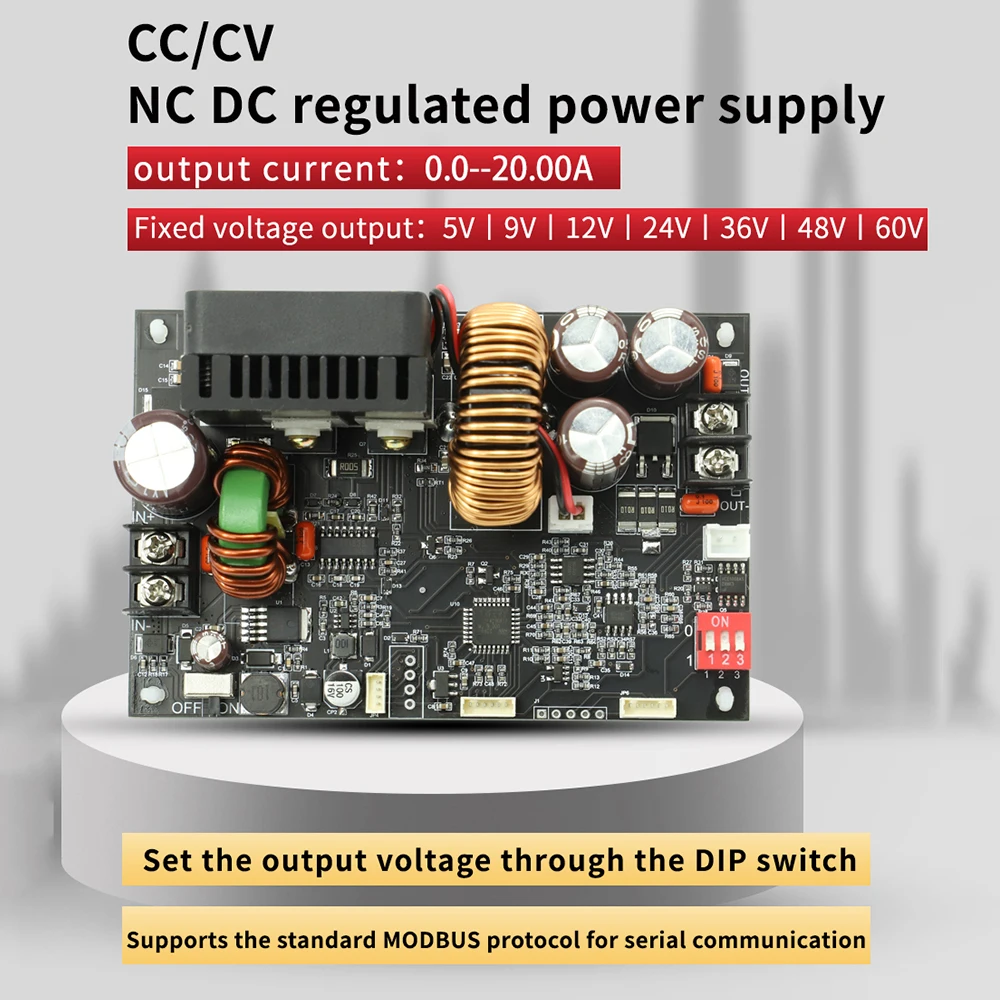

  • "Single board" option: power base board ×1 only (no display head)

Installation & Notes

  • The input supply voltage must be higher than the output you need – maximum output ≈ (Vin ÷ 1.1) − 2 V.
  • Use wires rated for the full output current and make sure input/output polarity is correct before power-up.
  • Leave space around the heatsink and fan for airflow; derate output at high ambient temperature.

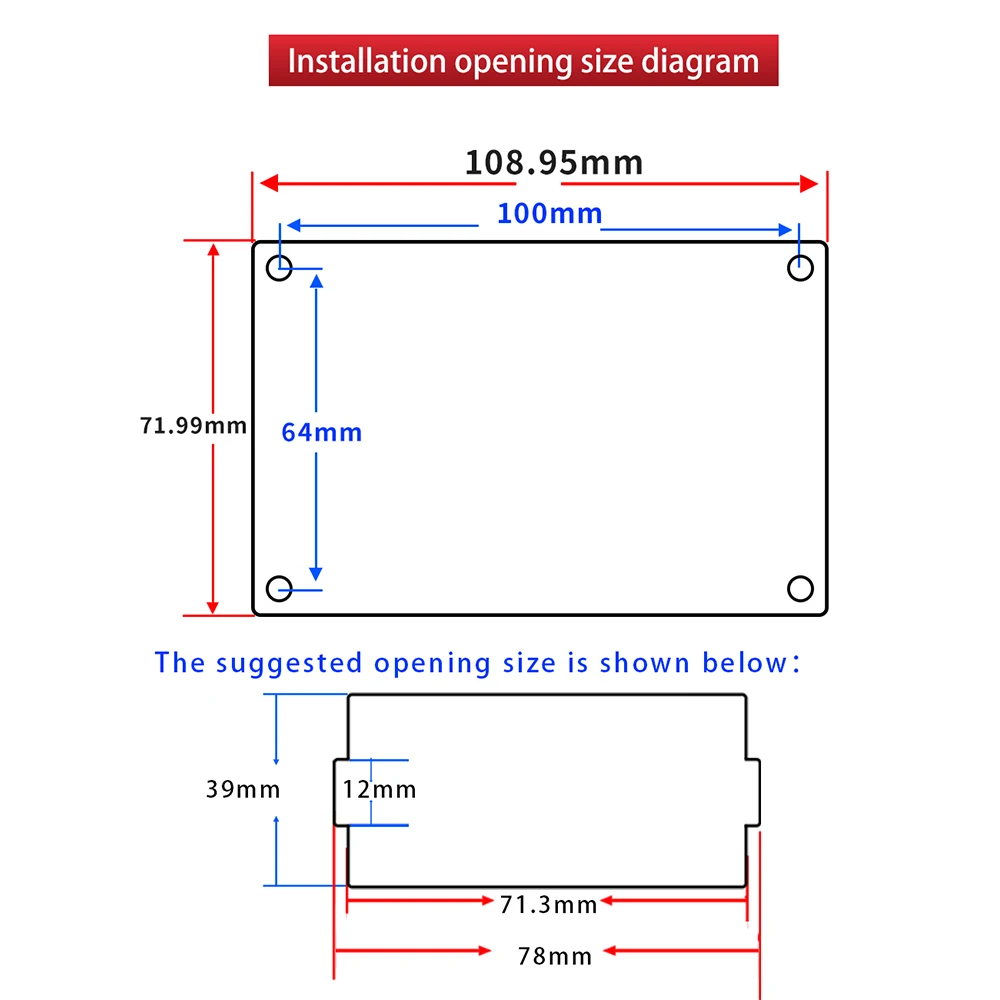

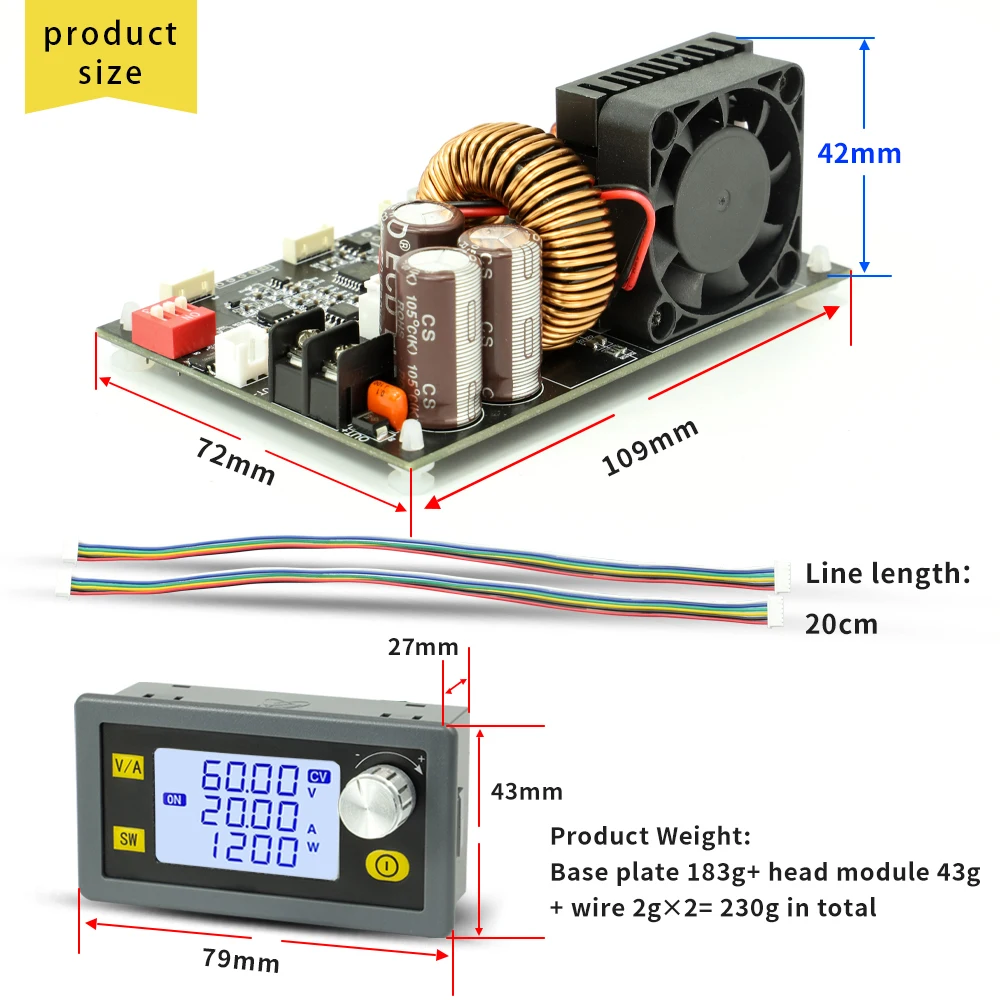

  • For panel mounting, follow the cut-out size shown in the installation drawing below.

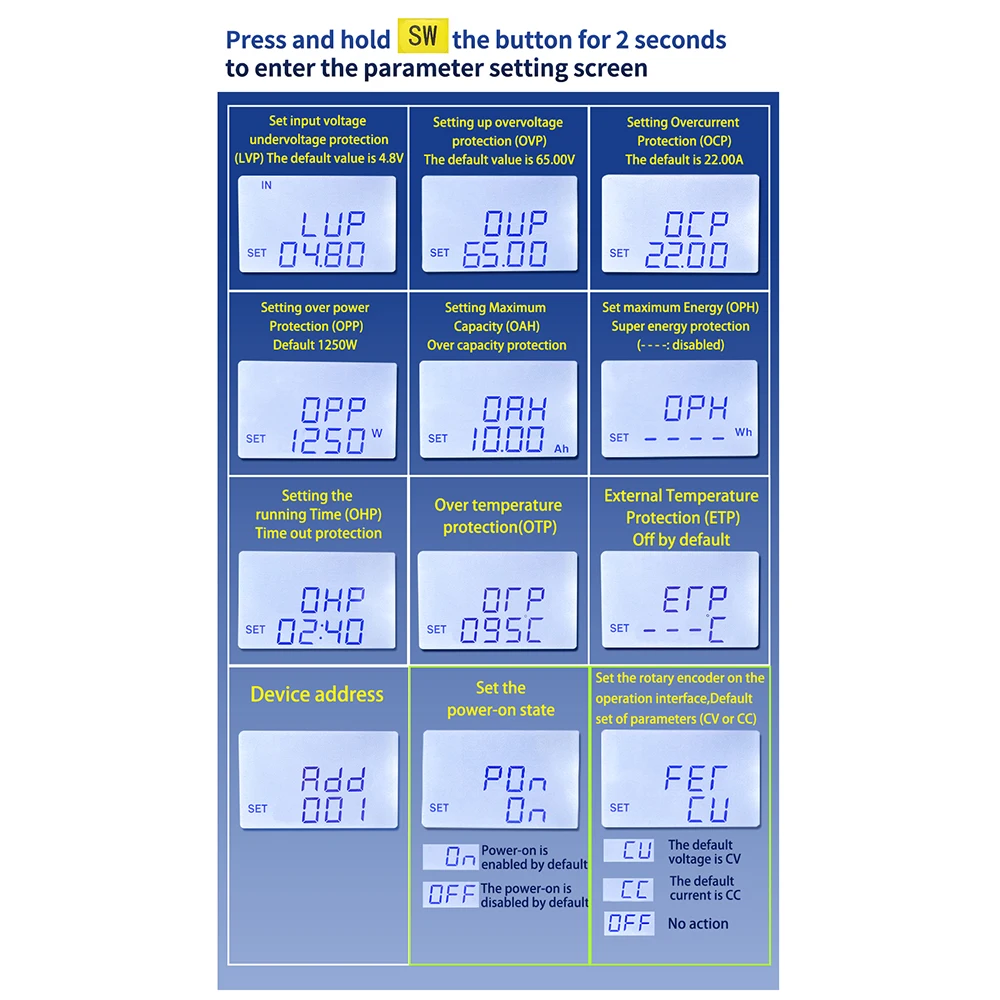

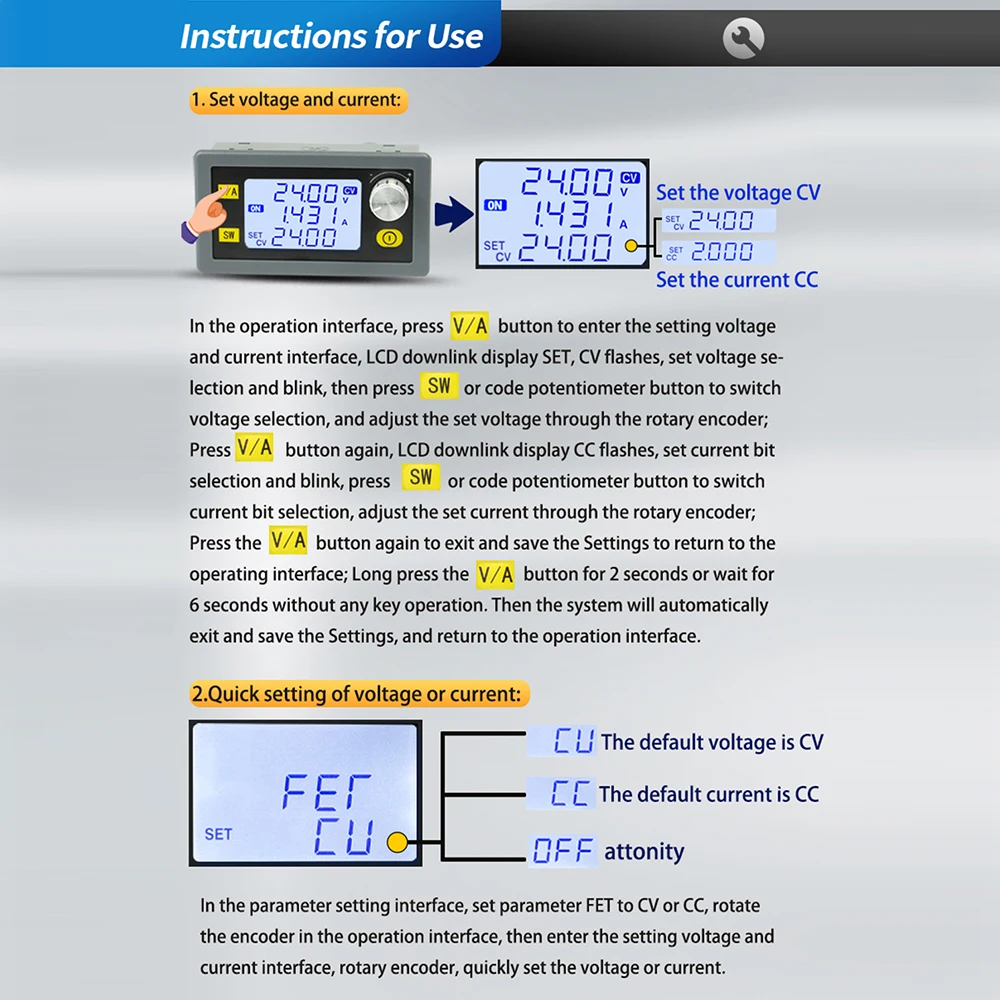

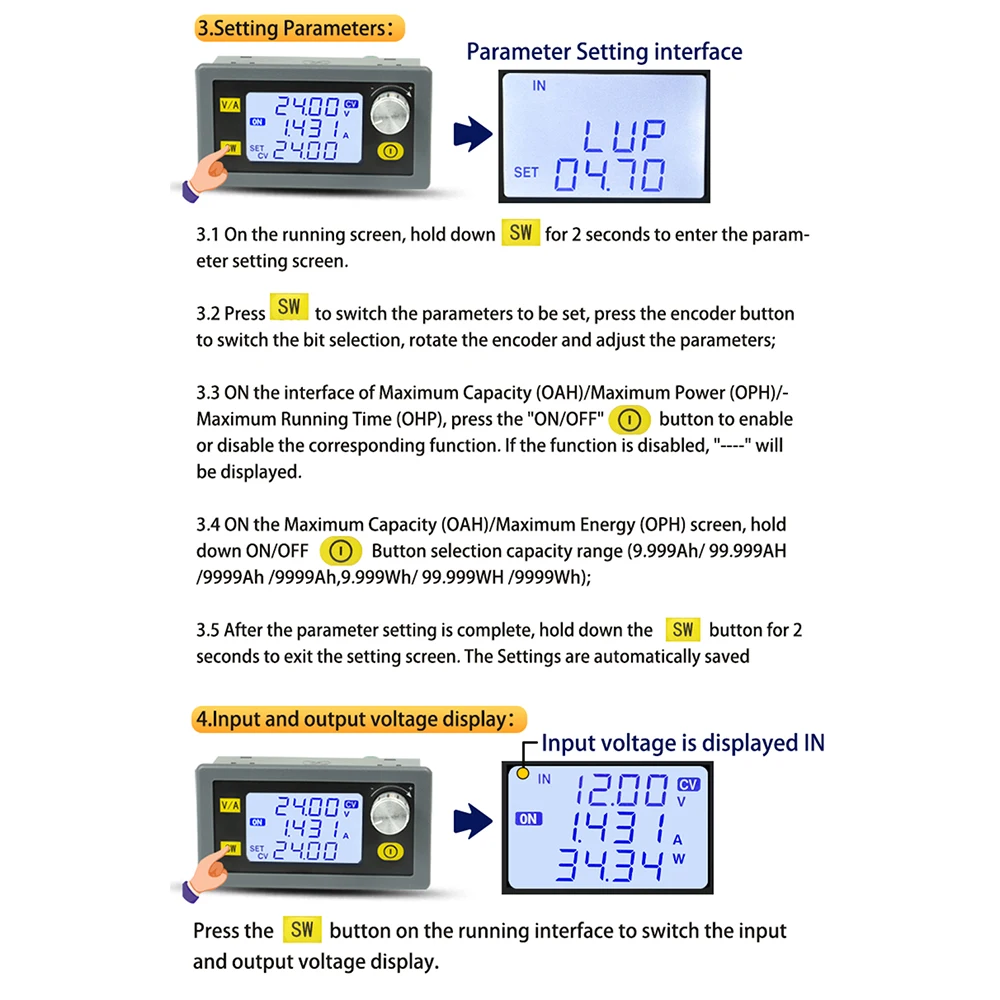

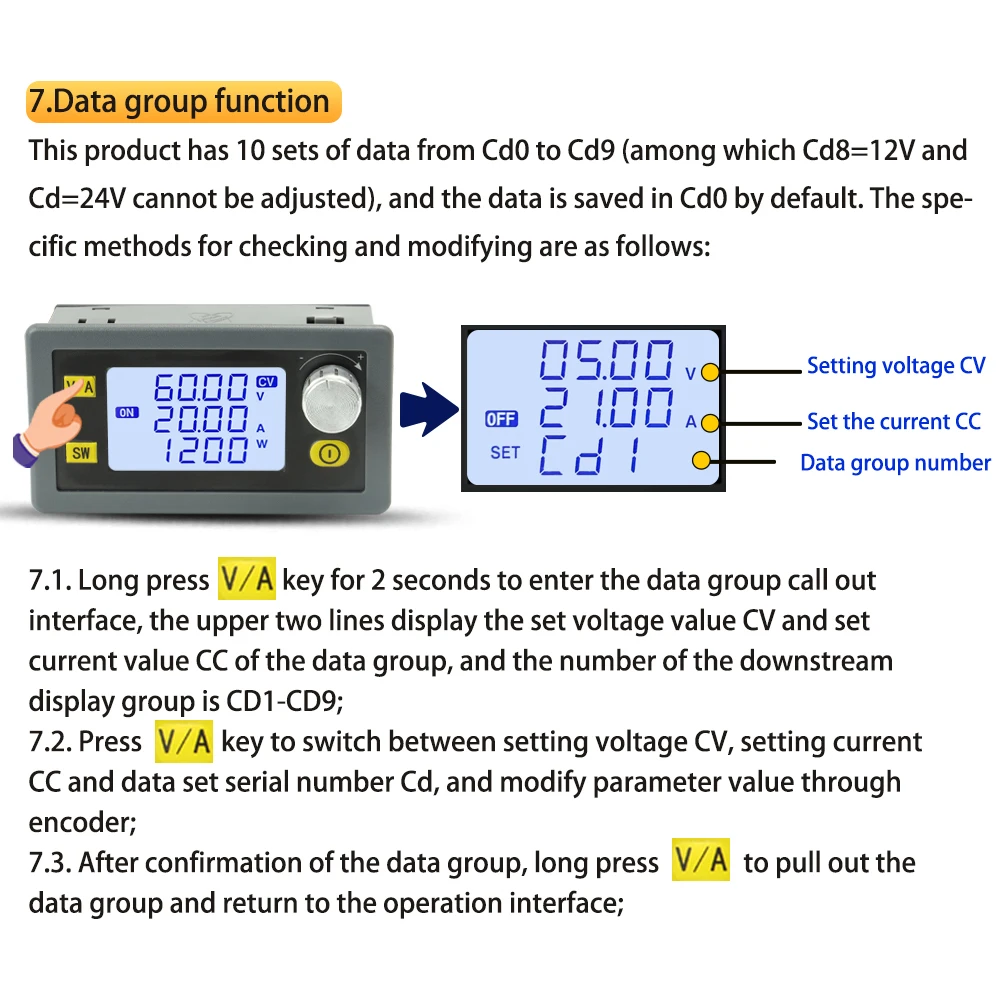

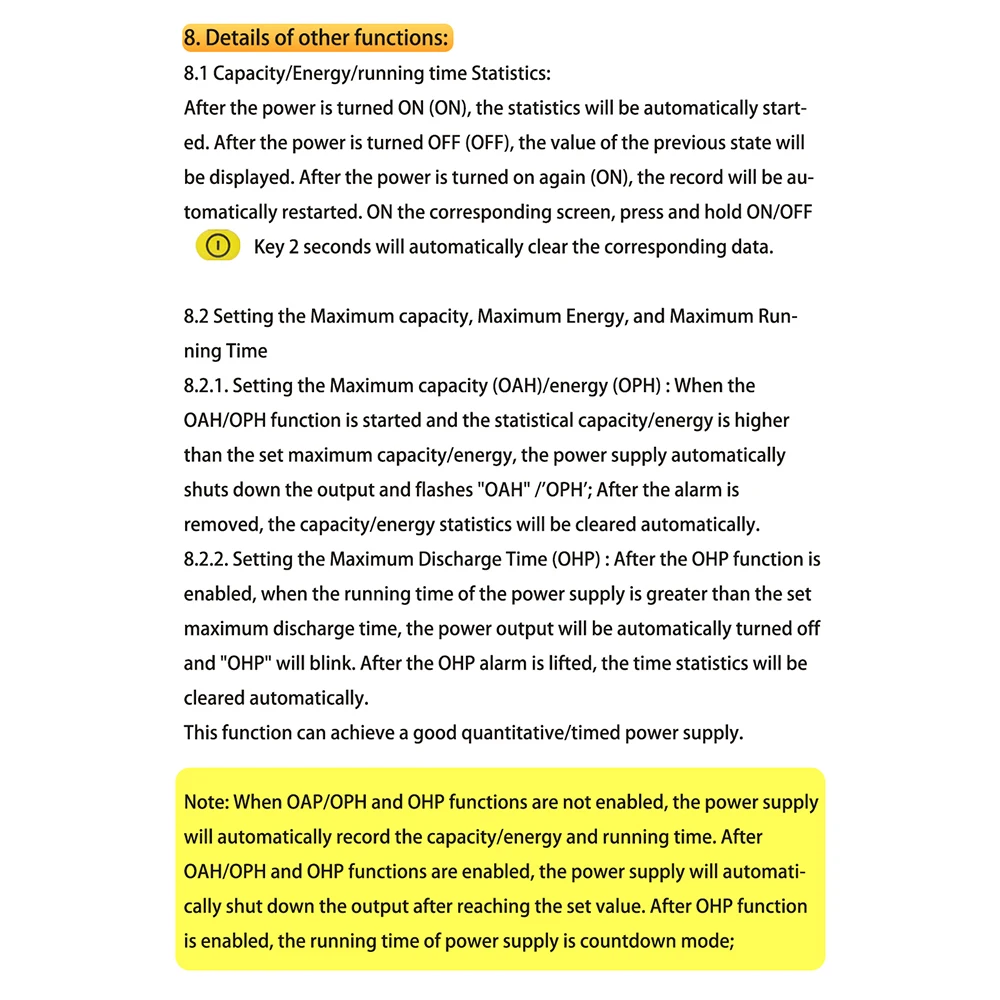

  • The parameter-setting and data-group operations are shown in the instruction images below.
