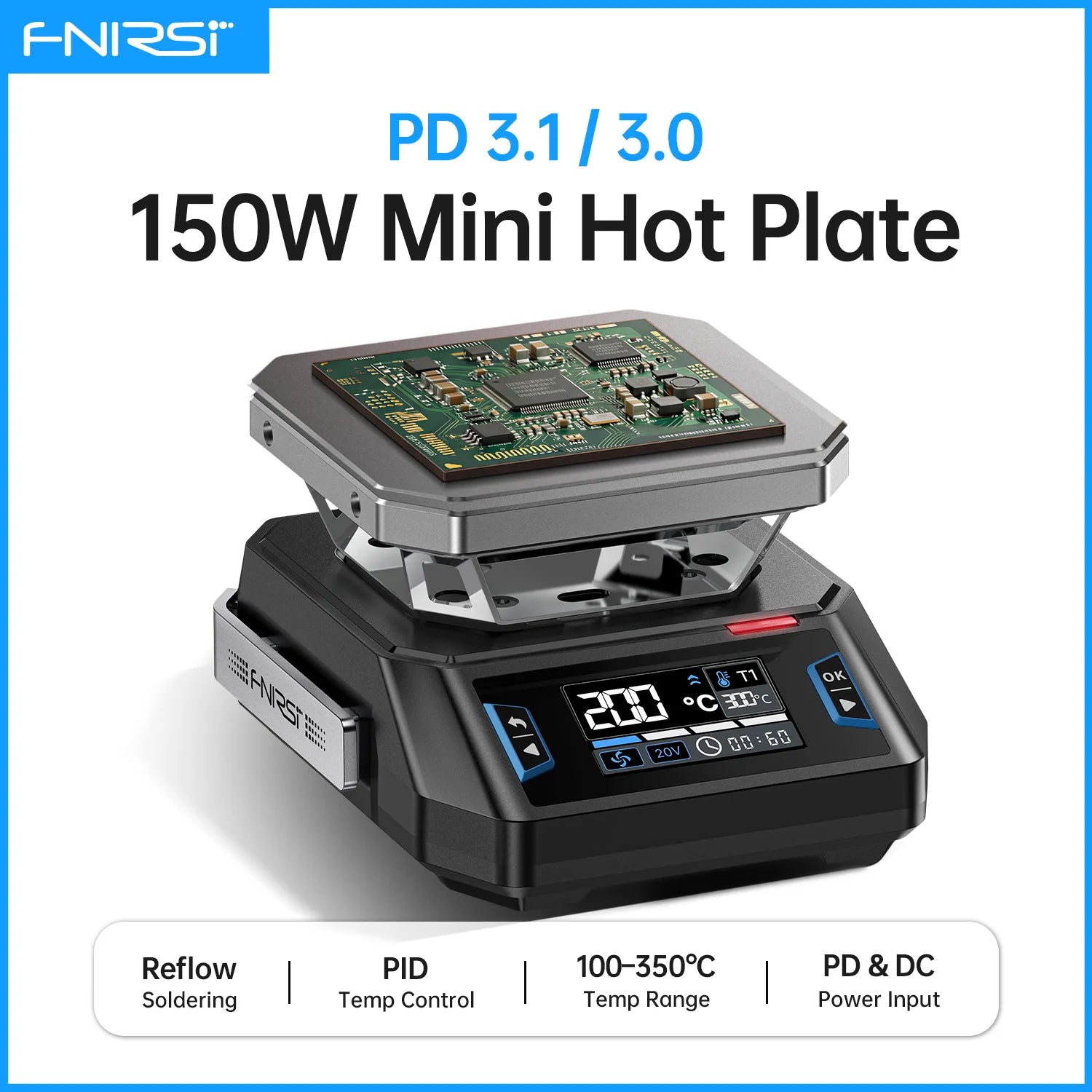

FNIRSI HT-P1 Mini Hot Plate 150W PD3.1/3.0 Type-C Constant Temperature Preheater Station for PCB SMD Electronics Repair Tool

Prezzo di vendita
$59.30
Prezzo di listino
$74.13
Risparmi
$14.83 (21%)

I prezzi sono comprensivi di IVA e di eventuali dazi doganali.

Package:HT-P1A Standard set
Delivery estimate Estimated arrival is calculated for your delivery market.
Ships in 1-3 business days. Remote areas or special items may take longer.

Overview

The FNIRSI HT-P1 is a compact mini hot plate for PCB preheating, SMD soldering, component removal, and electronics repair work. It supports constant-temperature heating and staged reflow operation, with PID control for stable heating from 100°C to 350°C.

FNIRSI HT-P1 mini hot plate 150W PCB preheater main kit
FNIRSI HT-P1 mini hot plate overview

Key Features

  • Up to 150W heating power: Adjustable power limit from 30W to 150W for different repair and preheating tasks.
  • PID temperature control: Designed for stable, even heating with about ±3°C temperature stability.
  • Two working modes: Constant Temperature mode for steady heating and Reflow Soldering mode for staged soldering profiles.
  • Flexible power input: Supports DC 12V-28V input and USB Type-C PD input. HT-P1A supports PD 2.0 / PD 3.0; HT-P1B supports PD 2.0 / PD 3.0 / PD 3.1.

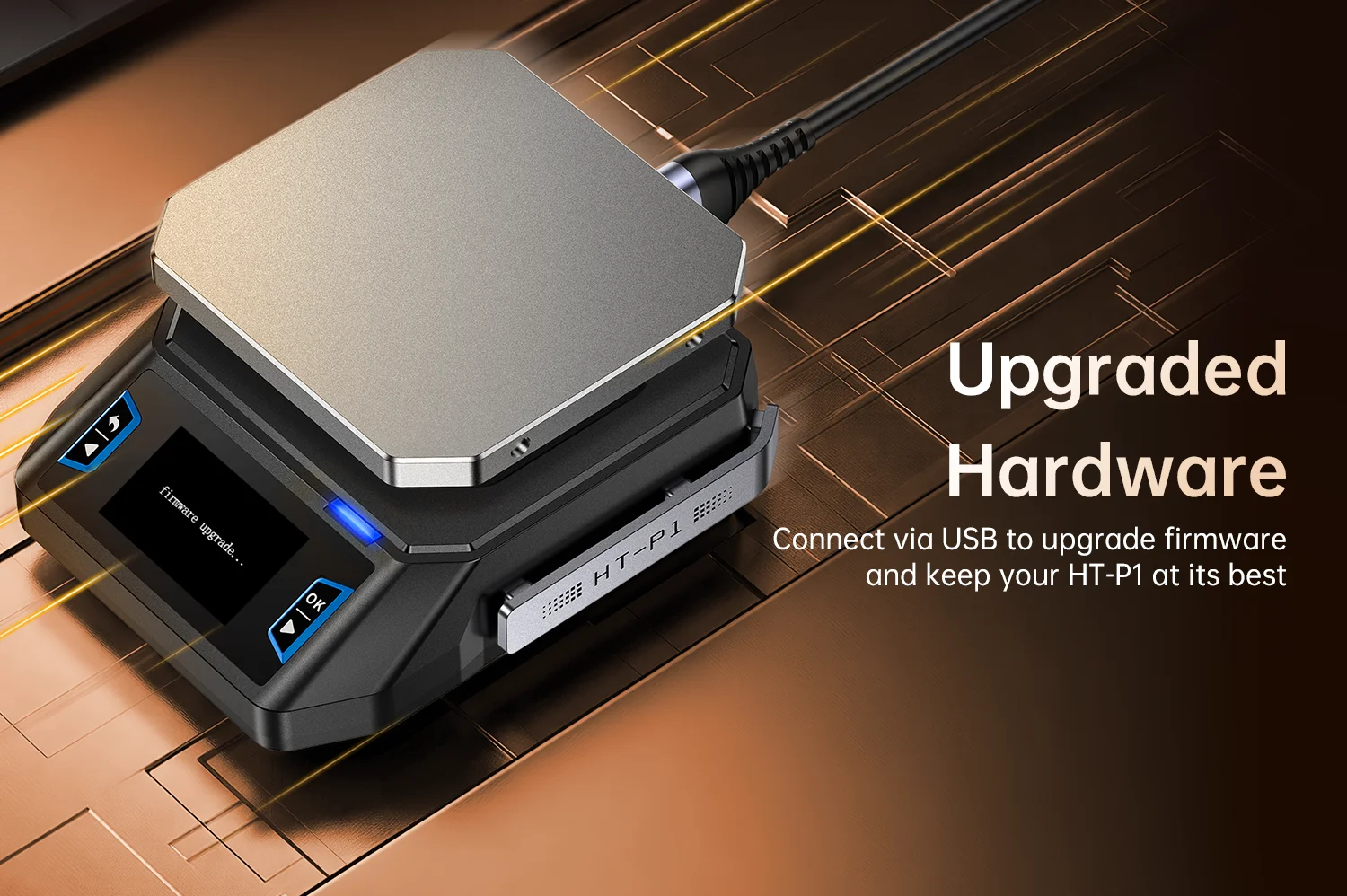

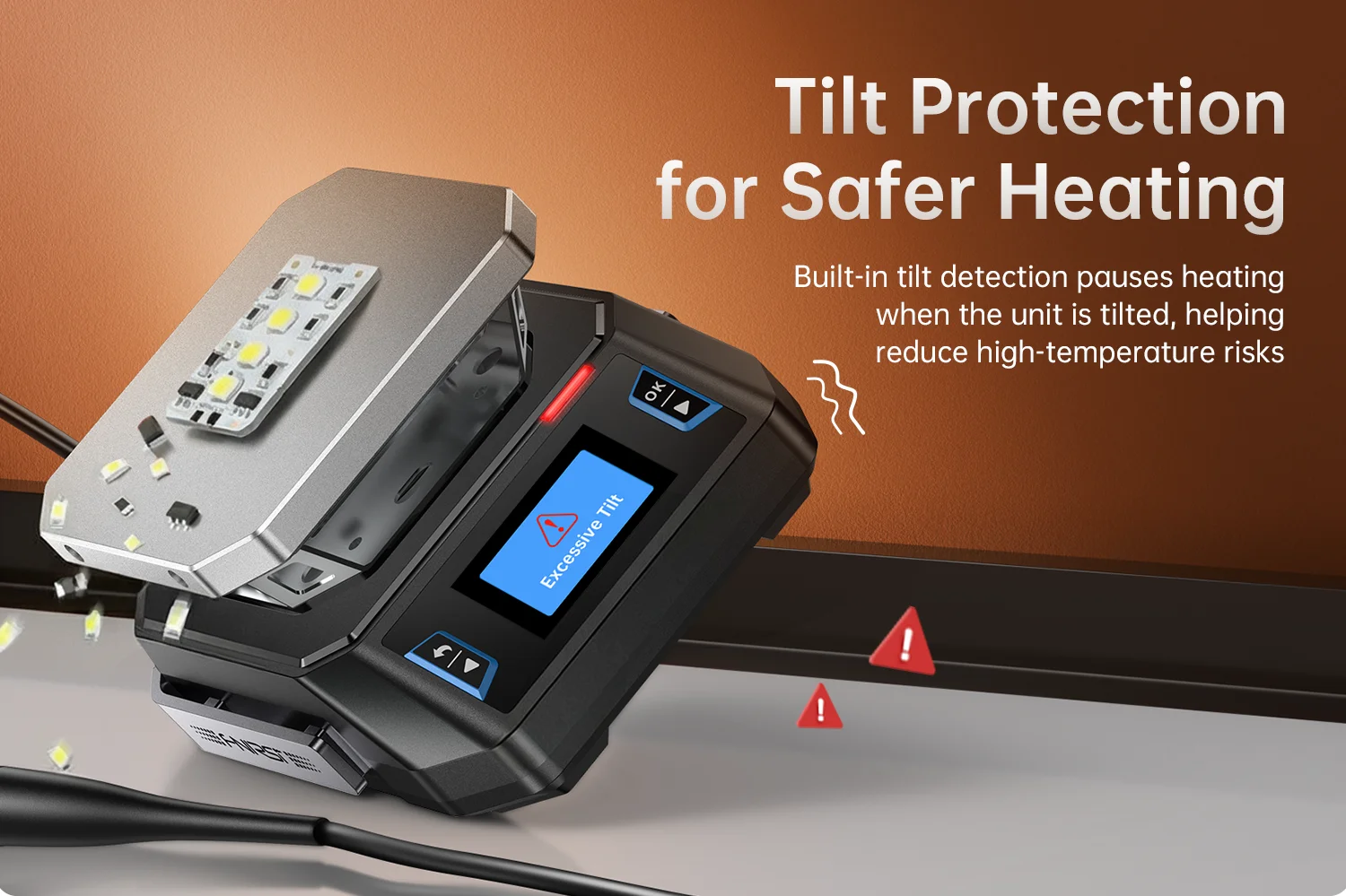

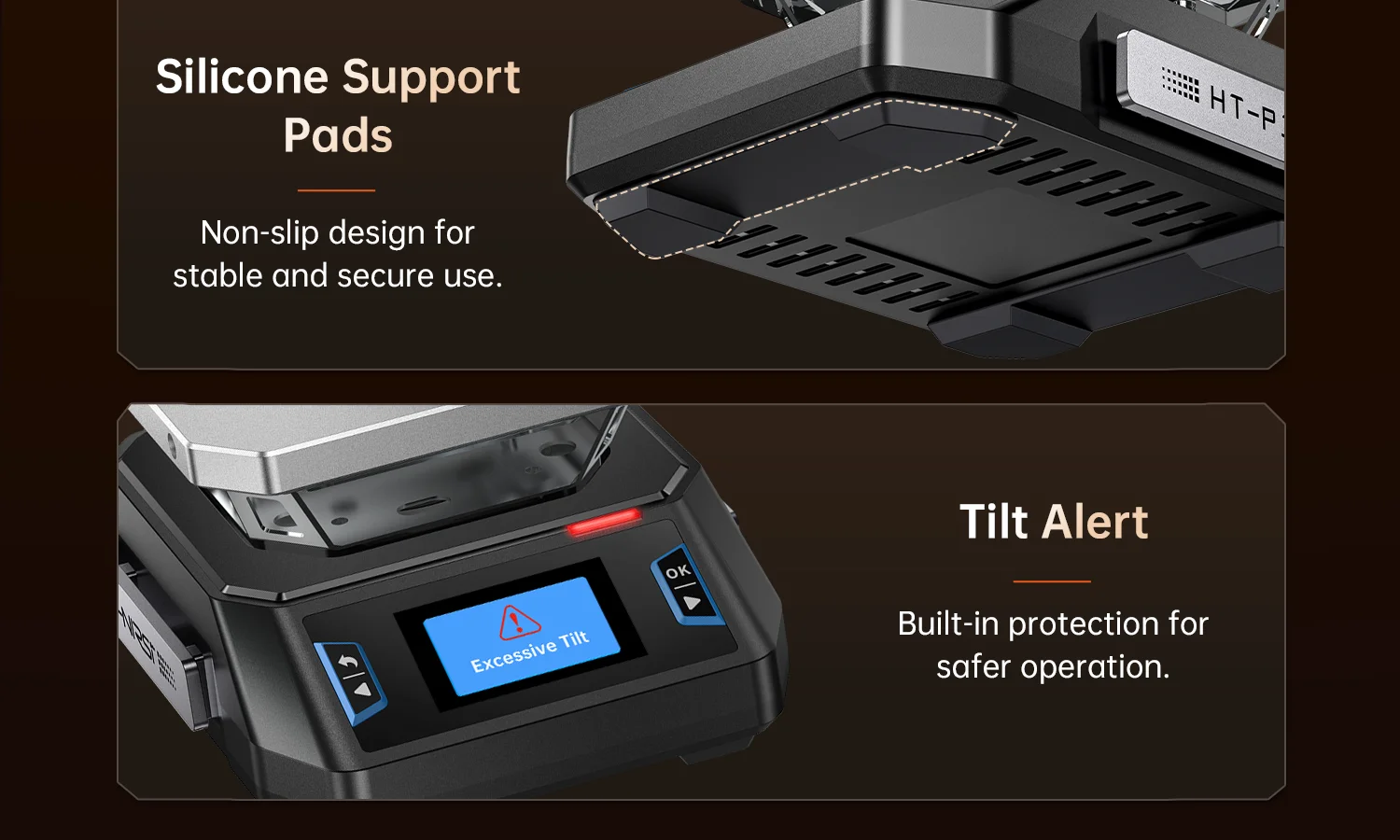

  • Safety functions: Tilt detection, over-temperature protection, and firmware upgrade support help make bench use more controlled.

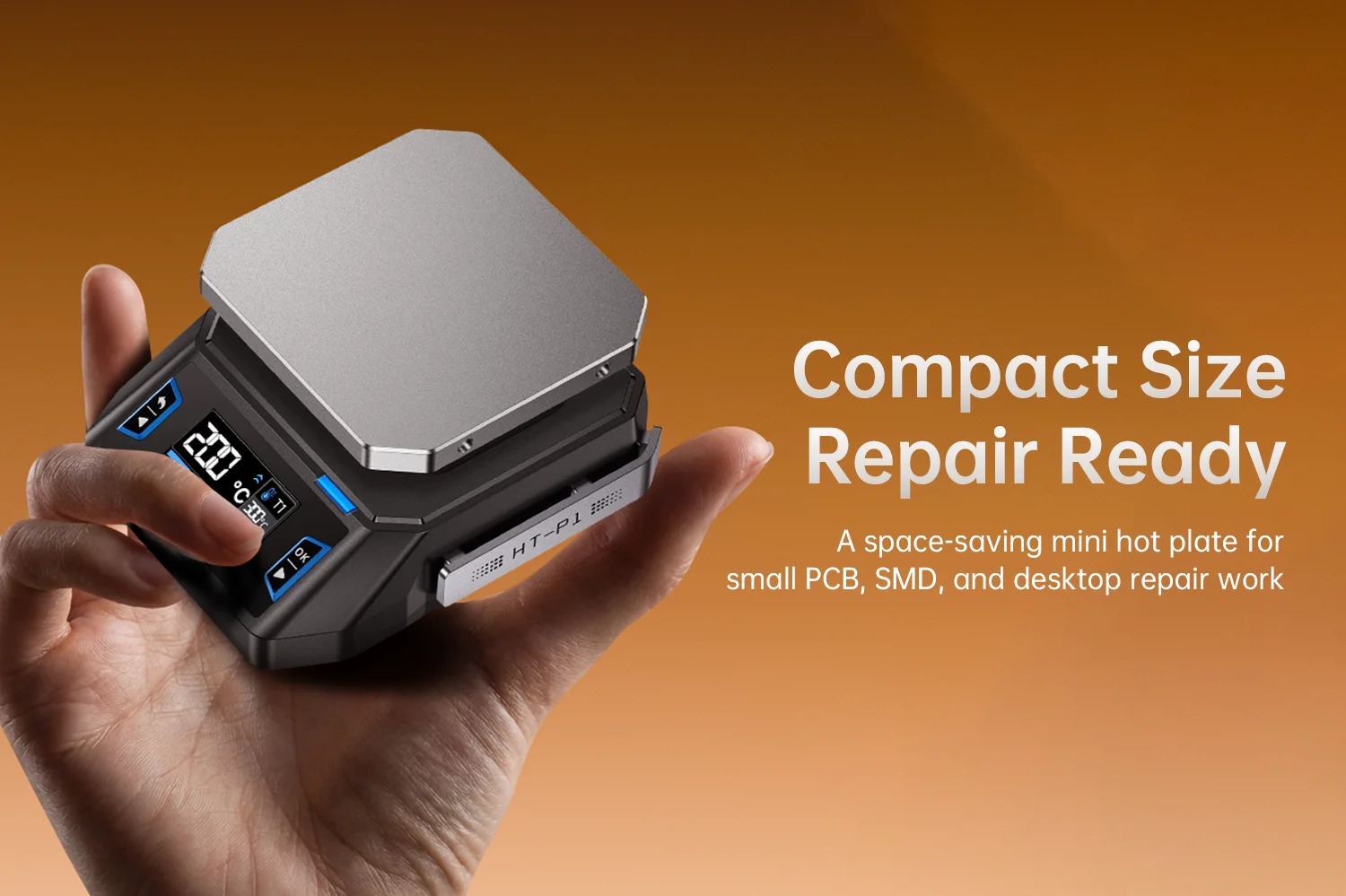

  • Compact detachable design: Small 68.8 x 81.8 x 44.5 mm body with a detachable heating platform for cleaning and maintenance.

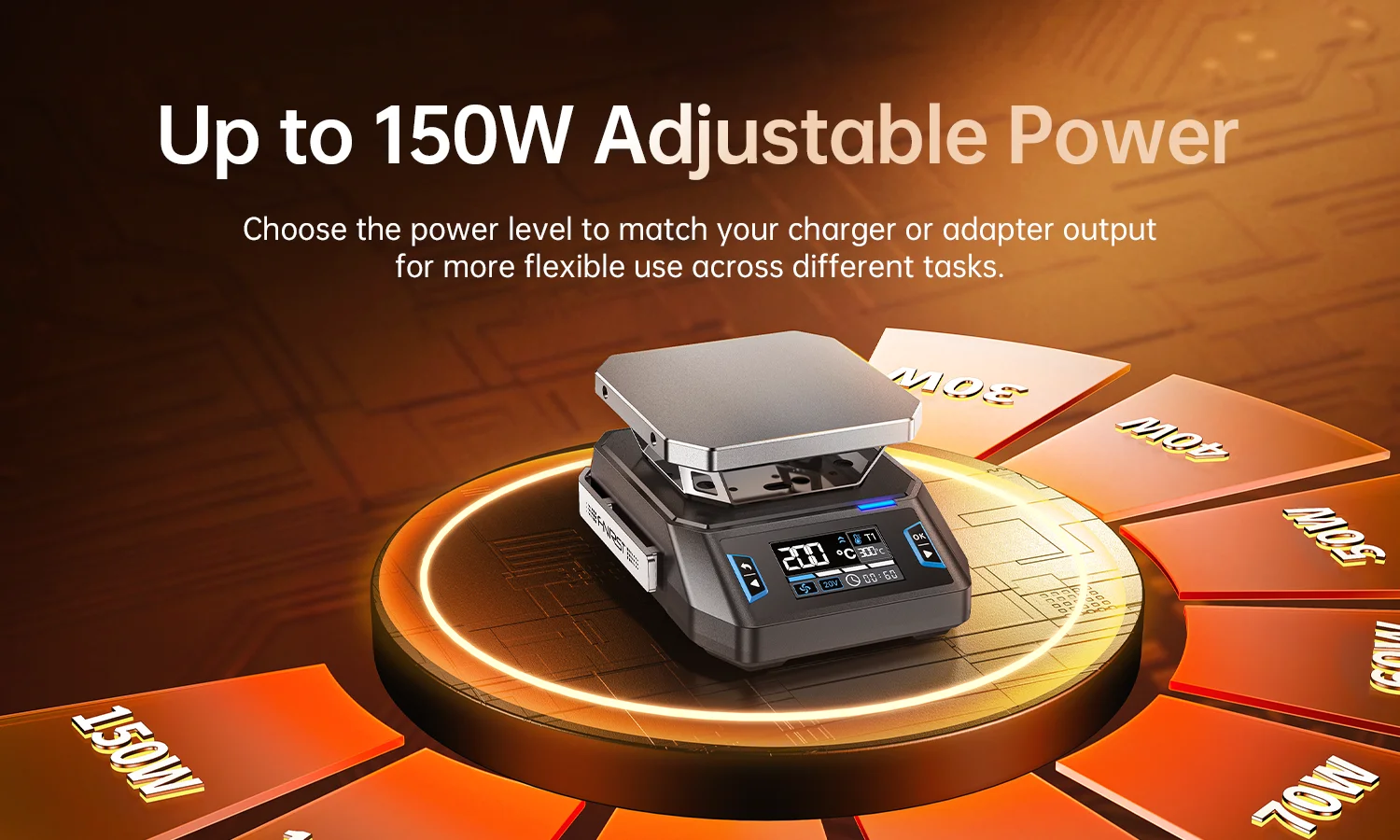

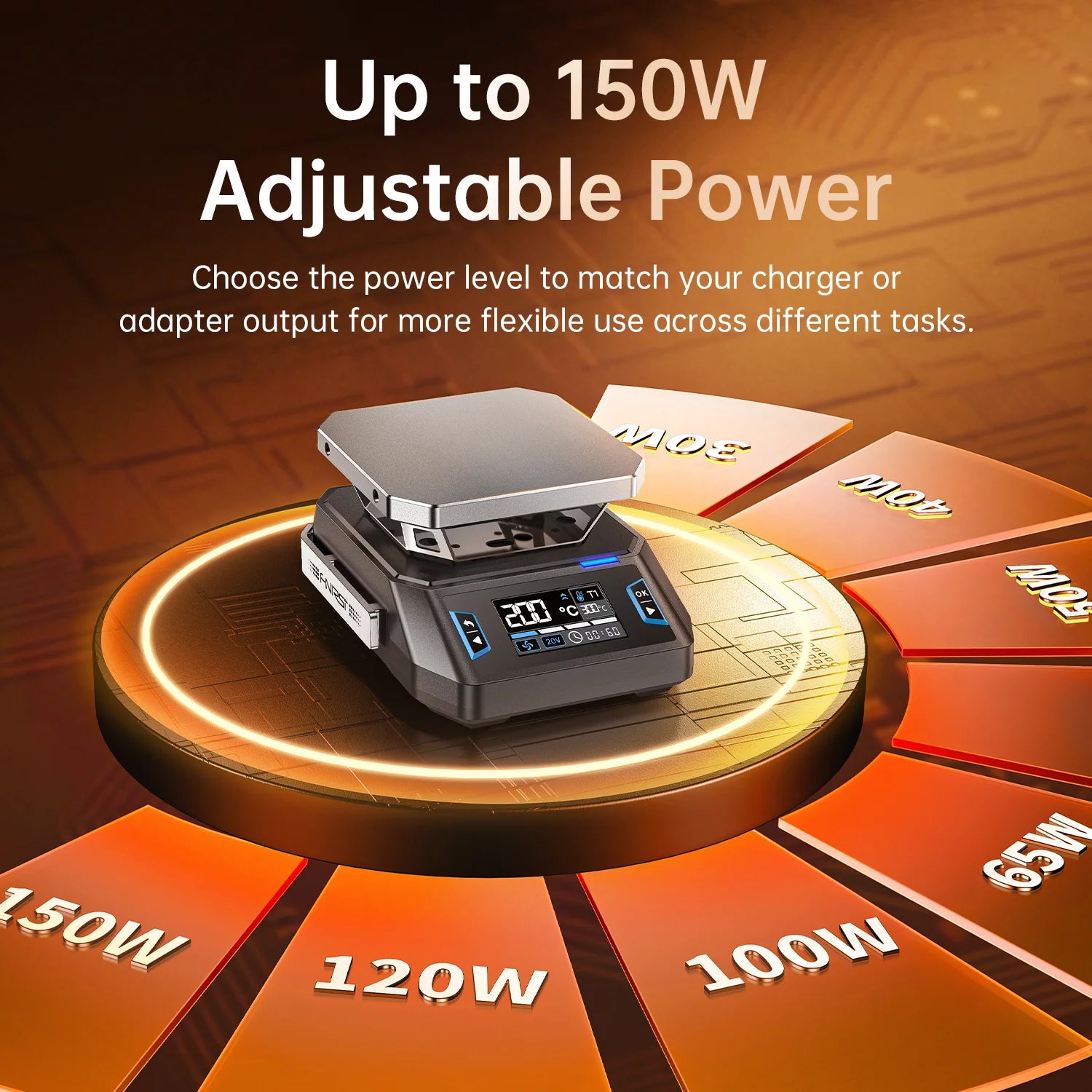

FNIRSI HT-P1 adjustable 150W heating power feature image

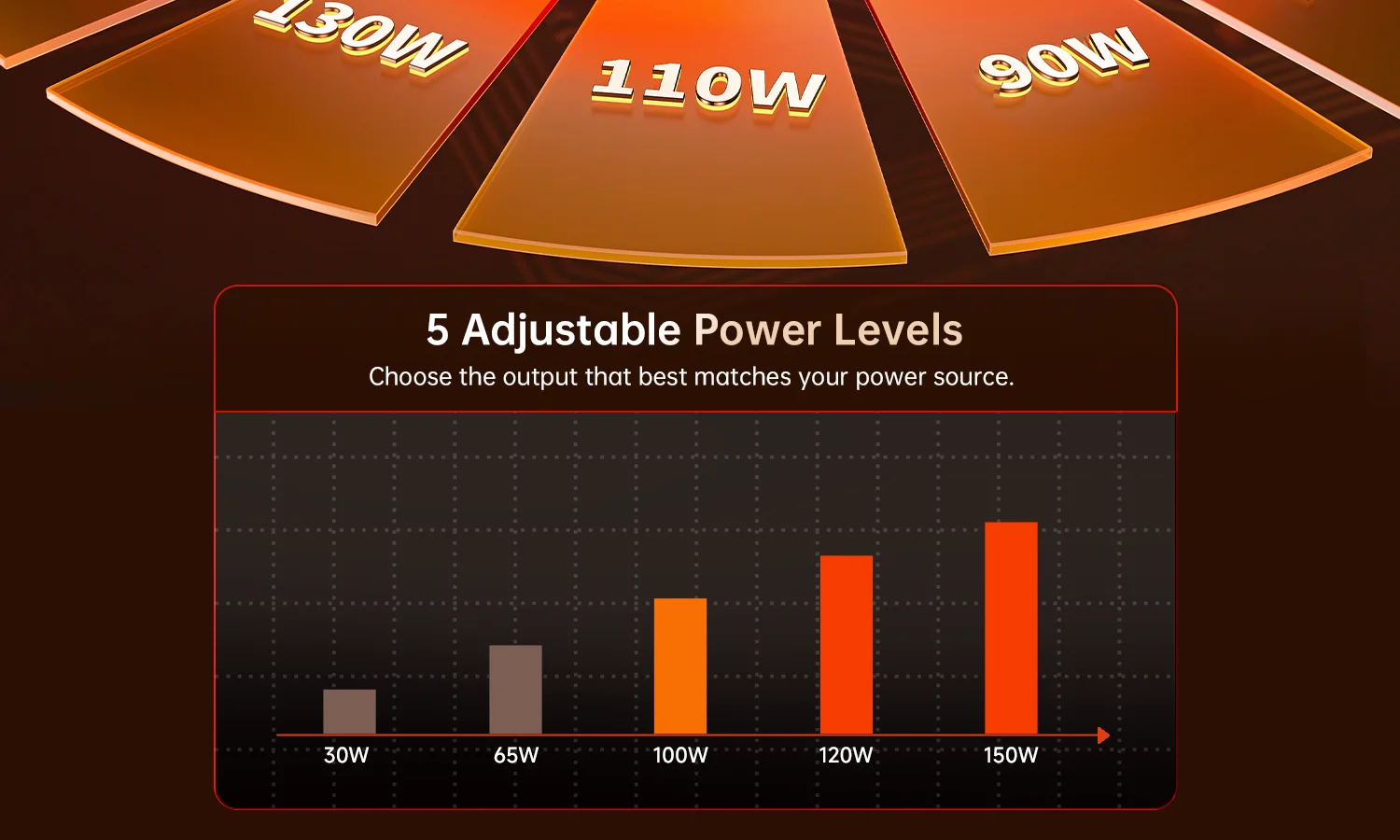

Adjustable heating power up to 150W

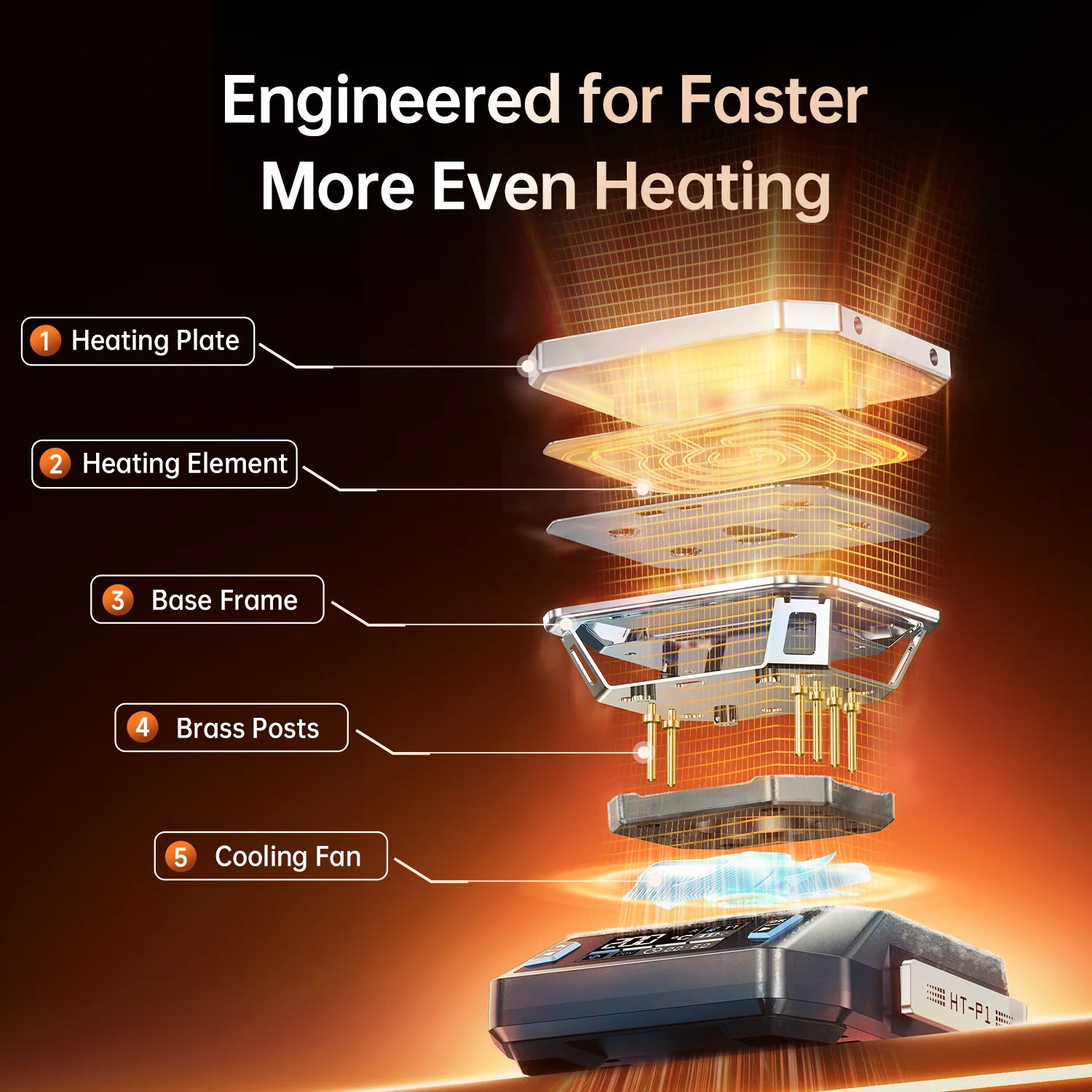

FNIRSI HT-P1 detachable heating platform and internal structure

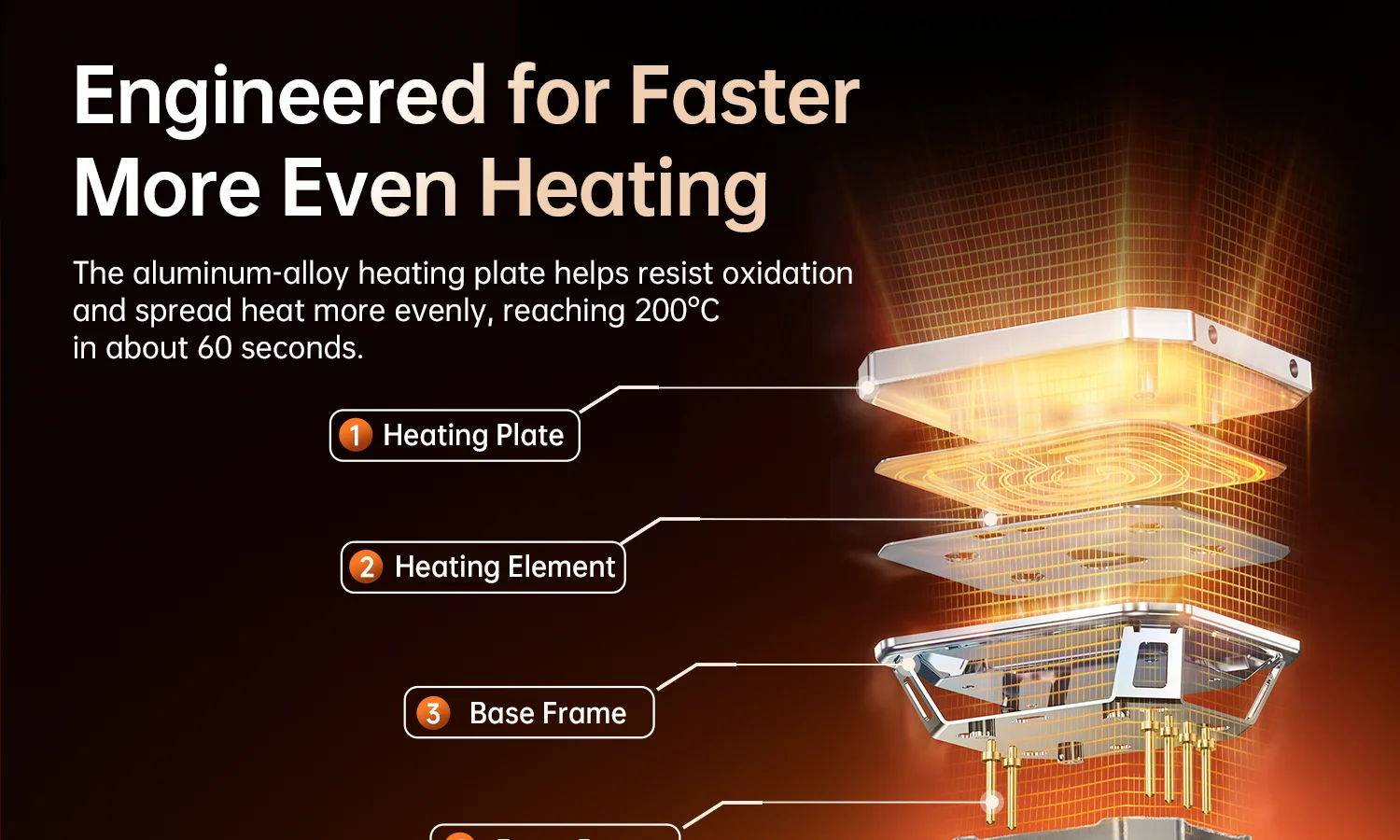

Detachable heating platform and internal structure

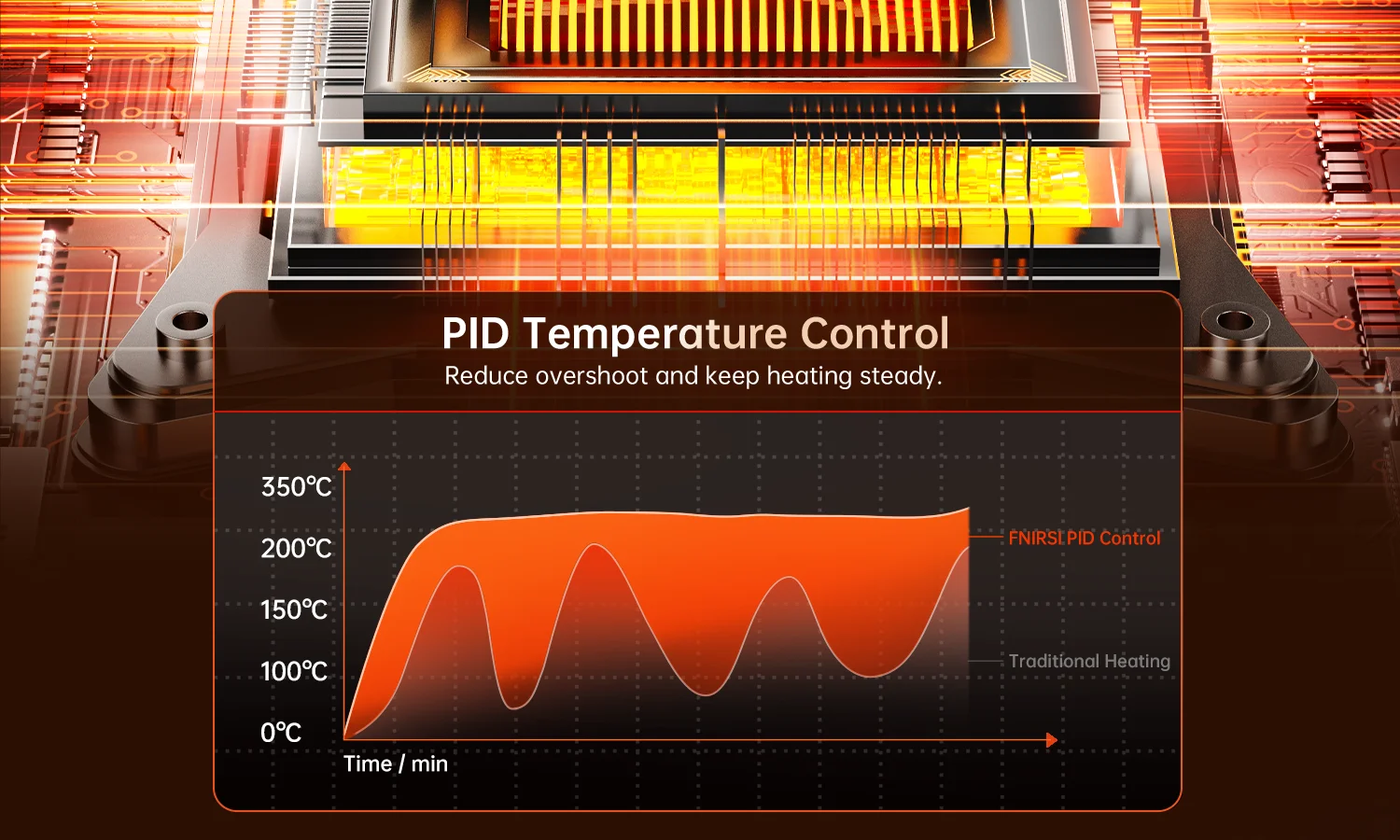

FNIRSI HT-P1 PID temperature control and color display

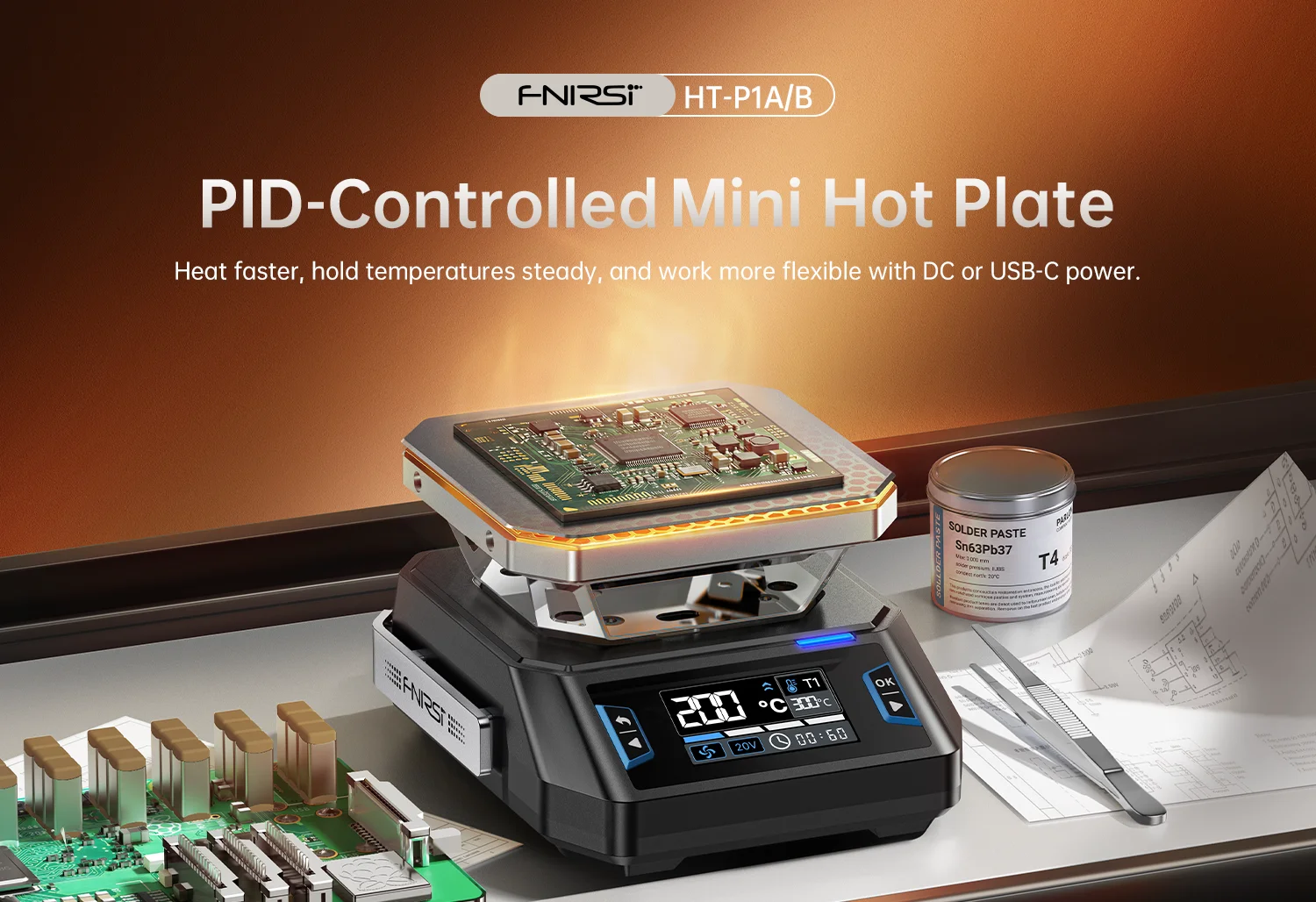

PID temperature control and color display

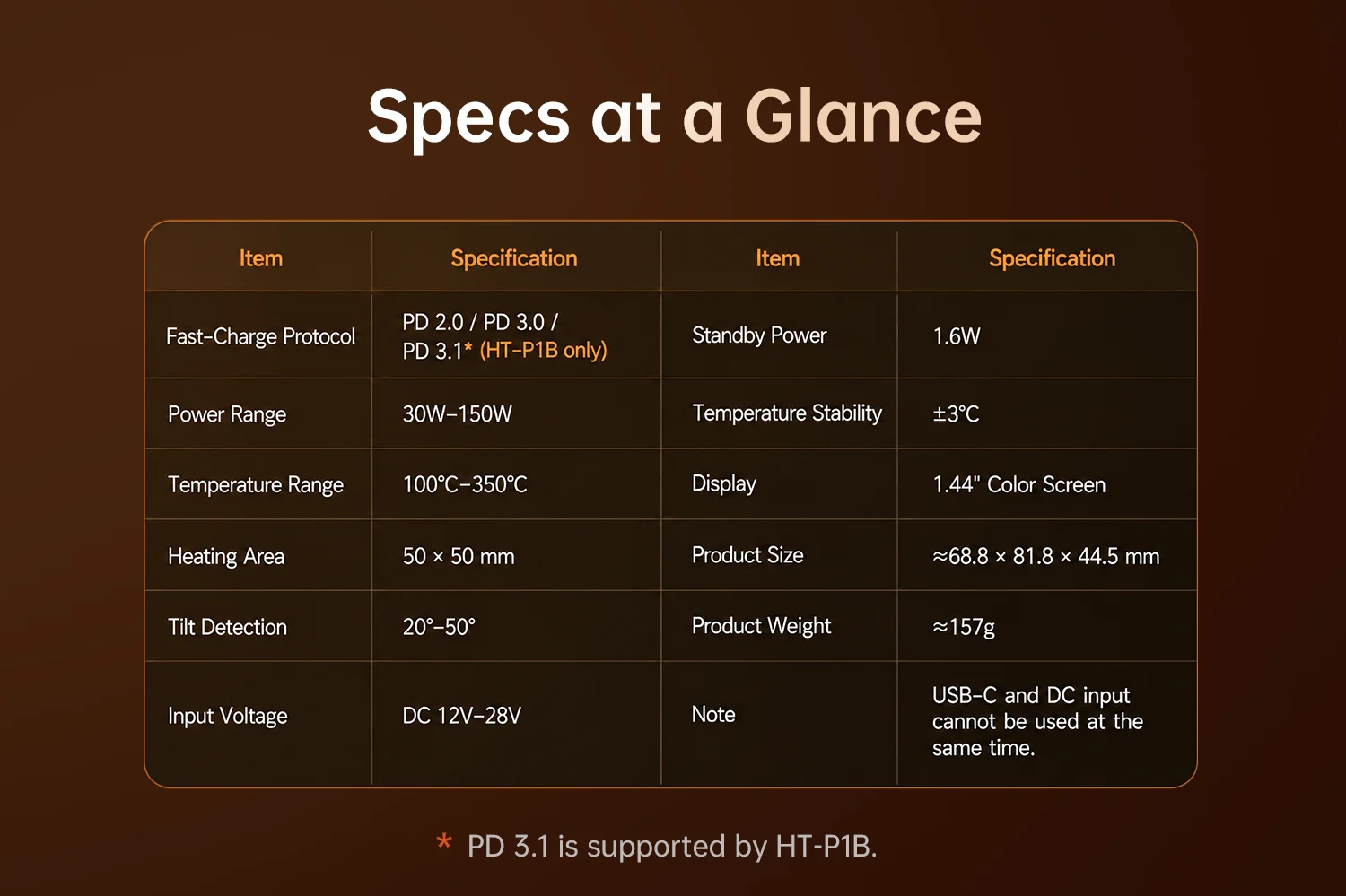

Specifications

  • Model: HT-P1A / HT-P1B
  • Power input: DC 12V-28V / USB Type-C PD
  • Fast charging protocol: HT-P1A: PD 2.0 / PD 3.0; HT-P1B: PD 2.0 / PD 3.0 / PD 3.1
  • Power limit: 30W-150W
  • Maximum power: 150W
  • Temperature range: 100°C-350°C
  • Temperature stability: about ±3°C
  • Heating area: 50 x 50 mm
  • Display: 1.44-inch color screen
  • Working modes: Constant Temperature / Reflow Soldering
  • Tilt detection angle: 20°-50°
  • Standby power: 1.6W
  • Product size: 68.8 x 81.8 x 44.5 mm
  • Product weight: about 157 g
  • Typical applications: PCB repair, SMD soldering, component heating, BGA rework, electronics maintenance

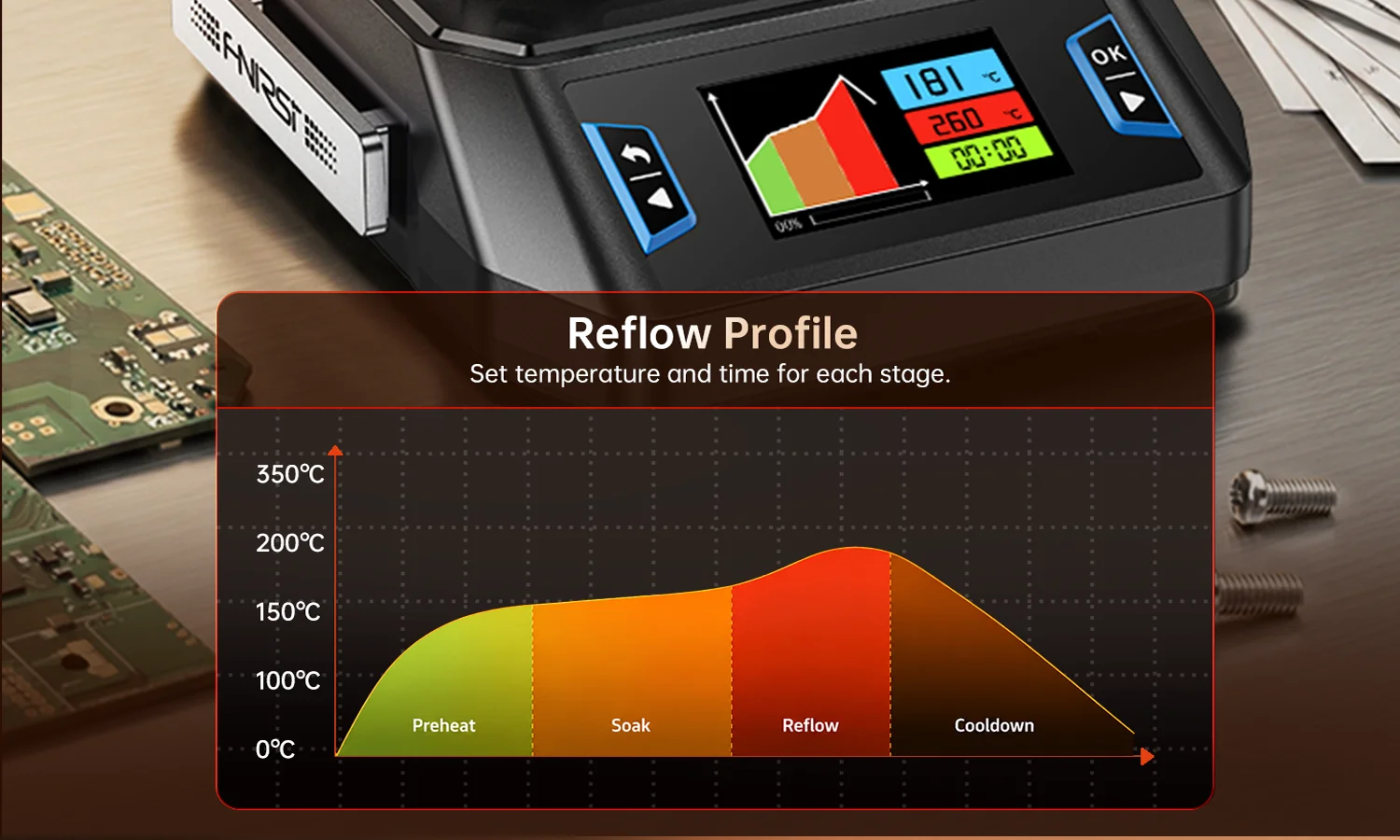

FNIRSI HT-P1 staged reflow soldering mode for PCB repair

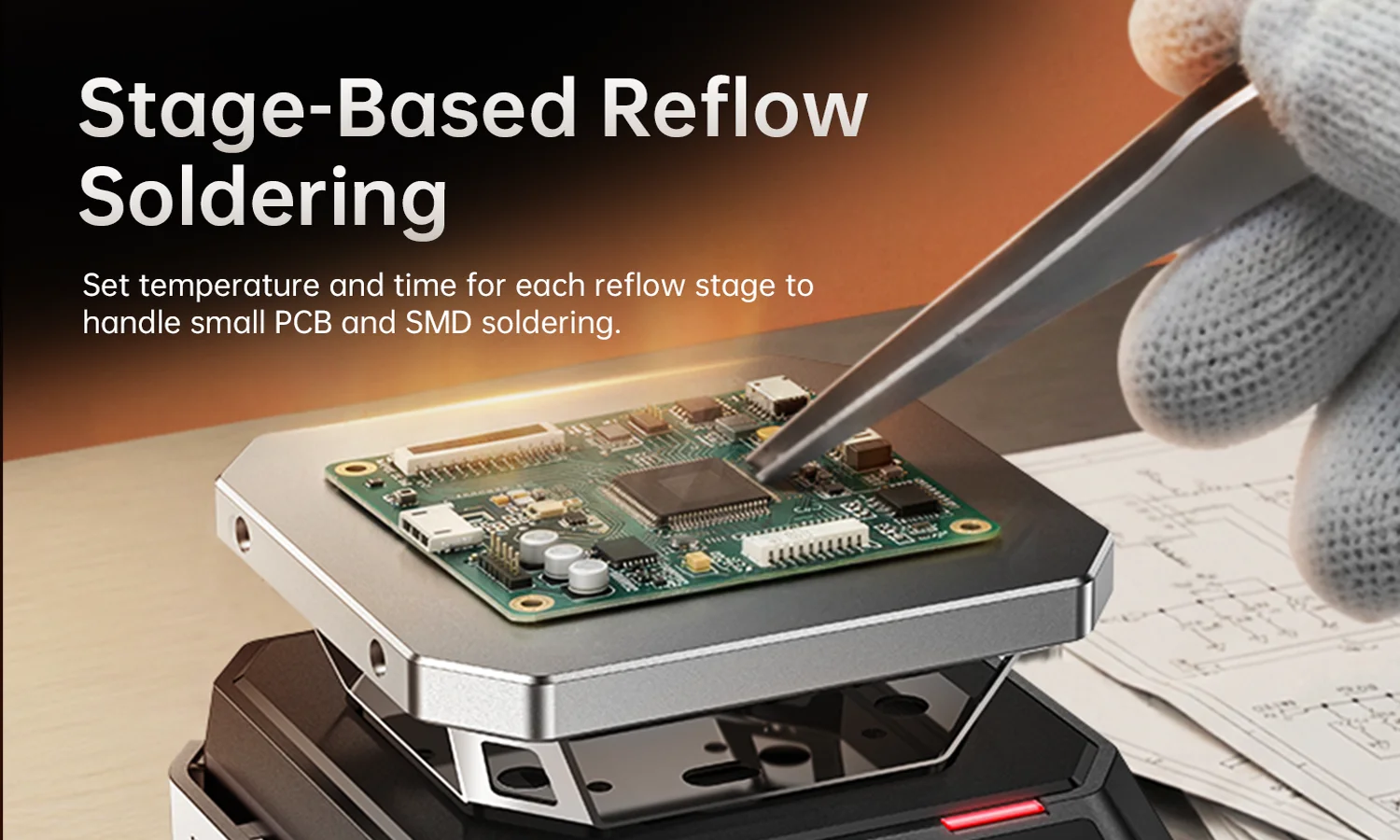

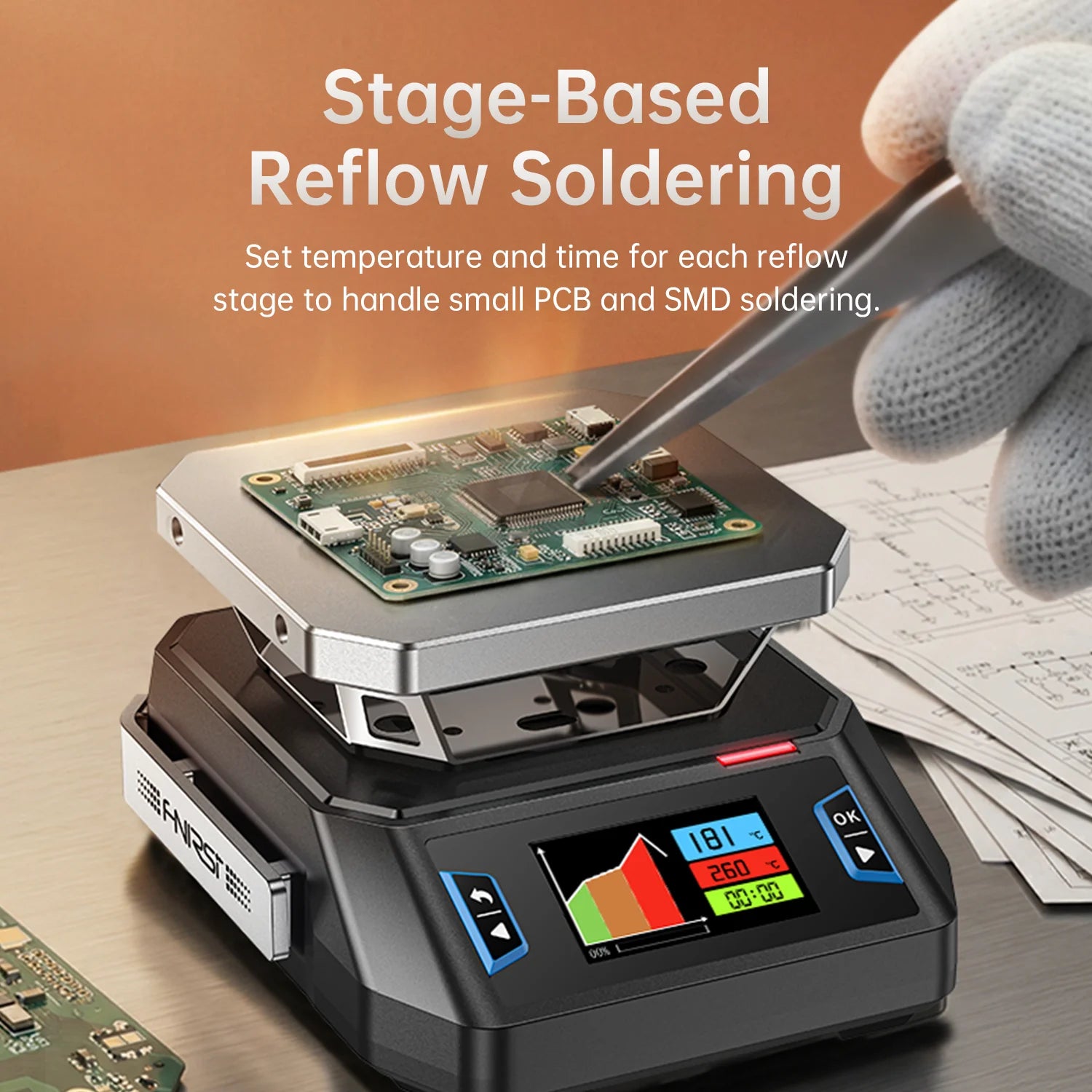

Staged reflow soldering mode for PCB repair

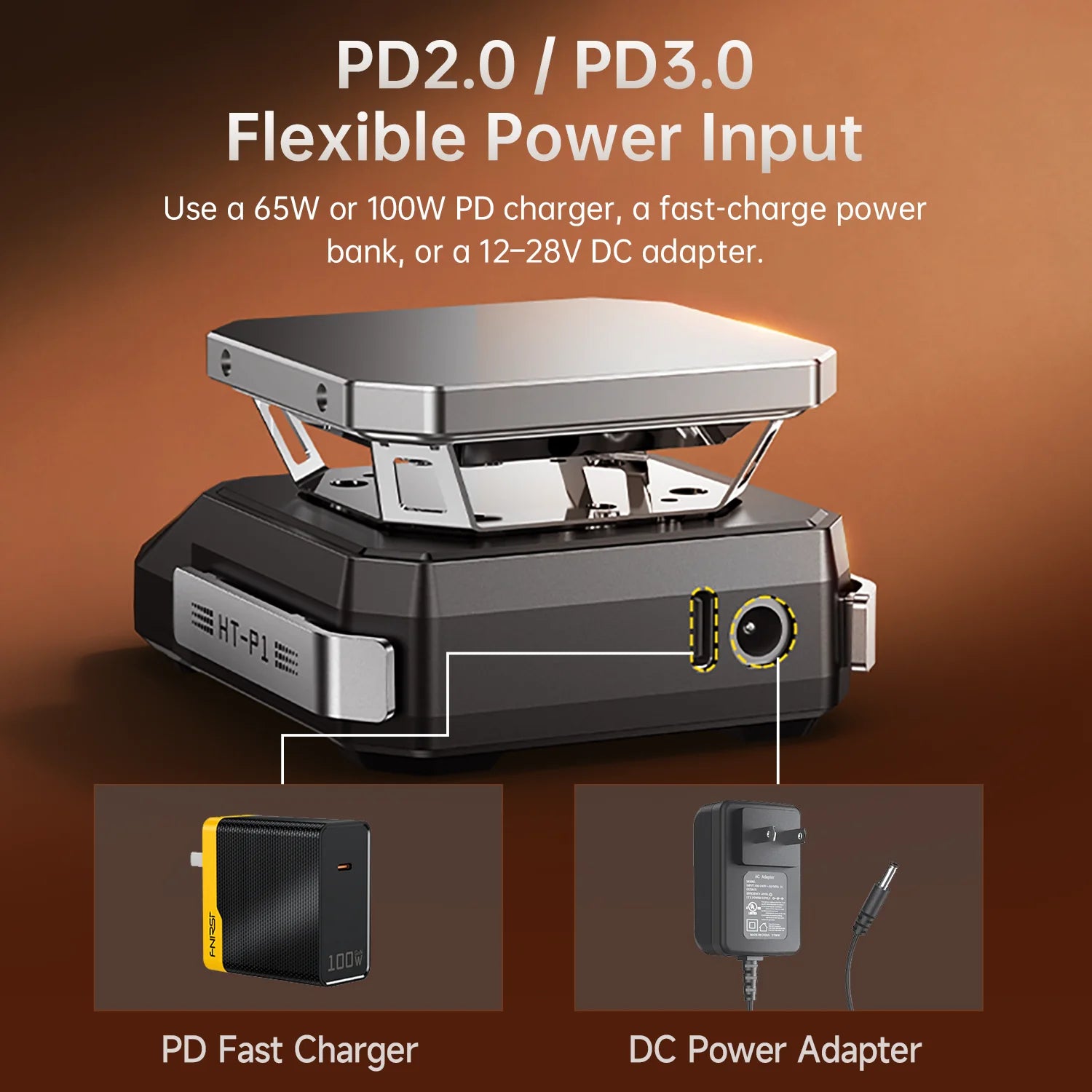

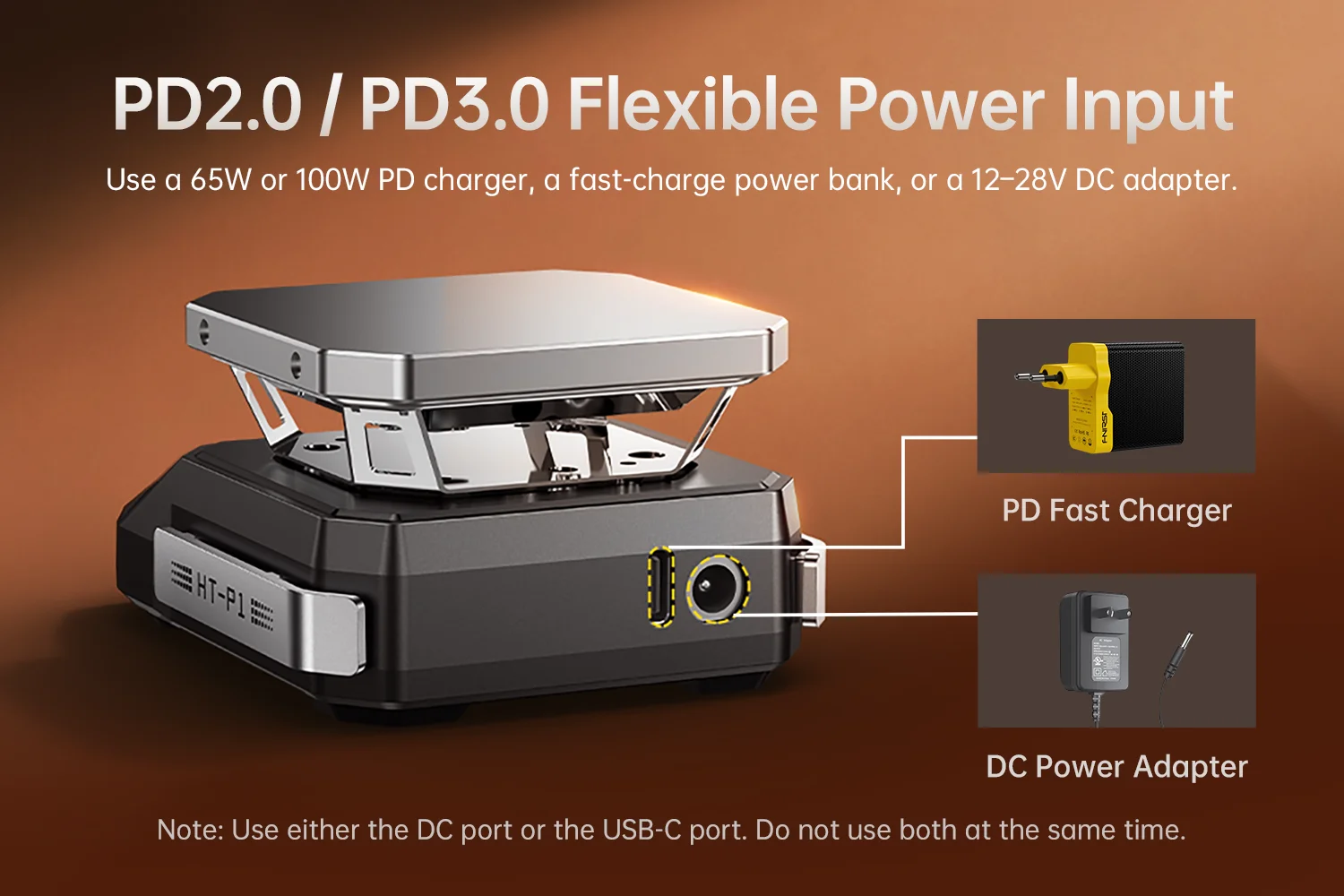

FNIRSI HT-P1 DC and USB-C PD power input options
DC and USB-C PD power input options

Package Options

Choose the package that matches your power setup and plug requirement.

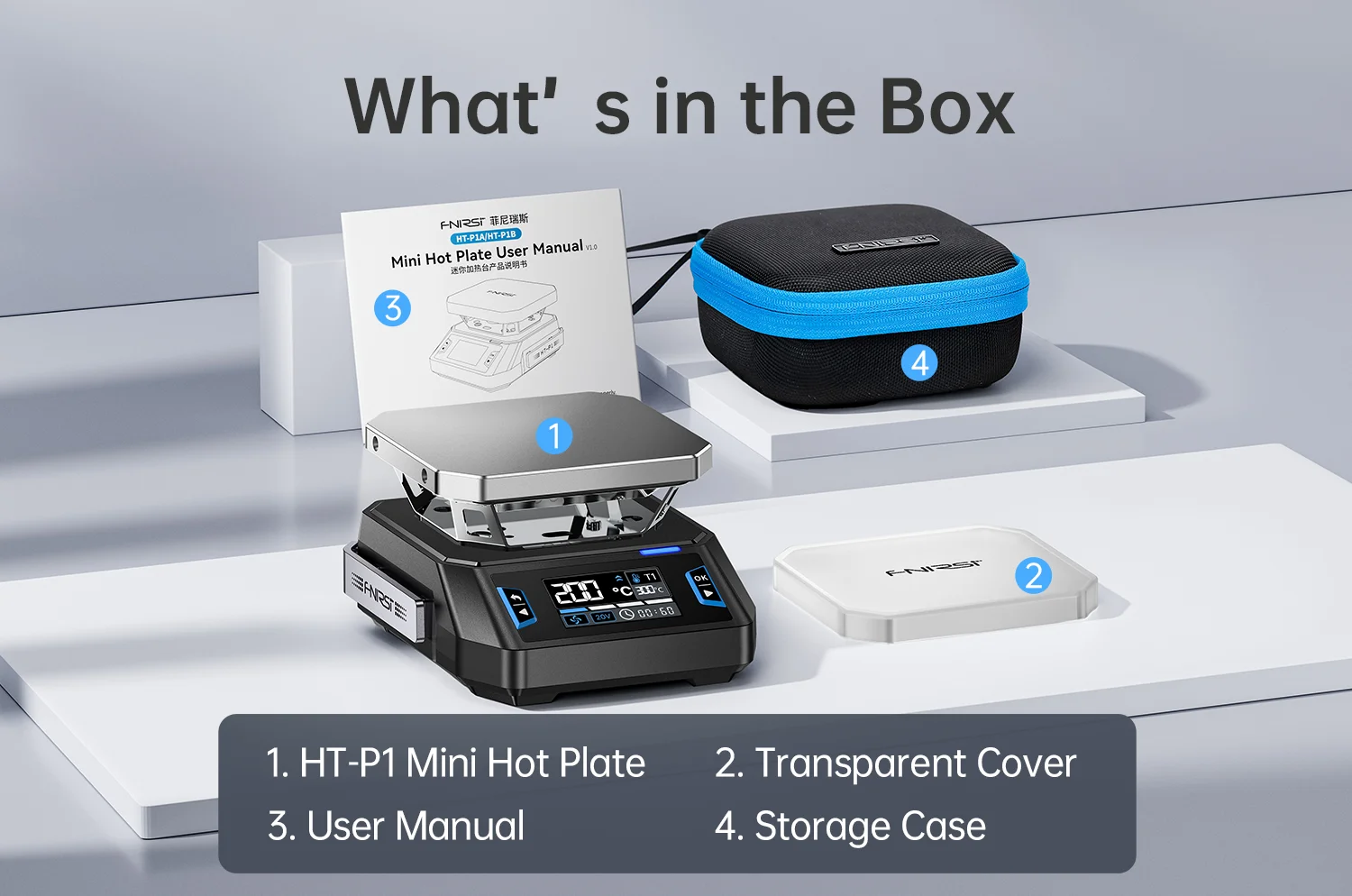

  • Standard set: HT-P1A or HT-P1B mini hot plate, heat-resistant silicone cover, user manual, and storage case.
  • EU / US Charge set: Standard set plus a 100W EU or US charger and a 100W USB-C cable.
FNIRSI HT-P1A standard set package contents
HT-P1A standard set package contents
FNIRSI HT-P1A EU charge set with 100W adapter and USB-C cable
HT-P1A EU charge set package contents
FNIRSI HT-P1A US charge set with 100W adapter and USB-C cable
HT-P1A US charge set package contents
FNIRSI HT-P1B standard set package contents
HT-P1B standard set package contents
FNIRSI HT-P1B EU charge set with 100W adapter and USB-C cable
HT-P1B EU charge set package contents
FNIRSI HT-P1B US charge set with 100W adapter and USB-C cable
HT-P1B US charge set package contents

Before Ordering

  • HT-P1A and HT-P1B have different USB-C PD protocol support. Select the model that matches your power source.
  • For Charge set variants, select the EU or US charger option according to your outlet type.
  • Heating performance depends on the selected power source, target temperature, PCB size, and working environment.
